4” LED NEW CONSTRUCTION HOUSING

The 19000A-LED-ID features Ideal® connections that allow for quick, snap-in connection of NICOR® 4” D-series LED downlights. Suitable for new construction in residential and commercial applications.



Specifications

  • Input Voltage: 120V
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
  • Washington State Energy Code approved to meet restricted airflow requirements

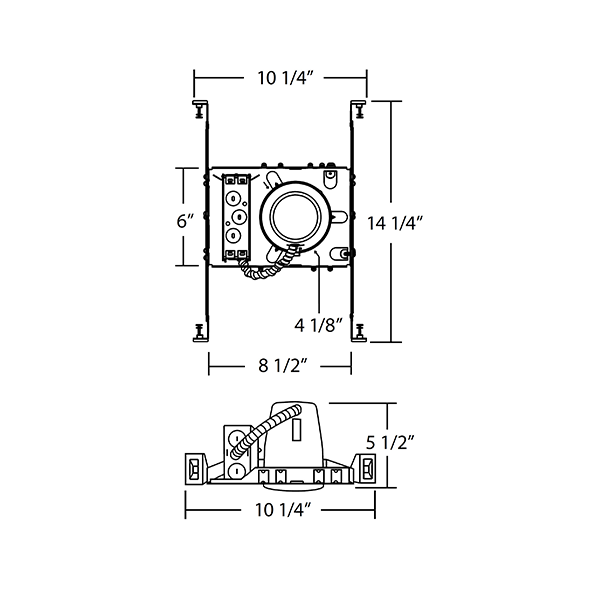

  • 5½” height allows use in 2” x 6” joist construction
  • Housing adjusts from ½” to 1½” to accommodate ceiling thickness
  • Listed for through-branch circuit wiring and includes several ¾” knockouts
  • Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
  • Unique hanger bar lip design helps align can to joist
  • Four double-headed captive nails provide for ease of installation
  • Bars can be repositioned 90° on plaster frame without tools
  • Score lines allow bars to be shortened without tools to accommodate a 12” joist span



Part Number:

19000A-LED-ID
