18304XX Series

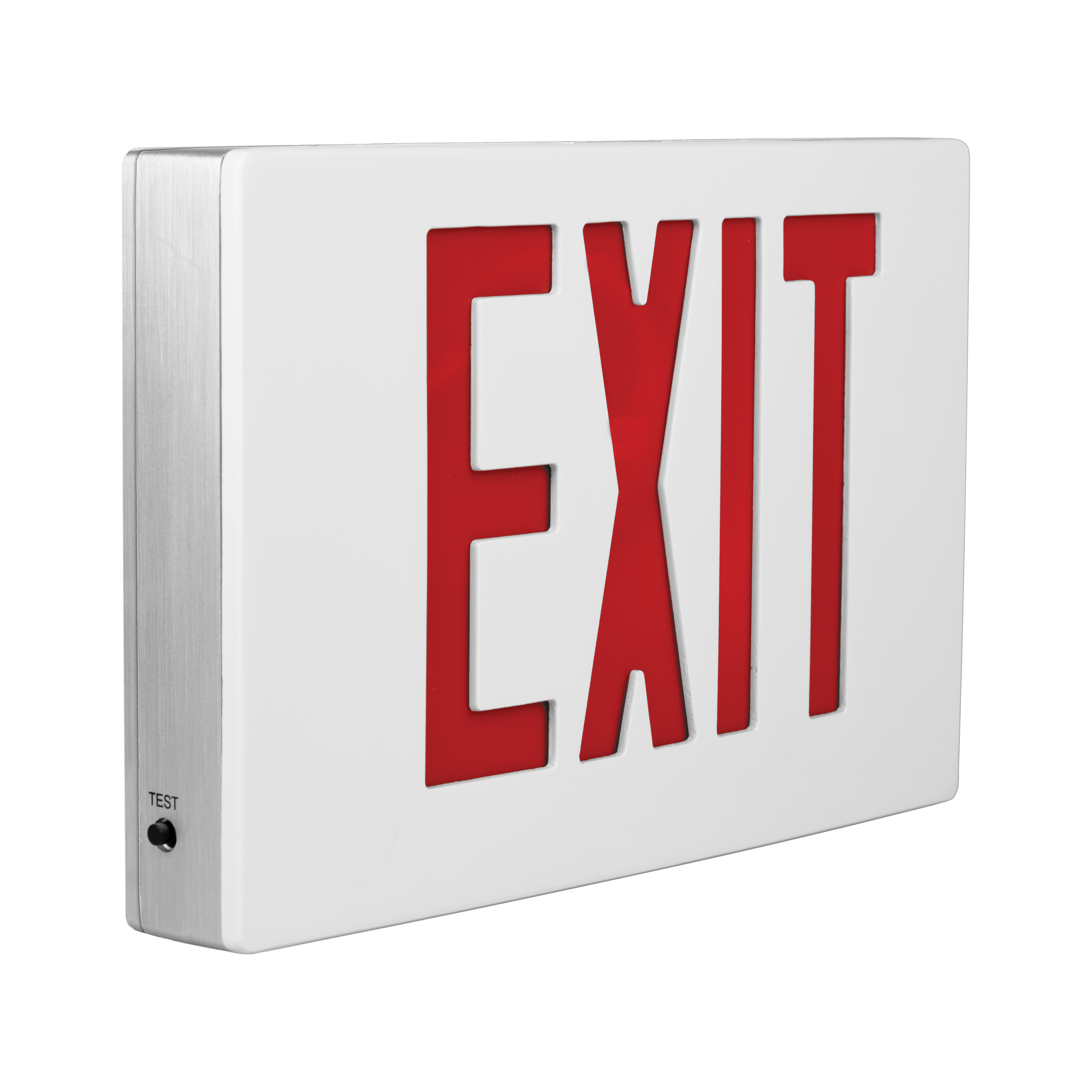

Single-Sided Aluminum LED Exit Sign with Red Lettering and Emergency Backup
Product description
This cast aluminum exit sign combines a curved face design with long-life and energysaving LED technology in an affordable package. The 18304 offers a universal wall mounting knockout pattern and premium high-output ultra-bright LEDS. This fixture comes in AC only and battery-backup options. The 183…
This cast aluminum exit sign combines a curved face design with long-life and energysaving LED technology in an affordable package. The 18304 offers a universal wall mounting knockout pattern and premium high-output ultra-bright LEDS. This fixture comes in AC only and battery-backup options. The 18304 is a perfect modern LED design for your project.
- Cast Aluminum Construction
- High-Output LED Illumination
- Dual Voltage
- Curved Face Aesthetic
- Universal Mounting + Configurable Design
Color Options:
Ordering information
Downloads
Specifications
-
Wattage3
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 924 (Emergency Lighting)
- Damp-Location
Features
Construction
- Cast aluminum
- Selectable Red or Green text with 6” letter height
- Single or double face configuration
- Universal canopy included
- Curved face design
- Universal knockout chevrons
Electrical
- Built-in wiring channel
- 120/277VAC transformer
- Premium grade Ni-Cad rechargeable battery with EM option
Installations
- Universal wall-mounting knockout pattern
- Side or top mount
Full Listings
- cULus924 Listed
Warranty
- 5-year/50,000 hours operating time warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
