IMS: Illumination Management System

An Enterprise Level DALI Lighting Control System


Enterprise-grade and designed to scale.

Power and communication carried on the same cabling, so less material.


Power and Communication via one wire

Every device connected, powered, and communicating in both directions, from install through operation.

TAKE CONTROL OF YOUR FACILITY’S LIGHTING WITH THE
ILLUMINATION MANAGEMENT SYSTEM


Suitable for Industrial Environments

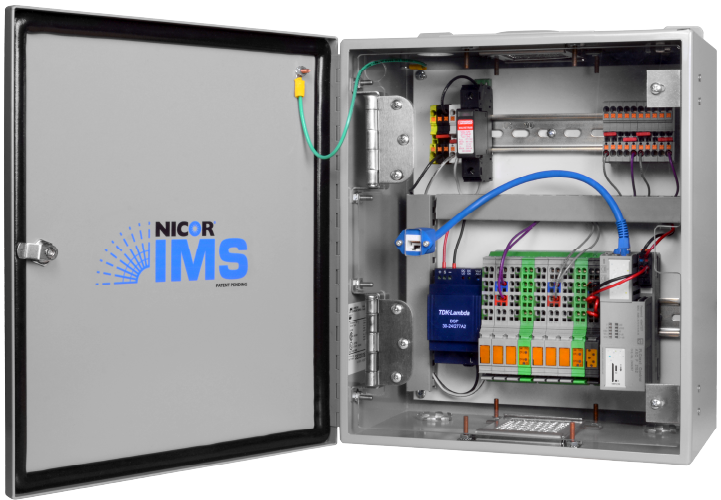

Your project may demand a more rugged solution and the IMS can handle it. Built with a 14-gauge steel NEMA1 enclosure, it has the proper protection to keep it safe in warehouses, data centers, mills, and more. The polycarbonate high-voltage cover eliminates the need to perform LockOut, Tag-Out procedures for cabinet commissioning.

High Temperature Tested + Rated

The IMS cabinet design prevents overheating and loss of lighting in ambient temperature environments up to 40°C (104°F).

Security

Lighting controls shouldn’t leave you vulnerable. The IMS works with a fully closed-circuit system to remove the threat of digital intruders.



Simple Commissioning + User Interface

Easily control every aspect of your facility’s lighting from zoning, scene control, and commissioning of new fixtures and control devices. Everything can be efficiently managed from the easy-to-use User Interface.



Flexible Programming

ZONES
Control aisles, rooms, or other groups of fixtures and control devices systematically through the IMS zoning system. Zones provide an effective way to manage luminaires at scale. Easily fine tune the lighting operation and behavior in any space.

SCENES
Scenes allow you to trigger programmed sets of fixtures to a preset lighting level. When commissioning a scene, each fixture can be set to a unique light level while also being scheduled to reach that level at a designated time.

MANAGE EVERY BUILDING FROM ONE PLACE WITH THE
MASTER CONTROL UNIT


Centralized System Management

One building or an entire campus, the MCU brings it all together. This software platform consolidates multiple IMS controllers into a single network, so controllers, zones, fixtures, and input devices can be organized by building, floor, or room and managed from one lighting control interface.

Works With Industry-Standard Devices

The MCU integrates with DALI-1 and DALI-2 devices, DALI LED drivers and luminaires, 0–10V fixtures (with converter), occupancy sensors, photosensors, push-button and dry-contact inputs, and relay and plug-load control devices.

Visual Commissioning + User Interface

See your facility the way it’s built. Import floorplans in PNG, JPG, or PDF format, then use the drag-and-drop graphical editor to place, address, and control fixtures in real time. Automatic device discovery and zone templates make setup faster than ever.



Smart Automation

SCHEDULING
Automate lighting building-wide or by zone with time clock, sunrise/sunset, and holiday scheduling. Priority rankings make sure the right event wins when schedules overlap.

MONITORING + MAINTENANCE
Stay ahead of issues with real-time diagnostics, device fault reporting, energy usage tracking, and detailed gateway and system logs. Email alerts are available with an upgraded software license.
