IMS3SWDS Series
IMS Enabled DALI-2 Touch Sensitive Glass Wall Panel Control
Product description

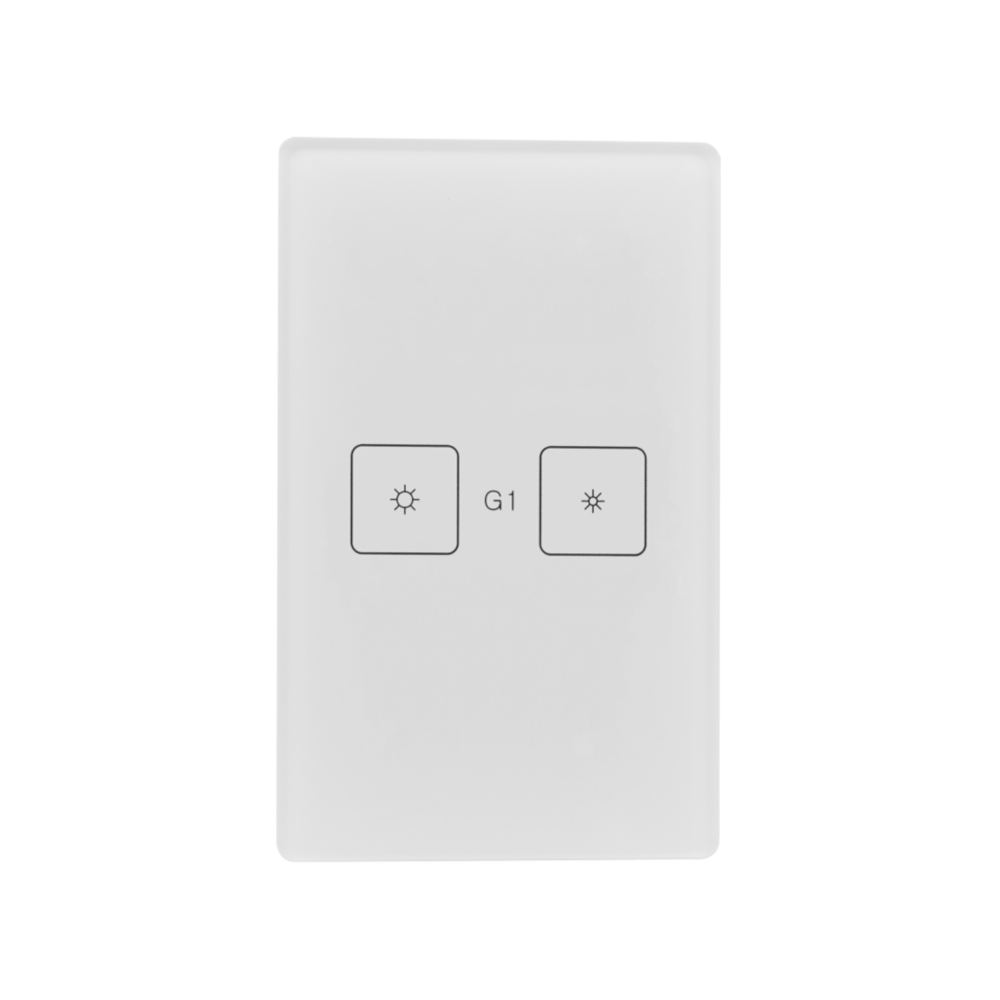

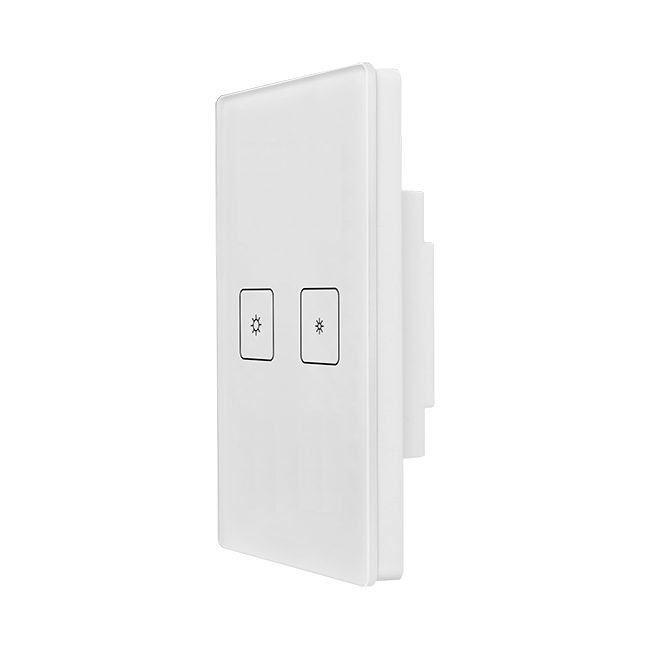

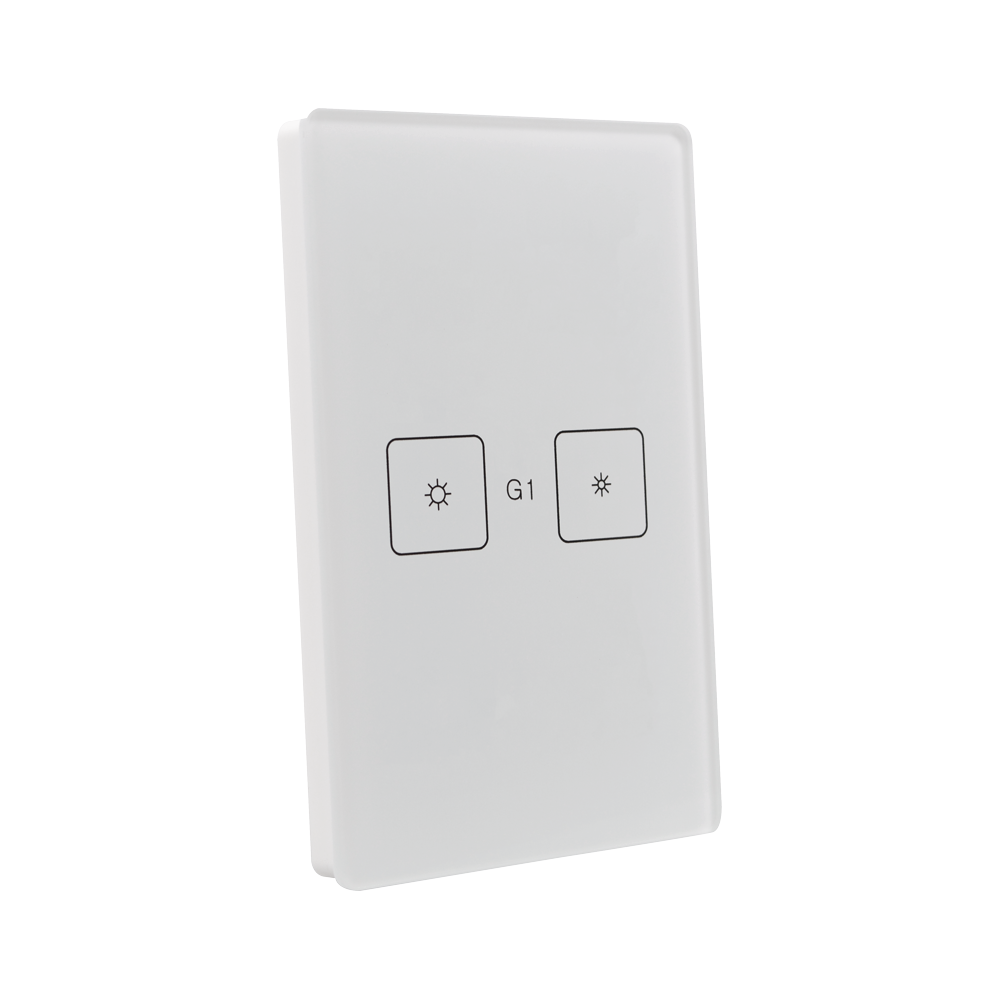

The IMS3SWDS is a touch sensitive, glass front DALI-2 wall panel control device. Compatible with the NICOR IMS 3.0, it controls IMS enabled fixtures with on-off and dimming. This switch can control a single DALI-2 group.
- Touch-sensitive glass interface for modern wall control
- Controls on/off and dimming for a single DALI-2 group
- Powered via DALI-2 bus with low power consumption (<20mA)
- Compatible with IMS 3.0 lighting control systems
- Fits standard single-gang wall box for straightforward installation
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- DALI Alliance Certified
- RoHS Compliant
Other Certifications
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
Features
Construction
- Polycarbonate body
- Semi-Gloss finish
- Glass front interface

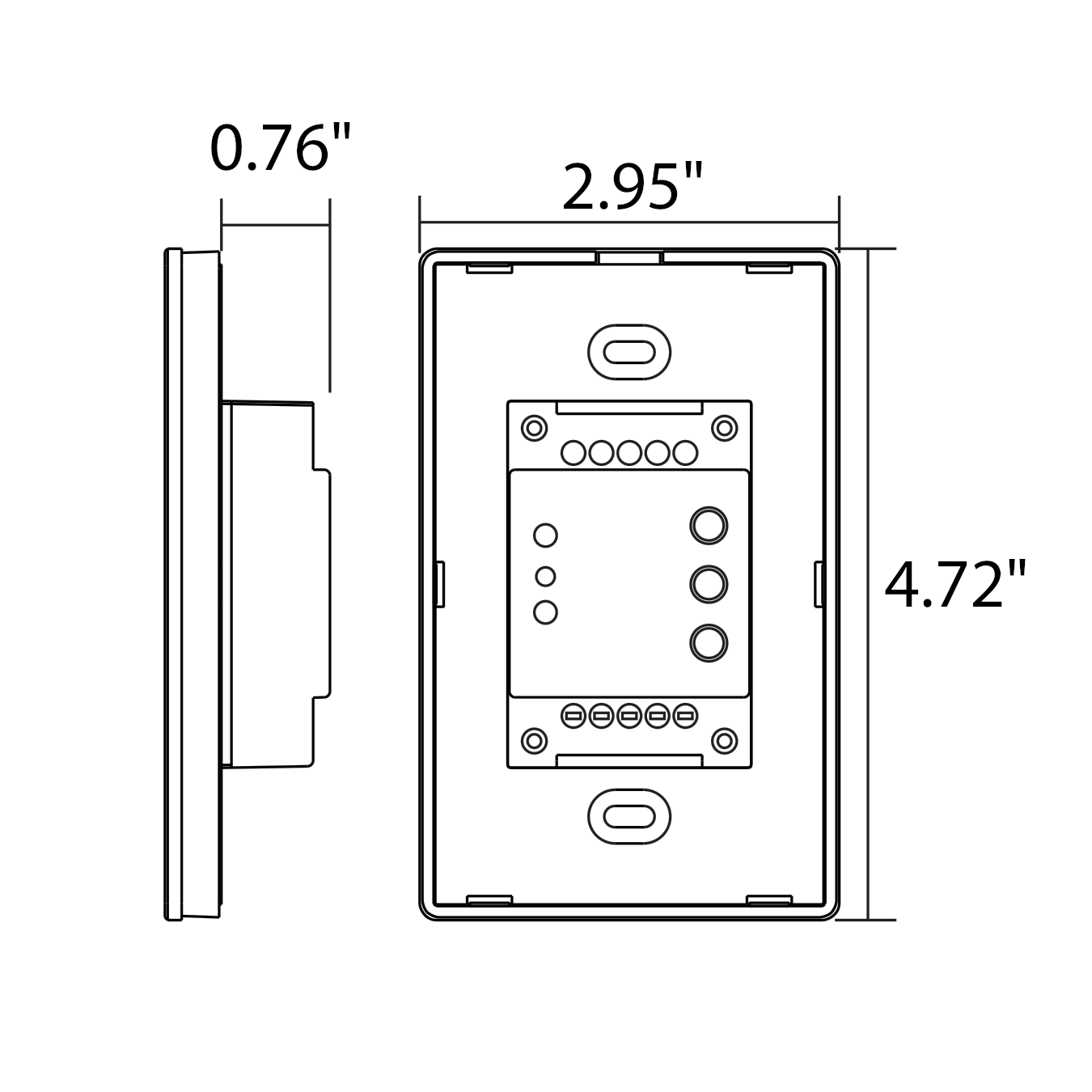

- Dimensions : 3.0” x 4.7” x 1.5” (75mm x 120mm x 29.1mm)
Electrical
- Input/Output: DALI-2
- Powered via DALI-2 bus (DALI-voltage according to IEC 62386 (2014))
- Power consumption < 20 mA
- DALI consumption 4 mA
Installations
- Installs into standard single gang box
Full Listings
- DALI Alliance Certified
- RoHS Compliant
- Operating temperature 32°F to 104°F (0°C to 40°C)
- Relative humidity 8% to 80%
Warranty
- 3-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
