IMS Enabled DALI-2 Multi-Sensor

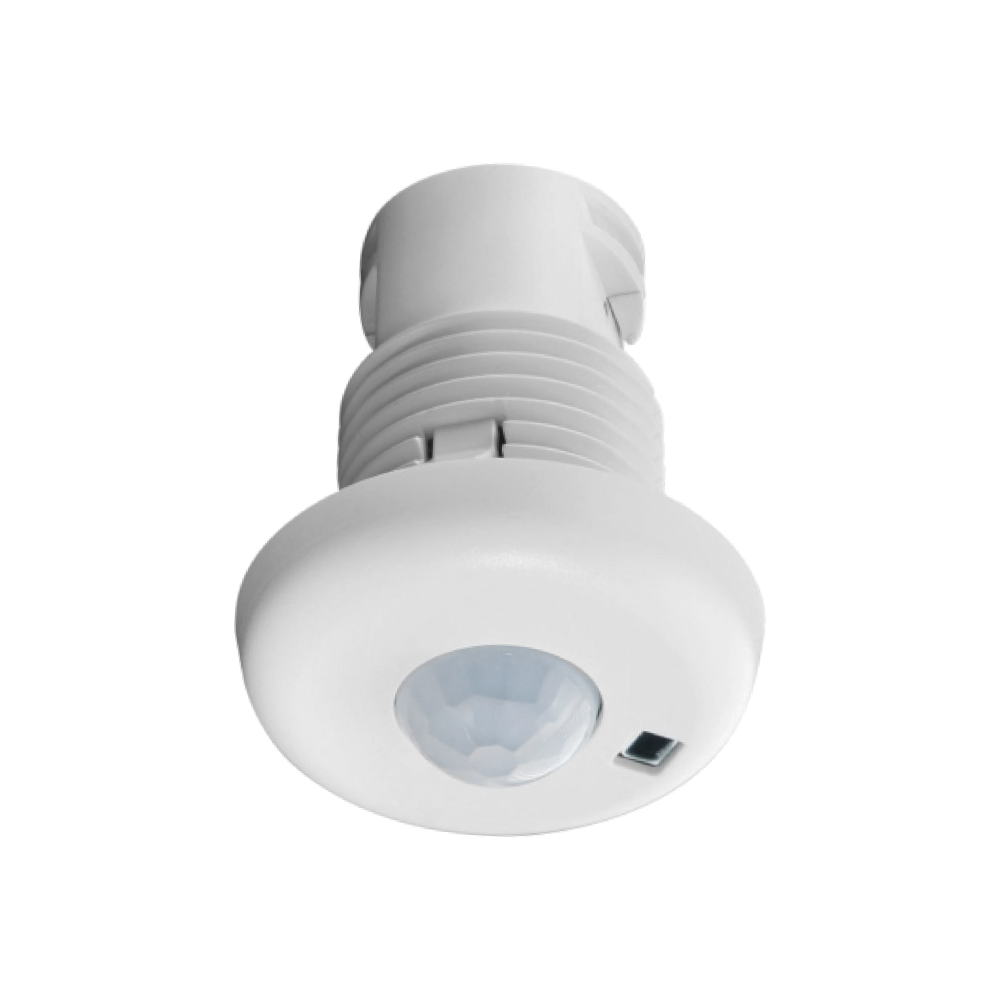

The IMS3PIRINT fixture-integrated multi-sensor is a DALI-2 device that combines both a motion sensor and a light sensor. It detects motion and measures illuminance levels, seamlessly working with DALI LED drivers or luminaires. This sensor is directly integrated into the fixture using a 1/2” knockou…
The IMS3PIRINT fixture-integrated multi-sensor is a DALI-2 device that combines both a motion sensor and a light sensor. It detects motion and measures illuminance levels, seamlessly working with DALI LED drivers or luminaires. This sensor is directly integrated into the fixture using a 1/2” knockout, enhancing occupant comfort and achieving significant energy savings that comply with stringent building energy codes. Ideal for low bay applications requiring sensor-based automation, the DALI-2 multi-sensor ensures efficient and automated lighting control.
- Combines motion detection and daylight sensing in a compact, fixture-integrated design
- Direct integration via 1/2” knockout for seamless luminaire installation
- Enables energy savings and compliance with building energy codes
- DALI-2 powered with low current draw (6mA max)
- Optimized for low-bay applications with 130° detection angle and ~5m range
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
- DALI Alliance Certified
- RoHS Compliant
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
Features
Construction
- ABS material
- White finish
Electrical
- Powered via DALI bus (DALI-voltage according to IEC 62386(2014))
- 6mA max current draw
- Status indicator: Red (motion detection)
- Status indicator: Green (DALI)
Installations

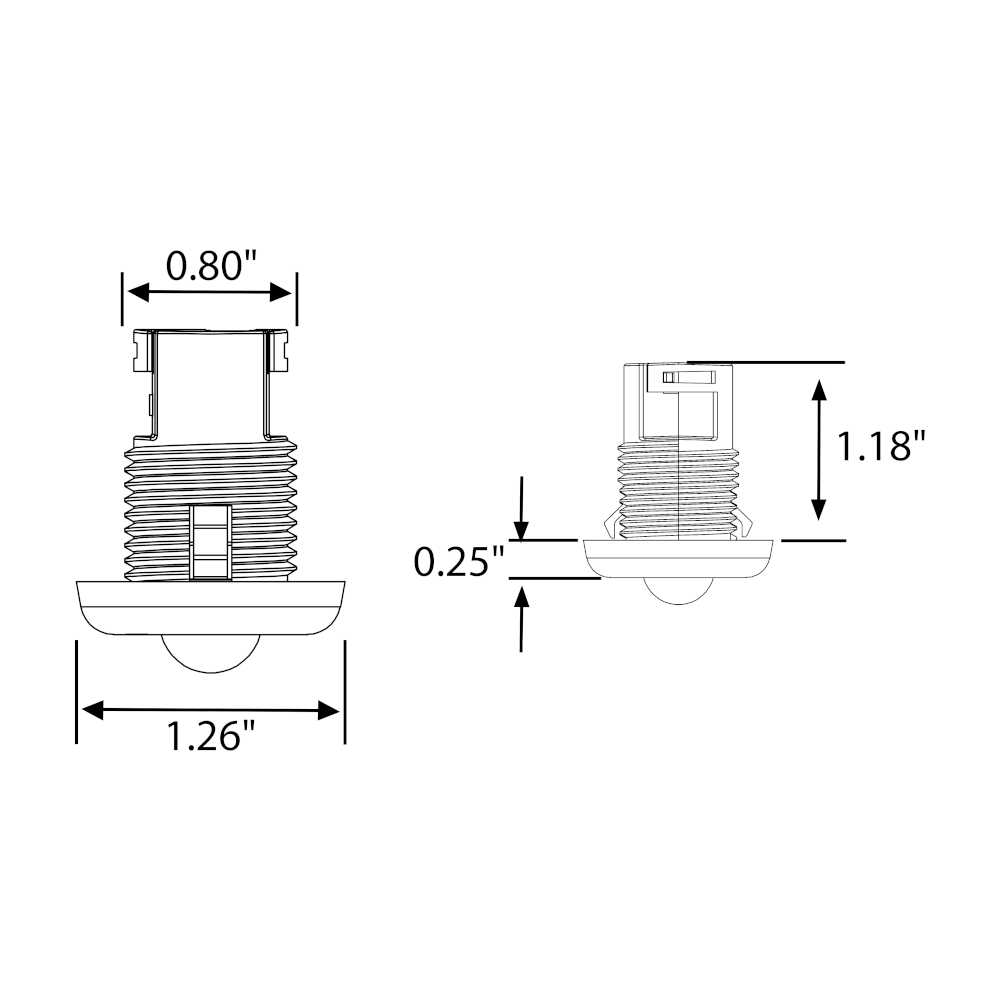

- 1/2” trade size knockout
Full Listings
- DALI Alliance Certified
- RoHS Compliant
- Operating Temp 32°F to 104°F (0°C to 40°C)
- Operating Humidity 0-95% (non condensing)
Warranty
- 3-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
