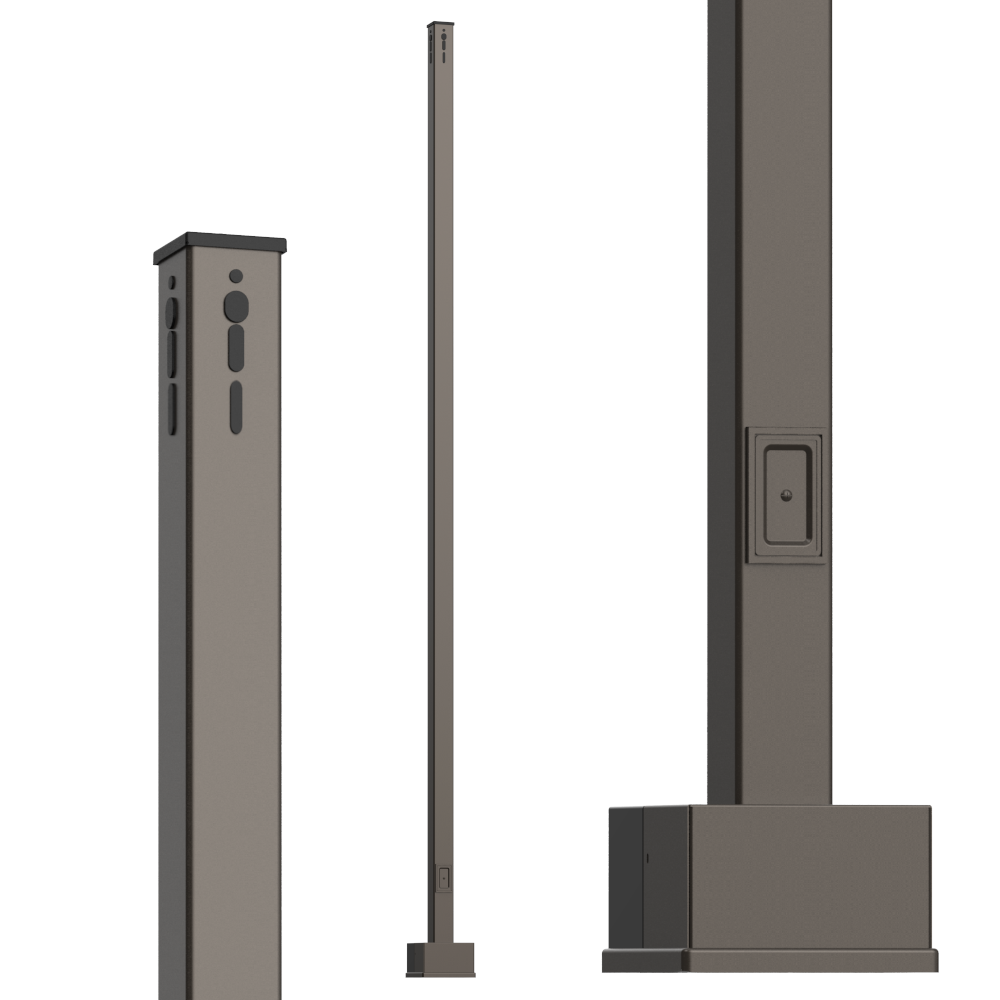

OPLv2 Series 4-inch Bronze Square Steel Pole
The OPL4v2 4-inch square straight steel poles are engineered for commercial, municipal, and industrial area lighting applications. The pole shaft is fabricated from high-grade structural steel tubing conforming to ASTM A500 Grade C specifications with an 11-gauge (.120”) wall thickness and minimum y…
The OPL4v2 4-inch square straight steel poles are engineered for commercial, municipal, and industrial area lighting applications. The pole shaft is fabricated from high-grade structural steel tubing conforming to ASTM A500 Grade C specifications with an 11-gauge (.120”) wall thickness and minimum yield strength of 50,000 PSI. The poles feature a fabricated carbon steel base plate (conforming to ASTM A36 standards), reinforced cast iron hand hole cover with grounding provisions, and a textured architectural bronze powder coat finish for long-term durability and corrosion resistance. The assembly also includes a removable pole-cap and a two-piece formed steel base cover for a clean finished appearance.

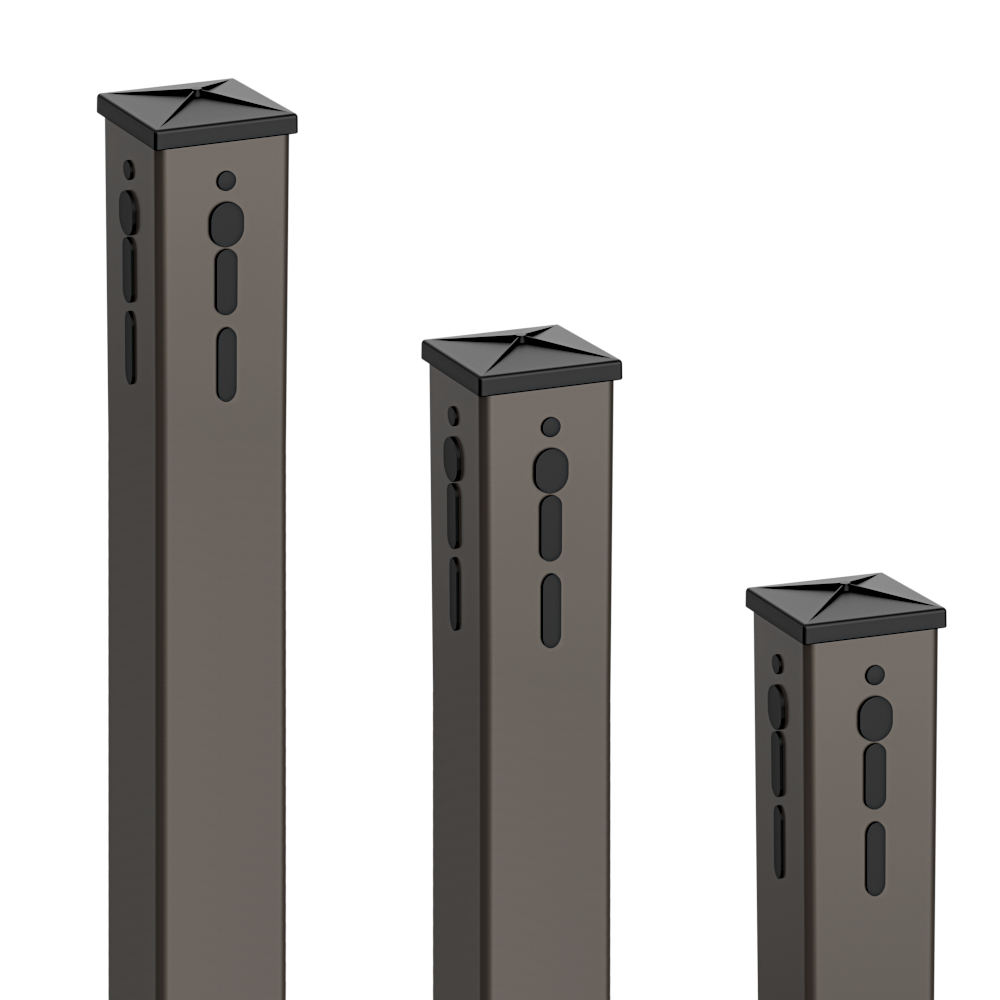

- Available in 15Ft, 20Ft, and 25Ft heights for various lighting applications
- Kits include hand hole cover, pole cap, and two-piece base cover (anchor bolts available separately)
- Constructed from ASTM A500 Grade C steel with 11-gauge wall thickness
- Textured architectural bronze powder-coat finish for enhanced corrosion resistance

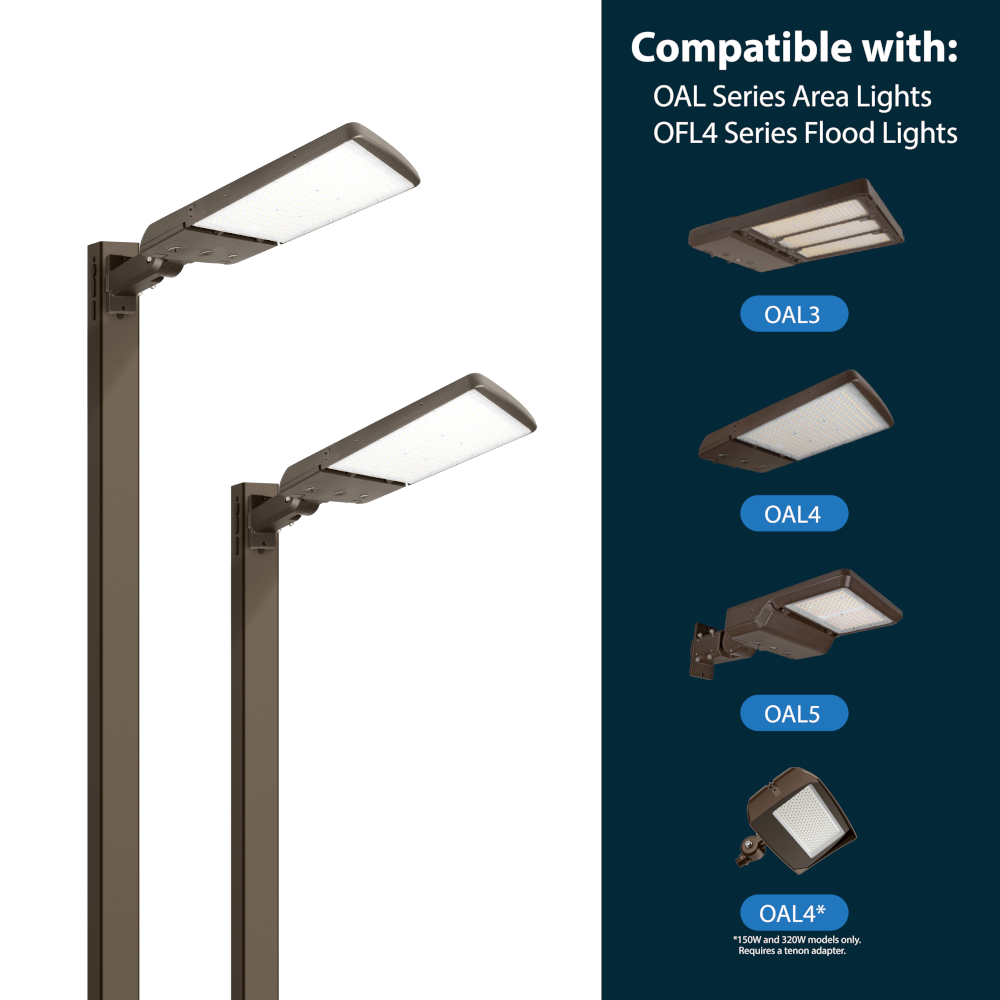

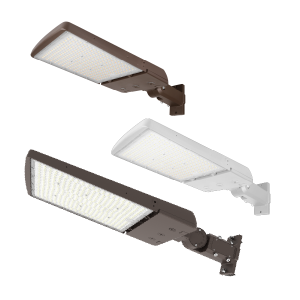

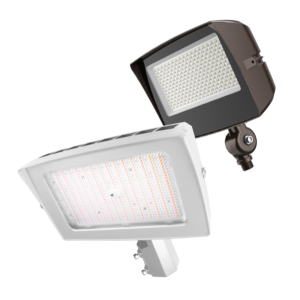

- Compatible with NICOR OAL Series Area Lights and OFL4 Series Flood Lights
Color Options:
Ordering information
Downloads
Specifications
Features

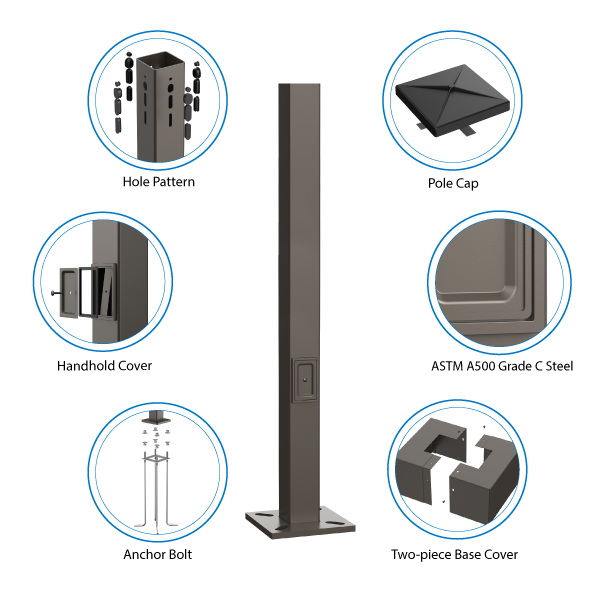

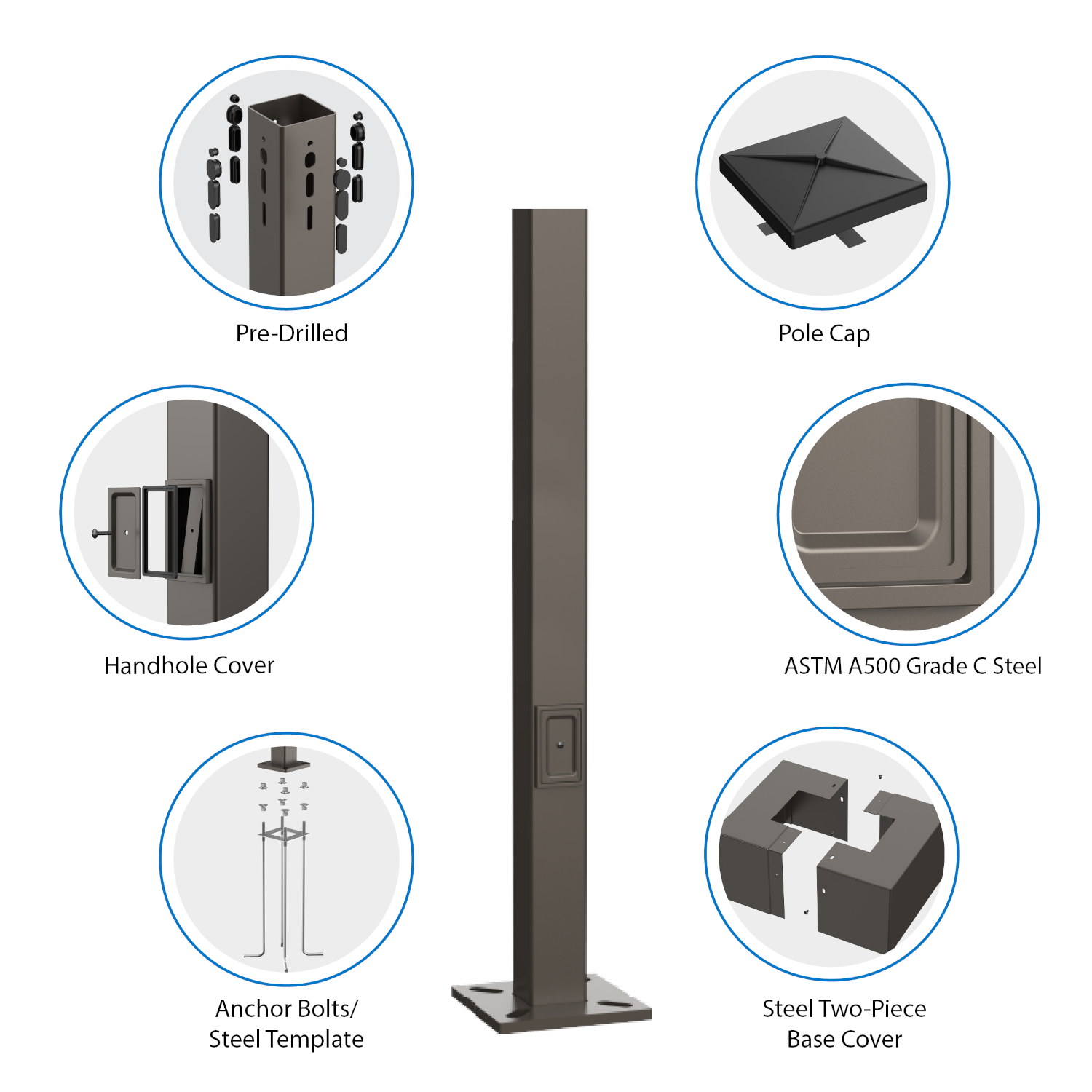

Construction
- Fabricated from high-grade structural steel tubing
- ASTM A500 Grade C steel shafts
- 11 Gauge (.120”) wall thicknesses
- Minimum 50,000 PSI yield strengths
- ASTM A36 fabricated carbon steel base plates

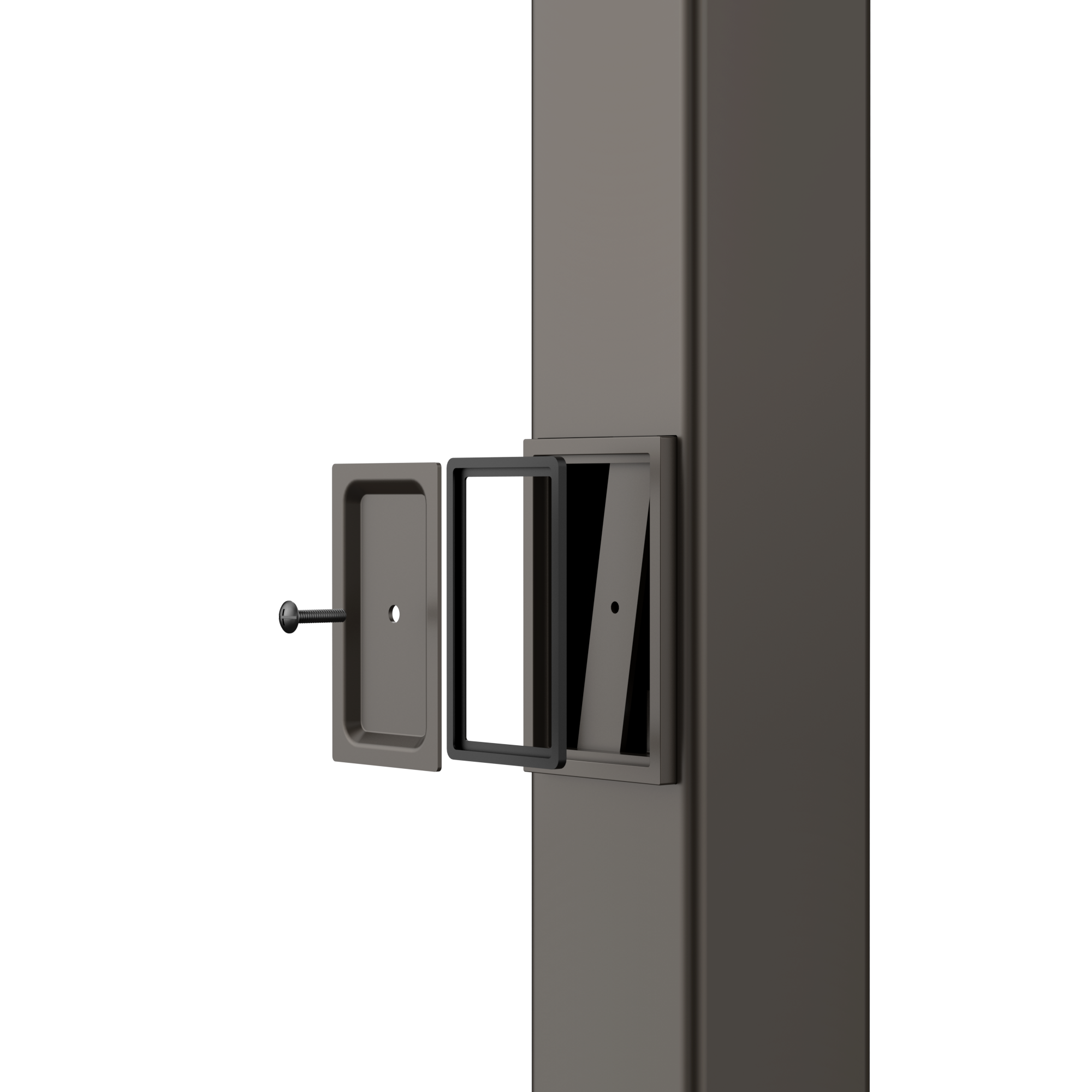

- Reinforced cast iron hand hole covers

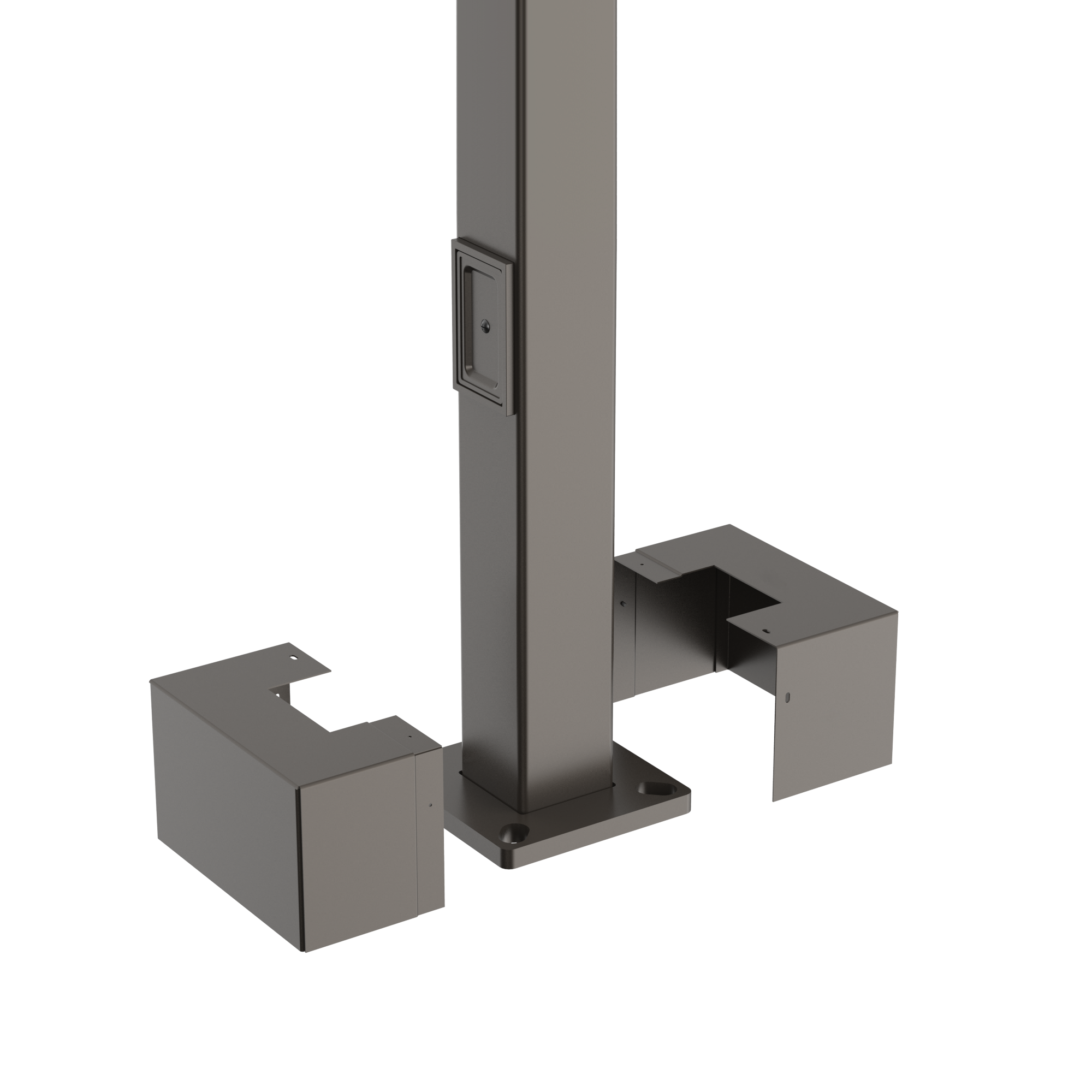

- Two-piece formed steel base covers
- Textured architectural bronze powder coat finishes
- Removable polycarbonate pole caps included
- Designed for commercial, municipal, and industrial lighting applications
- Removable rubber mounting plugs included
Electrical
- Integrated ground screws and backbars
- Reinforced hand holes for wiring access
- Standard 4-90 drilling configurations
- Optional tenon mount configurations available
Installations
- Designed for straightforward installations

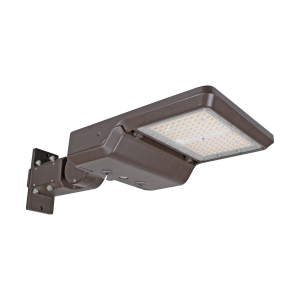

- Compatible with NICOR OAL Series LED Area Light fixtures

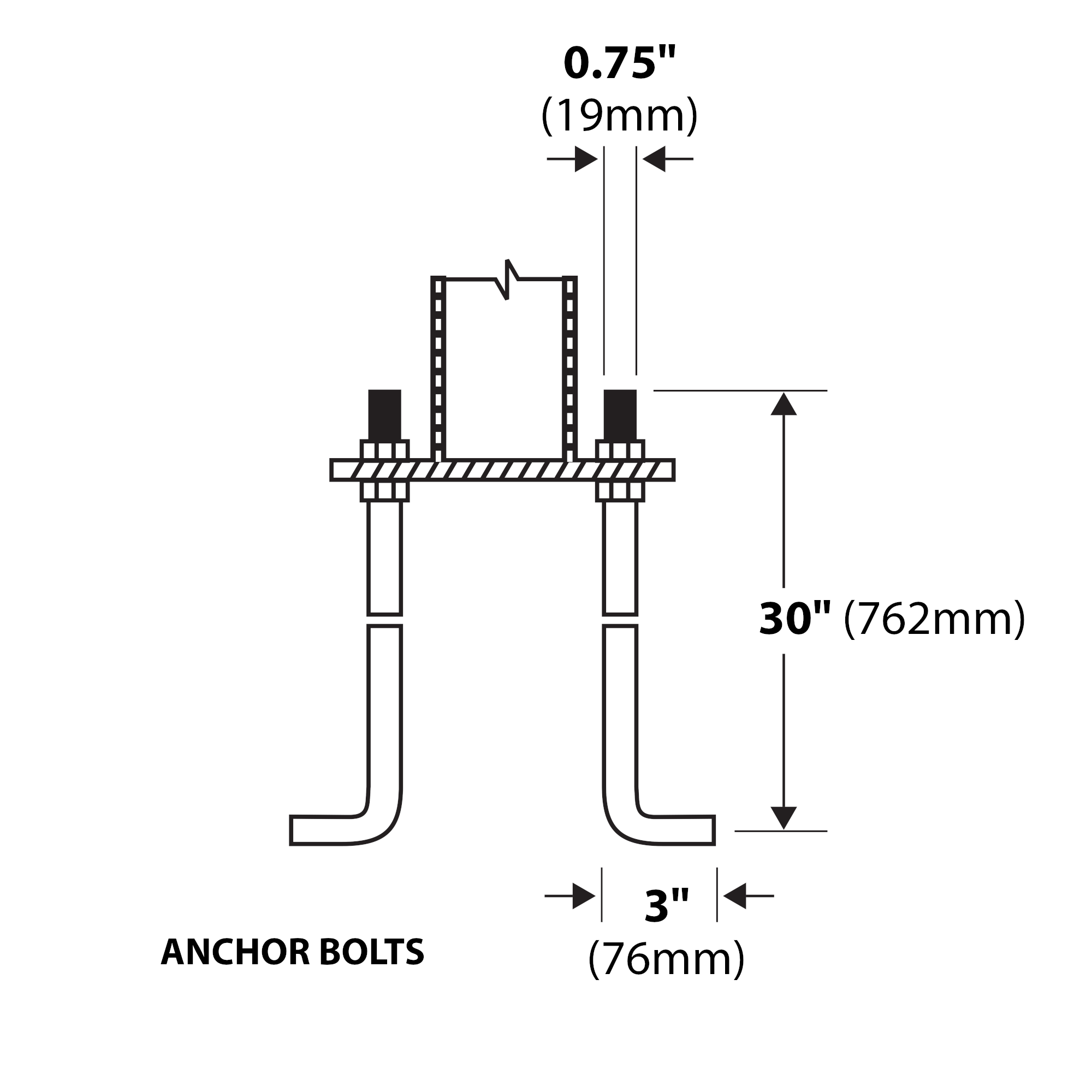

- Four (4) L-shaped galvanized steel anchor bolts (size 0.75x30x3) wih template available
- Anchor bolts conform to ASTM F1554 Grade 55 with minimum yield strength of 55,000 PSI
- 4-bolt mounting base configurations

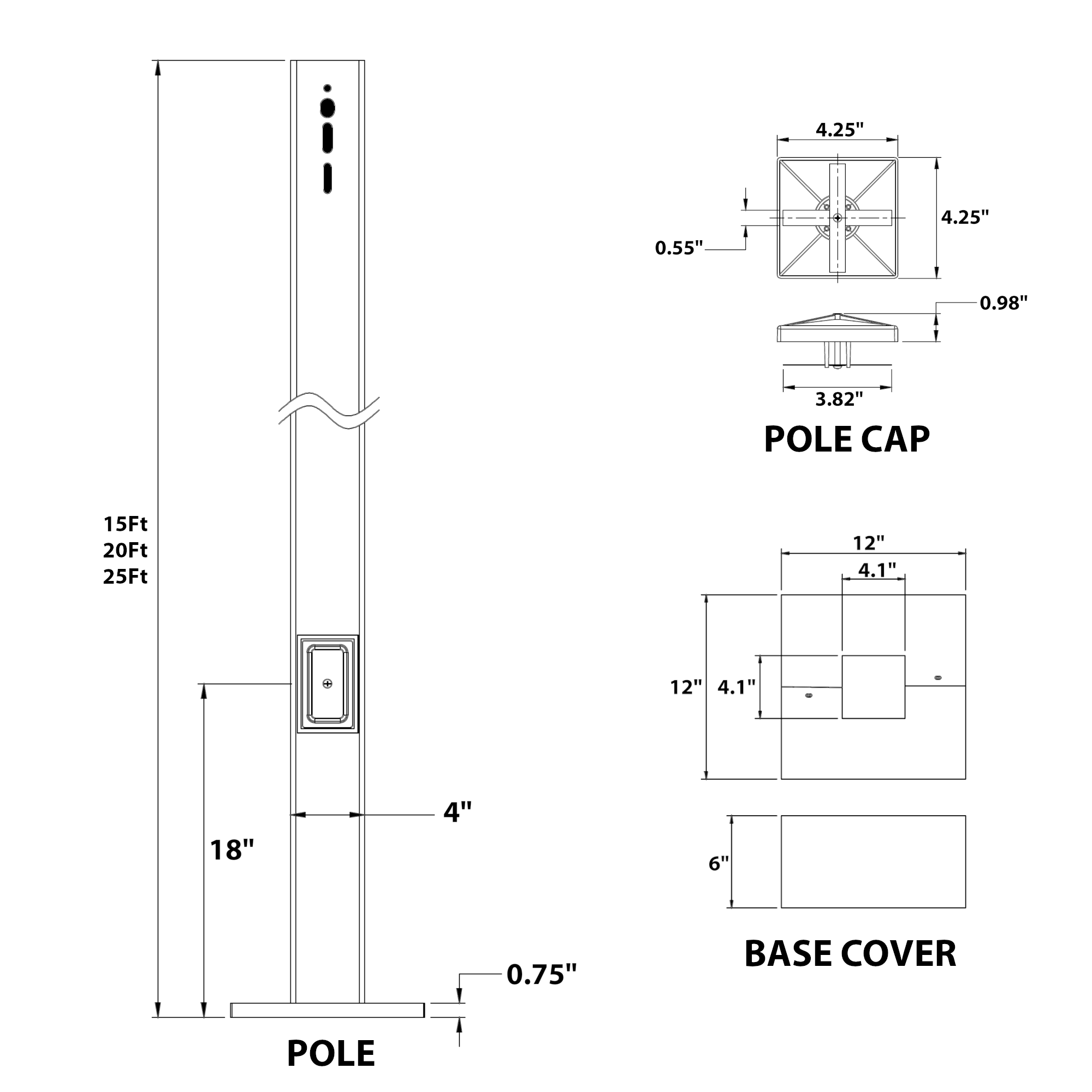

- Available in 15’, 20’, and 25’ heights
- Hand hole positioned 18” above base
Full Listings
- ASTM A500 Grade C steel shafts
- ASTM A36 carbon steel base plates
- ASTM F1554 Grade 55 anchor bolts
Warranty
- 5-year limited system warranty standard
