OPL Series 4-inch Round/Square Straight Steel Pole
The OPL4 pole series provides a durable and versatile foundation for outdoor area lighting installations. Available in both square and round profiles with mounting heights from 10Ft to 25Ft, OPL4 poles are manufactured from heavy-duty 11-gauge steel and feature reinforced hand-holes, galvanized anch…
The OPL4 pole series provides a durable and versatile foundation for outdoor area lighting installations. Available in both square and round profiles with mounting heights from 10Ft to 25Ft, OPL4 poles are manufactured from heavy-duty 11-gauge steel and feature reinforced hand-holes, galvanized anchor hardware, and a premium powder-coat finish. Multiple mounting configurations support a wide range of site lighting layouts, making the OPL4 an ideal solution for parking lots, campuses, pathways, and commercial outdoor environments.
- Compatible with NICOR OAL Series LED Area Lights
- Heavy-duty 11-gauge steel construction for long-term durability
- Available in square and round profiles up to 25Ft
- Premium powder-coat finish in bronze, white, or black

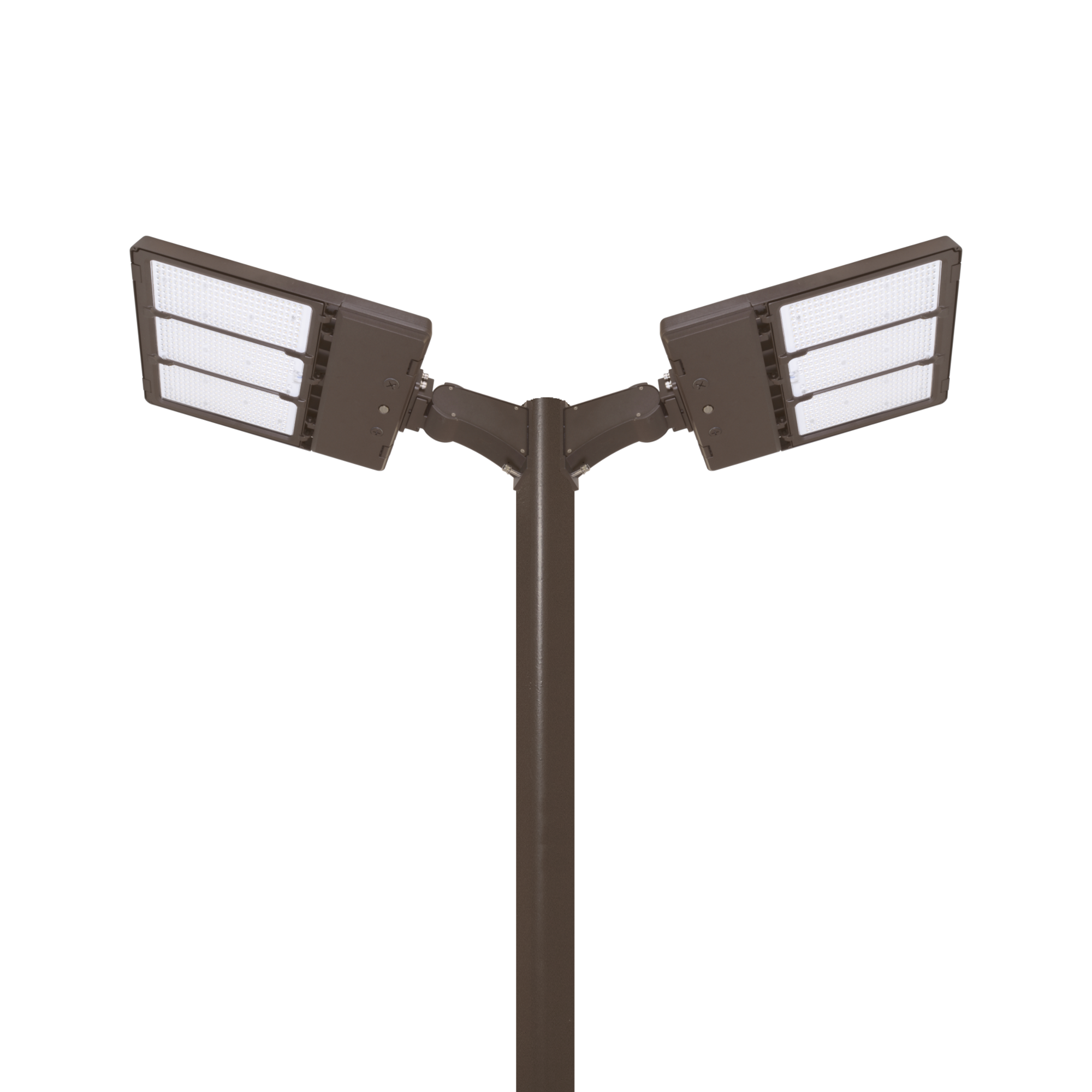

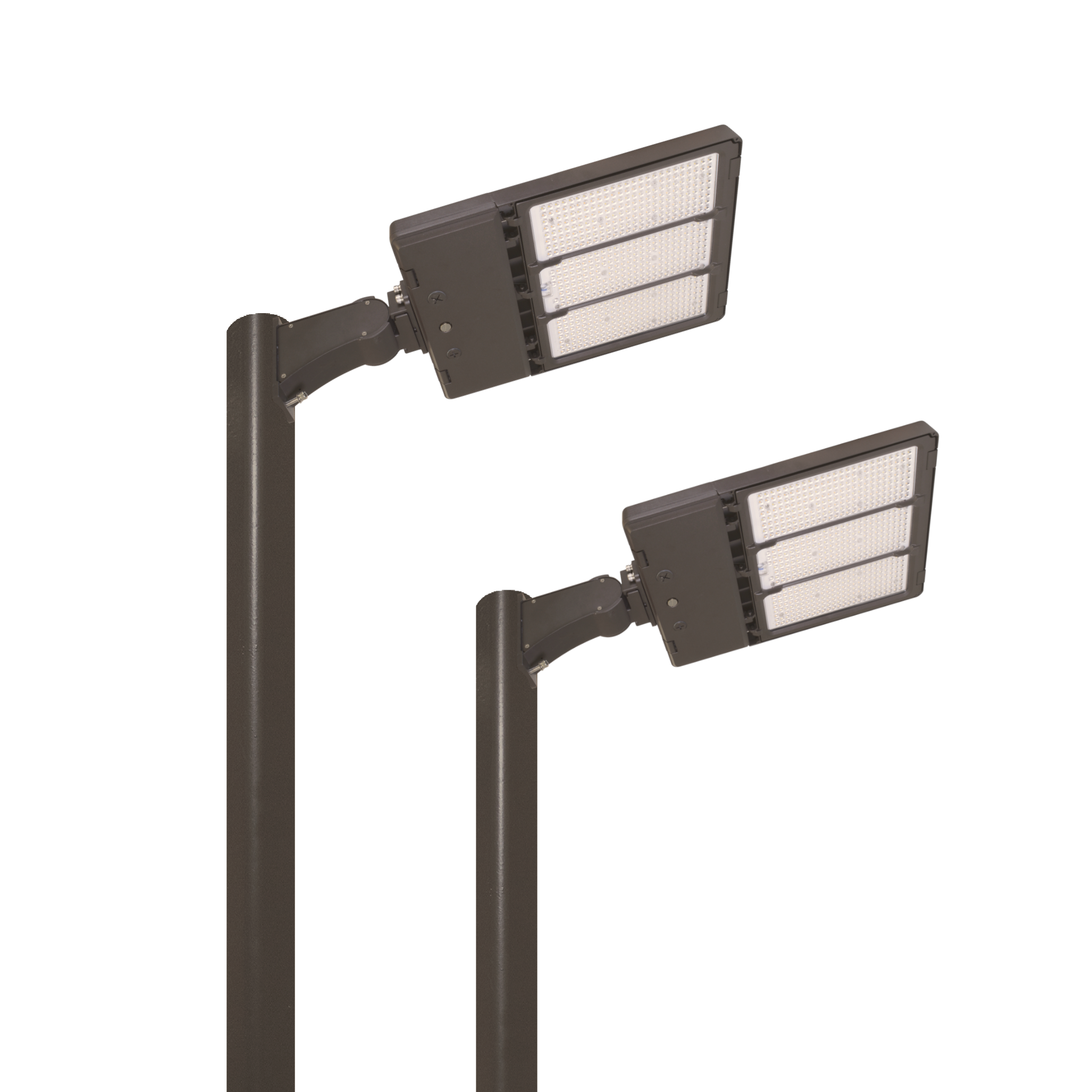

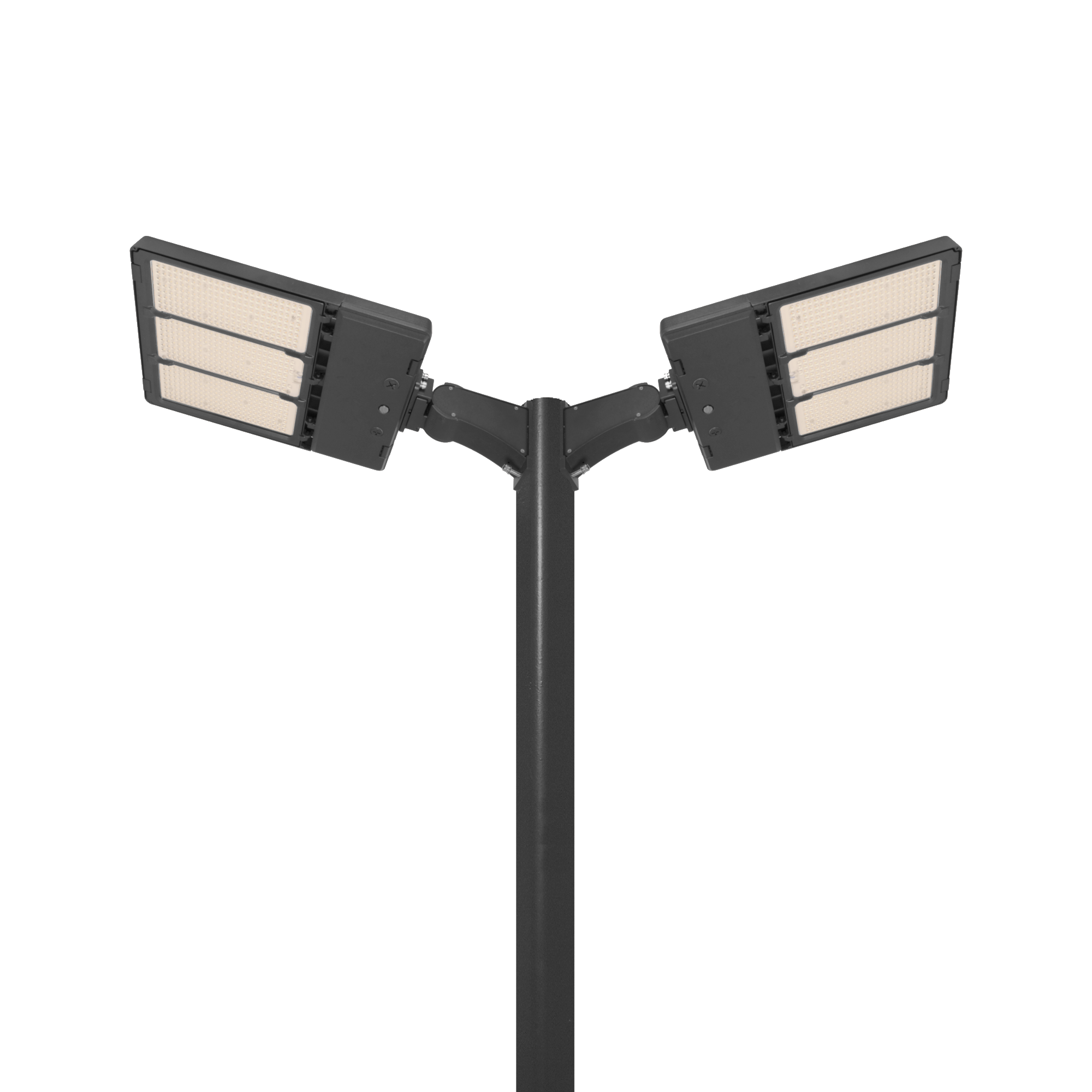

- Multiple mounting patterns support a variety of fixture layouts
- Compatible with tenon mounts and side-drill mounting applications

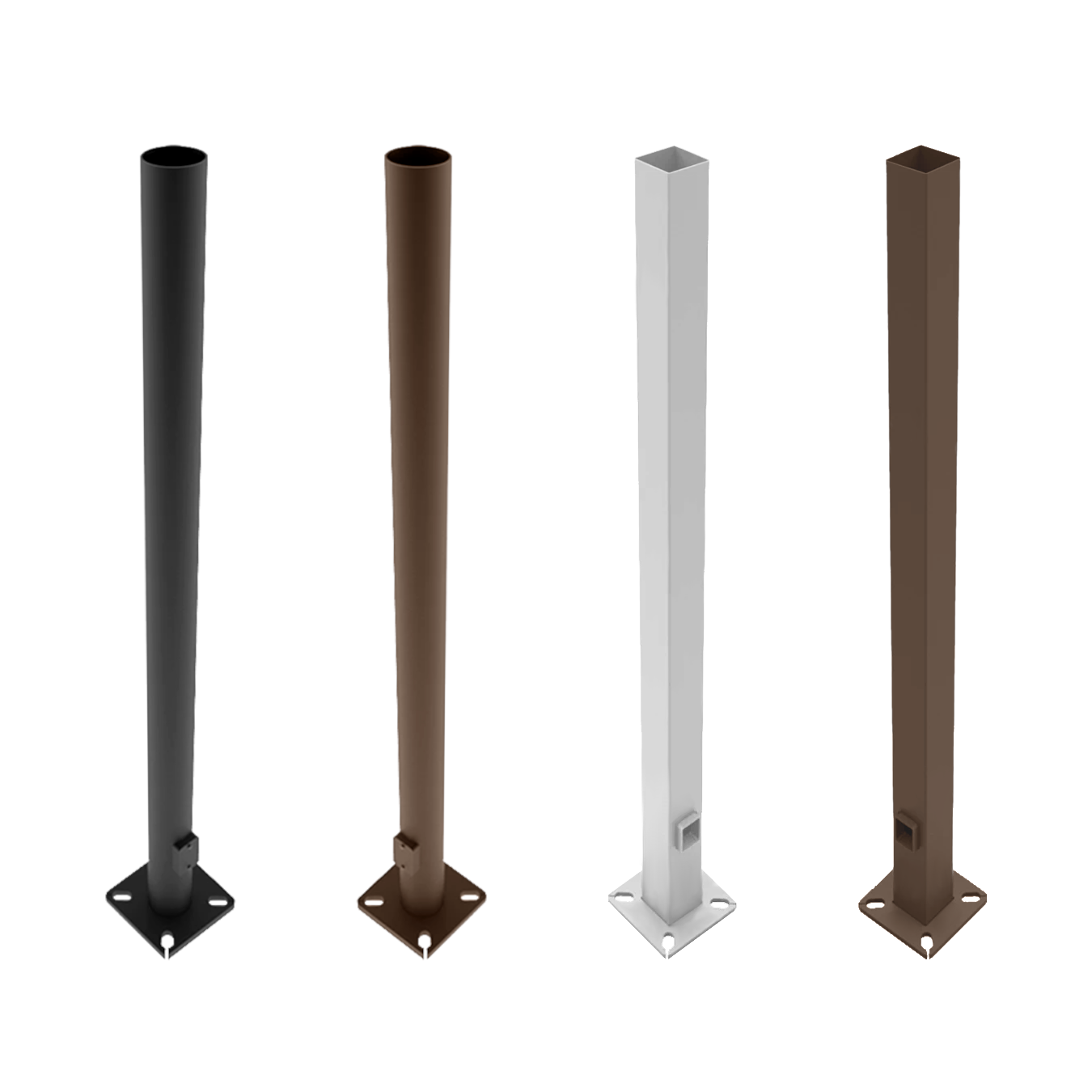

Color Options:
Architectural Bronze
Black
WhiteOrdering information
Downloads
Specifications
Listings & certifications
- Carbon steel tubing conforms to ASTM-A500 Grade B (11-guage)
- All welds conform to AWS D1.2 using ER70S-6 Electrodes
- Anchor bolts conform to AASHTO M314-90 Grade 55
- Anchor bolts galvanized per ASTM A153
Features
Construction

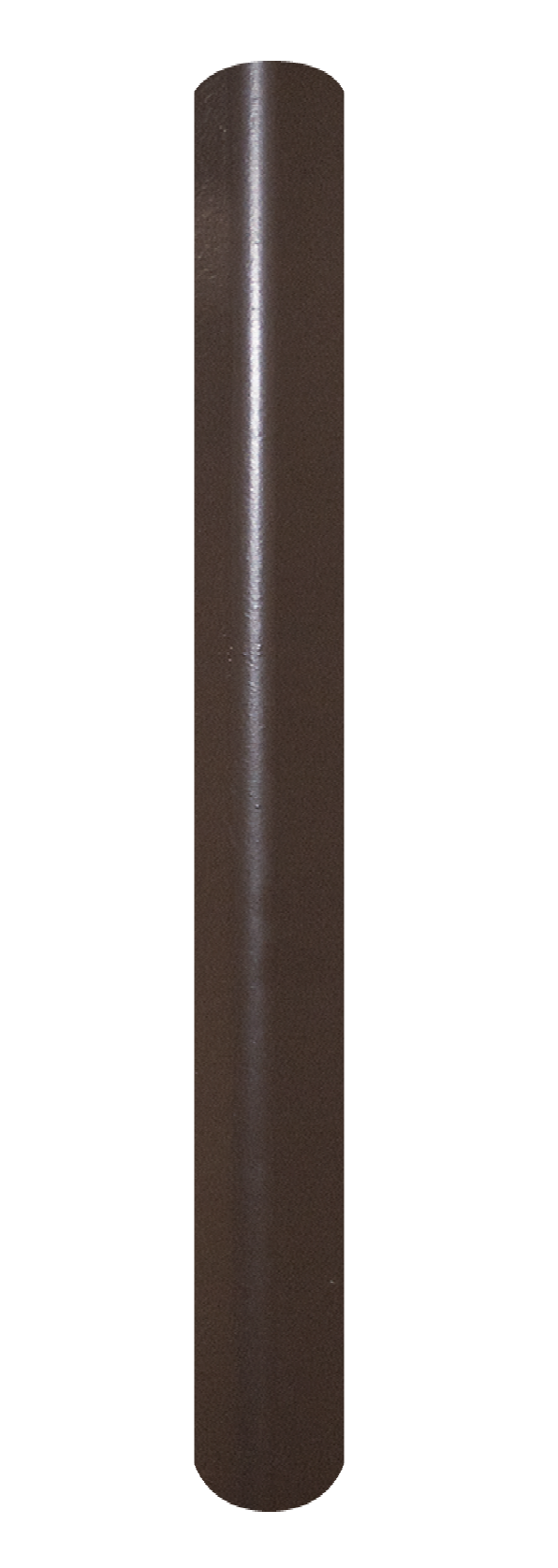

- Straight steel with round or square 4-inch diameter
- General purpose pole for up to 25Ft mounting heights

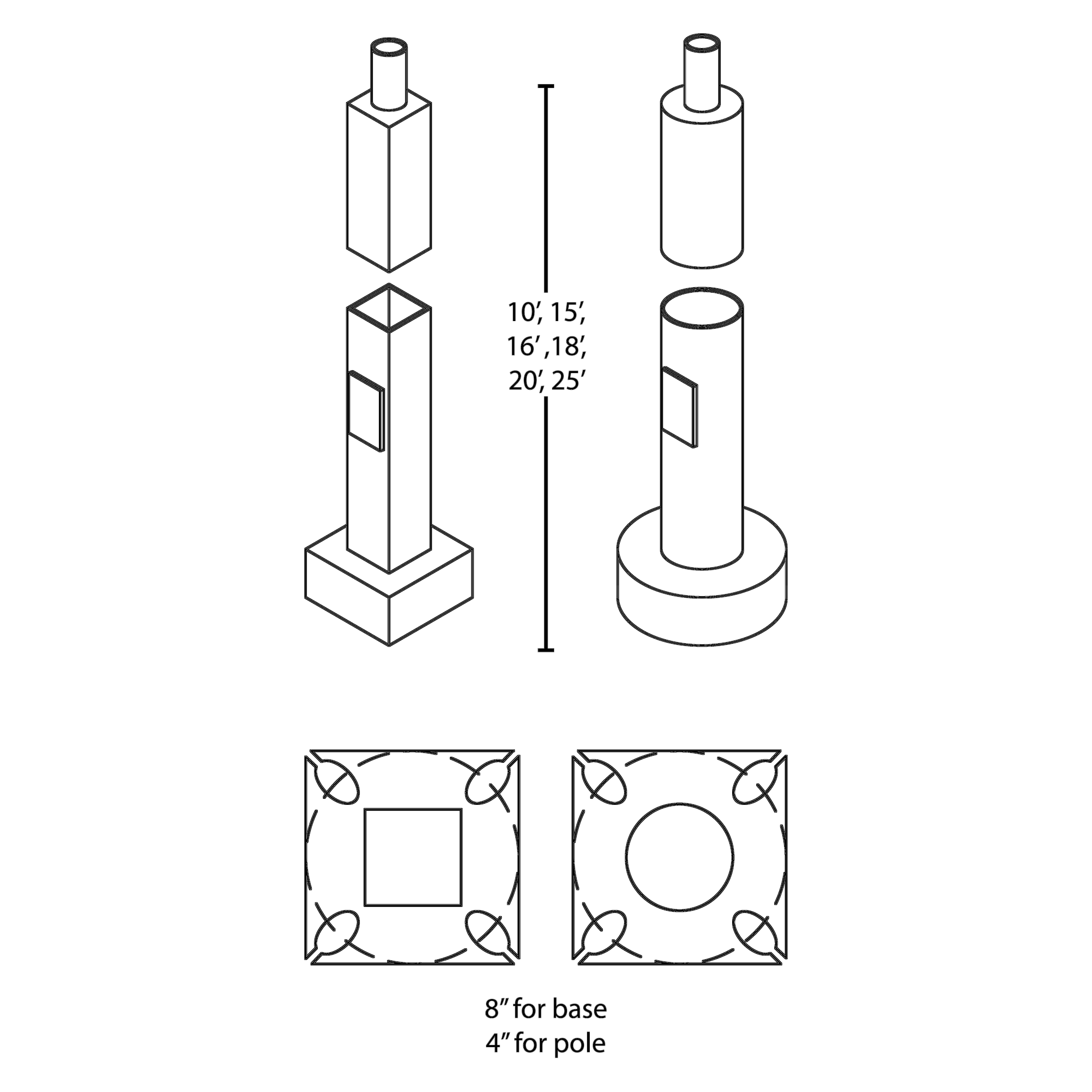

- Available in lengths of 10Ft, 15Ft, 18Ft, 20Ft, 22Ft, and 25Ft
- Pole shaft is from weldable grade cold rolled, commerical quality carbon steel tubing conforming to ASTM-A500 Grade B (11 guage)
- All welds conform to AWS D1.2 using ER70S-6 Electrodes
- Fine-textured powder coat finish
- Available in Bronze, White, or Black finish
- Custom finishes available with cost adder
Electrical

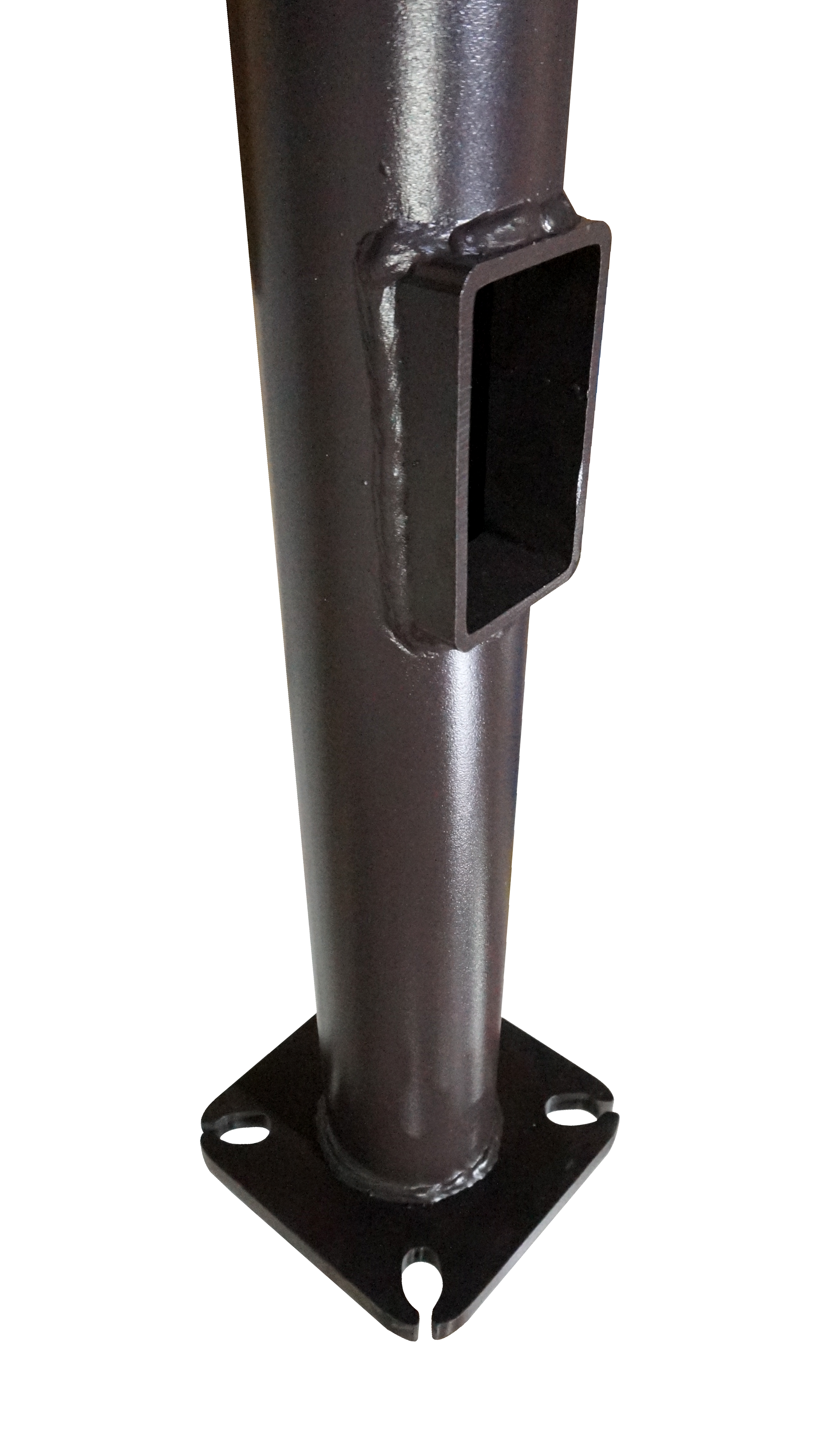

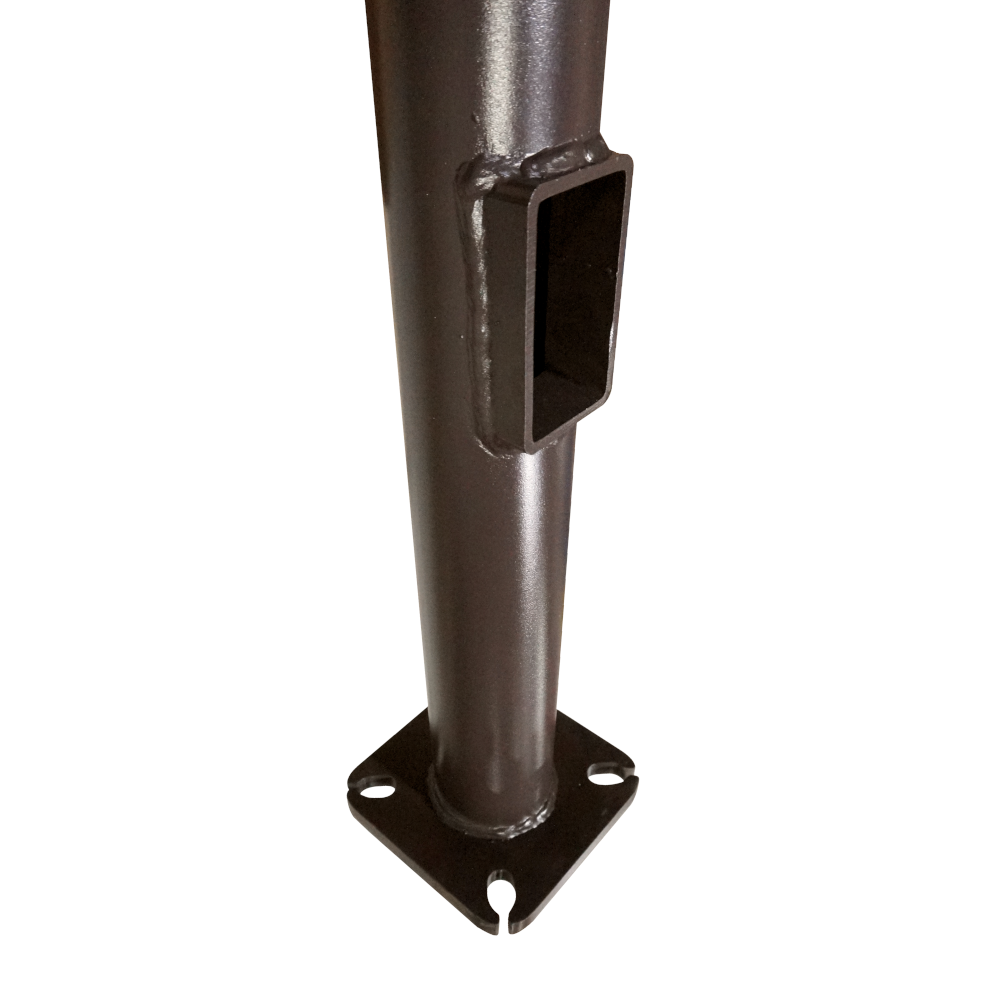

- Reinforced 3x5” hand-hole with cover 1.5Ft from base
- Stainless steel screws and back-bar
- Grounding Provision incorporating a tapped 1/2”- 13NC hole welded to frame
Installations
- Use bolt template and anchor bolts for an easier installation

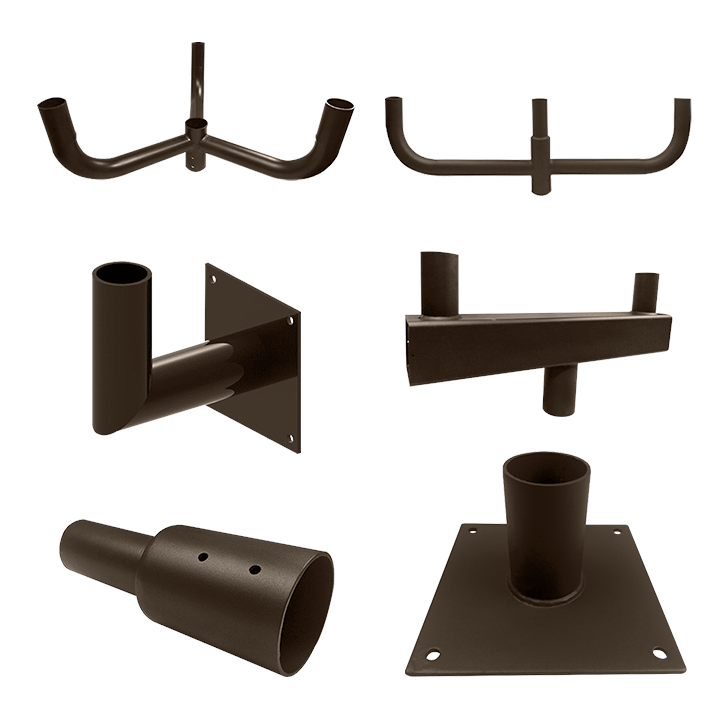

- Mounting types: Tenon and Side drill mount
- Tenon mount available in 2.375”x 3” tenon length
- Side drill mount (see mounting drawings)
- 4x L-shaped steel anchor bolts, conformed to AASHTO M314-90 Grade 55 with 10-inch of threaded end galvanized per ASTM A153
- Galvanized steel hardware pack including: 8x Hex nuts, 4x Lock washers, and 8x Flat washers
- Paper bolt circle template provided
Warranty
- 5-year limited system warranty standard
