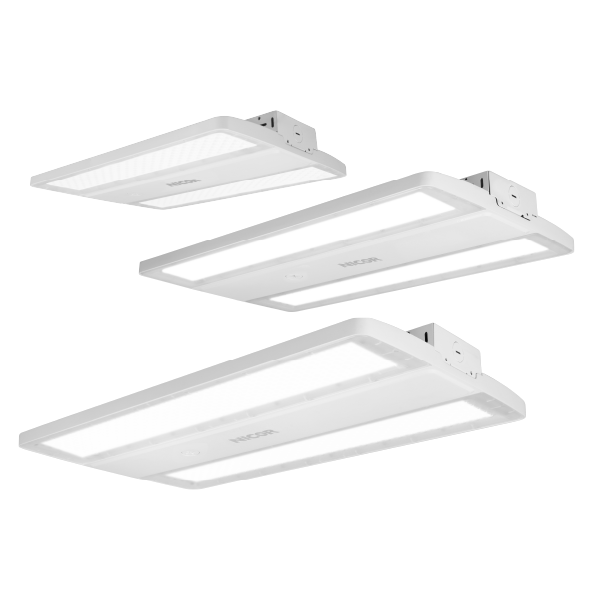

HML4 Series High-Performance Selectable LED High-Bay
Introducing NICOR’s latest breakthrough in lighting innovation: the HML4 high-bay product line. Experience brilliance beyond measure as its compact form yields an extraordinary light output. DLC 5.1 Premium certification attests to its excellence, offering adjustable wattage, CCT (3500K/4000K/5000K)…
Introducing NICOR’s latest breakthrough in lighting innovation: the HML4 high-bay product line. Experience brilliance beyond measure as its compact form yields an extraordinary light output. DLC 5.1 Premium certification attests to its excellence, offering adjustable wattage, CCT (3500K/4000K/5000K), and selectable optical distribution. Crafted from single-piece, robust cast aluminum, its durability withstands even the harshest conditions, rendering it ideal for warehouses, gymnasiums, and assorted industrial or commercial settings. With an integrated cooling system and a top-mounted wire-way cover for effortless wire access, the HML4 emerges as the embodiment of streamlined functionality. A polyester powder coat finish crowns its aesthetic, culminating in a luminary masterpiece that seamlessly merges innovation and endurance.
- Triple-selectable wattage, CCT, and optical distributions for maximum flexibility
- Delivers up to 49,298 lumens with efficacy up to 167.8 lm/W
- Available in 90x90°, 65x95°, and 45x100° beam distributions
- Durable cast-aluminum housing provides excellent thermal management
- Compatible with sensors, emergency drivers, and mounting accessories
Color Options:
Ordering information
Accessories

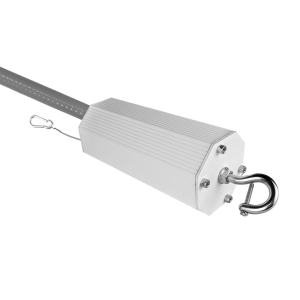

- HML1EM18WRVWH

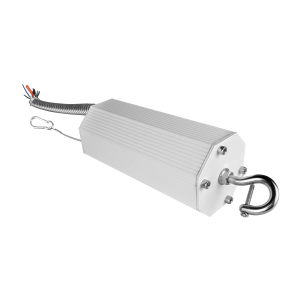

- HML1EM40WRVWH
Downloads
Specifications
-
Lifespan>60,000
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- UL 8750 (LED Safety)
- IP20 Ingress Protection
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- Patent Pending
- Full Luminaire Level Lighting Control (LLLC)
- Testing performed in accordance with IESNA standards
- Helps meet ASHRAE 90.1 compliance when specified with sensor option
Features
Construction
- Fully cast aluminum body with integrated cooling features
- Top mounted wireway cover for easy wire access
- Polyester powder coat finish
Optical System
- Distribution selectable 90x90°, 65x95°, 45x100°
- Selectable CCTs of 3500K, 4000K and 5000K with >80 CRI
Electrical
- Selectable power levels: (160/140/120/100/80W), (240/220/200/180/160W), (320/300/280/260/240W)
- Operating temperature of fixture only: -40°F to 122°F (-40°C to 50°C)
- Operating temperature with motion sensor: -22°F to 122°F (-30°C to 50°C)
- Operating temperature with emergency power supply: 32°F to 122°F (0°C to 50°C)
- Input voltage of 120-347VAC
- Dimming: 0-10V standard
Installations
- V-hook and 3’ chain mounting system included
- Wireguard option available for increased fixture protection
- Pendant mount and surface mount kits available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus1598 Listed for damp locations
- cULus 8750 Listed LEDs
- DLC 5.1 Premium
- IP20 environmental rating
- Helps meet ASHRAE 90.1 compliance when specified with sensor option
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
