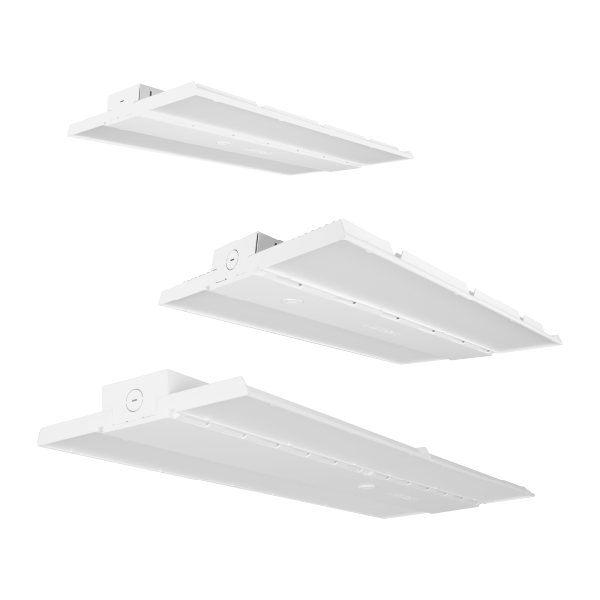

HML3 High-Performance Selectable LED High-Bay
Introducing NICOR’s latest breakthrough in lighting innovation: the HML3 high bay product line. Unveiling a revolutionary design, this patent-pending marvel combines unrivaled efficiency and peak performance. Experience brilliance beyond measure as its compact form yields an extraordinary light outp…
Introducing NICOR’s latest breakthrough in lighting innovation: the HML3 high bay product line. Unveiling a revolutionary design, this patent-pending marvel combines unrivaled efficiency and peak performance. Experience brilliance beyond measure as its compact form yields an extraordinary light output. DLC 5.1 Premium certification attests to its excellence, offering adjustable wattage, CCT (3500/4000/5000K/5700K), and sensors. Crafted from single-piece, robust cast aluminum, its durability withstands even the harshest conditions, rendering it ideal for warehouses, gymnasiums, and assorted industrial or commercial settings. With an integrated cooling system and a top-mounted wire-way cover for effortless wire access, the HML3 emerges as the embodiment of streamlined functionality. A polyester powder coat finish crowns its aesthetic, culminating in a luminary masterpiece that seamlessly merges innovation and endurance.
- Available in 150W, 320W, and 550W selectable models
- Three selectable wattage settings (Low/Med/High)
- Four selectable color temperatures (3500K/4000K/5000K/5700K)
- Sensor-ready; optional BLE NLC controls for dimming, occupancy, daylight
- Dimming: 0-10V standard
Color Options:
Ordering information
Accessories
- HML3550-B-OPTIC
- HML1EM18WRVWH
- HML1EM40WRVWH
Downloads
Specifications
-
Lifespan>60,000
Listings & certifications
- UL Certified
- UL 8750 (LED Safety)
- DLC 5.1 Premium
- ASHRAE 90.1 Compliant
- IP20 Ingress Protection
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- Patent Pending
- DLC 5.1 Premium on "A" Optic only
- Helps meet ASHRAE 90.1 compliance when specified with sensor option
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Fully cast aluminum body with integrated cooling features
- Top mounted wireway cover for easy wire access
- Polyester powder coat finish
Optical System
- Standard diffused lens
- Optional aisle and wide optics available
- Selectable CCTs of 3500K, 4000K, 5000K, 5700K with >80 CRI
Electrical
- Selectable power levels: (150/120/100W), (320/270/220W), (550/520/480W)
- Operating temperature rating of -22ºF to 131ºF (-30ºC to 55ºC)
- Input voltage of 120-277V, 277-480V input option available
- Dimming: 0-10V standard
Installations
- V-hook and 3’ chain mounting system included
- Wireguard option available for increased fixture protection
- Pendant mount and surface mount kits available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus1598 Listed for damp locations
- cULus 8750 Listed LEDs
- DLC 5.1 Premium
- IP20 environmental rating
- Helps meet ASHRAE 90.1 compliance when specified with sensor option
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
