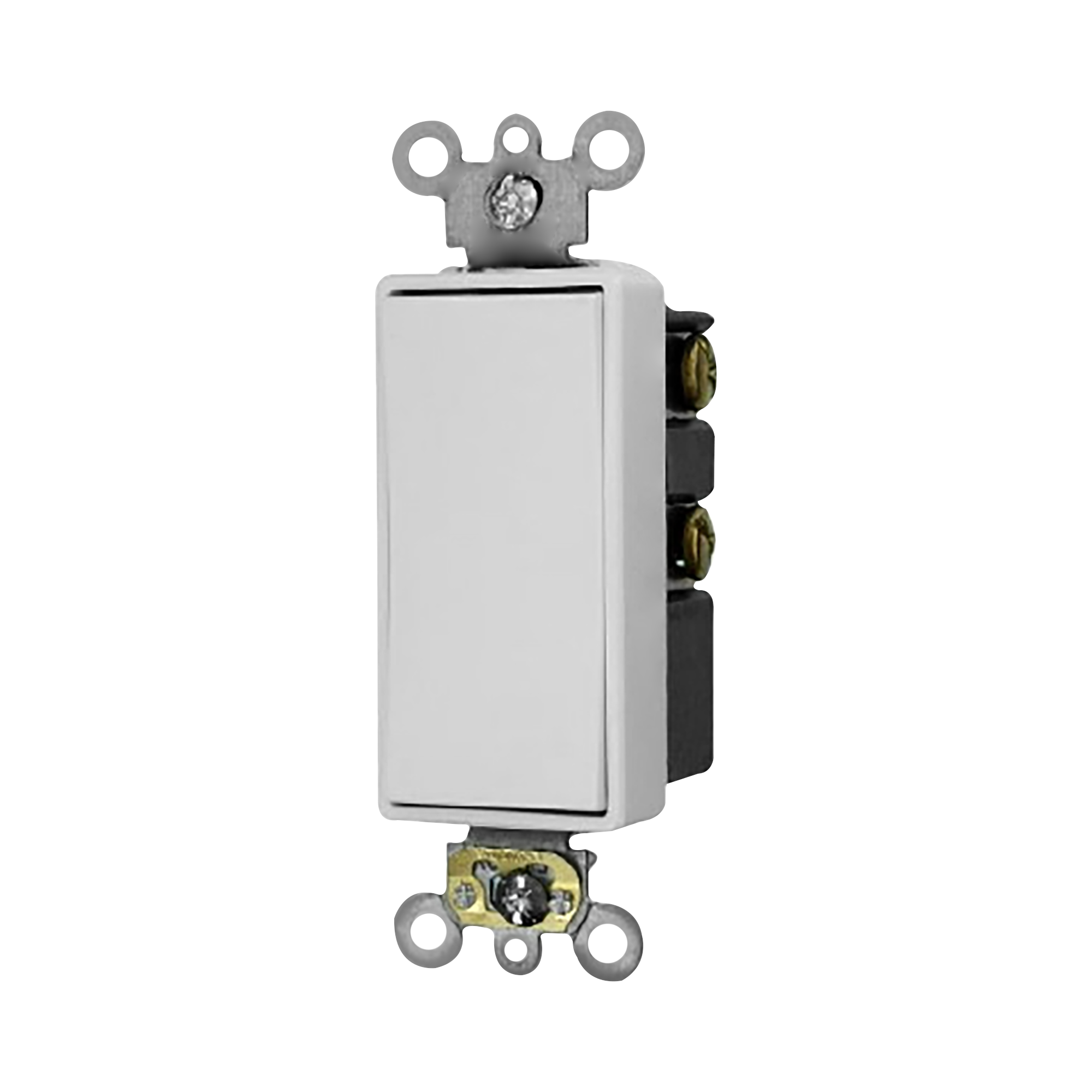

IMS1SWMD Series
IMS Enabled Momentary Rocker Switch (Decora)
Product description
The IMS1SWMD Decora Style SPDT momentary rocker switch [(ON)-OFF-(ON)] that is compatible with the NICOR IMS 2.0 and IMS 3.0 to control fixture on/off and dimming fuctions.
- SPDT momentary rocker switch for on/off and dimming control
- Compatible with IMS 3.0 systems
- Durable multi-material construction (polycarbonate, thermoplastic, steel, brass)
- Self-grounding design with 3A rating at 24VAC/VDC
- Fits standard single-gang electrical boxes for easy installation
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-2 (Flame Resistance)
Features
Construction
- Actuator Material: Polycarbonate
- Body Material: Thermoplastic
- Contacts: Silver-Alloy
- Strap Material: Steel
- Terminal Screws: Brass
Electrical
- Amperage: 3A
- Grounding: Self-Grounding
- Voltage: 24VAC/VDC
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
Installations
- Installs into standard single gang box
Full Listings
- cULus Listed
- UL94V-2 (Flame Resistance)
Warranty
- 3-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
