IMS3PIR-M Series
IMS Enabled DALI-2 PIR Occupancy Sensor, 15M Height
Product description

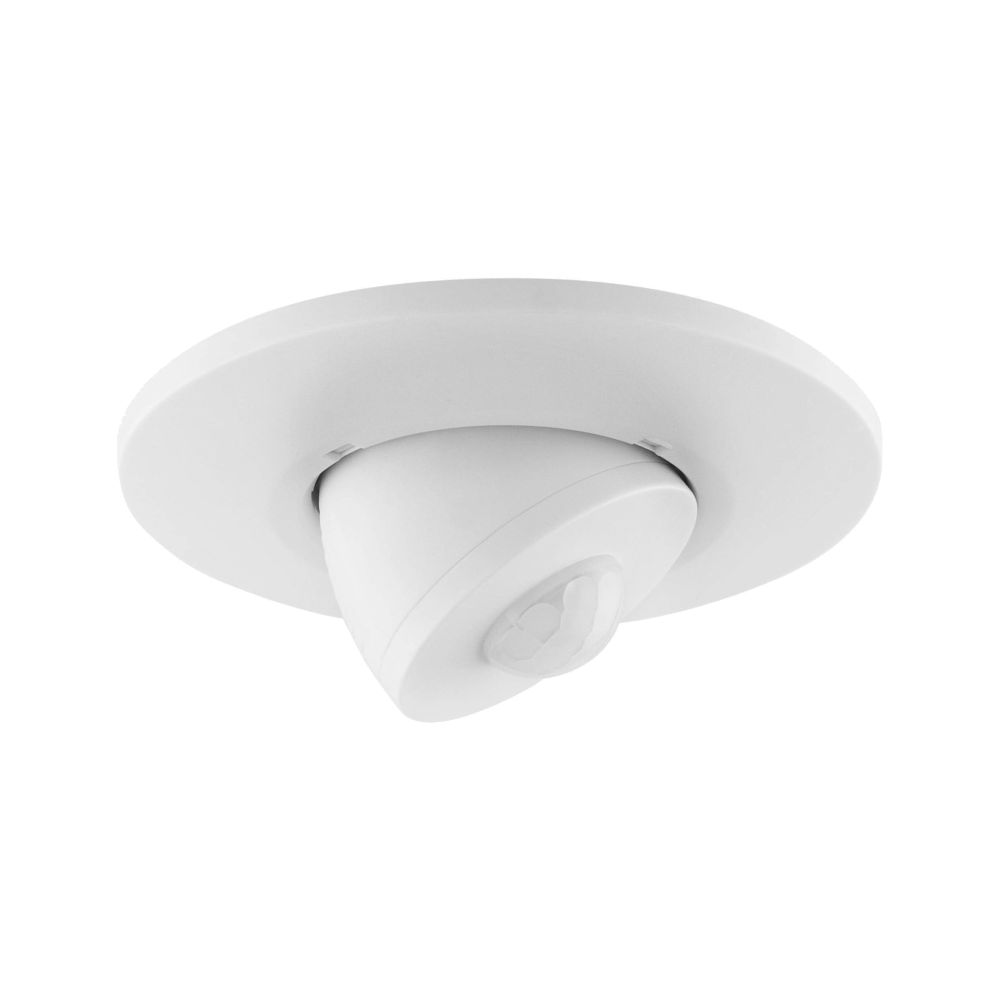

The IMS3PIR-M is an adjustable high performance, DALI-2 sensor that mounts to a junction box using the included mounted ring. This sensor provides presence detection and lighting control. The sensor is equipped with movement detection (PIR) and light intensity (daylight) measurement capability givin…
The IMS3PIR-M is an adjustable high performance, DALI-2 sensor that mounts to a junction box using the included mounted ring. This sensor provides presence detection and lighting control. The sensor is equipped with movement detection (PIR) and light intensity (daylight) measurement capability giving it the ability to work in daylight harvesting applications.
- DALI-2 PIR occupancy sensor combines motion detection and daylight harvesting in a single device
- Available in 15M (49.2Ft) and 30M (98.4Ft) detection range versions for standard and high-bay applications
- Adjustable sensor head with integrated photocell provides light level measurement from 0–2046 lux
- Powered directly from the DALI bus with low power consumption of less than 100mW
- Compatible with DALI-2 lighting control systems and mounts to a standard 4in x 4in junction box using the included mounting ring
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- DALI Alliance Certified
- IP40 Ingress Protection
- RoHS Compliant
Other Certifications
- Meets EMC Standard EN 61547
- Meets EMC Standard EN 55015
- Meets EMC Standard EN 61347-2-11
- Meets EMC Standard EN 61347-1
Features
Construction
- 3.85” x 1.50” (98mm x 38mm)
- Housing of ABS material
- Adjustable sensor head
Electrical
- Powered via DALI bus (DALI-voltage according to IEC62386 (2014))
- Current Consumption (Typ): 5.5mA
- Power Consumption: < 100mW
- Connection 2-wire, un-Polarized
Installations
- Requires 4” x 4” junction box and cover plate (not supplied)
- Provided with spring terminal connector for connection to DALI bus
- Terminals handle 20-16 AWG wire
- Wire strip length 0.33-0.37 in. (8.5-9.5mm)
- Do not install with power applied to device
Full Listings
- DALI Alliance certified
- RoHS Compliant
- IP40 Rated Ingress Protection
- Complies with EN 61547 and EN 55015 for EMC
- Complies with EN 61347-2-11 and EN 61347-1 for Safety
- 15M Operating Temperature: -4°F to 131°F (-20°C to 55°C)
- 30M Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Relative Humidity 15-90% non-condensing
- For indoor use only
Warranty
- 3-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
