IMS3PIR Series
IMS Enabled DALI-2 Occupancy Sensor
Product description

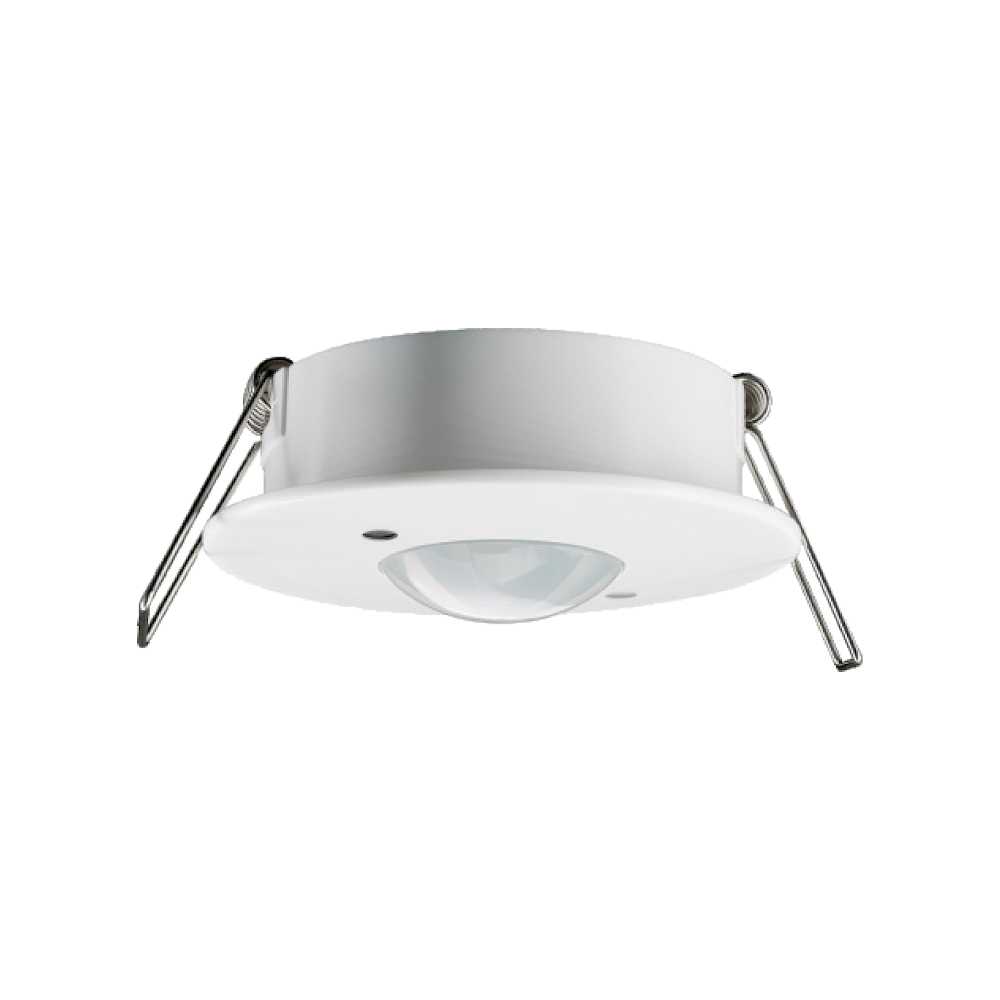

The IMS3PIR is a compact, high performance, DALI-2 sensor that mount on ceilings. This sensor provides presence detection and lighting control. The sensor is equipped with movement detection (PIR) and light intensity (daylight) measurement capability giving it the ability to work in daylight harvest…
The IMS3PIR is a compact, high performance, DALI-2 sensor that mount on ceilings. This sensor provides presence detection and lighting control. The sensor is equipped with movement detection (PIR) and light intensity (daylight) measurement capability giving it the ability to work in daylight harvesting applications.
- DALI-2 PIR sensor for presence detection and lighting control
- Integrated daylight sensing for daylight harvesting applications
- Wide 130° detection angle with up to ~26Ft coverage
- Low power consumption (max 6mA) via DALI bus
- LED indicators for motion detection and DALI communication status
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- DALI Alliance Certified
- RoHS Compliant
Other Certifications
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
Features
Construction

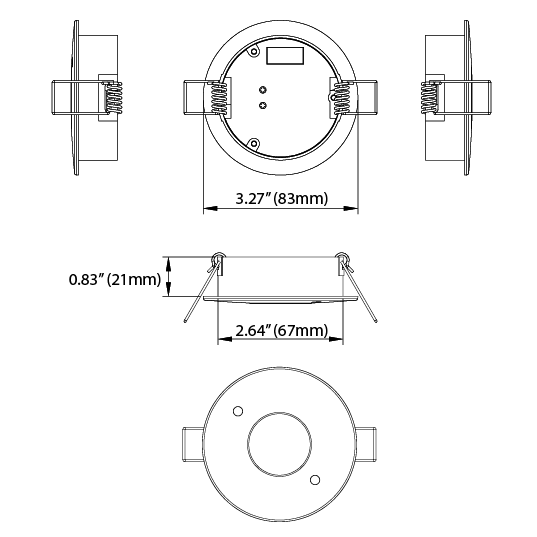

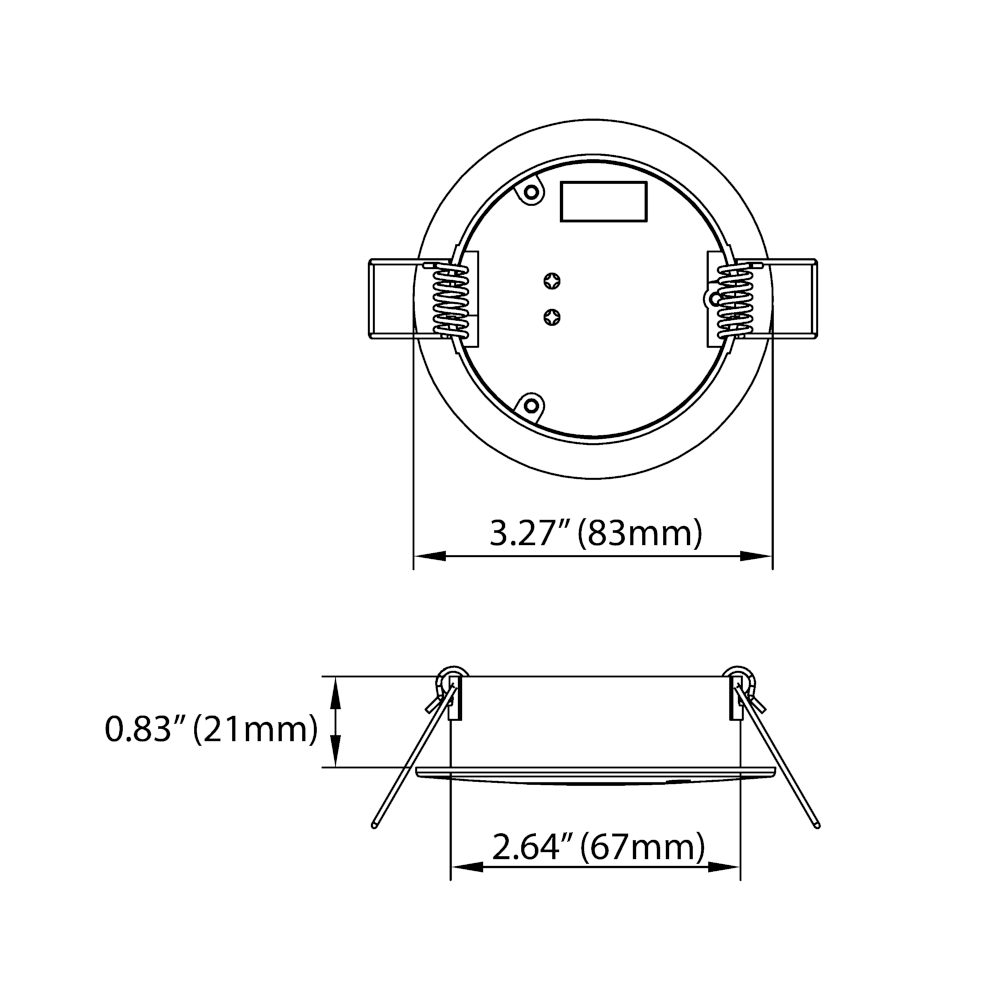

- 3.27” x 0.83” (83mm x 21mm)
- Housing of ABS material
- Integrated mounting arms
Electrical
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
- Current Consumption (Max) - 6mA
- Connection 2-wire, un-Polarized
- Motion detection LED (Red flashing)
- DALI signal communication LED (Green flashing)
Installations
- Requires mounting hole of 2.75”-2.87” (70-73mm)
- Provided with spring terminal connector for connection to DALI bus.
- Terminals handle 26-16 AWG wire
- Wire strip length 0.28-0.35 in. (7-9mm)
- Do not install with power applied to device
Full Listings
- RoHS Compliant
- DALI Alliance certified
- Operating Temp 32°F to 104°F (0°C to 40°C)
- Relative Humidity 0-95% non-condensing
- For indoor use only
Warranty
- 3-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
