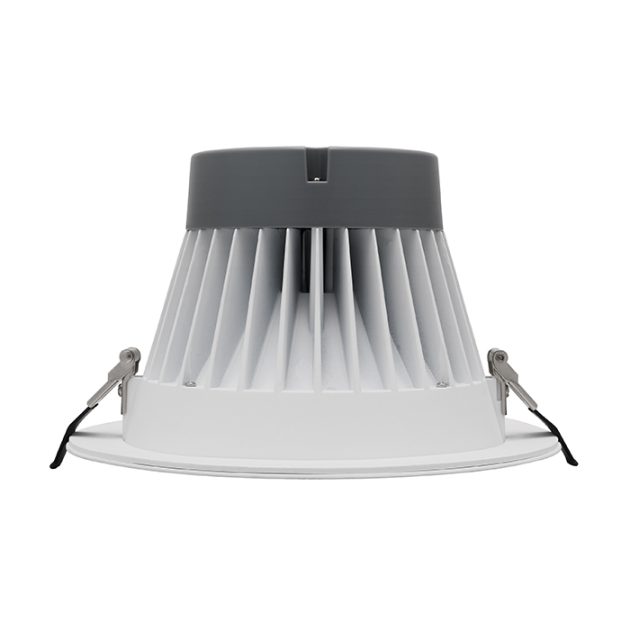

6” AND 8” COMMERCIAL RECESSED LED DOWNLIGHT

Designed for both new construction and retrofit applications, the CLR Select series can be installed directly into drywall, a ceiling grid or an existing 6” or 8” mounting frame using spring loaded retention tabs. The CCT and output selectable design allows for easy adjustment to 3000, 3500, 4000, or 5000K and standard or high output. With accessory trims in nickel, oil-rubbed bronze and black, and offering a full range of dimming from 0-10 volts, the CLR Select is adaptable to most any environment. The versatility of this light source is perfect for commercial applications, such as educational, governmental, retail and grocery, office or hospitality lighting.



*Except CLR8H



Specifications

  • Wide range input voltage of 120 - 347 VAC
  • Full-range dimming via 0-10VDC controls
  • TM-21 Reported L70(9k) life >56,000 hours
  • LM-79, LM-80 testing performed in accordance with IESNA standards
  • Meets FCC 15 PartB: 2016 Class A requirements
CLR6 Standard Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1058/1552
Light Output (lm)

1069/1569
Light Output (lm)

1082/1588
Light Output (lm)

1063/1559
Light Output (lm)

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

97.0/91.6
lm/W

100.8/94.9
lm/W

102.1/96.9
lm/W

98.4/93.6
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Number:

 ALL:CLR62SWRVS9WH
CLR8 Standard Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1599/2078
Light Output (lm)

1610/2092
Light Output (lm)

1625/2111
Light Output (lm)

1602/2082
Light Output (lm)

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

96.3/91.8
lm/W

98.7/94.1
lm/W

100.1/95.5
lm/W

97.4/92.7
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Number:

 ALL:CLR82SWRVS9WH
CLR8 High Output Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2054/3037
Light Output (lm)

2155/3186
Light Output (lm)

2190/3239
Light Output (lm)

2153/3184
Light Output (lm)

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

103.6/100.9
lm/W

109.9/107.0
lm/W

112.3/109.5
lm/W

109.3/106.5
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

IES Download

IES Download

IES Download

IES Download

Part Number:

 ALL:CLR82HWRVS9WH
CLR6 Standard Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1058/1552
Light Output (lm)

1069/1569
Light Output (lm)

1082/1588
Light Output (lm)

1063/1559
Light Output (lm)

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

1000/1500
Nominal Lumens

97.0/91.6
lm/W

100.8/94.9
lm/W

102.1/96.9
lm/W

98.4/93.6
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 All
CLR62SWRVS9WH

CLR8 Standard Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1599/2078
Light Output (lm)

1610/2092
Light Output (lm)

1625/2111
Light Output (lm)

1602/2082
Light Output (lm)

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

1500/2000
Nominal Lumens

96.3/91.8
lm/W

98.7/94.1
lm/W

100.1/95.5
lm/W

97.4/92.7
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 All
CLR62SWRVS9WH

CLR8 High Output Select
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2054/3037
Light Output (lm)

2155/3186
Light Output (lm)

2190/3239
Light Output (lm)

2153/3184
Light Output (lm)

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

2000/3000
Nominal Lumens

103.6/100.9
lm/W

109.9/107.0
lm/W

112.3/109.5
lm/W

109.3/106.5
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 All
CLR62HWRVS9WH
