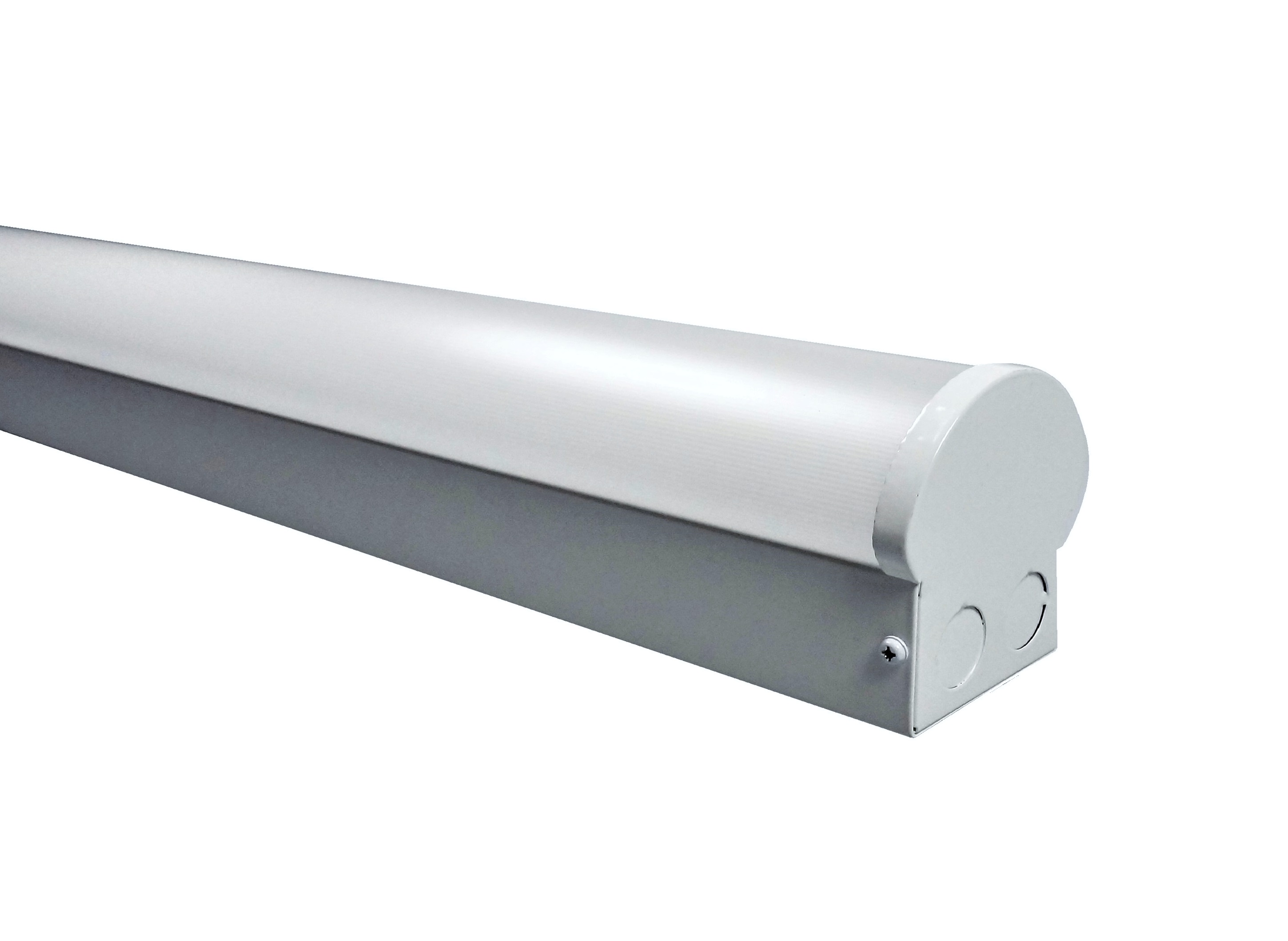

LSC Series 4Ft High-Output Linear LED Strip Light Fixture in 5000K
The LSC LED Linear Strip delivers optimal performance and long life in a slim design that’s ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. This versatile fixture is easy to surface mount on both ceilings and walls and ca…
The LSC LED Linear Strip delivers optimal performance and long life in a slim design that’s ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. This versatile fixture is easy to surface mount on both ceilings and walls and can accommodate end-to-end runs. The LSC features a semi-circular, milky-white lens that offers a more polished aesthetic while eliminating hotspots, and is an economical, energy-efficient lighting alternative to single lamp fluorescent strips and some wraparound fixtures. For even greater energy savings, an optional microwave occupancy sensor is also available.
- Durable 20-gauge steel construction
- Semi-circular, milky-white diffuser eliminates hotspots and pixilation
- Long-life LED system coupled with electrical driver to deliver optimal performance with 125+ lumens per watt
- Easy surface mount installation on ceilings or walls
- Safety strap-retained LED array allows single person installation
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens6058
-
Wattage45.81
Listings & certifications
- cULus Listed
- DLC Standard
- FCC Class B
- Damp-Location
Features
Construction
- Durable 20 gauge steel construction
- Smooth formed sides for safe handling
- Similar form factor to single lamp fluorescent strip
- Gloss white powder coat finish
Optical System
- Semi-circular, milky-white diffuser eliminates hotspots and pixilation
- Lens retention method securely holds diffuser in ceiling or wall mount
Electrical
- Long-life LED system coupled with electrical driver to deliver optimal performance with 125+ lumens per watt.
- Through wiring capable for end to end runs
- Driver delivers full-range dimming from 0 - 10VDC
- Optional occupancy sensor kit available.
- Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
- Input voltage of 120-277VAC
- Meets FCC Part 15B: 2016 Class A requirements
Installations
- Easy surface mount installation on ceilings or walls
- Safety strap-retained LED array allows single person installation

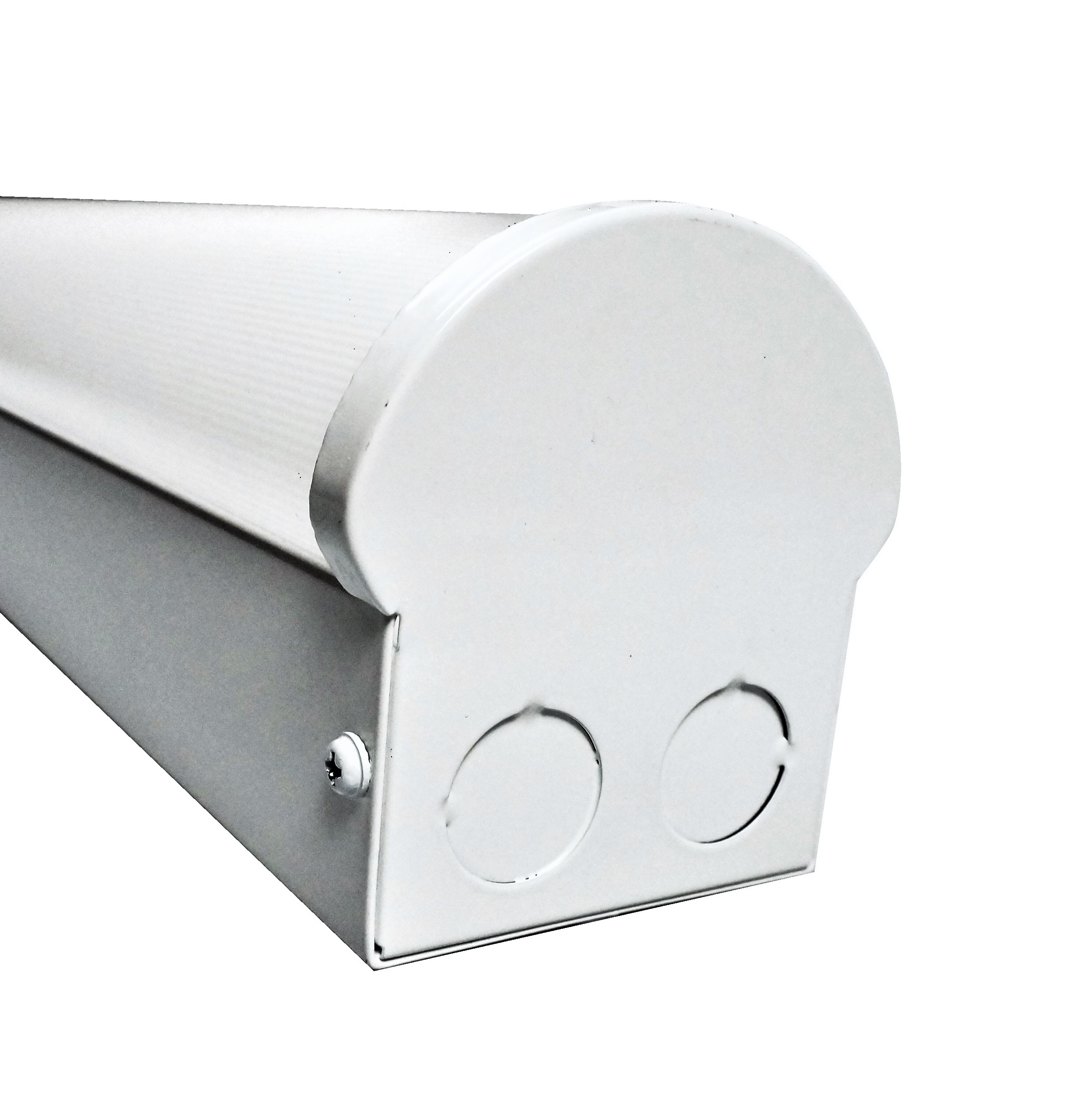

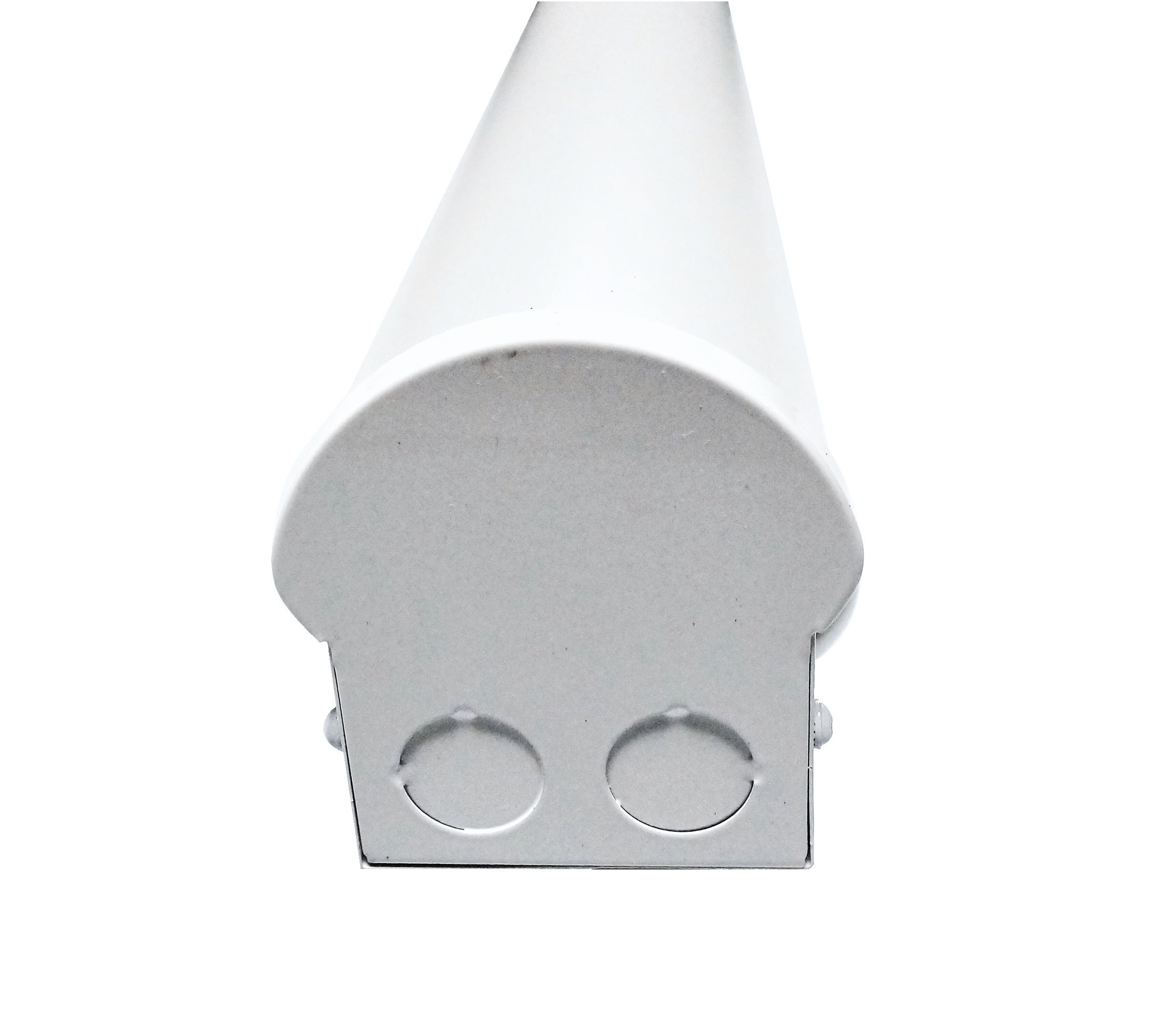

- Multiple knockouts provided for wiring from back or ends

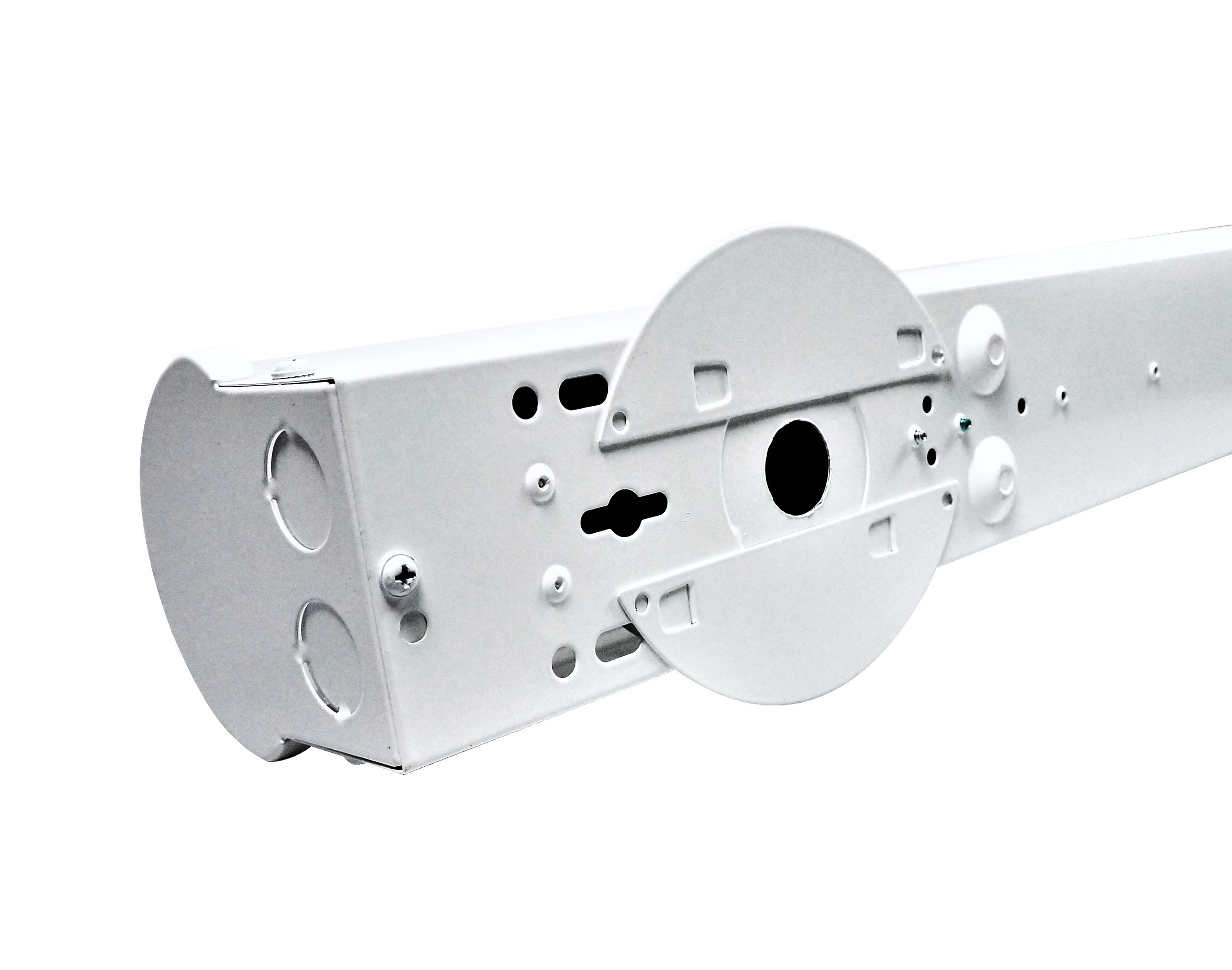

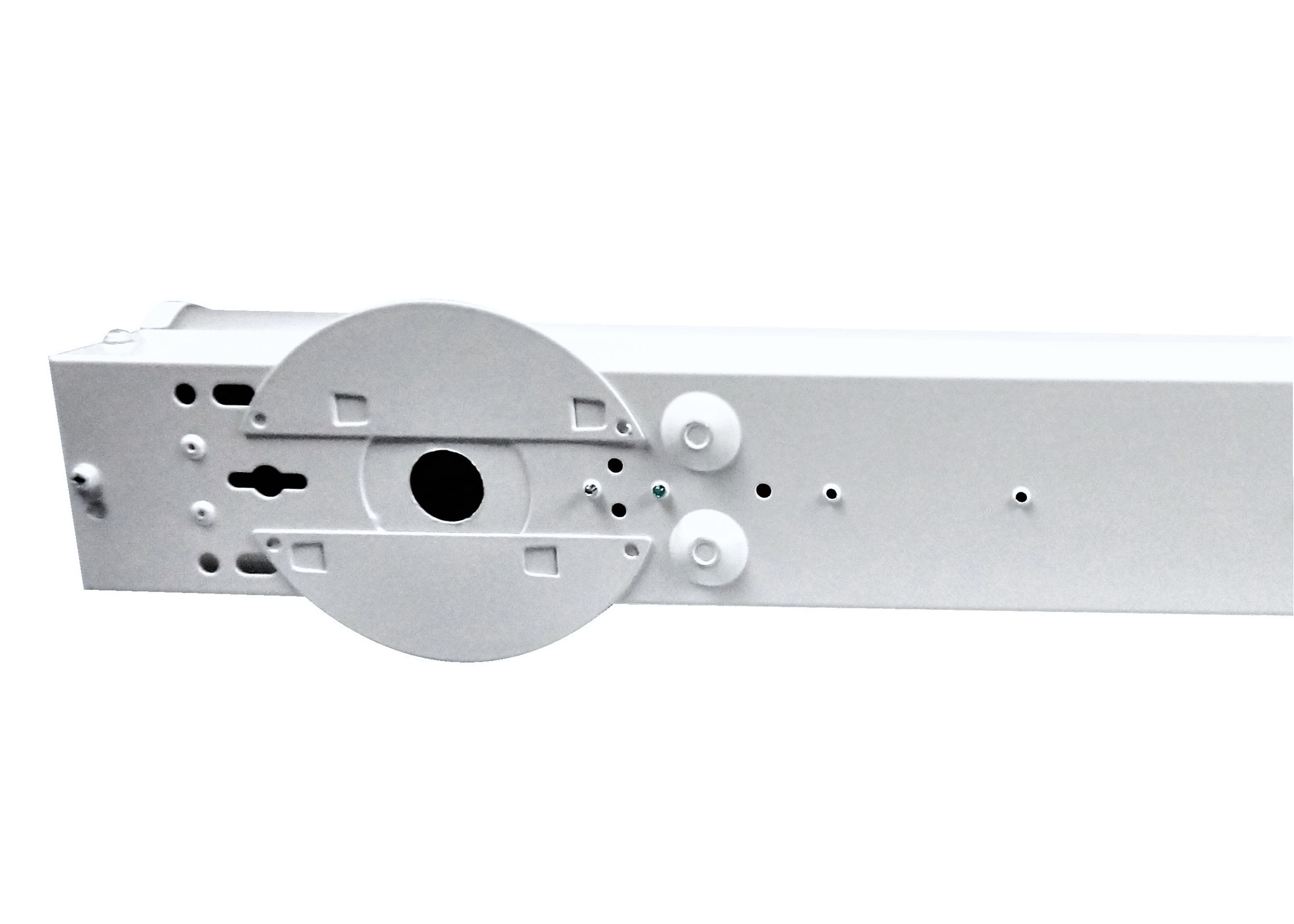

- Features provided for surface, cable, hook and chain, or pendant mount
- Cover plates provided for 4/0 box surface installation
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- TM-21 Projected L70(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
