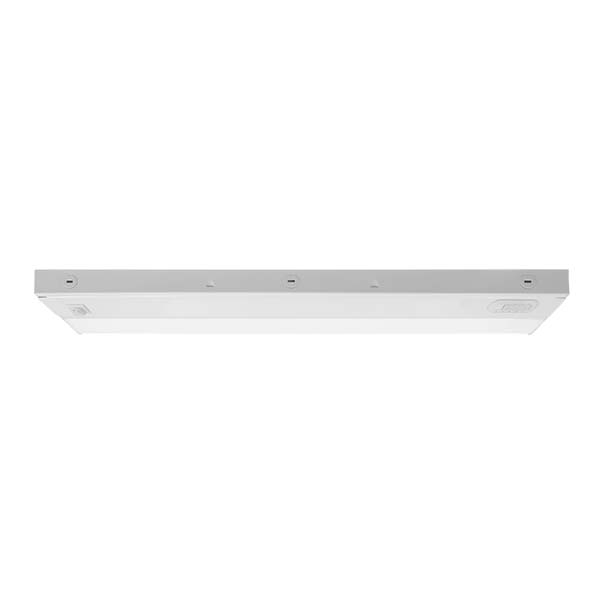

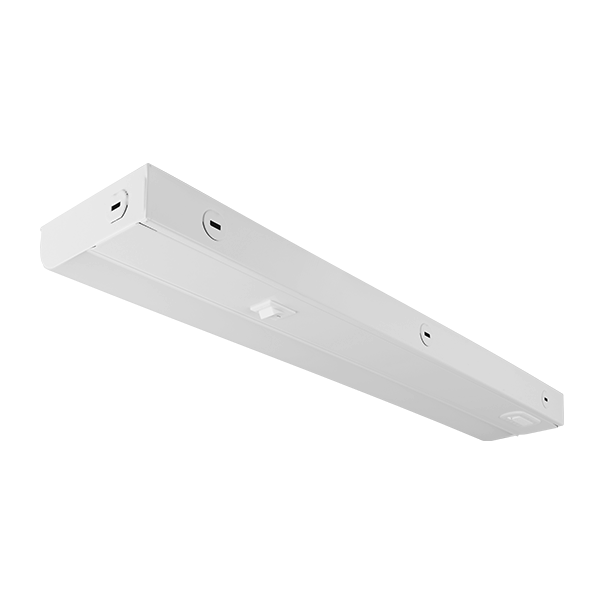

CCT SELECTABLE LED UNDER CABINET

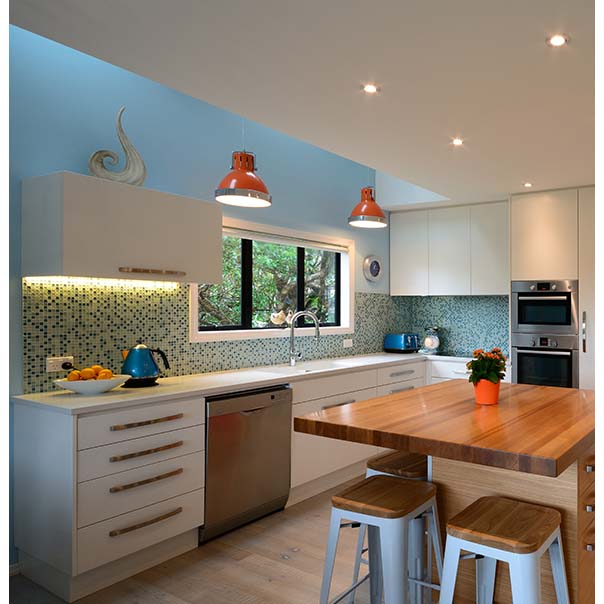

NICOR’s LED Under Cabinet lighting is an attractive upgrade that can quickly increase the value and functionality of your work space. The UCB1 offers a CCT Selectable design which allows for easy adjustment to 2700K, 3000K, 3500K, 4000K or 5000K. The UCB1 presents a clean, professional look allowing you to use an existing wall switch or dimmer to easily control your lights. Offering uniform illumination, warm color and low operating temperatures, this under cabinet light can be used in residential, retail, and commercial applications. Whether in a kitchen, under a shelf or in a defined work space, these 1-inch low profile fixtures are perfect for task or accent lighting and illuminating products, apparel, or collectibles.



Category: Tag:

Specifications

  • Uniform lighting with fully diffused polycarbonate diffuser
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50
  • CCT Selectable at 2700K, 3000K, 3500K, 4000K and 5000K
  • 120VAC Input
  • CCT selector switch on face of fixture
  • Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 113°F (-20°C to 45°C)

Downloads

– Sell Sheet
– Spec Sheet
– Installation Instructions

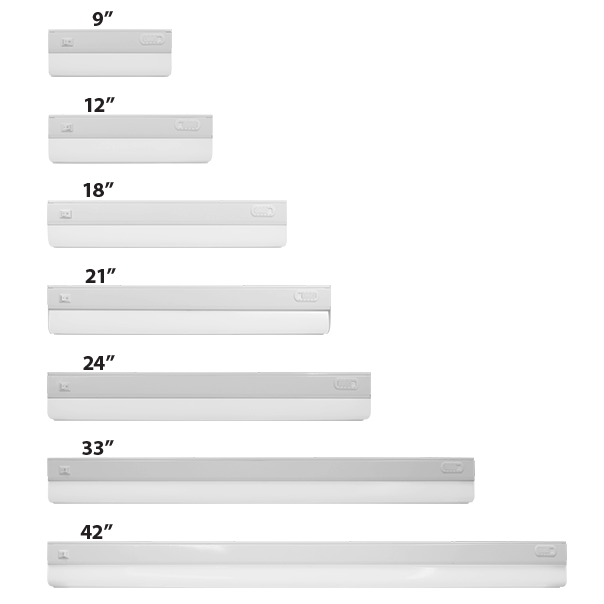

UCB - 9"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

340
Lumens

345
Lumens

350
Lumens

355
Lumens

360
Lumens

5
Input Watts

5
Input Watts

5
Input Watts

5
Input Watts

5
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB109S
UCB - 12"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

340
Lumens

345
Lumens

350
Lumens

355
Lumens

360
Lumens

5
Input Watts

5
Input Watts

5
Input Watts

5
Input Watts

5
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB112S
UCB - 18"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

612
Lumens

621
Lumens

630
Lumens

639
Lumens

648
Lumens

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB118S
UCB - 21"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

612
Lumens

621
Lumens

630
Lumens

639
Lumens

648
Lumens

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB121S
UCB - 24"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

612
Lumens

621
Lumens

630
Lumens

639
Lumens

648
Lumens

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

9
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB124S
UCB - 33"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

952
Lumens

966
Lumens

980
Lumens

994
Lumens

1008
Lumens

14
Input Watts

14
Input Watts

14
Input Watts

14
Input Watts

14
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB133S
UCB - 42"
2700K
Warm		3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool

1224
Lumens

1242
Lumens

1260
Lumens

1278
Lumens

1296
Lumens

18
Input Watts

18
Input Watts

18
Input Watts

18
Input Watts

18
Input Watts

68
lm/W

69
lm/W

70
lm/W

71
lm/W

72
lm/W

90+
CRI

90+
CRI

90+
CRI

90+
CRI

90+
CRI

Part Number:

 Select:UCB142S
