LED CANOPY

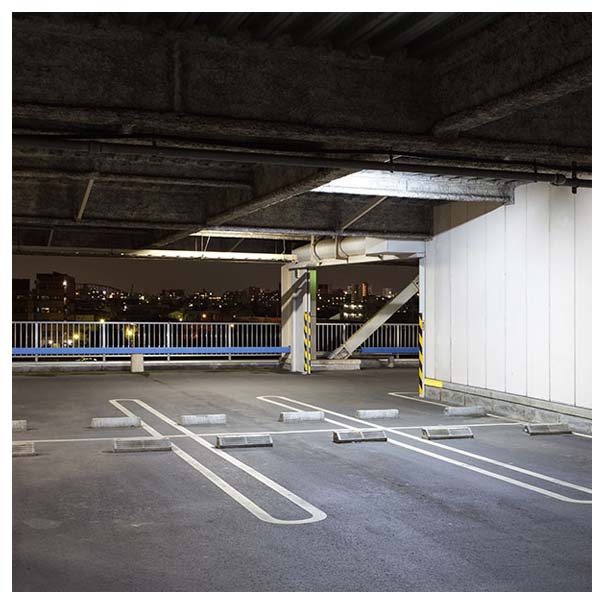

The Vela LED Canopy offers high performance in an economical and practical design. The Vela achieves even light distribution using a prismatic, frosted lens that is UV- and fire resistant while its die-cast aluminum housing has convenient knockouts for easy J-Box, surface mount, or pendant installations. The Vela is an efficient under outdoor canopy lighting solution for exterior ceilings or for parking garages, car ports, covered walkways, or other commercial spaces, and is equipped with an integrated heat sink and a Type V distribution precision lens.



Specifications

  • High performance prismatic lens that is frosted for even distribution
  • Utilizes advanced LED technology with CCT of 4000K and 5000K
  • CRI 80+
  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -4° to 104°F (-20°C to 40°C)
  • 10kA surge protection standard
  • Input voltage of 120-277VAC
  • Available in 45 and 80 watt
  • Driver delivers full-range dimming from 0 - 10VDC
45 Watt
4000K
Neutral
5000K
Cool

5412
Lumens

5523
Lumens

41.5
Input Watts

41.5
Input Watts

130.4
lm/W

133.1
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:



4000K:

5000K:

OUC3045MV40BZ

OUC3045MV50BZ

80 Watt
4000K
Neutral

9934
Lumens

78.6
Input Watts

126.4
lm/W

84
CRI

IES Download

Part Numbers:

 4000K: OUC3080MV40BZ
45 Watt
4000K
Neutral
5000K
Blue

5412
Lumens

5523
Lumens

41.5
Input Watts

41.5
Input Watts

130.4
lm/W

133.1
lm/W

84
CRI

84
CRI

IES Download

IES Download

Part Numbers:

 4000K: OUC3045MV40BZ
 5000K: OUC3045MV50BZ

80 Watt
4000K
Neutral

9934
Lumens

78.6
Input Watts

126.4
lm/W

84
CRI

IES Download

Part Numbers:

 4000K: OUC3080MV40BZ
