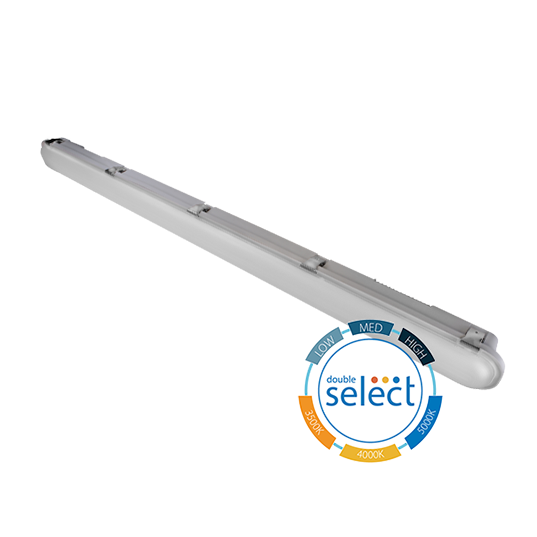

LED VAPORTITE

The VT4 LED Linear Vaportite is designed to give long lasting, energy efficient light in demanding locations. The VT4 is provided with CCT and lumen output selectable options with the choice of 3500K, 4000K, or 5000K CCTs and low, medium, and high lumen output. It is also DLC 5.1 Standard certified, ensuring top of the line quality and performance. This IP66 rated fixture is dust and water tight and replaces legacy fluorescent strip lights in car wash operations, garages, maintenance facilities, canopies, locker rooms and stairwells.



Category: Tags:

Specifications

  • UV stabilized, frosted polycarbonate lens
  • Wrapped lens provides 5% uplight
  • 80+ CRI
  • Input voltage of 120-277VAC
  • Wattage selector switch on driver, CCT selector switch in body
  • Dim-to-off via 0-10VDC controls
  • Optional, factory installed, 8W and 18W EM packs available
  • Power factor > 0.95
  • THD < 6%
  • Luminaire surge protection level: designed to withstand up to 2.5kV ring wave
    per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable
    Luminaires

Downloads

– Sell Sheet
– Comparison Sheet

– Spec Sheet
– Installation Instructions

– ies Files 4'

VT4 - 4'
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

7523/6256/5364
Lumens

 7964/6623/5678
Lumens

 7776/6466/5544
Lumens

56/45/37
Input Watts

56/45/37
Input Watts

56/45/37
Input Watts

135/141/144
lm/W

143/149/153
lm/W

139/145/149
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:VT4454SUNVS8
VT4 - 4'
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

7523/6256/5364
Lumens

7964/6623/5678
Lumens

 7776/6466/5544
Lumens

56/45/37
Input Watts

56/45/37
Input Watts

56/45/37
Input Watts

135/141/144
lm/W

143/149/153
lm/W

139/145/149
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:VT4454SUNVS8
