HAZARDOUS LOCATION LED AREA LIGHT

The Eres Hazardous Location LED Area Light is designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient temperature can be expected. For use in locations made hazardous by the presence of flammable vapors, gases, or combustible dusts as defined by the NEC. Eres fixtures are available in 45W and 65W in class C1D2. The Eres is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.



Category: Tags:

Specifications

  • Certifications: UL 844 & CSA22.2; Class I Division 2 Group A, B, C, D; Class II Division I Group E, F, G; Class II Division 2 Group F and G; Class III; UL1598A Marine
  • Housing: Copper-free, die-cast aluminum
  • CCT: 4000K, 5000K
  • Input Voltage: 100-240/277 VAC
  • Surge Protection: Philips SP1 10kA surge protector
  • Operating temperature: -40F° to 131°F (-40°C to 55°C)

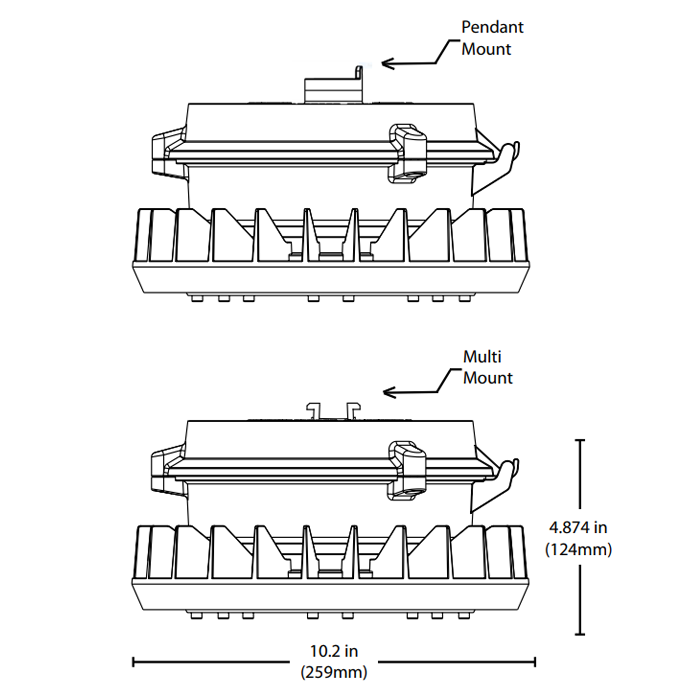

  • Installation: Easy installation with seven available mounting options:
    Ceiling, Wall/Mounting (25° or 90°), Stanchion Mount (25° or 90°), Adjustable Bracket, Pendant
  • Access Ports: Four at ¾” NPT (only available on ceiling and wall mount attachments)
  • Finish: Gray polyester powder coat
  • FCC: Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions

Downloads

– Brochure
– Spec Sheet
– Installation Instructions

– Drop Lens Spec Sheet

45 Watt
4000K
Neutral		5000K
Cool

6426
Lumens

6499
Lumens

42.3
Input Watts

42.3
Input Watts

151.9
lm/W

153.6
lm/W

72
CRI

72
CRI



IES Download

Part Numbers:

 4000K:XPR1B045U40GR
 5000K:XPR1B045U50GR
65 Watt
4000K
Neutral		5000K
Cool

9416
Lumens

9892
Lumens

65.1
Input Watts

65.1
Input Watts

144.6
lm/W

152.0
lm/W

73
CRI

73
CRI



IES Download

Part Numbers:

 4000K:Discontinued
 5000K:XPR1B065U50GR
