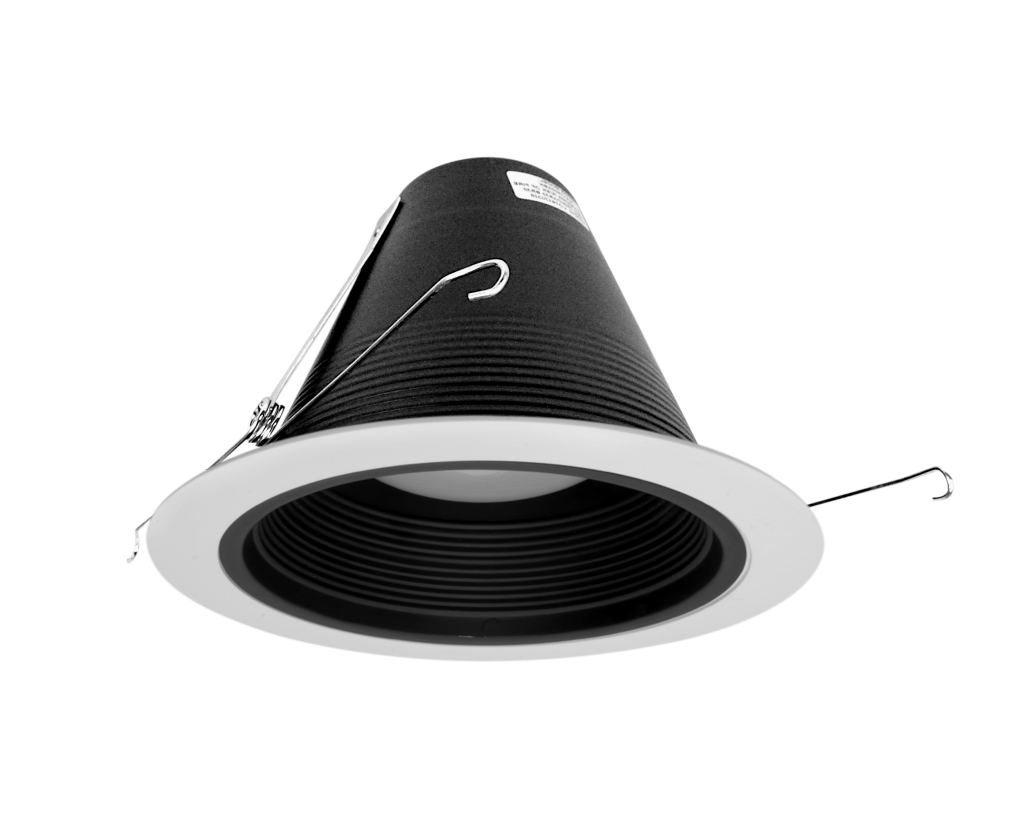

6 in. Black Cone Baffle Trim with White Trim Ring, Fits 6 inch Housings
NICOR’s quality constructed 6 in. cone baffle trims ensure a durable product for years to come. The 6 in. aperture and 5.5 in. height allows for the use of larger bulbs like the BR30 and PAR30. Each trim is rated Airtight and comes ready to install with the included mounting clips/springs attached. Designed to work with 6in. recessed housings. Protected by NICOR’s 1 Year Limited Warranty.
6 in. LED Housing for Remodel Applications, IC-Rated
Ideal® quick-connect base allows for quick, snap-in connection of NICOR® 6” D-series LED downlights. Suitable for residential and commercial applications. Suitable for direct contact with insulation. IC rated and airtight.
6 in. Clear Reflector Cone with White Trim Ring
NICOR’s quality constructed 6 in. cone baffle trims ensure a durable product for years to come. The 6 in. aperture and 5.5 in. height allows for the use of larger bulbs like the BR30 and PAR30. Each trim is rated Airtight and comes ready to install with the included mounting clips/springs attached. Designed to work with 6in. recessed housings. Protected by NICOR’s 1 Year Limited Warranty.
6 in. Sloped Recessed Housing for New Construction Applications, IC-Rated
This 6″ IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 0.5” to 1.5” to accommodate ceiling thickness and its 7.5” height allows it to be used in 2” x 8” joist construction.
6 in. Sloped Recessed Housing for Remodel Applications, IC Rated
This 6″ IC rated housing is suitable for remodel in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 0.5” to 1.5” to accommodate ceiling thickness and its 8¾” height allows it to be used in 2” x 8” joist construction.
3 in. LED Housing for New Construction Applications
The 13200A-LED features IDEAL connections that allows for quick, snap-in connection of NICOR® D-series LED downlights. Suitable for new construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.
6 in. Super Slope Housing for New Construction Applications
This 6″ IC rated housing is suitable for remodel in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 7/12 to 12/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 0.5” to 1.5” to accommodate ceiling thickness and its 7.875” height allows it to be used in 2” x 8” joist construction.
