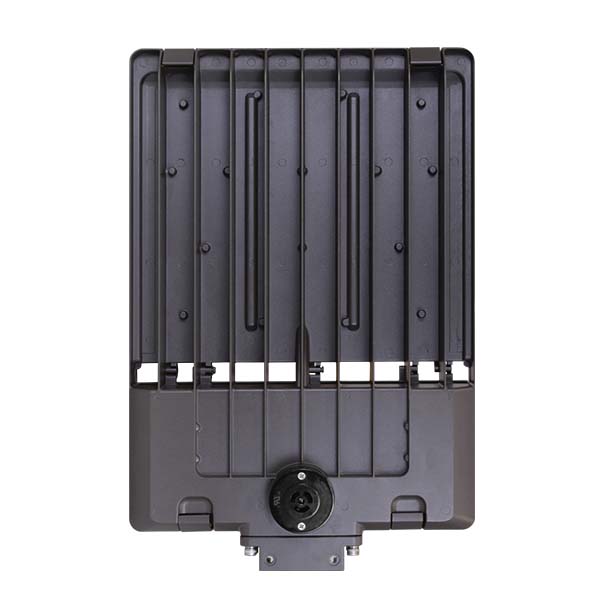

OAL3 – LED Area Light

Specifications

• Field swappable, high impact polycarbonate lenses
• Type III distribution standard
• Type II, IV and V distributions optional
• Selectable CCT of 3000/4000/5000K on 150W and 300W models

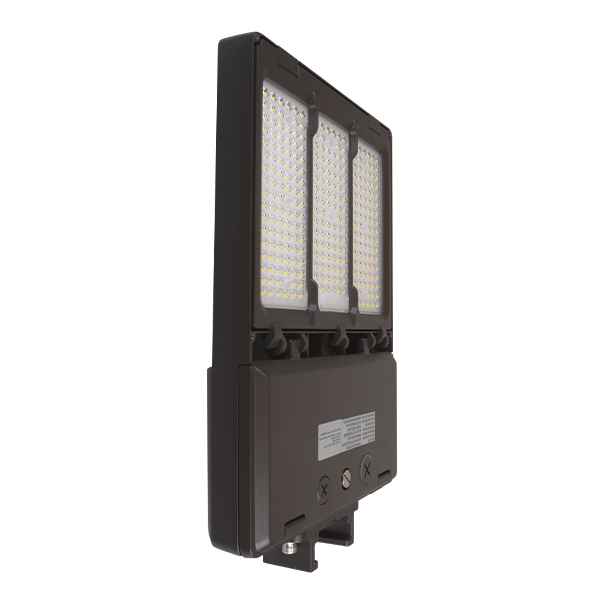

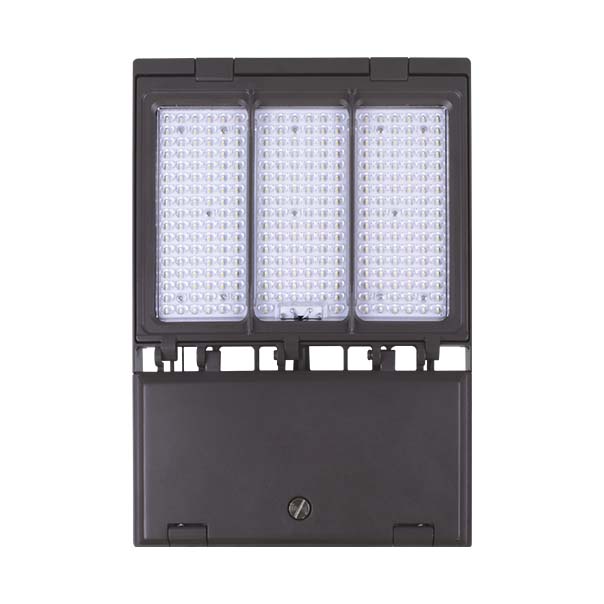

• Single CCT of 5000K on 200W model
• Standard 80 CRI to improve safety and color definition in public places
• Wattage selectable 150/120/100W and 300/240/200W
• Input voltage of 120-277VAC or 277-480VAC
• Surge protection 10kA on 120-277VAC and 20kA on 277-480VAC provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High category
• Operating temperature rating of -40° to 113°F (-40°C to 45°C)

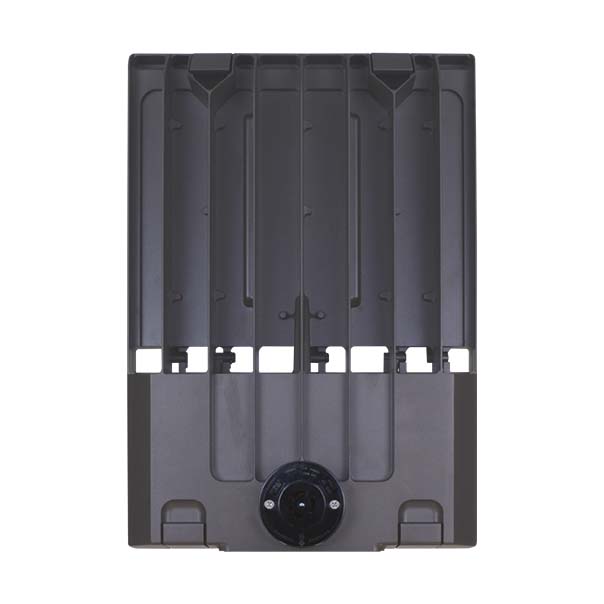

• 3-pin receptacle with shunt standard
• Optional 7 pin receptacle and shunt available

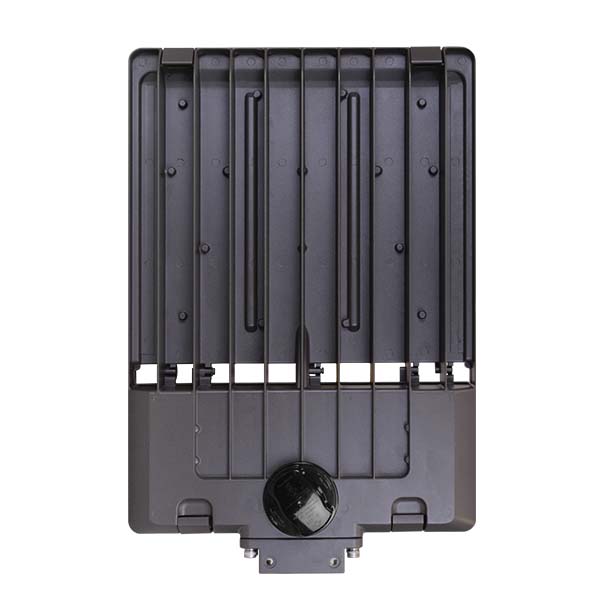

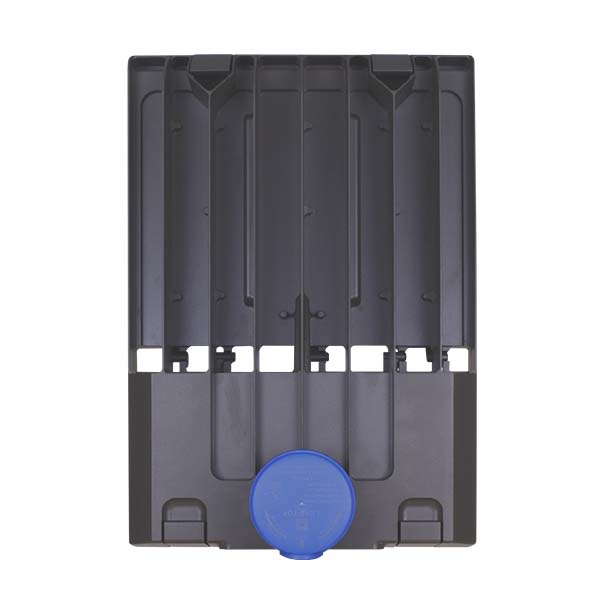

• Optional PIR or Microwave motion sensor accessories available
• 12V output allows for control of most standard low voltage sensors
• Standard full-range dimming with 0-10VDC dimmers
