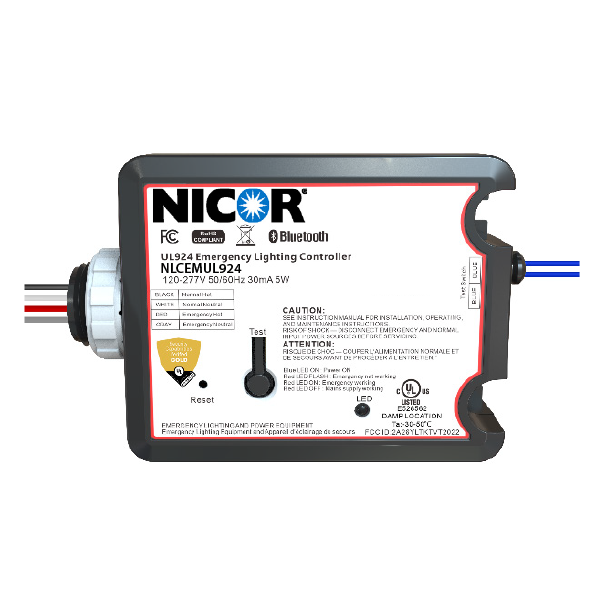

EMERGENCY LIGHTING CONTROLLER

The NLCEMUL924 is an emergency lighting controller which is in compliance with UL924 for controlling lighting on emergency circuits with building invertors or a generator. The NLCEMUL924 works with NLC Bluetooth wireless lighting controllers (NLCPC1, NLCPC112V, NLCPC2) and with NLC Bluetooth compatible LED drivers. It automatically disables the lighting control configurations and operates the lights at full output when normal building power is interrupted by sending a wireless signal to the lighting controllers. The NLC mobile app (Android/iPhone) is required for configuration.



Categories: Tag:

Specifications

  • Bluetooth Low-Energy Mesh Network
  • Controlled with the NLC App for both iOS and Android smartphones
  • Bluetooth can be transmitted up to 100ft
  • BLE 4.2 MESH IEEE 802.15.1
  • Radio frequency of 2.4GHz
  • Input voltage of 120-277V, 50/60Hz
  • Output wiring for test button (not included)
  • Operating temperature rating of -22ºF to 122ºF (-30ºC to 50ºC)



Part Number:

NLCEMUL924
