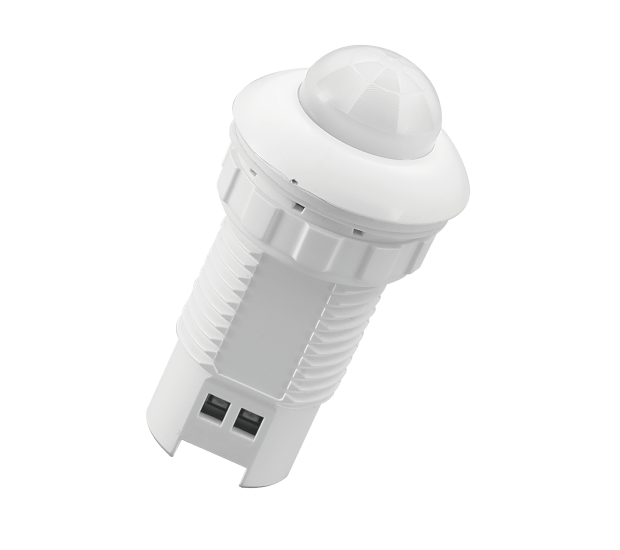

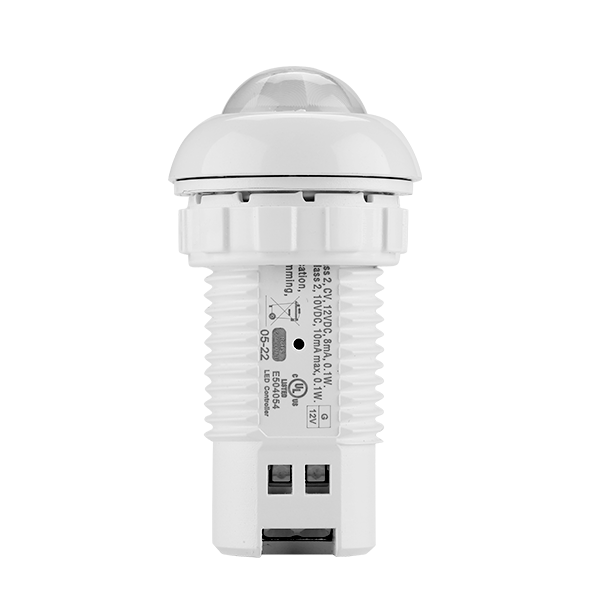

NLC Wireless Low-Voltage Ceiling Sensor
The NLCSPCW is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy installation and use, providing 360° …
The NLCSPCW is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy installation and use, providing 360° coverage at heights up to 18Ft. With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, the NLCSPCW is an ideal choice for indoor office spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
- Low-voltage Bluetooth PIR/daylight sensor designed for NICOR NLC wireless lighting systems
- Provides 360° occupancy coverage for mounting heights up to 18Ft
- Bluetooth Low Energy (BLE) mesh networking with up to 100Ft wireless range
- Compatible with NLCPS1 power supply and NLC accessory mounting components
- Beam angle: 83° with up to 40Ft diameter coverage at 18Ft mounting height
Ordering information
Downloads
Specifications
-
Wattage0.1
Listings & certifications
- cULus Listed
- UL 8750 (LED Safety)
- UL 94 5VA (Flame Resistance)
- UL 1376 Verified (Gold)
- NLC LLLC Listed
- RoHS Compliant
- IP20 Ingress Protection
- Damp-Location
- cULus Listed LED Controller E504054
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- IP20 Ingress Protection
Electrical
- Input voltage: 12VDC
- Operating temperature rating: -22°F to 131°F (-30°C to 55°C)
Installations
- Designed for NICOR Commercial Downlights
- Must be paired with 12VDC output drivers or with NLCPS1
- Use the NLCPSMOUNT1 for recessed ceiling mount.
- Must only be used for dim-to-off or 0-10V fixture; do not use a control/Bluetooth relay
Full Listings
- UL1376 Cyber Security Certification
- cULus Listed LED Controller E504054
- UL 8750
- DLC NLC5 Listed
- RoHS Compliant
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
