NLC Series
NLC Low-Voltage Power Supply Pack
Product description

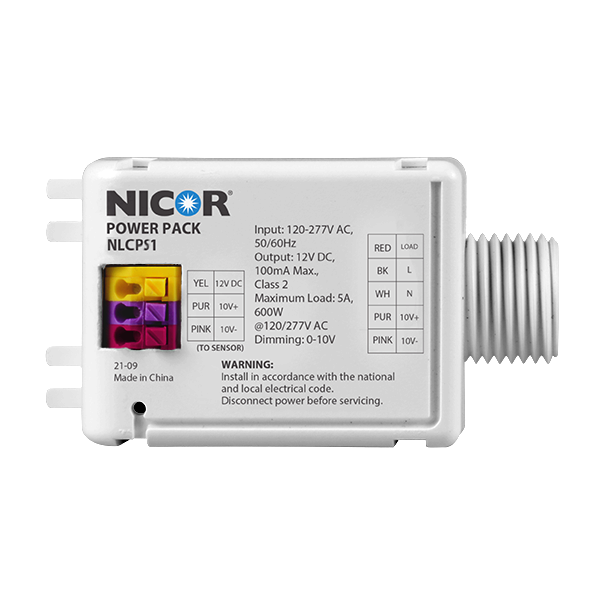

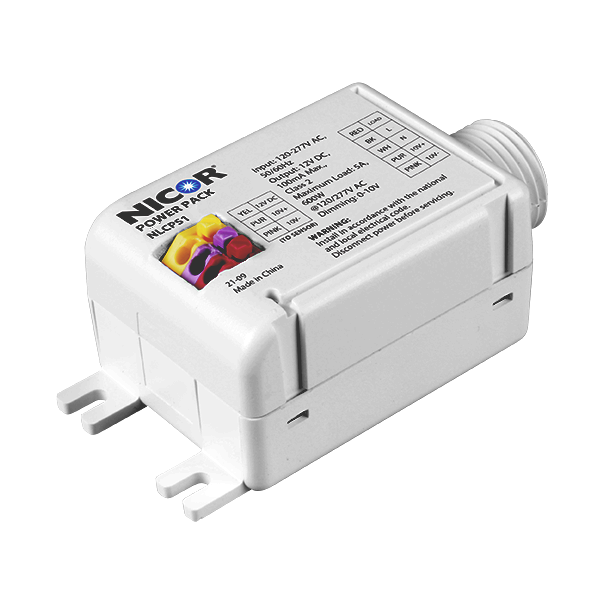

The NLCPS1 is an inline power pack designed to provide low-voltage (12V) supply and to receive dimming signal from NLC Wireless Bluetooth sensors. It operates at 3A (max) load at 120/277V and provides 0-10V dimming capability to luminaires. The NLCPS1 can be secured directly to any 1/2-inch knockout…
The NLCPS1 is an inline power pack designed to provide low-voltage (12V) supply and to receive dimming signal from NLC Wireless Bluetooth sensors. It operates at 3A (max) load at 120/277V and provides 0-10V dimming capability to luminaires. The NLCPS1 can be secured directly to any 1/2-inch knockout using the threaded nut included.
- Inline power pack provides 12V auxiliary power for NLC wireless Bluetooth sensors
- Supports 120–277V operation with 3A max load and 0-10V dimming control
- Includes high-efficiency switching power supply with integrated 3A relay
- Compatible with all NICOR NLC product series and supports one wireless sensor per pack

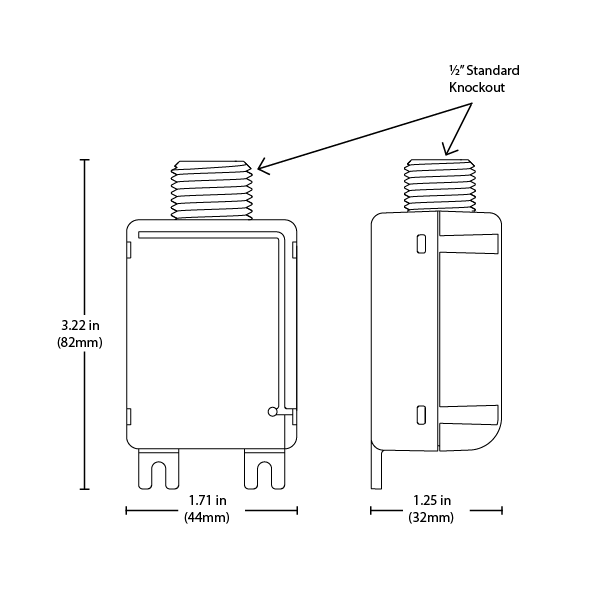

- Compact knockout-mount design for simple fixture integration and installation
Ordering information
Downloads
Specifications
-
Wattage360
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 8750 (LED Safety)
- UL 94 5VA (Flame Resistance)
- NLC LLLC Listed
- RoHS Compliant
- IP20 Ingress Protection
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- IP20 Ingress Protection
Electrical
- Input voltage: 120-277VAC, 50/60Hz
- Input current: 3.1A Max
- Output voltage: 120-277VAC
- Output current: 3A Max
- Output wattage: 360W Max
- Auxiliary voltage: 12VDC 100mA Max
- Dimming: Class 2 Rated, 0-10VDC 10mA Max
- Operating temperature rating: -22°F to 131°F (-30°C to 55°C)
Full Listings
- cULus Listed LED Controller
- UL 8750
- RoHS
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
