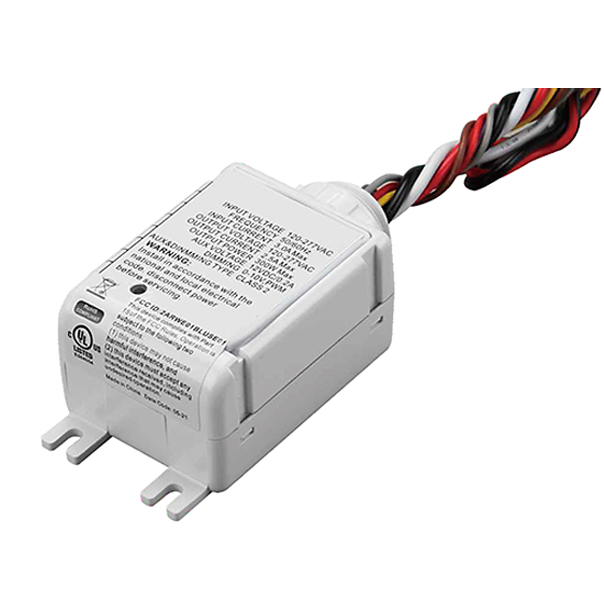

NLC Wireless 3A Zone Load Controller
The NLCPC2 is a Bluetooth wireless fixture controller that seamlessly converts any standard 0-10V luminaires into wireless controlled fixtures. It can also be connected to non-Bluetooth sensors (NLCSPCWNBWH). It operates a 3A (max) load at 120/277V to control luminaires while providing 0-10V dimming…
The NLCPC2 is a Bluetooth wireless fixture controller that seamlessly converts any standard 0-10V luminaires into wireless controlled fixtures. It can also be connected to non-Bluetooth sensors (NLCSPCWNBWH). It operates a 3A (max) load at 120/277V to control luminaires while providing 0-10V dimming capability to luminaires. The NLCPC2 can be secured directly to any 1/2-inch knockout using the threaded nut included. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
- Bluetooth wireless fixture controller converts standard 0-10V luminaires into wireless controlled fixtures
- Supports 120–277V operation with 3A max load and Class 2 0-10V dimming
- Bluetooth Low Energy (BLE) mesh networking with up to 100Ft communication range
- Compatible with non-Bluetooth sensors and NLC accessory mounting components
- Compact knockout-mount design with commissioning through the NICOR NLC mobile app
Ordering information
Downloads
Specifications
-
Wattage360
Listings & certifications
- cULus Listed
- UL 2043 (Fire Safety)
- UL 94 5VA (Flame Resistance)
- UL 1376 Verified (Gold)
- NLC LLLC Listed
- RoHS Compliant
- IP20 Ingress Protection
- UL 2043 suitable for use in air plenum space
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- IP20 Ingress Protection
Electrical
- Input voltage: 120-277VAC, 60Hz
- Input current: 3.1A Max
- Output voltage: 120-277VAC, 60Hz
- Output current: 3A Max
- Output wattage: 360W Max
- Dimming: Class 2, 0-10VDC, 10mA Max
- Operating temperature rating: -40°F to 131°F (-40°C to 55°C)
- Auxilliary voltage: 12VDC / 0.2A
- Operating humidity: 0 - 80%
Full Listings
- UL1376 Cyber Security Certification
- cULus Listed LED Controller
- UL 2043 - Suitable for use in air plenum
- DLC NLC5 Listed
- RoHS Compliant
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
