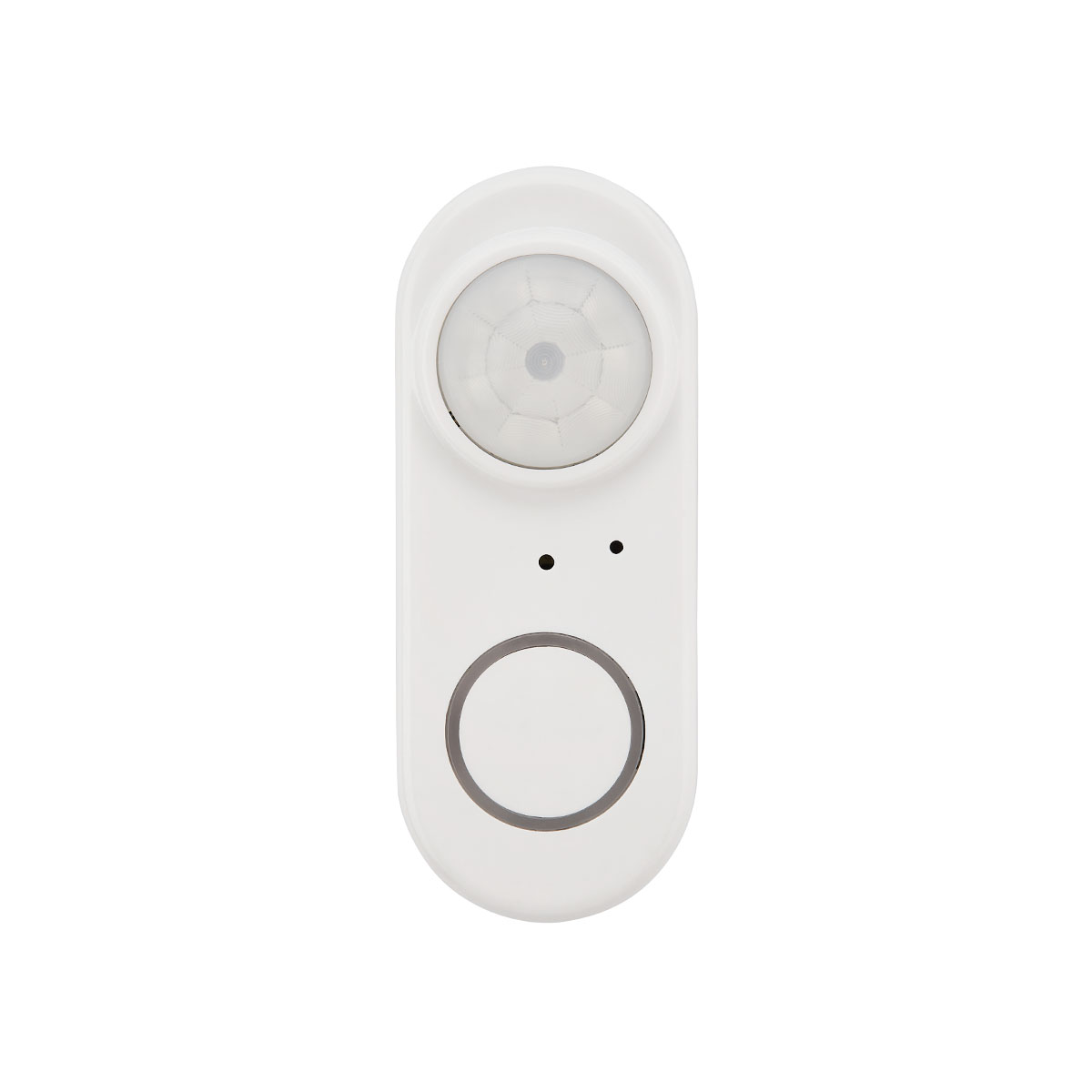

NLC Wireless Snap-In PIR Sensor
The NLCSPSS1WH is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for seamless integration with NICOR sensor-ready fixtures, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy i…
The NLCSPSS1WH is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for seamless integration with NICOR sensor-ready fixtures, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy installation and use, providing 360° coverage at heights ranging from 8 to 18Ft. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android compatible).
- Bluetooth wireless PIR/daylight sensor designed for seamless integration with NICOR sensor-ready fixtures
- Provides 360° occupancy coverage for mounting heights from 8Ft to 18Ft
- Bluetooth Low Energy (BLE) 5.0 mesh networking with up to 100Ft wireless range
- Snap-in design enables quick installation directly into compatible fixture frames
- Detection range up to 40Ft when mounted at 18Ft height
Ordering information
Downloads
Specifications
-
Wattage0.1
Listings & certifications
- cULus Listed
- UL 94 5VA (Flame Resistance)
- UL 1376 Verified (Gold)
- NLC LLLC Listed
- IP20 Ingress Protection
- RoHS Compliant
- Damp-Location
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- IP20 Ingress Protection
Electrical
- Input voltage: 12VDC
- Input current: 25mA Max
- Input power: 0.3W
- Output current: 10mA Max
- Output power: 0.1W
- Dimming: Class 2, 0-10VDC, 10mA Max
- Sinking Current: 10mA Max
- Operating temperature rating: -22°F to 131°F (-30°C to 55°C)
Installations
- For NICOR sensor-ready fixtures
- Easily snaps into place on fixture frame
Full Listings
- UL1376 Cyber Security Certification
- cULus Listed LED Controller
- DLC NLC5 Listed
- UL 8750
- RoHS Compliant
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
