LED LINEAR WRAP

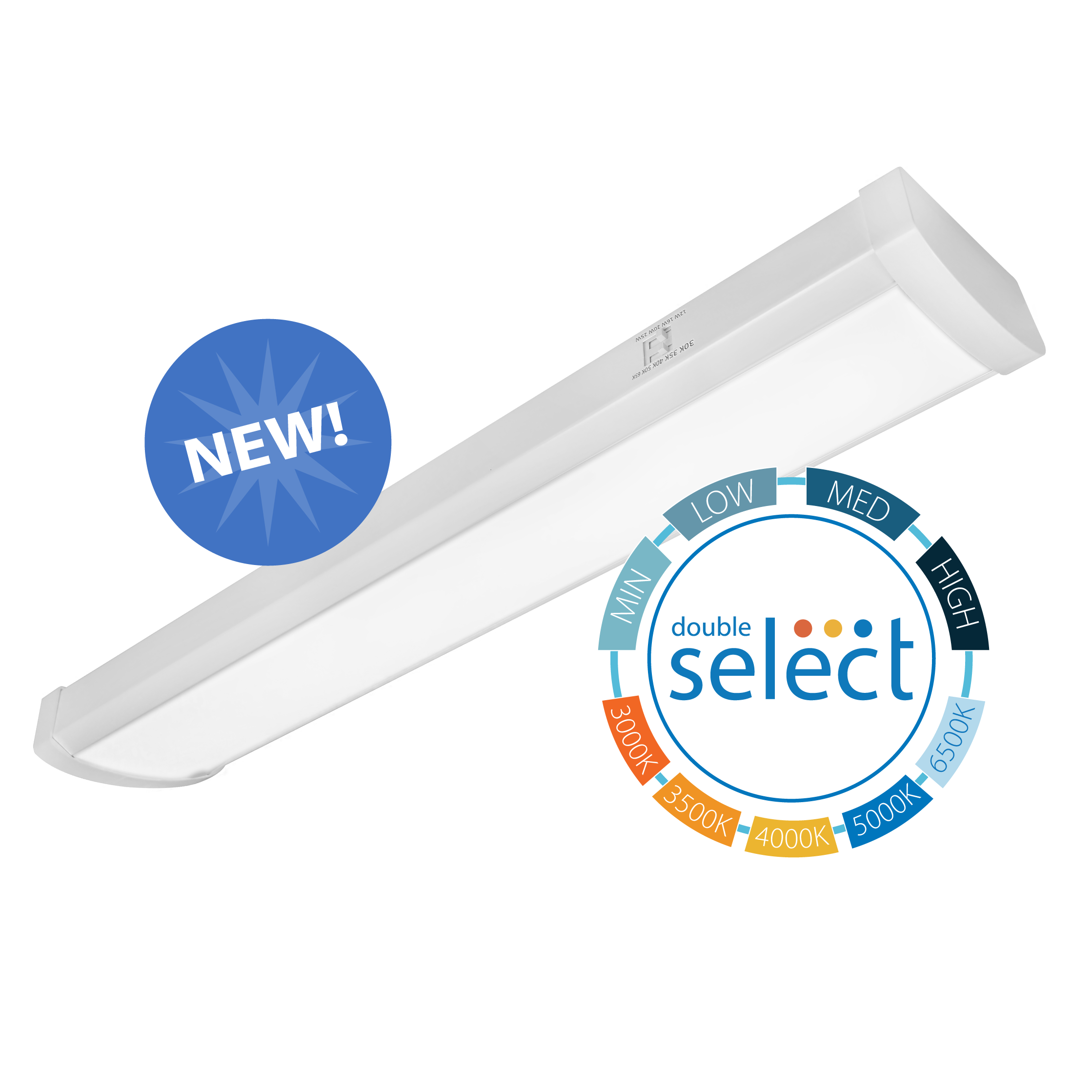

The WPC4 LED Linear Wrap is a cost-effective, energy-efficient alternative to traditional fluorescent wrap fixtures. Its modern, low-profile design features a curved, milky-white lens for uniform light distribution and an enhanced aesthetic without hotspots. The WPC4 offers field-selectable wattage and CCT, allowing customization of both light output and color temperature on-site. Available CCT options include 3000K, 3500K, 4000K, 5000K, and 6500K, with selectable lumen outputs of Minimum, Low, Medium, or High to suit a variety of application needs. An integrated lens latch provides tool-free access for easy installation and maintenance. Suitable for surface mounting on ceilings or walls, the WPC4 is ideal for retail, warehouse, residential utility, light commercial, and industrial environments.



Categories: Tags:

Specifications

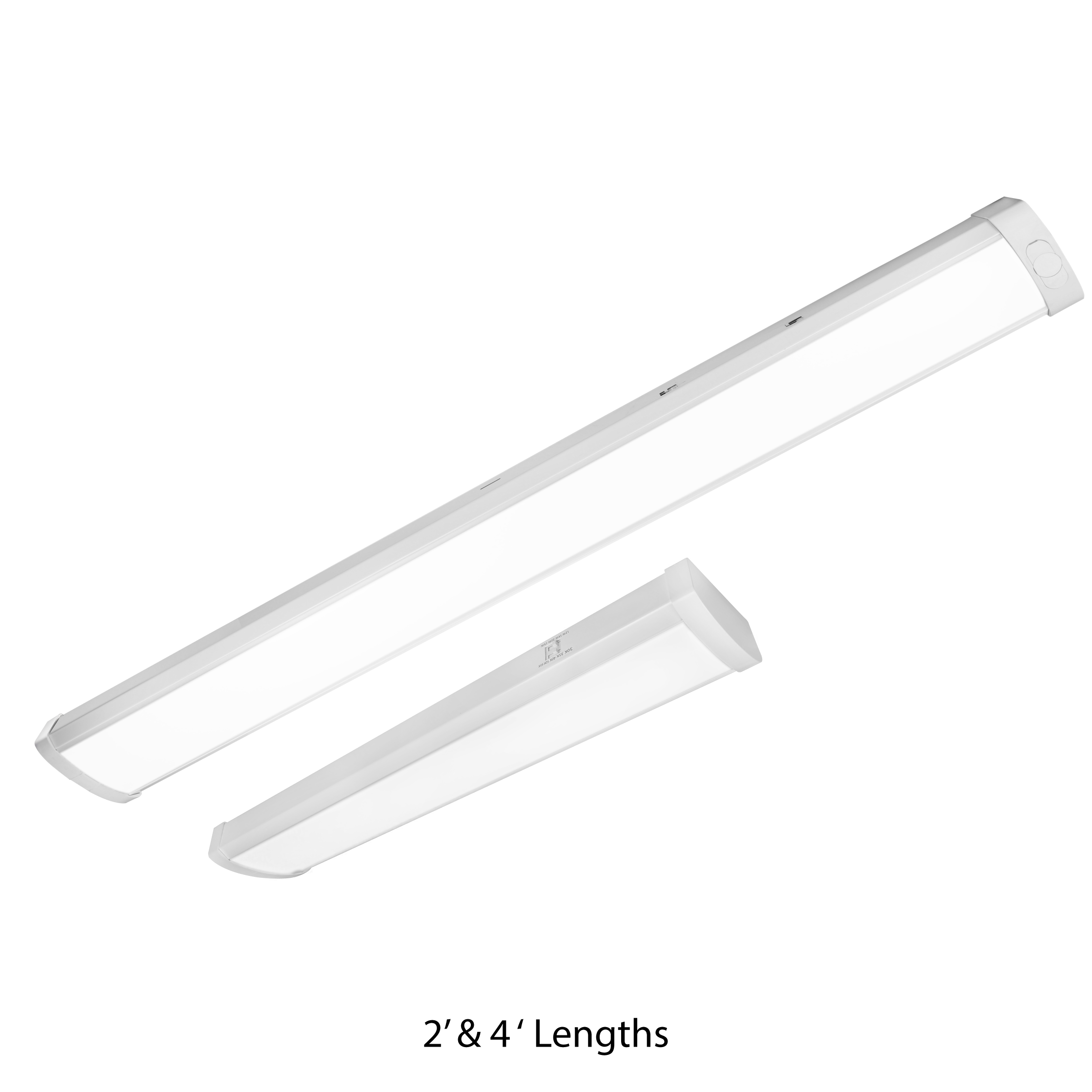

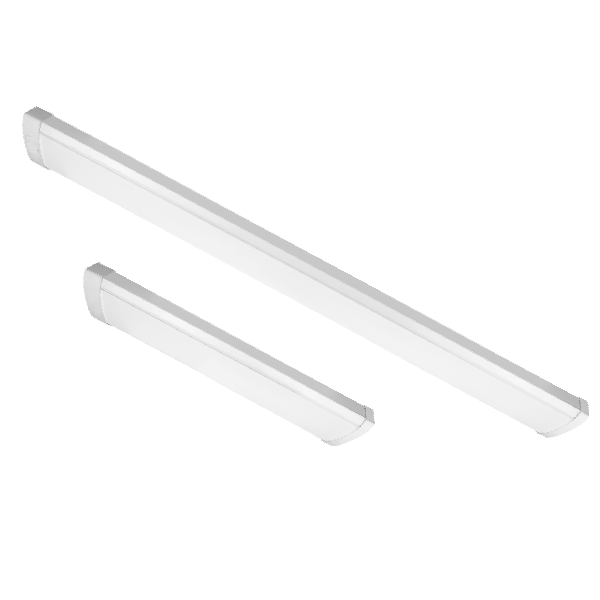

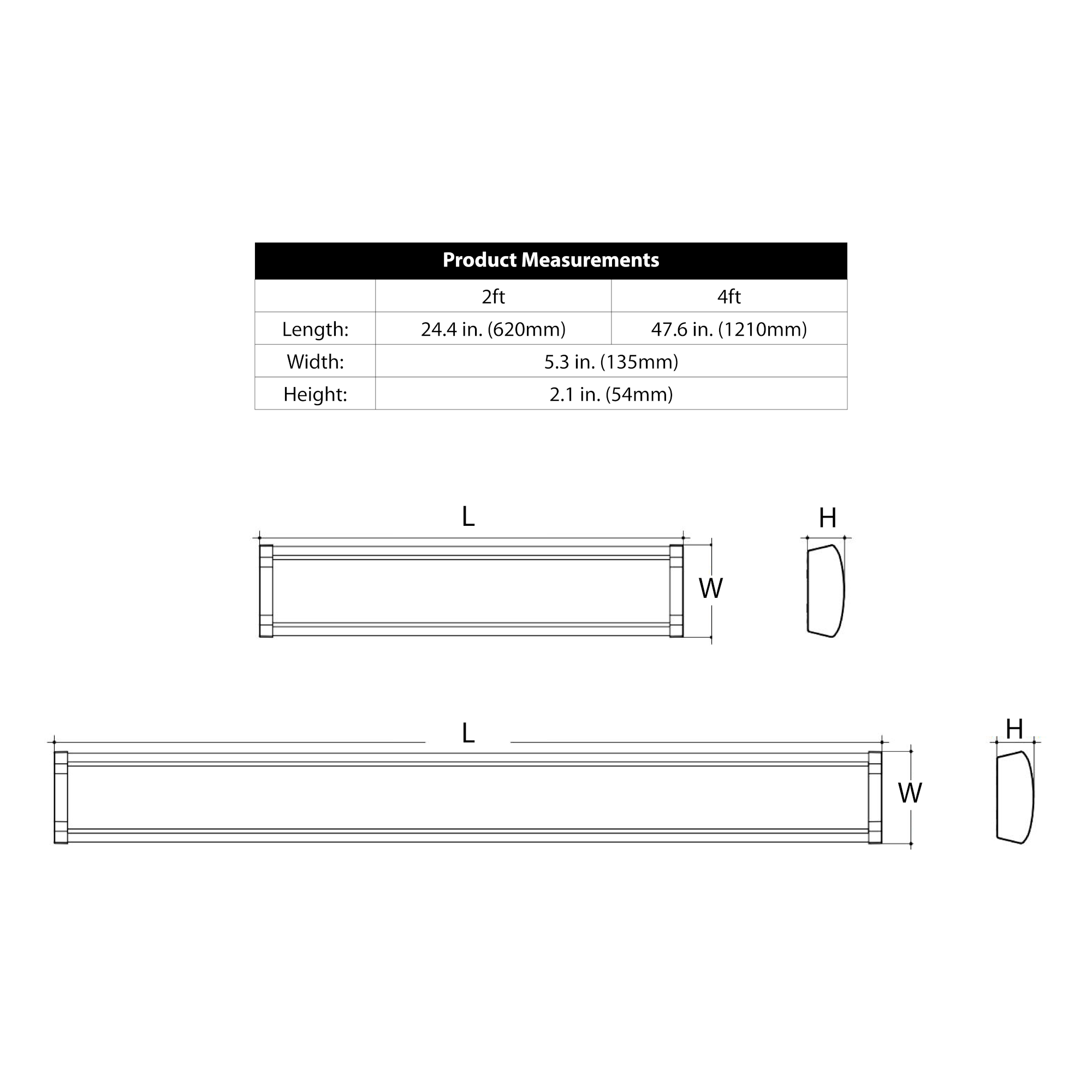

  • Available Lengths: 2 ft and 4 ft models
  • Construction: Durable steel housing with white powder coat finish and polymer endcaps
  • Optics: Curved, milky-white precision-engineered polystyrene diffuser for uniform light distribution
  • Selectable CCTs (Color Temperature): 3000K, 3500K, 4000K, 5000K, and 6500K
  • Selectable Wattages - 2 ft: 25W (12W / 16W / 20W / 25W)
  • Selectable Wattages - 4 ft: 46W (24W / 31W / 38W / 46W)

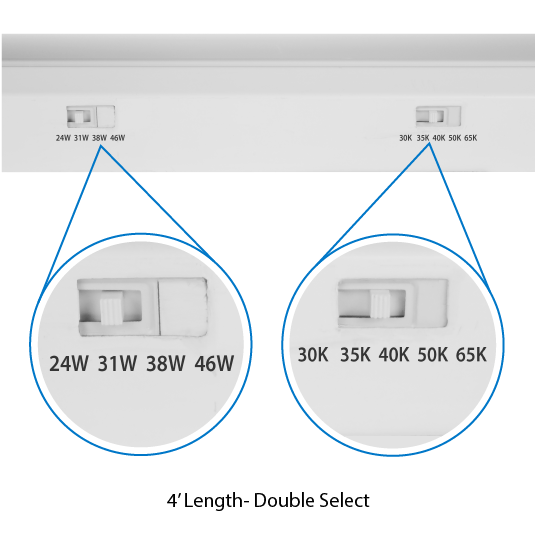

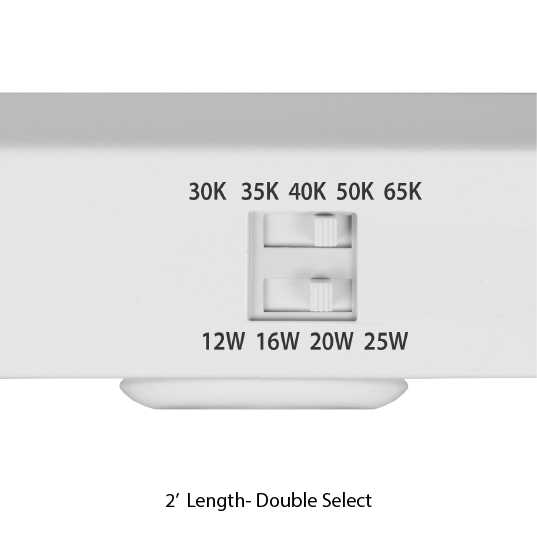

  • CCT and wattage selector switch accessible on the side of the body
  • Input Voltage: 120–277 VAC
  • Dimming: 0–10V dimming, dim-to-off capable
  • Efficacy & Lifetime: L70 (9k) > 50,000 hours; CRI > 80
  • Operating temperature range: -4°F to 122°F (-20° to 50°C)

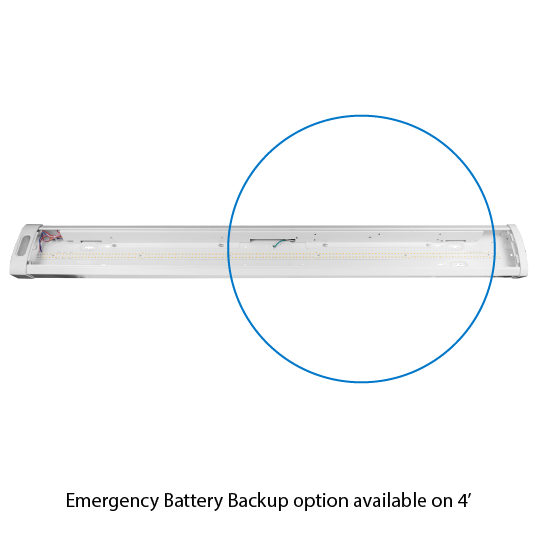

  • Emergency Battery Backup option available on 4’ model

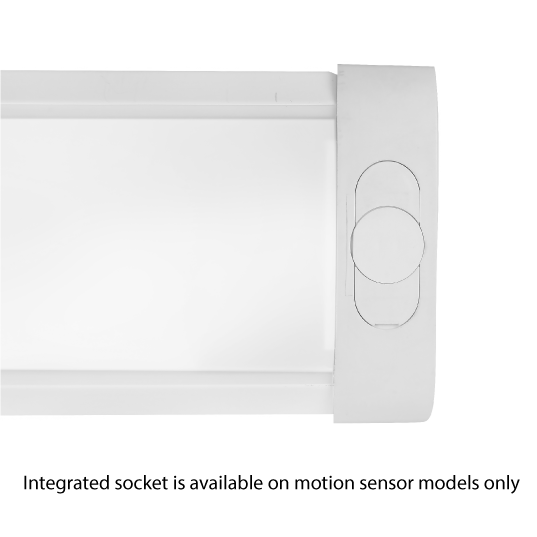

  • Integrated sensor socket endcap available for motion sensor models only

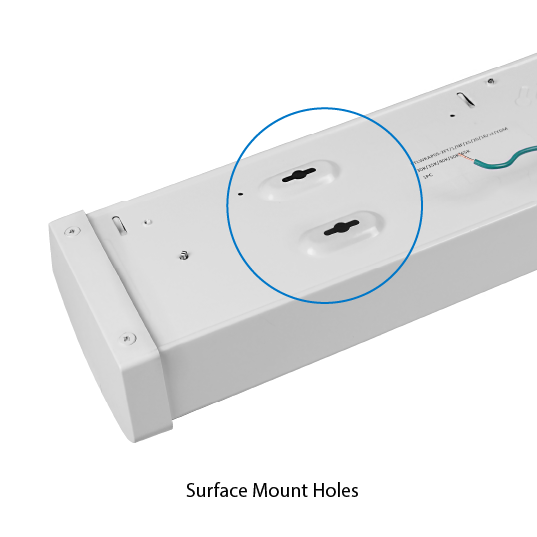

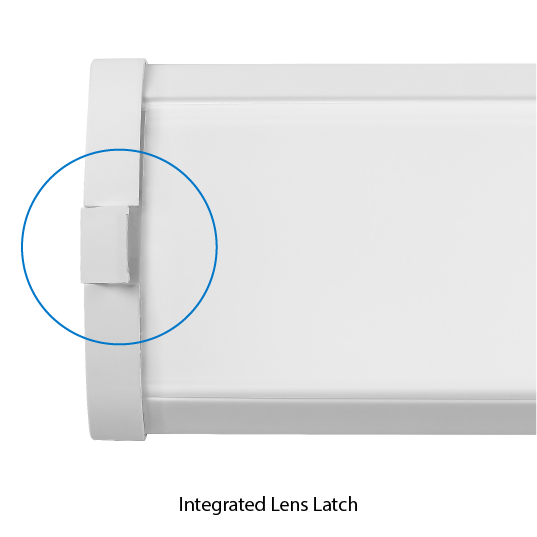

  • Mounting Options: Surface, junction box, or suspension mounting; tool-free lens latch for easy access

Downloads

– Sell Sheet
– Features and Benefits
– Comparison Sheet

– Spec Sheet
– Installation Instructions
– ies Files

WPC4 Double Select - 2'
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

1466/1913/
2466/2969
Lumens

1521/1985/
2559/3081
Lumens

1566/2043/
2634/3171
Lumens

1577/2057/
2652/3193
Lumens

1566/2043/
2634/3127
Lumens

12/15/20/25
Input Watts

11/15/20/25
Input Watts

11/15/20/25
Input Watts

11/15/20/25
Input Watts

12/16/20/26
Input Watts

127/124/
122/117
Lm/W

133/131/
128/123
Lm/W

139/137/
134/128
Lm/W

138/135/
133/127
Lm/W

134/132/
129/122
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

All:WPC4225WSUS8WH
WPC4 Double Select - 4'
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

3063/3857/
4607/5317
Lumens

3158/3976/
4750/5482
Lumens

3252/4094/
4891/5644
Lumens

3295/4149/
4956/5720
Lumens

3252/4094/
4891/5574
Lumens

24/31/38/45
Input Watts

24/31/38/45
Input Watts

23/30/37/44
Input Watts

23/30/37/44
Input Watts

24/31/38/45
Input Watts

129/125/
122/118
Lm/W

134/130/
127/123
Lm/W

140/136/
134/128
Lm/W

141/137/
133/129
Lm/W

136/132/
129/123
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

All:WPC4446WSUS8WH
WPC4 Double Select - 2'
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

1466/1913/2466/2969
Lumens

1521/1985/2559/3081
Lumens

1566/2043/2634/3171
Lumens

1577/2057/2652/3193
Lumens

1566/2043/2634/3127
Lumens

12/15/20/25
Input Watts

11/15/20/25
Input Watts

11/15/20/25
Input Watts

11/15/20/25
Input Watts

12/16/20/26
Input Watts

127/124/122/117
Lm/W

133/131/128/123
Lm/W

139/137/134/128
Lm/W

138/135/133/127
Lm/W

134/132/129/122
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

 Select:WPC4225WSUS8WH

WPC4 Double Select - 4'
3000K
Warm White		 3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool		 6500K
Daylight

3063/3857/4607/5317
Lumens

3158/3976/4750/5482
Lumens

3252/4094/4891/5644
Lumens

3295/4149/4956/5720
Lumens

3252/4094/4891/5574
Lumens

24/31/38/45
Input Watts

24/31/38/45
Input Watts

23/30/37/44
Input Watts

23/30/37/44
Input Watts

24/31/38/45
Input Watts

129/125/122/118
Lm/W

134/130/127/123
Lm/W

140/136/134/128
Lm/W

141/137/133/129
Lm/W

136/132/129/123
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:
Select: WPC4446WSUS8WH
