120″ High-Bay “Y” Suspension Cable Kit with Paddles (2 Pack)
The HB-LG-120-18Y-PAD High-Bay Suspension Cable Kit includes two sets of 1/16" galvanized cables (7x7) featuring a "Y" shaped configuration and 18" legs for balanced support. Each leg includes captive paddles designed for simple insertion into fixture holes between 1/4" and 3/8" in diameter. The LG-…
The HB-LG-120-18Y-PAD High-Bay Suspension Cable Kit includes two sets of 1/16" galvanized cables (7x7) featuring a "Y" shaped configuration and 18" legs for balanced support. Each leg includes captive paddles designed for simple insertion into fixture holes between 1/4" and 3/8" in diameter. The LG-16 gripper allows for precise cable length adjustments for secure suspension over structural supports. Each hanger is constructed to support up to 80 lbs, delivering a total load capacity of 160 lbs when both cables are used. Each kit includes two complete cable assemblies, providing everything needed for safe and reliable fixture mounting.
- 7x7 1/16″ galvanized steel cables provide high tensile strength and corrosion resistance
- Precision-engineered for durability and long service life
- Each hanger supports up to 80 lbs, with both cables providing a total capacity of 160 lbs
- Captive paddles allow quick, tool-free insertion into fixture holes between 1/4" and 3/8" diameter
- LG-16 grippers enable simple height adjustment and secure fixture alignment
Color Options:
Ordering information
Downloads
Specifications
Features
Construction
- 7x7 1/16″ galvanized steel cables provide high tensile strength and corrosion resistance
- Precision-engineered for durability and long service life
- Each hanger supports up to 80 lbs, with both cables providing a total capacity of 160 lbs
Installations

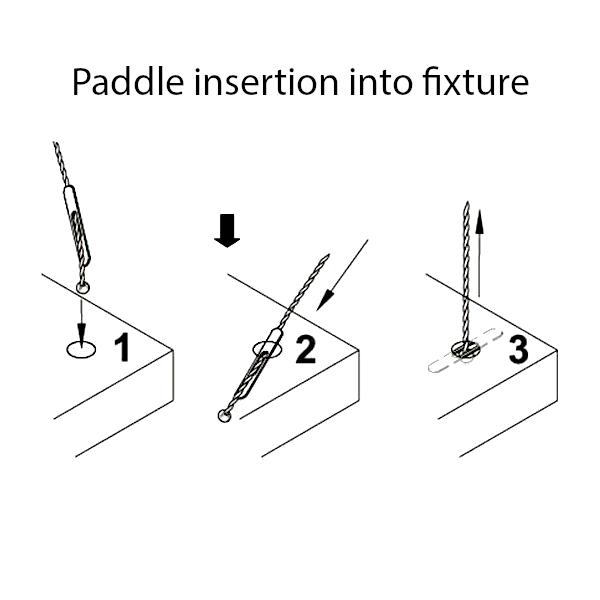

- Captive paddles allow quick, tool-free insertion into fixture holes between 1/4" and 3/8" diameter

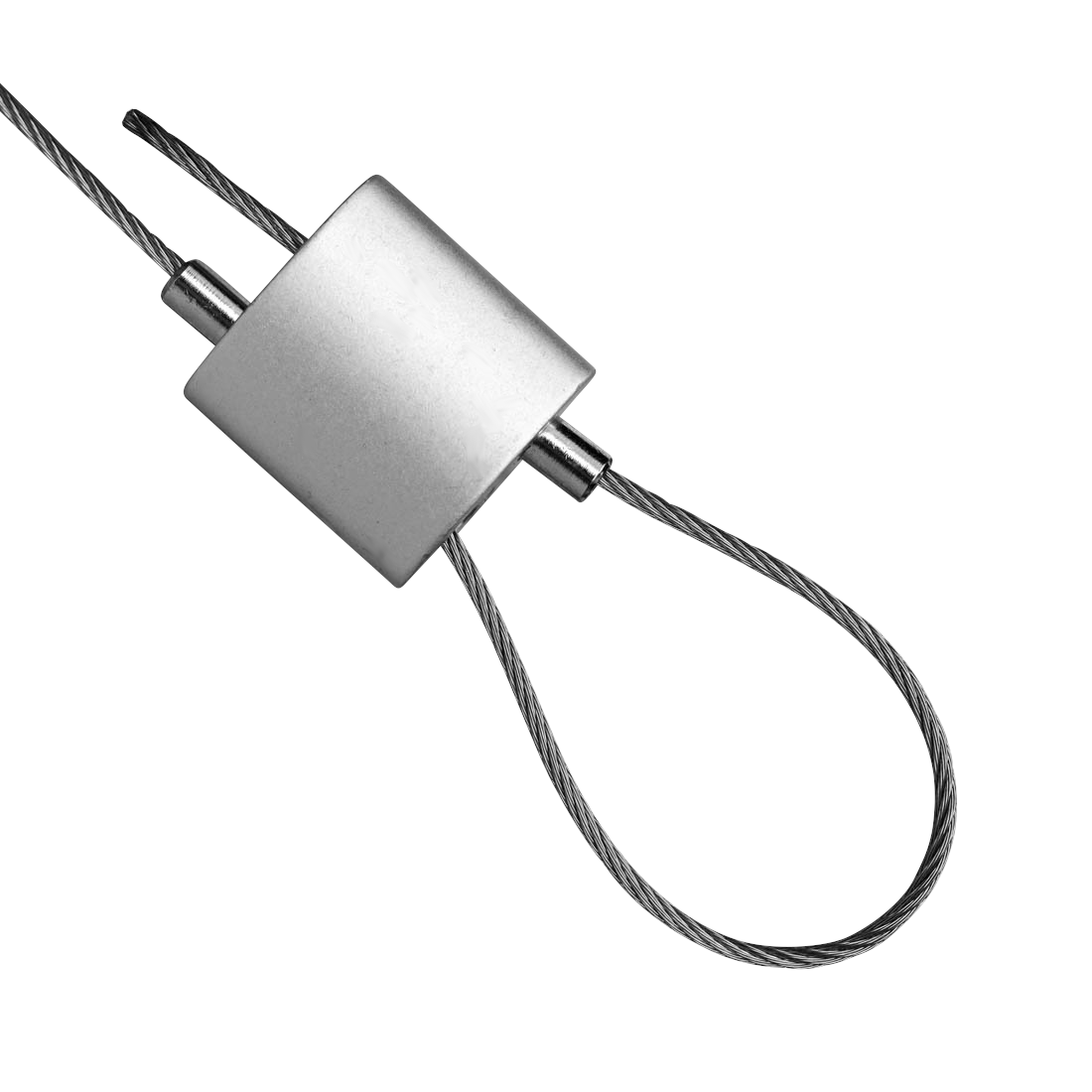

- LG-16 grippers enable simple height adjustment and secure fixture alignment

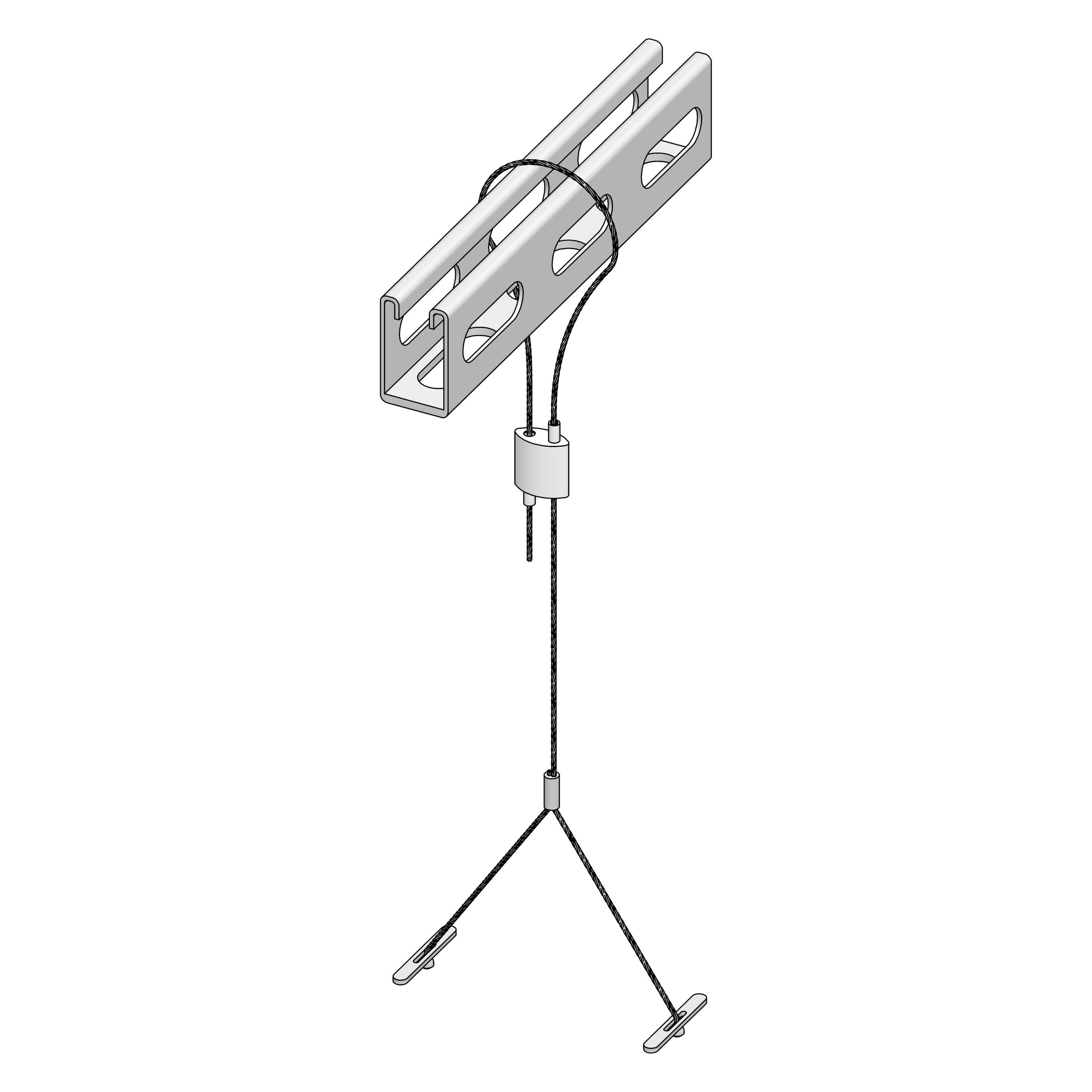

- Y-shaped cable design with 18″ legs ensures a stable and balanced fixture suspension

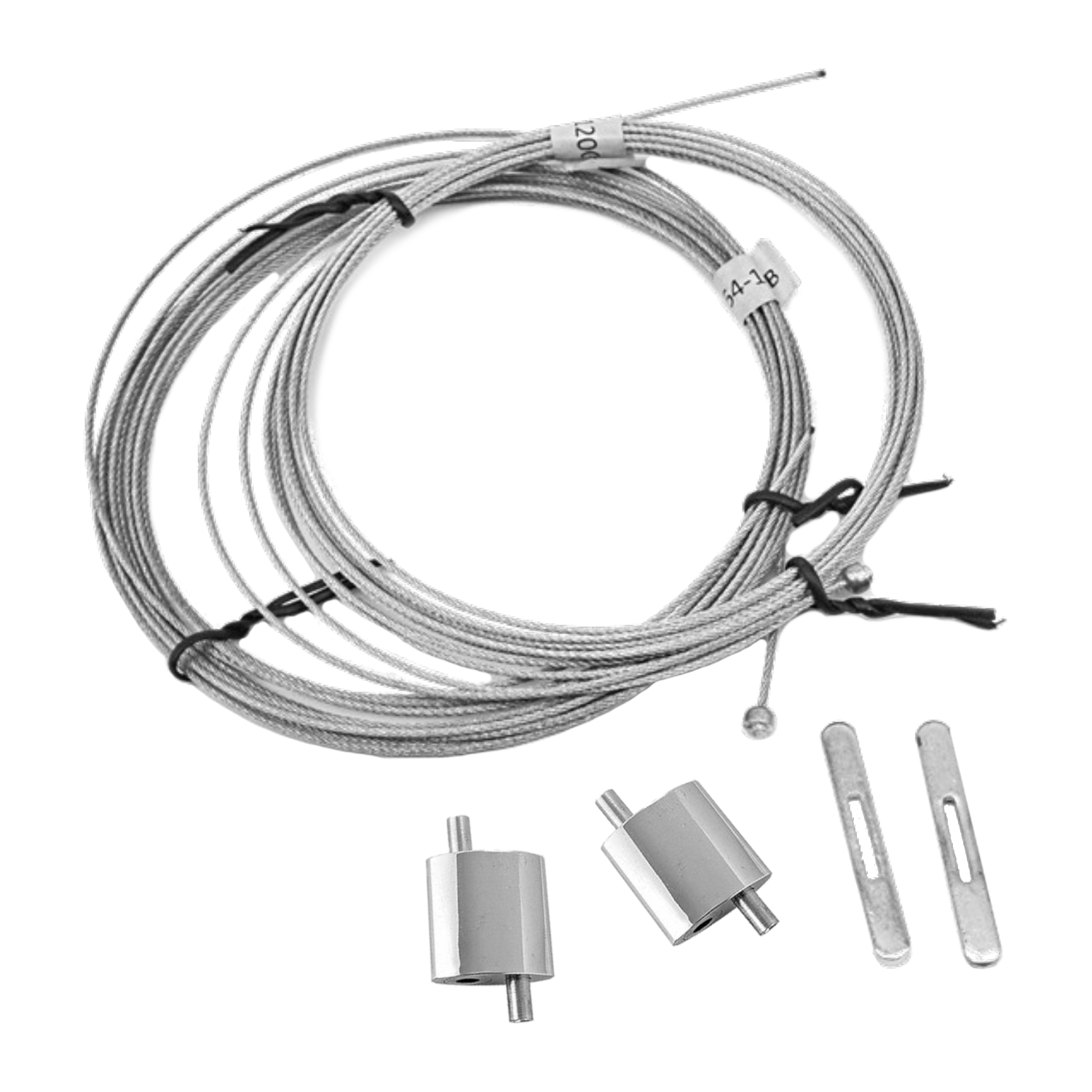

- Complete kit includes two fully assembled cable sets for simplified, time-saving installation
Warranty
- 1-year limited system warranty
