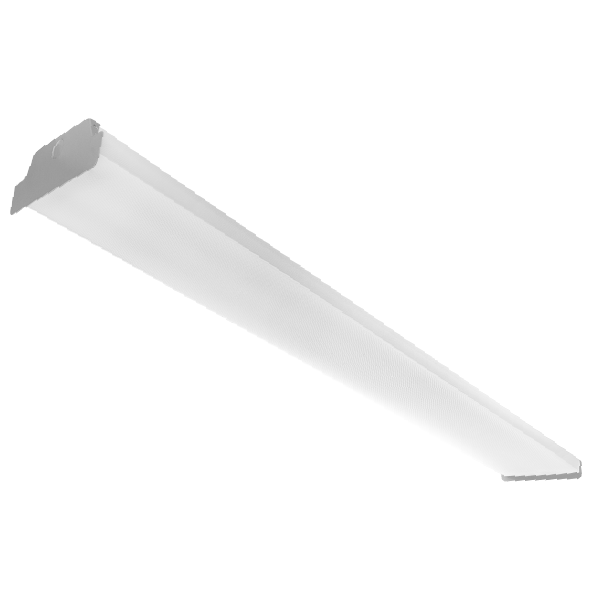

PRISMATIC LINEAR WRAP

The WPP LED Prismatic Wrap is an economical, energy-efficient lighting replacement for traditional fluorescent wrap fixtures. The WPP features a prismatic, diffused lens that offers excellent light distribution with a traditional appearance. Available with CCT and wattage selectability the WPP offers five CCTs and four lumen outputs. This versatile fixture is easy to surface mount on both ceilings and walls, making it ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications.



Categories: Tags:

Specifications

  • 5 Selectable CCTs: 3000K, 3500K, 4000K, 5000K, 6500K
  • 4 Selectable Wattages: 21W / 26W / 34W / 40W
  • Input Voltage: 120-277VAC with 12V auxiliary output
  • Dimming: 0-10V dim-to-off dimming

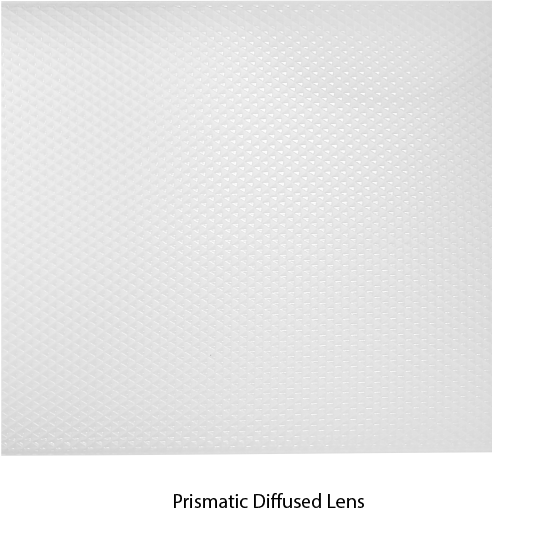

  • Lens Type: Frosted PMMA with prismatic texture
  • CRI: >80 for accurate color rendering

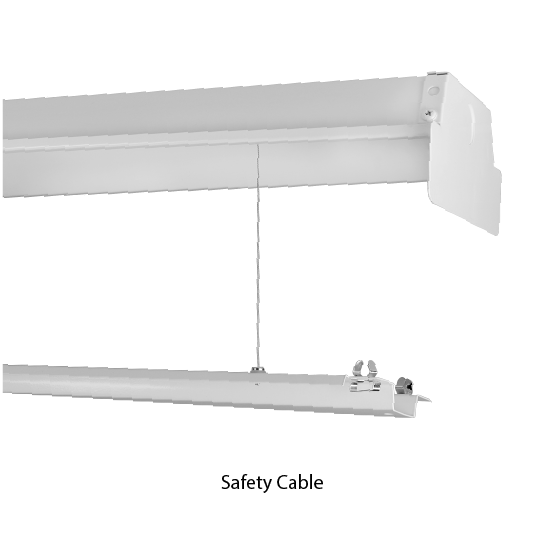

  • Mounting Options: Surface or suspended mount (ceiling/wall)

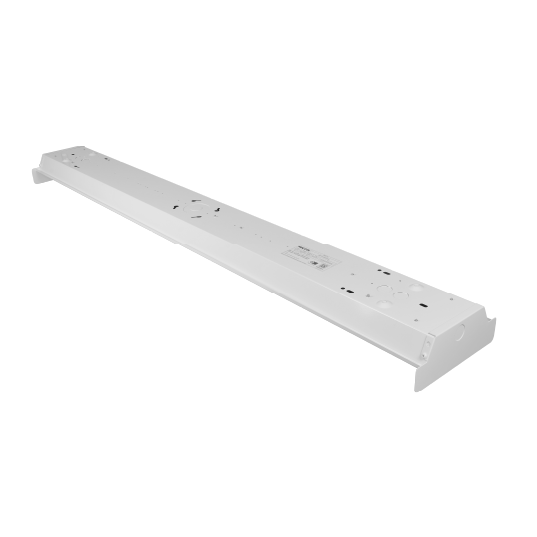

  • Construction: Durable steel with white powder coat finish
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Certifications: DLC 5.1 Standard, cULus Listed for damp locations, RoHS compliant

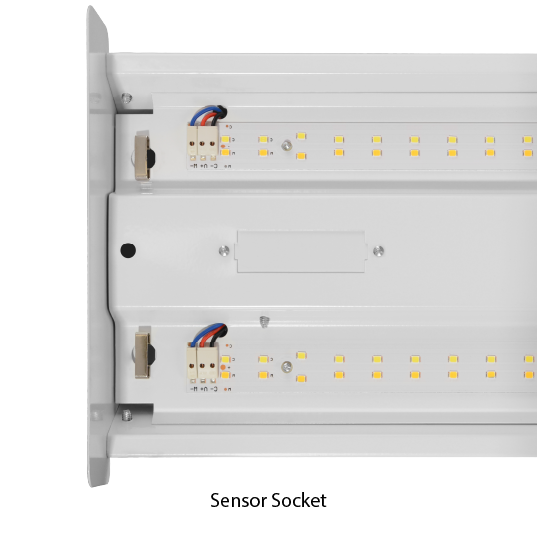

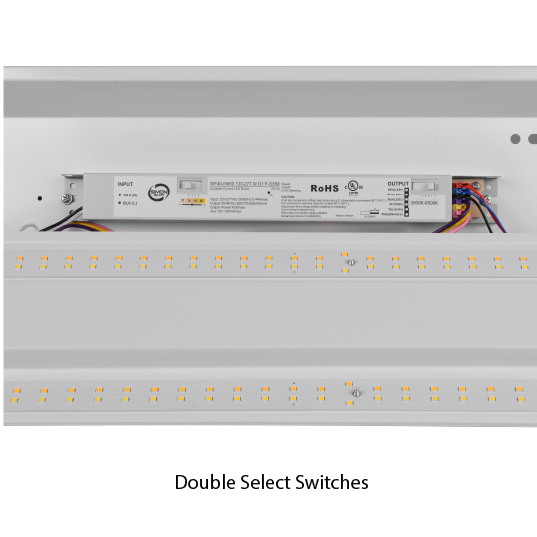

  • Controls Options: Integrated wattage/CCT selector, Microwave Motion Sensor available
  • Rated Life: >50,000 hours (TM-21 L70 at 9,000 hours)

Downloads

– Sell Sheet
– Features and Benefits
– Competitive Comparison

– Spec Sheet
– Installation Instructions
– ies Files

WPP Double Select - 4'
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

3337/4000/
5082/6168
Lumens

3406/4083/
5188/6296
Lumens

3451/4137/
5256/6379
Lumens

3453/4139/
5259/6383
Lumens

3435/4137/
5256/6350
Lumens

21/25/32/40
Input Watts

20/25/32/40
Input Watts

20/24/32/39
Input Watts

20/25/32/40
Input Watts

21/25/33/41
Input Watts

162/160/
157/153
Lm/W

167/165/
162/158
Lm/W

171/170/
166/162
Lm/W

169/167/
164/160
Lm/W

166/165/
161/157
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

Select:WPP1440SUS8
WPP Double Select - 4'
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

3337/4000/5082/6168
Lumens

3406/4083/5188/6296
Lumens

3451/4137/5256/6379
Lumens

3453/4139/5259/6383
Lumens

3435/4137/5256/6350
Lumens

21/25/32/40
Input Watts

20/25/32/40
Input Watts

20/24/32/39
Input Watts

20/25/32/40
Input Watts

21/25/33/41
Input Watts

162/160/157/153
Lm/W

167/165/162/158
Lm/W

171/170/166/162
Lm/W

169/168/164/160
Lm/W

166/165/161/157
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

 Select: WPP1440SUS8
