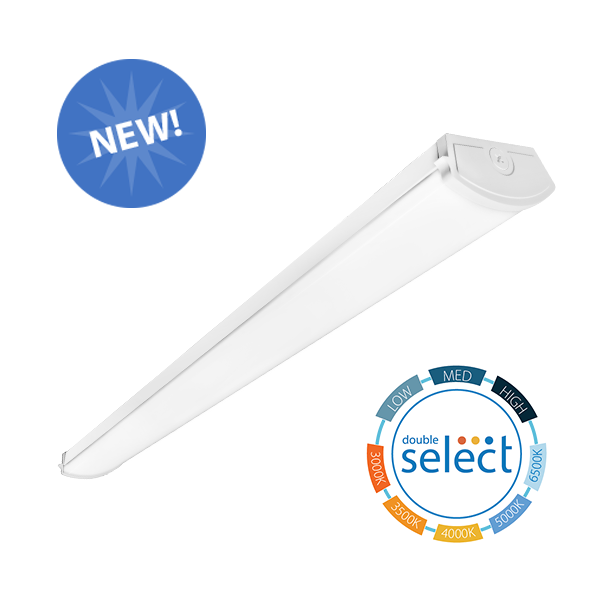

LED LINEAR WRAP

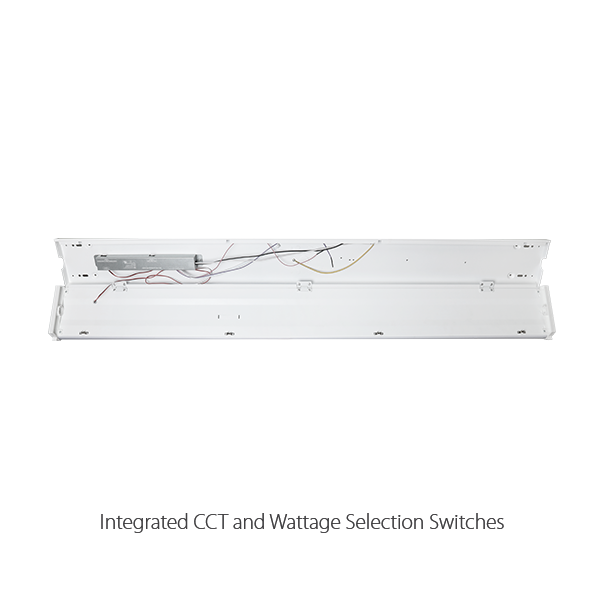

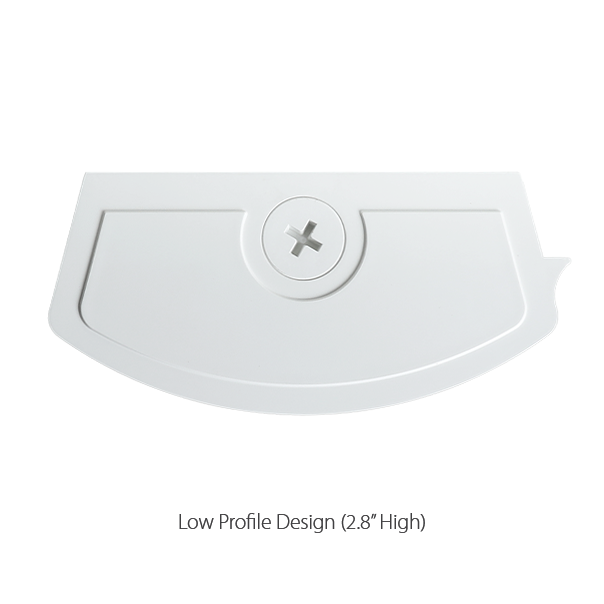

The WPA LED Linear Wrap is a cost-effective, energy-efficient alternative to traditional fluorescent wrap fixtures. Its modern, low-profile design features a curved, milky-white lens for uniform light distribution and an enhanced aesthetic without hotspots. The WPA offers field-selectable wattage and CCT, allowing customization of both light output and color temperature on-site. Available CCT options include 3000K, 3500K, 4000K, 5000K, and 6500K, with selectable lumen outputs of 25W, 35W, or 45W to suit a variety of application needs. Integrated lens latches provide tool-free access for easy installation and maintenance. Suitable for surface mounting on ceilings or walls, the WPA is ideal for retail, warehouse, residential utility, light commercial, and industrial environments.



Specifications

  • 4' length
  • Durable steel body with white powder coat finish
  • White polymer endcaps with 1/2 knockout
  • Smooth-formed sides for safe handling
  • Precision-engineered polystyrene diffuser
  • Fully enclosed light chamber
  • Selectable CCTs of 3000, 3500K, 4000K, 5000K, and 6500K.
  • >80 CRI for good color definition
  • Dim to off via 0–10VDC dimming controls
  • Efficacy Battery Backup option available
  • Operating temperature range: -4°F to 122°F (-20° to 50°C)

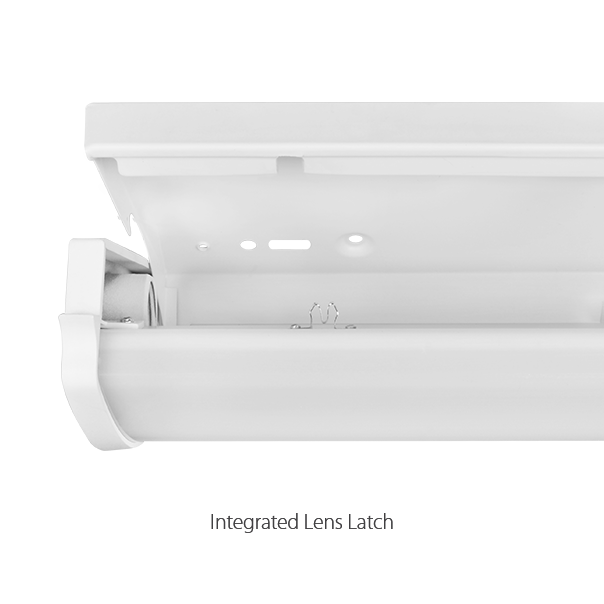

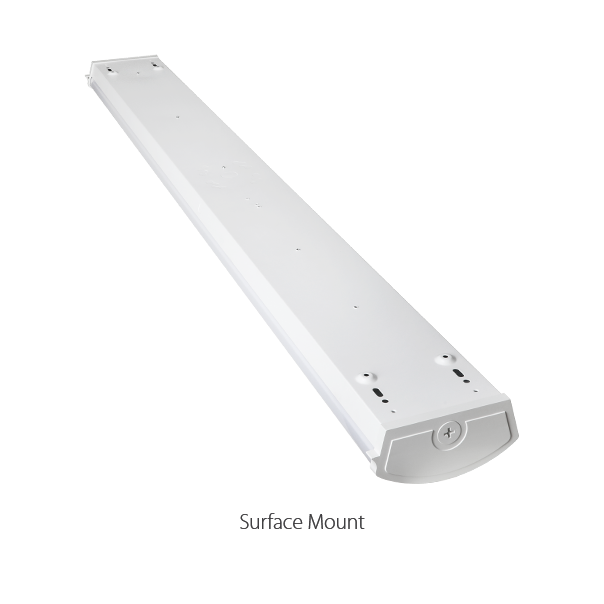

  • Mounting Options: Surface, junction box, or suspension mounting; tool-free lens latch for easy access
WPA Double Select - 4'
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool
6500K
Daylight
3115/4453/5660
Lumens
3214/4595/5840
Lumens
3252/4649/5909
Lumens

3281/4691/5963
Lumens

3244/4639/5896
Lumens

24.9/34.4/42.5
Input Watts

24.6/34/42
Input Watts

24.4/33.7/41.7
Input Watts

24.4/33.7/41.7
Input Watts

24.8/34.4/42.5
Input Watts

125.3/129.5/133
Lm/W

131/135.3/139
Lm/W

133.4/138/141.8
Lm/W

134.7/139.2/143
Lm/W

130.6/135/138.8
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

All:WPA1445SUS8WH
