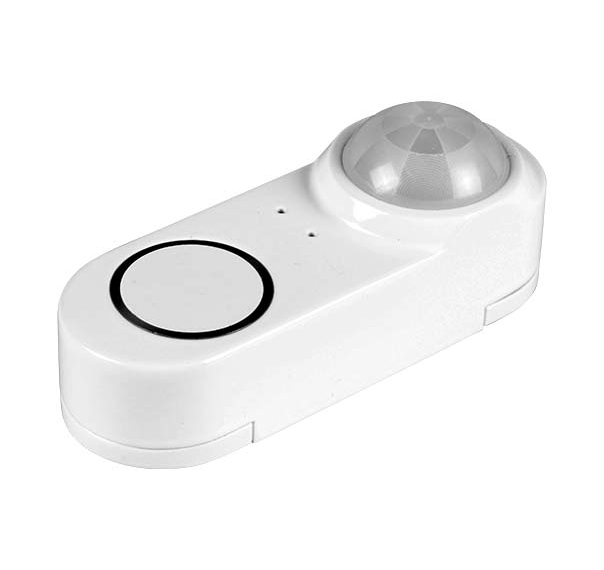

NLC Wireless Integrated Low-Voltage PIR/Daylight Sensor
The NLCSPFW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor. It provides 360° coverage at heights ranging from 15 to 18Ft with a coverage area extending out to 32Ft (when mounted at a 18Ft height). The NLCSPFW1WH comes factory installed on mid-range luminaires. Pair it with th…
The NLCSPFW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor. It provides 360° coverage at heights ranging from 15 to 18Ft with a coverage area extending out to 32Ft (when mounted at a 18Ft height). The NLCSPFW1WH comes factory installed on mid-range luminaires. Pair it with the NLCPS1 as a power supply/fixture controller(integral to luminaire from factory). Setup and commissioning requires the NICOR NLC mobile app (iOS and Android compatible).
- Integrated Bluetooth PIR/daylight sensor designed for factory-installed luminaire applications
- Provides 360° occupancy coverage for mounting heights from 15Ft to 18Ft
- Bluetooth Low Energy (BLE) mesh networking with up to 100Ft wireless range
- Compatible with TGL, TGLS, and T7C luminaires and pairs with NLCPS1 power supply/controller
- Beam angle: 83° with up to 32Ft diameter coverage at 18Ft mounting height
Ordering information
Downloads
Specifications
-
Wattage0.15
Listings & certifications
- cULus Registered
- UL 8750 (LED Safety)
- UL 94 5VA (Flame Resistance)
- UL 1376 Verified (Gold)
- NLC LLLC Listed
- RoHS Compliant
- IP20 Ingress Protection
Features
Construction
- Made of fire retardant plastic (UL 94-5VA)
- IP20 Ingress Protection
Electrical
- Input voltage: 12VDC 12mA 0.15W
- Rated current: 25mA
- Operating temperature rating: -40°F to 131°F (-40°C to 55°C)
- Operating humidity: 0 - 80%
Installations
- Compatible with NICOR TGL and T7C Series LED Troffers
Full Listings
- UL1376 Cyber Security Certification
- cULus Recognized Component LED Controller E504054
- UL 8750
- RoHS Compliant
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
