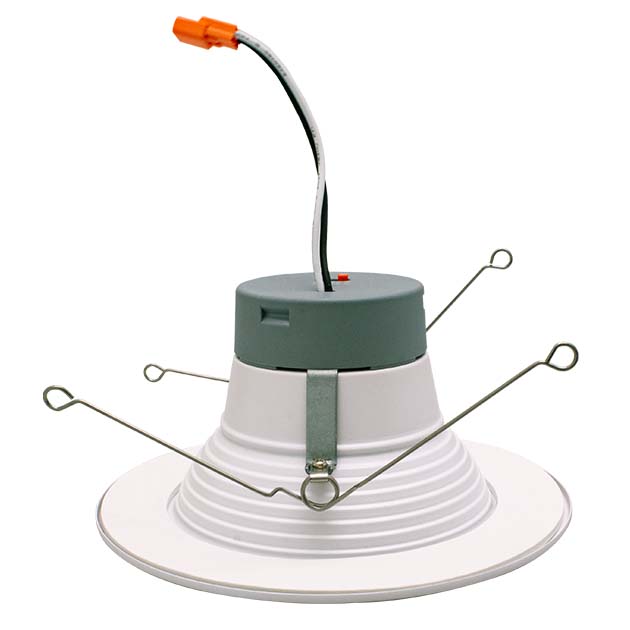

3K and SELECTABLE LED RETROFIT DOWNLIGHT

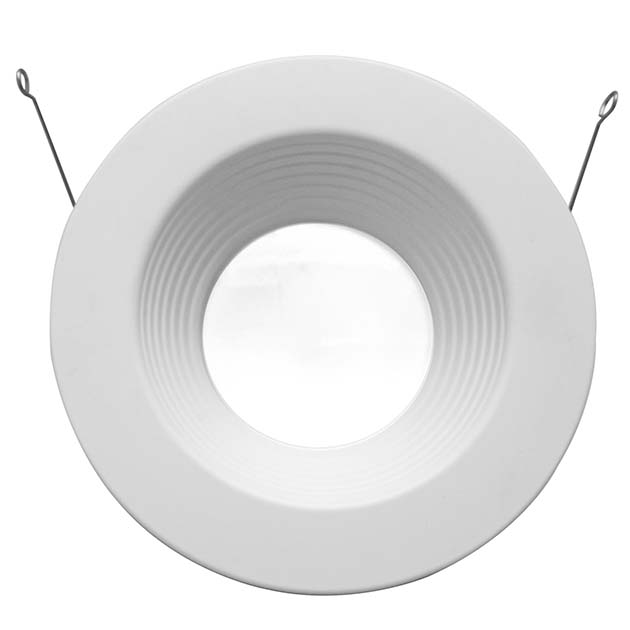

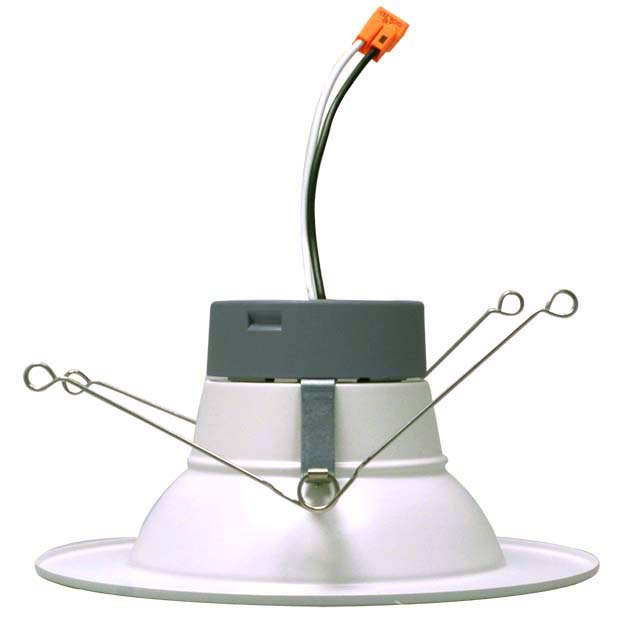

The NICOR DLR56 is the latest 5-inch/6-inch Selectable Recessed LED Downlight designed for high-efficiency lighting in both residential and commercial settings. Replace outdated recessed fixtures with high-quality LED lighting that’s incredibly easy to install, right out of the box. The fully dimmable DLR56 offers an impressive CRI rating over 94 with an R9 Value exceeding 68, producing an extraordinary light quality. This means that your reds will be brighter, and your blues will be truer. Select between five built-in color temperature settings ranging from warm white to daylight (2700K – 5000K). In terms of durability, the DLR56 features a lifespan exceeding 72,000 hours, and is backed by an industry leading 5-year warranty. The DLR56 is available in black, black baffle, nickel, oil-rubbed bronze, white, and white baffle to match any interior design.







Specifications

  • Single CCT LED used for 3000K standard model

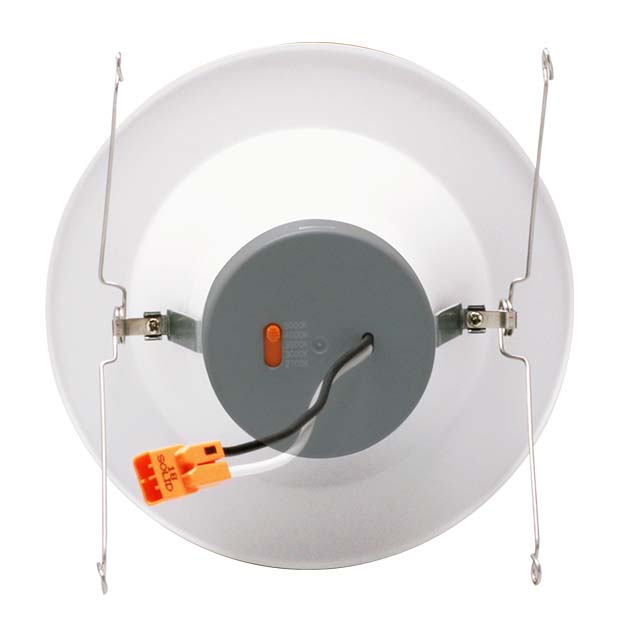

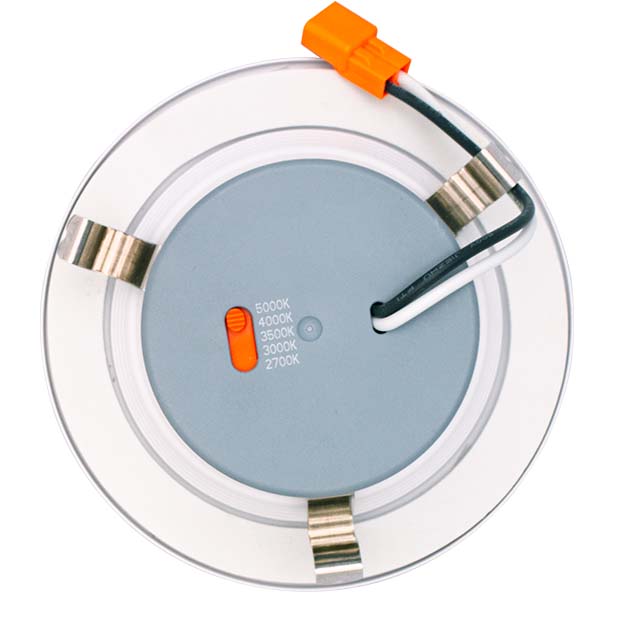

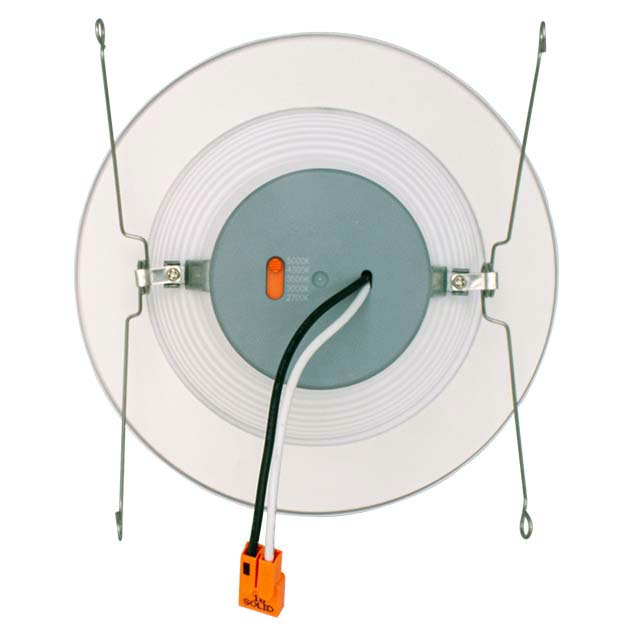

  • Selectable models use a dual emitter array that enables CCT selection of 2700, 3000, 3500, 4000, or 5000K
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50
  • Polystyrene diffuser creates uniform distribution without sacrificing lumen output
  • Input voltage of 120VAC
  • Dimmable below 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • Exterior white powder coat finish
  • Available Frame Accessories for DLR4 and DLR56
  • Available magnetic accessory trim covers:
    • Black
    • Black Baffle
    • Oil-Rubbed Bronze
    • Nickel

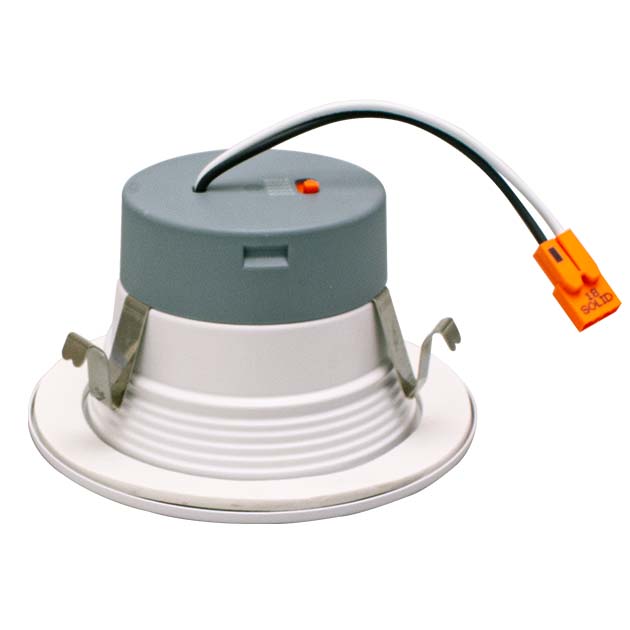

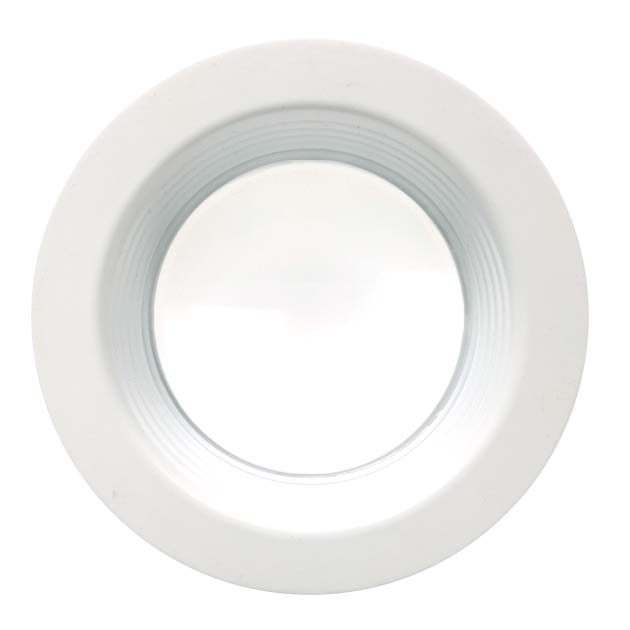

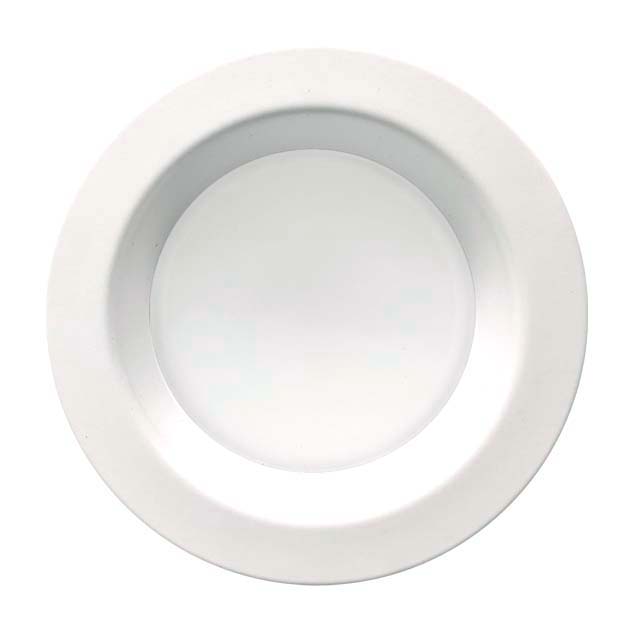

DLR4
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

721
Lumens

735
Lumens

742
Lumens

758
Lumens

752
Lumens

7.88
Input Watts

7.90
Input Watts

7.70
Input Watts

7.64
Input Watts

7.83
Input Watts

91.53
lm/W

93.04
lm/W

96.36
lm/W

99.16
lm/W

96.07
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR4607120S
 3000K:DLR46071203K
DLR56 - 900lm
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

918
Lumens

934
Lumens

943
Lumens

962
Lumens

959
Lumens

10.30
Input Watts

10.26
Input Watts

10.04
Input Watts

10.12
Input Watts

10.21
Input Watts

89.13
lm/W

91.03
lm/W

93.92
lm/W

95.06
lm/W

93.93
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR56609120S
 3000K:DLR566091203K
DLR56 - 1200lm
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1224
Lumens

1231
Lumens

1239
Lumens

1248
Lumens

1245
Lumens

13.88
Input Watts

13.83
Input Watts

13.44
Input Watts

13.43
Input Watts

13.77
Input Watts

88.20
lm/W

89.01
lm/W

92.19
lm/W

92.93
lm/W

90.41
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR56612120S
 3000K:DLR566121203K
DLR4
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

721
Lumens

735
Lumens

742
Lumens

758
Lumens

752
Lumens

7.88
Input Watts

7.90
Input Watts

7.70
Input Watts

7.64
Input Watts

7.83
Input Watts

91.53
lm/W

93.04
lm/W

96.36
lm/W

99.16
lm/W

96.07
lm/W

95
CRI

95
CRI

95
CRI

95
CRI

95
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR4607120S
 3000K:DLR46071203K

DLR56 - 900lm
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

918
Lumens

934
Lumens

943
Lumens

962
Lumens

959
Lumens

10.30
Input Watts

10.26
Input Watts

10.04
Input Watts

10.12
Input Watts

10.21
Input Watts

89.13
lm/W

91.03
lm/W

93.92
lm/W

95.06
lm/W

93.93
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

94
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR56609120S
 3000K:DLR566091203K

DLR56 - 1200lm
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1224
Lumens

1231
Lumens

1239
Lumens

1248
Lumens

1245
Lumens

13.88
Input Watts

13.83
Input Watts

13.44
Input Watts

13.43
Input Watts

13.77
Input Watts

88.20
lm/W

89.01
lm/W

92.19
lm/W

92.93
lm/W

90.41
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

93
CRI

Select IES Download

Select IES Download
3K IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:DLR56612120S
 3000K:DLR566121203K
