17003AR Series
6 in. Housing for Remodel Applications, Airtight
Product description
This 6″ IC rated housing is suitable for new and existing construction in residential and commercial applications. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Adjustable socket bracket a…
This 6″ IC rated housing is suitable for new and existing construction in residential and commercial applications. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Adjustable socket bracket assures proper and consistent lamp positioning. 7.5” height allows use in 2” x 8” joist construction.
- IC-rated airtight housing is approved for direct contact with insulation, helping improve energy efficiency and reduce unwanted airflow
- Designed for both remodel and new construction applications in residential and commercial environments
- Durable aluminum construction provides enhanced heat dissipation for reliable, long-lasting performance
- Adjustable socket bracket ensures proper and consistent lamp positioning for optimal light output and trim alignment

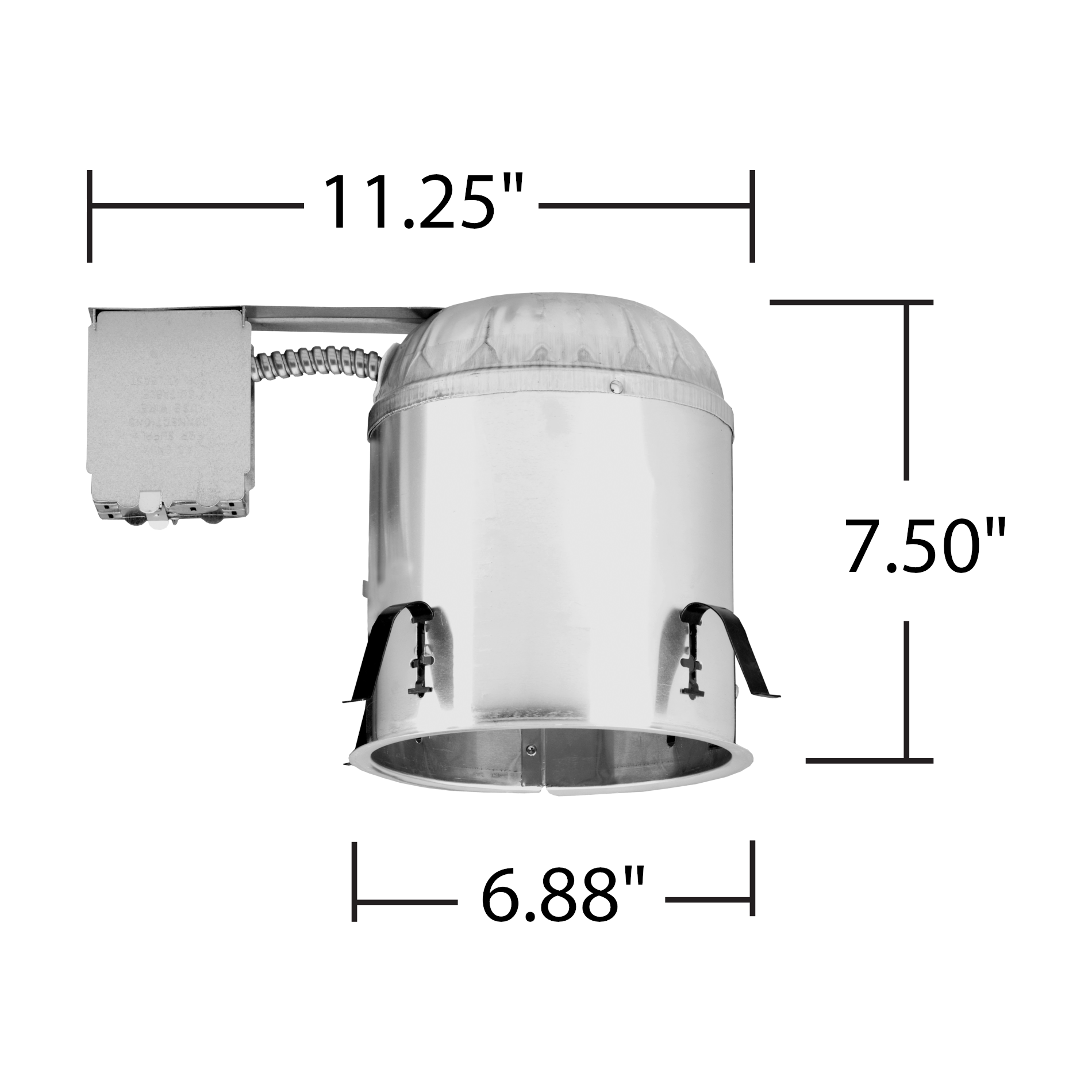

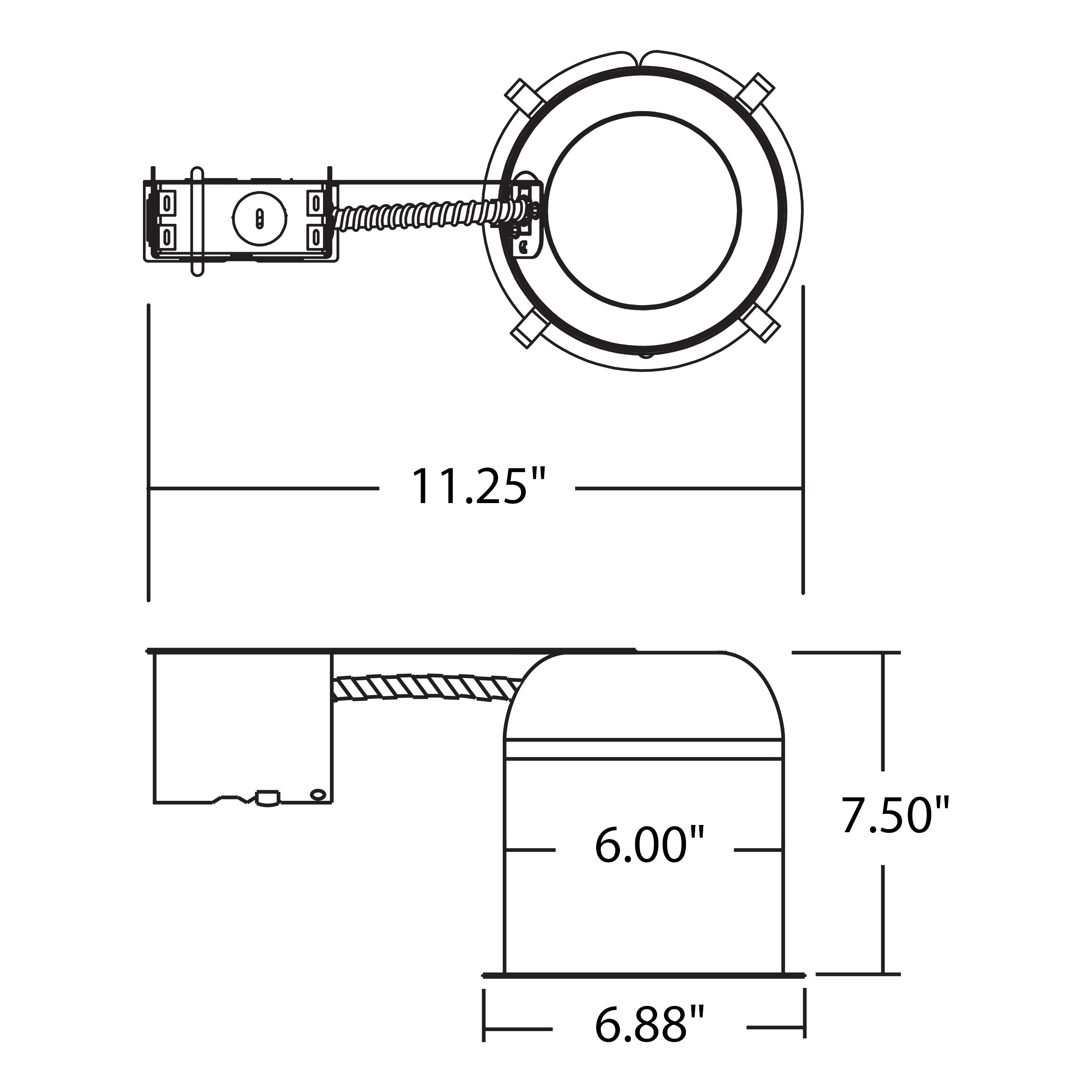

- Low-profile 7.5-inch housing fits 2-inch x 8-inch joist construction, accommodates ceiling thicknesses from 0.5 inch to 1.5 inches, and features removable housing access for convenient junction box servicing
Color Options:
Ordering information
Downloads
Specifications
-
Wattage75
Listings & certifications
Listings & Certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Aluminum construction provides greater heat dissipation
- Suitable for remodel and new construction in residential and commercial applications
- IC Rated. Suitable for direct contact with insulation
- Adjustable socket bracket assures proper and consistent lamp positioning
- 7.5” height allows use in 2” x 8” joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 0.5” to 1.5” to accomodate ceiling thickness
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Supplied with three push-in wire connectors
Full Listings
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Listed for through branch circuit wiring and includes several 0.75” knockouts
- UL Listed for direct contact with insulation
- UL Damp-Location
- UL Listed
- UL Feed-Through
- CUL Listed
