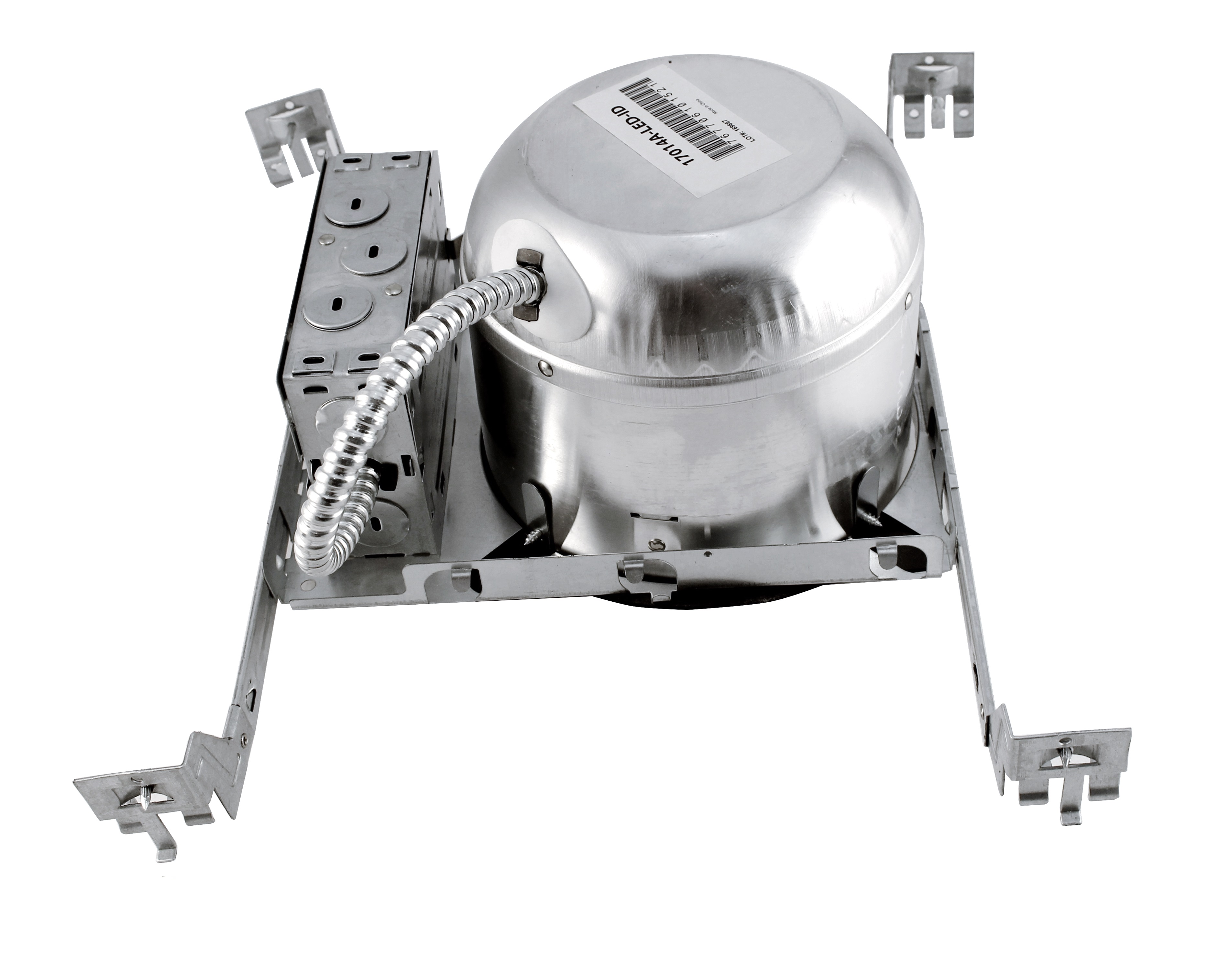

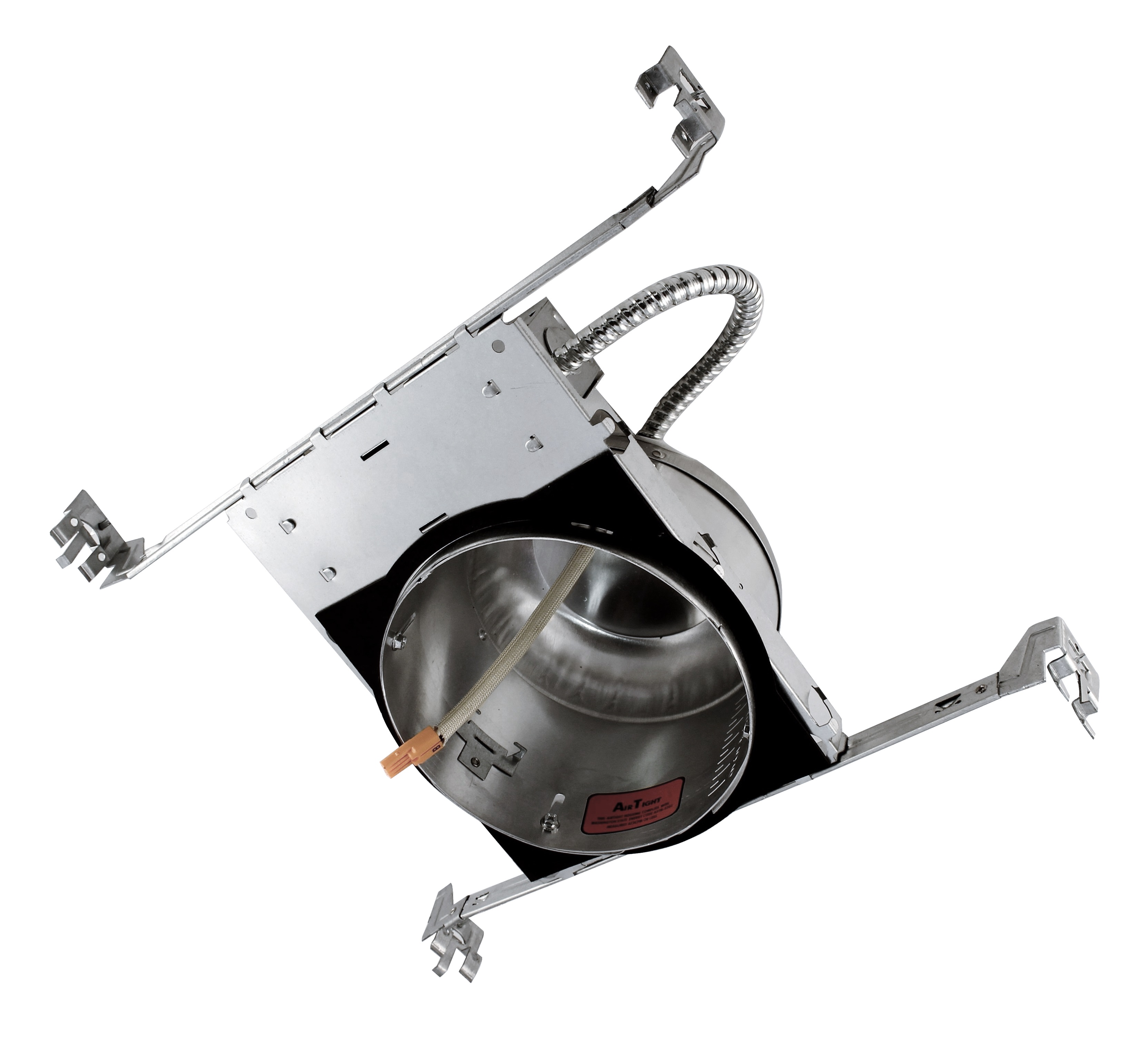

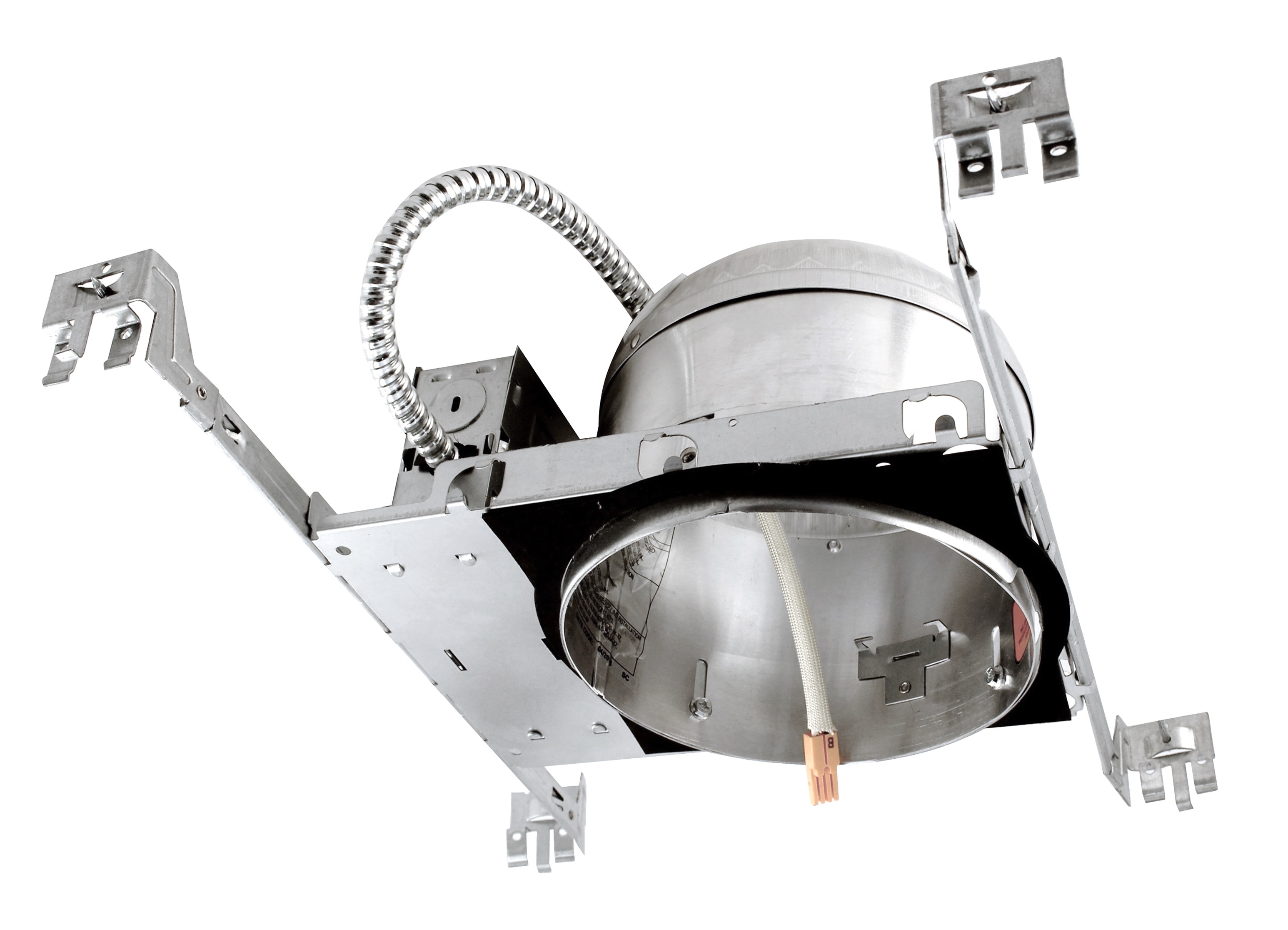

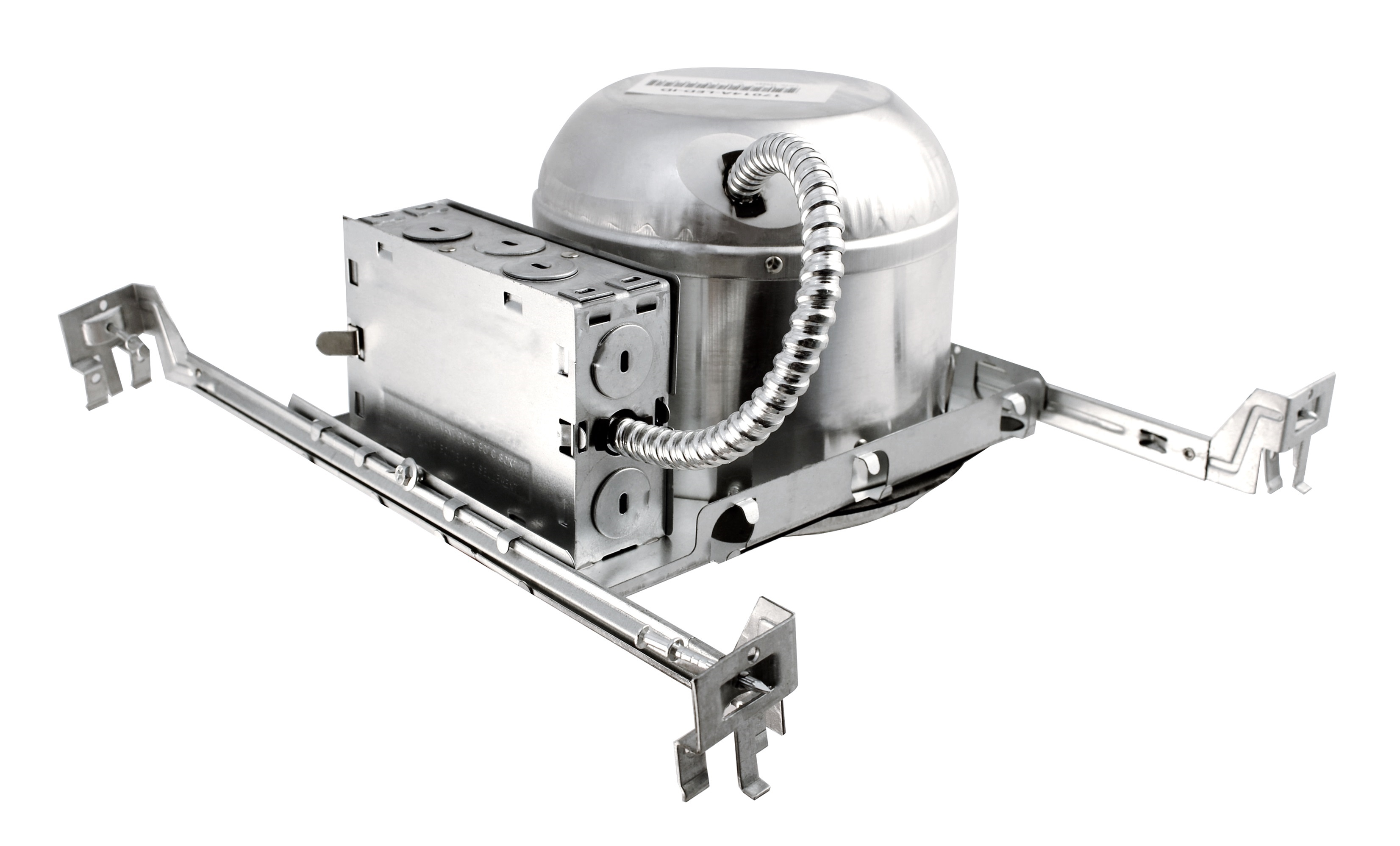

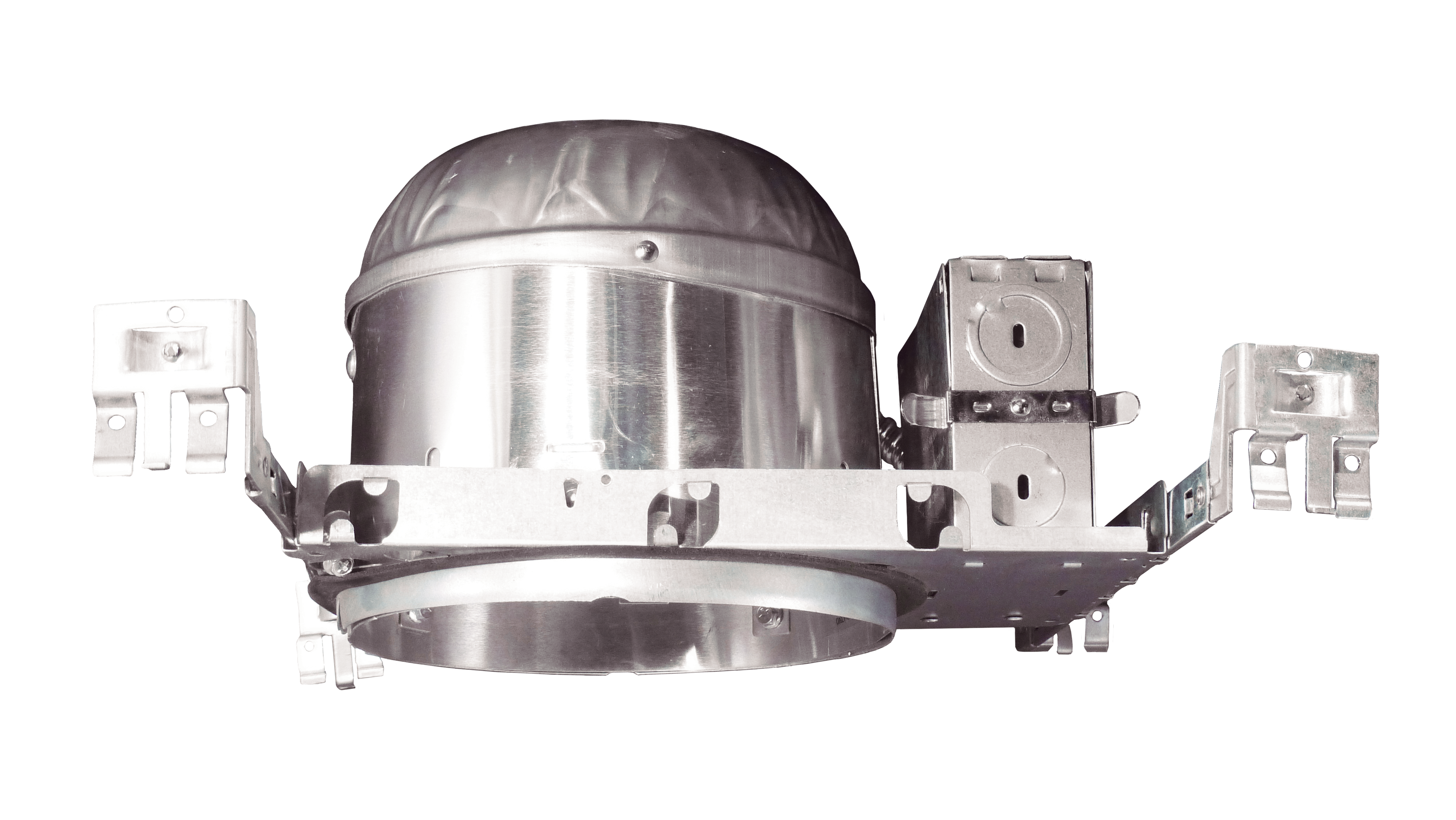

17014A-LED-ID Series
6 in. Shallow LED Housing for New Construction Applications
Product description
Ideal® quick-connect base allows for quick, snap-in connection of NICOR® D-series LED downlights. Suitable for new construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.

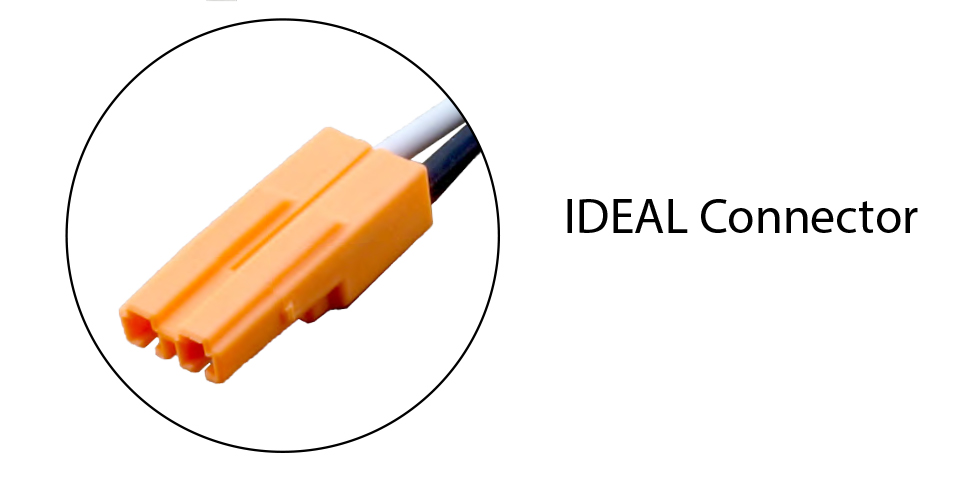

- IDEAL® quick-connect base enables fast, secure snap-in installation of compatible NICOR D-Series LED downlights
- IC-rated airtight housing is approved for direct contact with insulation and helps reduce air leakage for improved energy efficiency
- Durable aluminum construction provides superior heat dissipation for reliable, long-lasting performance
- Low-profile 5.75-inch housing height fits standard 2-inch x 6-inch joist construction, making it ideal for shallow ceiling applications
- Adjustable socket bracket and ceiling thickness adjustment from 0.5 inch to 1.5 inches provide installation flexibility, while the removable housing design allows convenient access to the junction box for wiring and maintenance
Color Options:
Ordering information
Downloads
Specifications
-
Wattage20
Listings & certifications
Listings & Certifications
- cULus Listed
- Title 24
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Aluminum construction provides greater heat dissipation
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Adjustable socket bracket assures proper and consistent lamp positioning
- Ideal® to Molex adaptor whip available

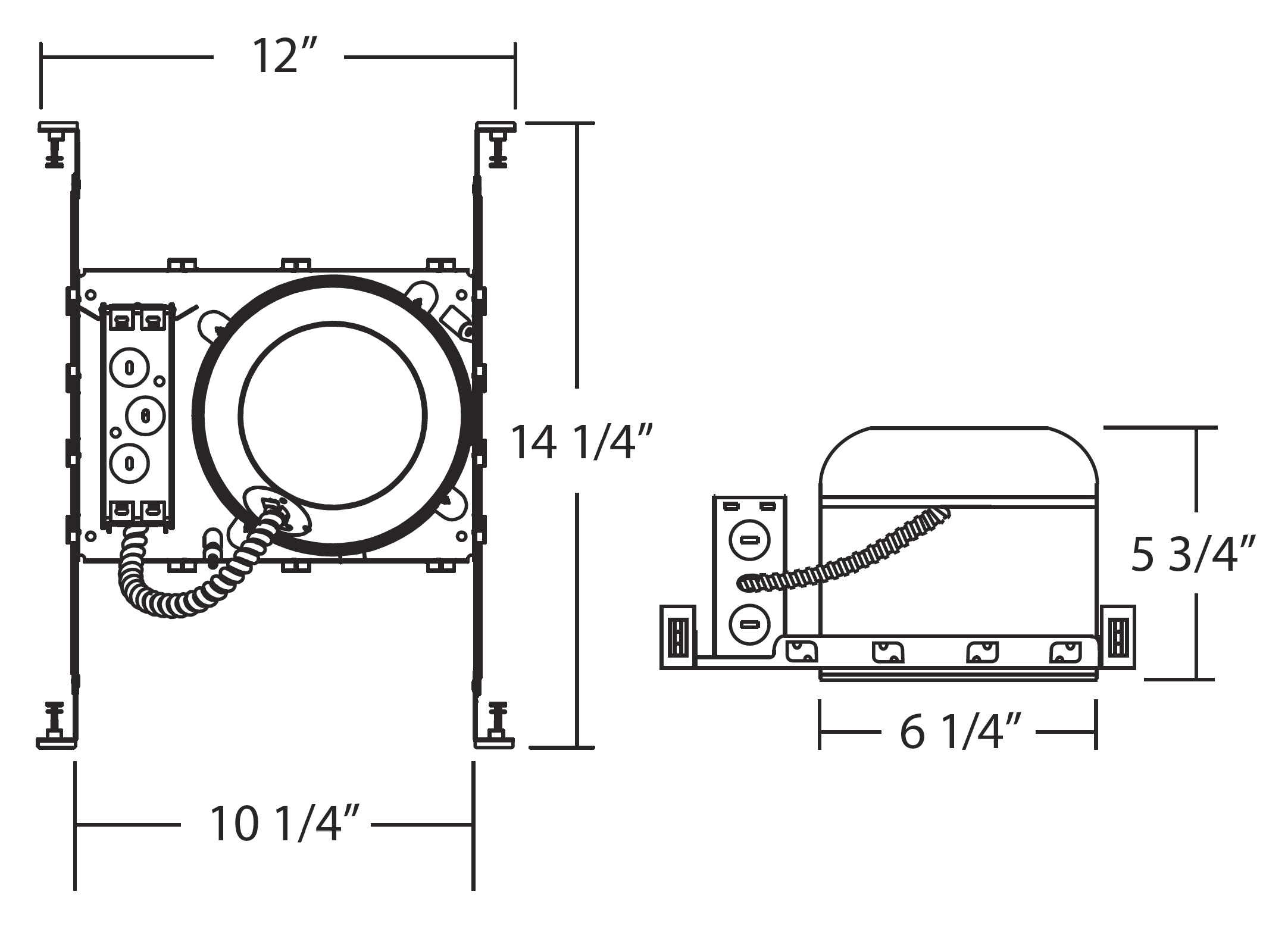

- 5 3/4” height allows use in 2” x 6” joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness
Electrical
- Listed for through branch circuit wiring and includes several 3/4” knockouts.
- Four pryouts with integral strain relief simplify Romex installation.
- Supplied with three push-in wire connectors.
- Input Voltage: 120V
Installations
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
- Unique hanger bar lip design helps align can to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame without tools
- Bars fit onto T-bar spine for quick alignment and can be permanently secured
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
