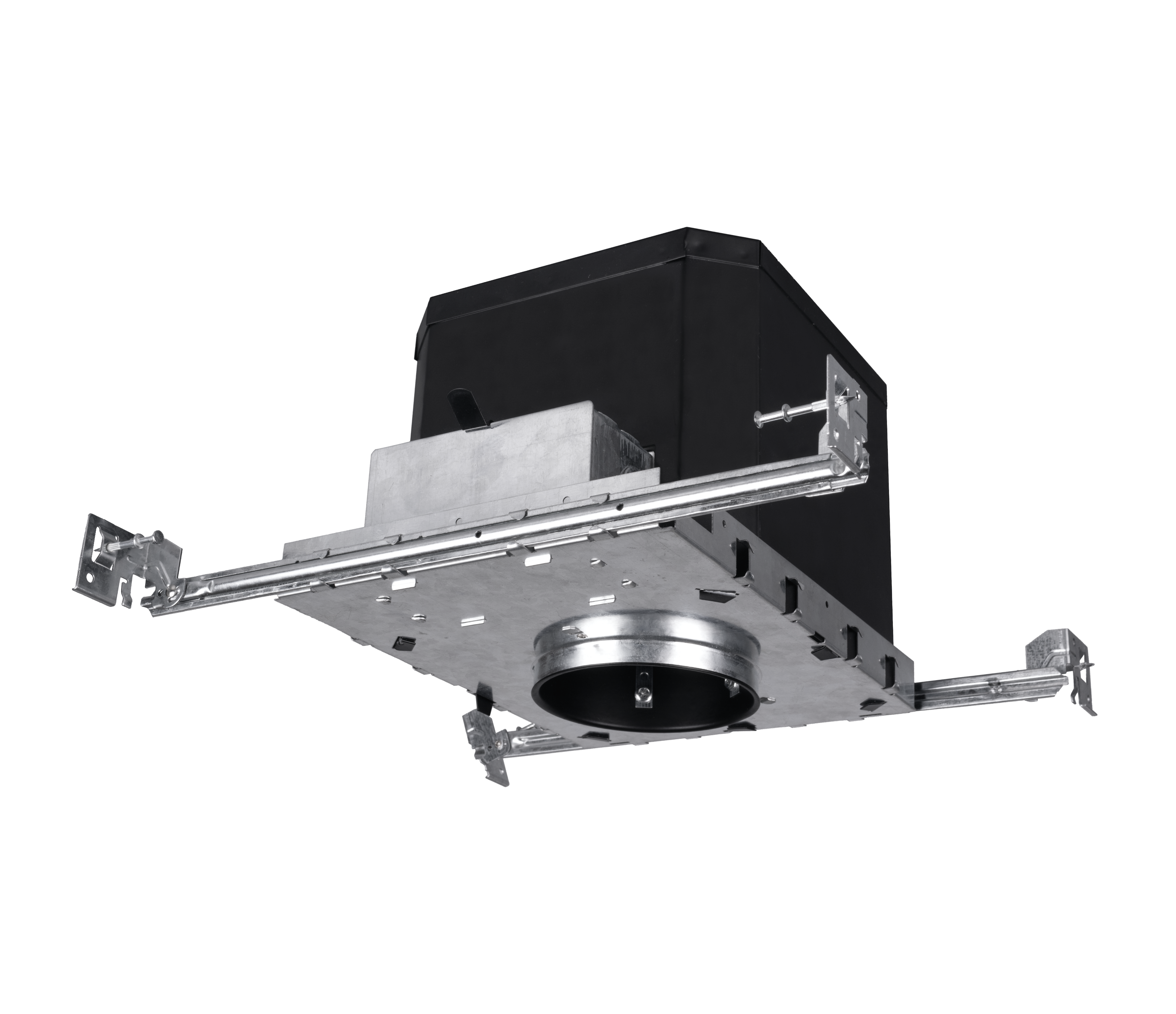

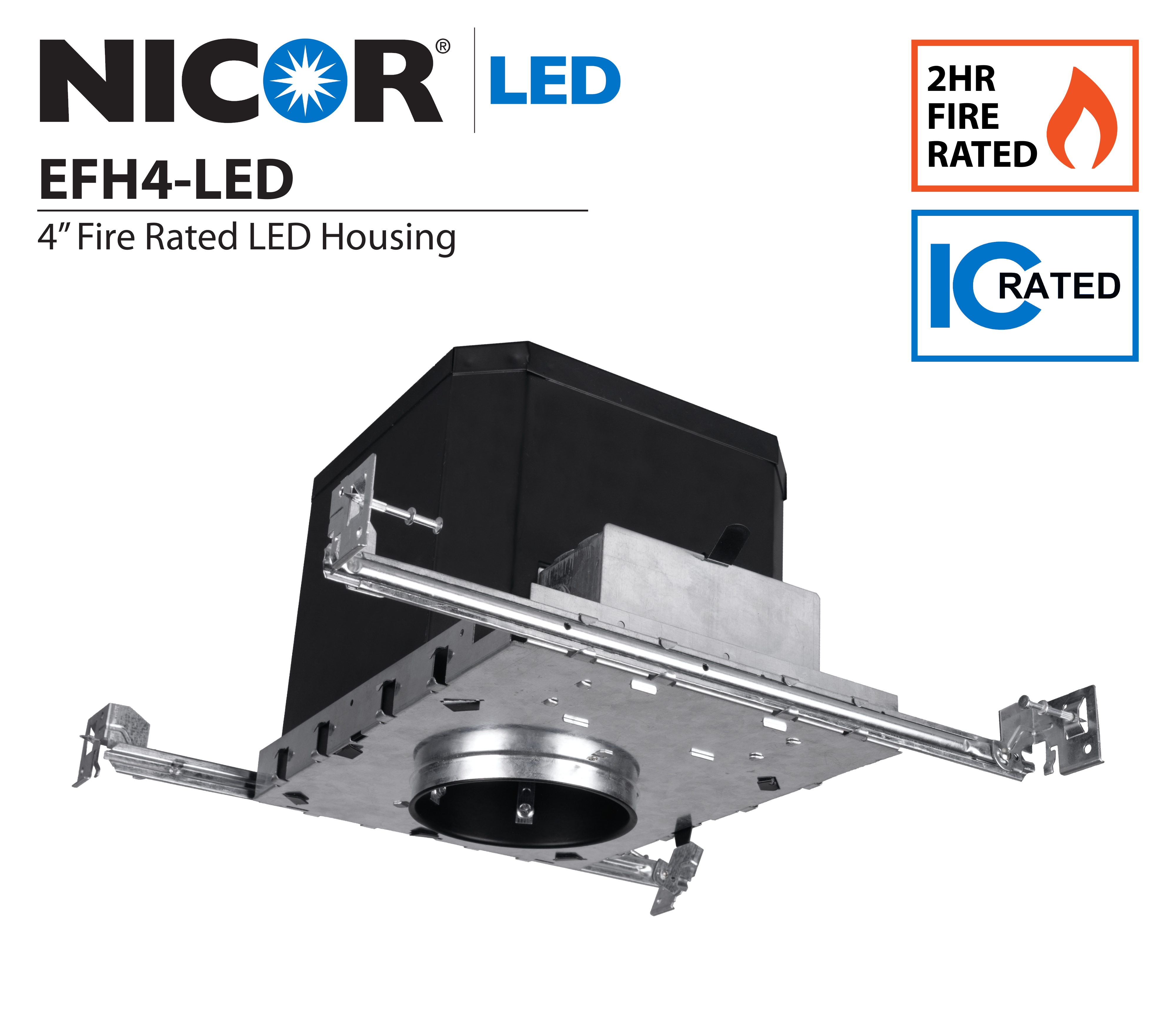

4 in. Fire Rated New Construction Recessed Housing with IDEAL Quick Connect
The EFH4 are new construction 4” housings that are UL Classified for a 2 hour fire rating. They are designed with double wall construction and non-combustible fiber insulation to prevent the passage of flames, toxic gasses and ignition gasses into plenum ceilings. The fiber insulation also acts as a…
The EFH4 are new construction 4” housings that are UL Classified for a 2 hour fire rating. They are designed with double wall construction and non-combustible fiber insulation to prevent the passage of flames, toxic gasses and ignition gasses into plenum ceilings. The fiber insulation also acts as a sound deadening material, minimizing transfer of sounds between floors. The EFH4 is suitable for condominiums, apartment buildings, multi-family, commercial and residential applications.
- Two v-spring clips for easy installation of NICOR trims
- Single piece stamped 22ga steel frame
- Supplied with three quick connect push-in wire connectors

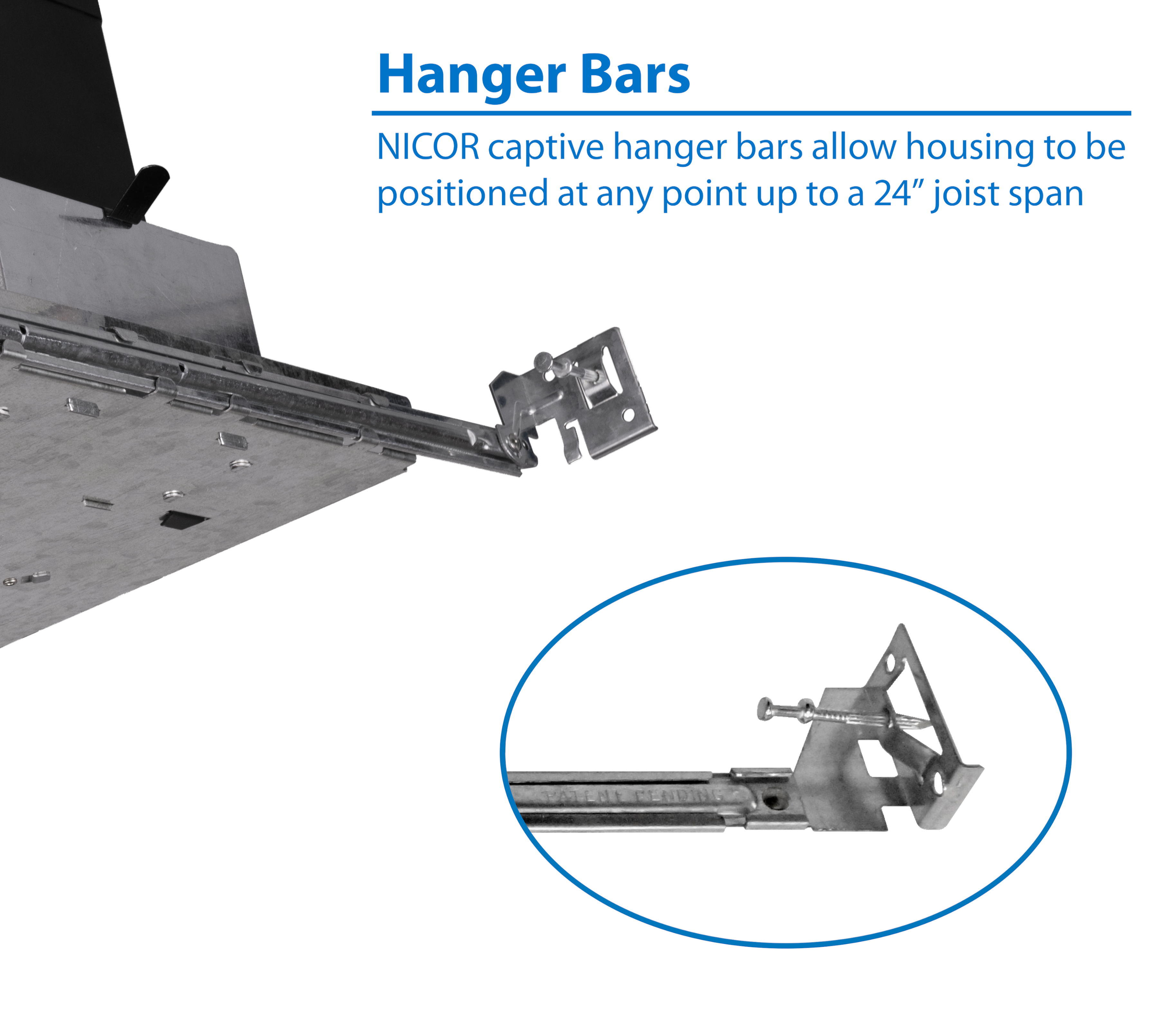

- Two fully adjustable, pre-scored hangar bars (13.6” - 25”) with captive nails included on frame

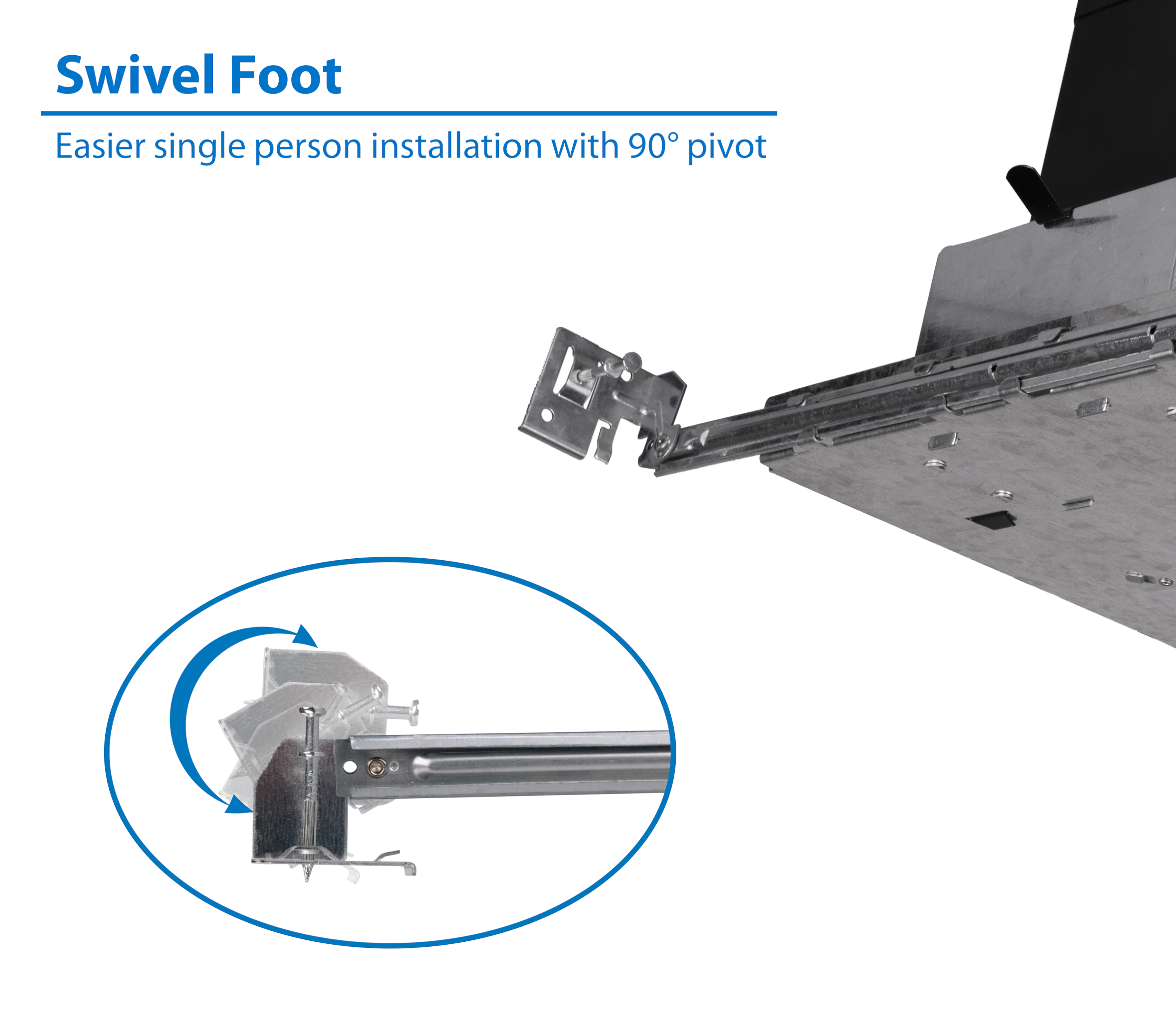

- Swivel foot on end of bar rotates 90° for easy single person installation
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
- cULus Listed
- cULus Classified
- ANSI/UL 263 (2Hr Fire Rated)
- IC-Rated
- Airtight (ASTM E283)
- Wet-Location (ANSI/UL 1598)
- Listed for through branch circuit wiring
- Meets or exceeds ASTM-283 Air-Tight Requirements
Features
Construction
- Internal housing of 24ga steel construcion
- Two v-spring clips for easy installation of NICOR trims

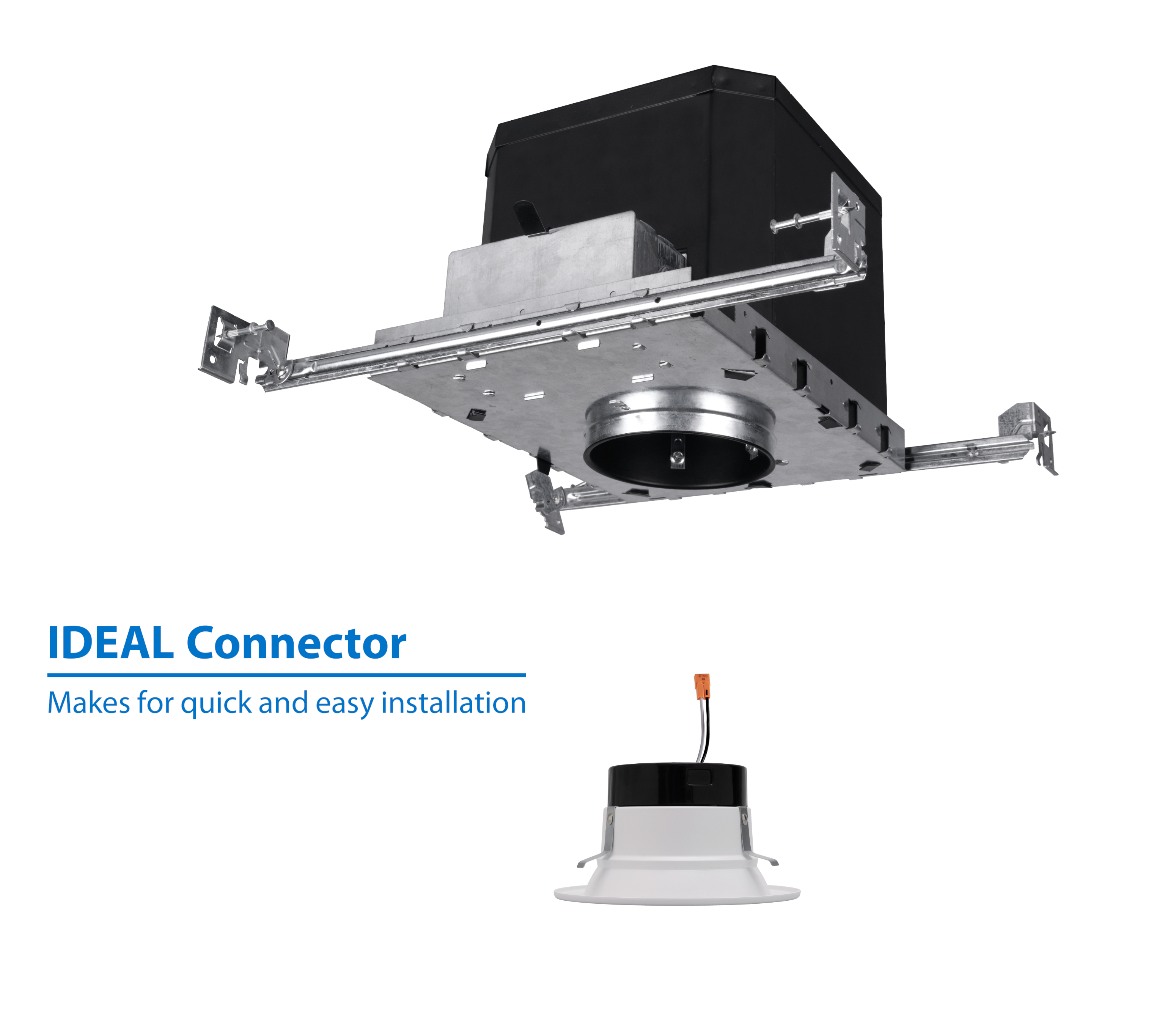

- IDEAL connector or Edison base socket (depending on model)
- Interior filled with flexible, non-combustable insulation
- External housing of 20ga heavy duty steel
- Thermally protected at 257°F (125°C) (EFH4 standard only)
- Single piece stamped 22ga steel frame
- Integrated hanger bar attachment features
- Matte black finish
Electrical
- Listed for through branch circuit wiring and includes three 1/2”, one 3/4” and one 3/8” knockouts
- Supplied with three quick-connect push-in wire connectors
- Four pry-outs with integral strain relief simplify Romex installation
Installations
- Two fully adjustable, pre-scored hangar bars (13.6” - 25”) with captive nails included on frame
- Swivel foot on end of bar rotates 90° for easy single person installation
- Bars can be locked into place after adjustment with preinstalled set screw
- Hangar bars can be repositioned 90° on frame without tools
- Unique hanger bar lip design helps align can to bottom of joist and T-Bar notch allow for installation into suspended ceilings
Full Listings
- Input voltage of 120VAC
- Approved under ANSI/UL 263 and 1598
- UL Classified with Two Hour Fire Rating
- UL Listed for Damp Location
- Will meet Wet Location rating based on trim used
- Meets or exceeds ASTM-283 Air-Tight Requirements
Warranty
- 1-year warranty standard
