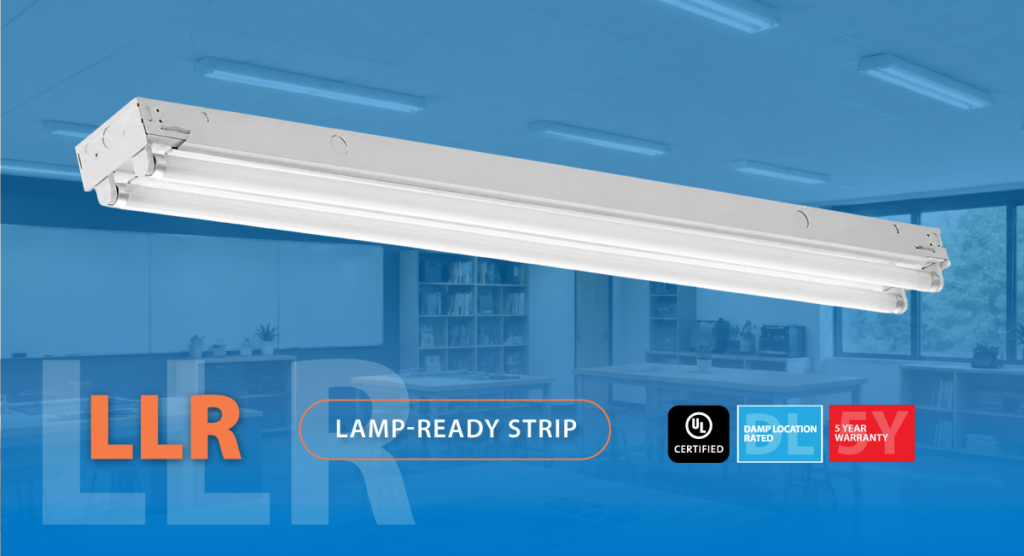

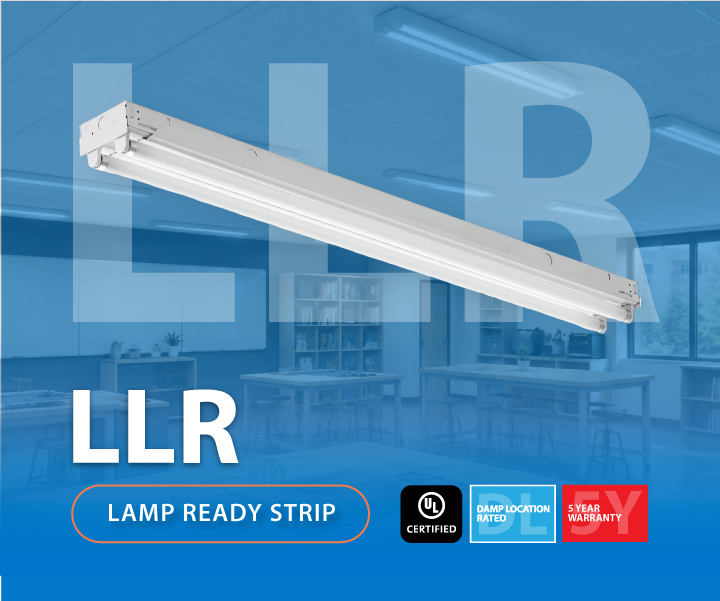

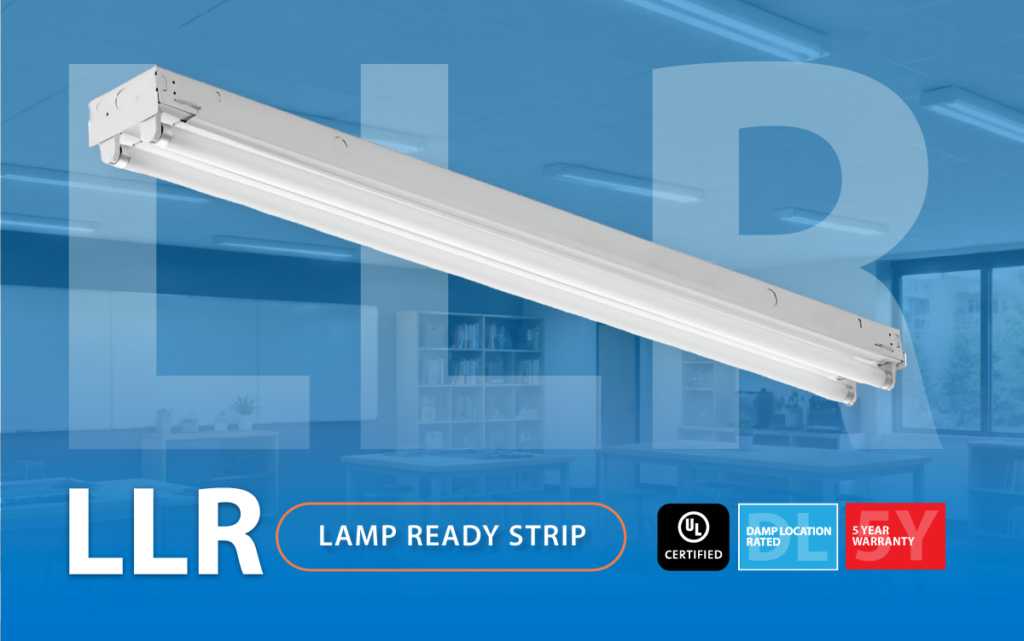

Not every project calls for a fully integrated LED fixture. Sometimes the better fit is a durable housing that lets the installer choose the exact lamp for the job. The LLR Lamp Ready Strip is built for that flexibility, offering an energy-efficient alternative to traditional fluorescent strip fixtures.
- Accepts LED T8 Type-B (ballast bypass) double-ended lamps
- Installer selects the wattage and color temperature at time of lamp purchase
- Durable steel construction with powder coat finish
- Quick, single-person installation
- 5-year limited system warranty
A Lamp-Ready Alternative to Fluorescent Strips
The LLR is suited for retail, manufacturing, warehouse, office, education, low-bay, and general lighting applications, the same spaces where fluorescent strip fixtures have traditionally been used. Rather than locking in a fixed lamp at the factory, the LLR ships as a lamp-ready housing, so the wattage and CCT are determined by whichever LED T8 Type-B lamp the installer sources and installs.
Built for Double-Ended (Type B) LED T8 Tubes
The LLR is designed for use with double-ended wiring (Type B) LED T8 tubes, up to 22W per lamp, on 120-277VAC input. Shunted tombstone contacts support double-ended (DEP) wiring, and the tombstone itself is a flip-up socket that rotates and locks in place, making lamp installation and future relamping straightforward.
Quick, Single-Person Installation
Durable steel construction with a powder coat finish and a G13 bulb base keep the LLR consistent with standard strip fixture expectations, while the design supports quick, single-person installation. The fixture is intended for surface mount. Lamps are not included and are sourced separately based on the wattage and color temperature the application requires.
Backed by a 5-Year Warranty
Every LLR carries NICOR’s 5-year limited system warranty. The fixture is cULus listed for damp locations and RoHS compliant.
The LLR is available now through NICOR’s agent and distributor network. For an alternative that ships with LED already integrated, see the LSC Select LED Linear Strip, or browse the full selection of Commercial Linears & Wraps.
KEY FEATURES
Lamp-Ready Design
Compatible with double-ended Type B T8 LED tube lamps up to 22W each — install the wattage and color temperature that fits the space.
Durable Steel Construction
Powder-coat finished steel housing and diffuser resist corrosion, fading, and cracking for long-term performance.
Rotating, Locking Tombstones
Flip-up G13 sockets rotate and lock in place, keeping the lamp seated securely once it’s installed.
Single-Person Surface Mount
Pre-punched mounting holes on the back panel let one installer secure the housing directly to the mounting surface — no second set of hands needed.
Damp-Rated & Warrantied
cULus 1598 listed for damp locations and backed by a 5-year limited system warranty.
