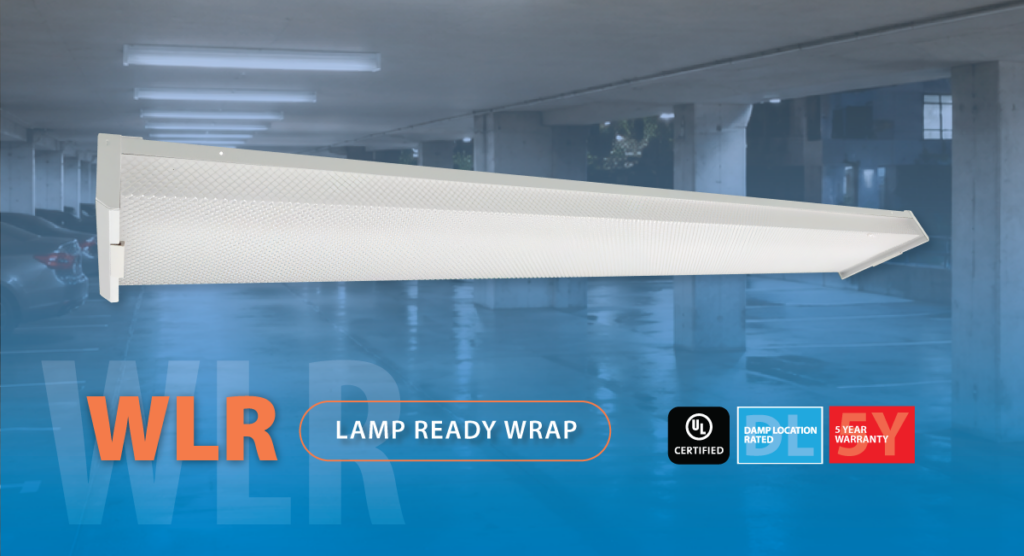

Wrap fixtures have long been a staple in offices, retail spaces, and warehouses, valued for their even, diffused light. The WLR Lamp Ready Wrap brings that familiar form factor forward as an energy-efficient alternative to traditional fluorescent wrap fixtures, without locking the wattage or color temperature at the factory.
- Accepts LED T8 Type-B (ballast free) double-ended lamps
- Installer selects the wattage and color temperature at time of lamp purchase
- Frosted PMMA lens with prismatic texture for even distribution
- Quick, single-person installation
- 5-year limited system warranty
A Lamp-Ready Alternative to Fluorescent Wraps
The WLR is suited for retail, manufacturing, warehouse, office, education, low-bay, or general lighting applications, the same spaces that have relied on fluorescent wrap fixtures for years. Instead of shipping with a fixed lamp, the WLR is designed as a lamp-ready housing, so the wattage and CCT are set by whichever LED T8 Type-B lamp the installer sources.
Built for Double-Ended (Type B) LED T8 Tubes
The WLR is designed for use with double-ended wiring (Type B) LED T8 tubes, up to 22W per lamp, on 120-277VAC input. Shunted tombstone contacts support double-ended (DEP) wiring, and the tombstone is a flip-up socket that rotates and locks in place for straightforward installation and relamping.
Smooth Sides, Prismatic Lens for Even Distribution
The WLR’s durable steel construction includes smooth formed sides for safe handling during installation and maintenance. A frosted PMMA lens with a prismatic texture diffuses light evenly across the fixture, matching the soft, glare-reduced output that wrap fixtures are chosen for in offices and retail environments.
Quick, Single-Person Installation
The WLR is designed for surface mount and quick, single-person installation. Lamps are not included and are sourced separately based on the wattage and color temperature the application requires.
Backed by a 5-Year Warranty
Every WLR carries NICOR’s 5-year limited system warranty. The fixture is cULus listed for damp locations and RoHS compliant.
The WLR is available now through NICOR’s agent and distributor network. For the strip-fixture version of this same lamp-ready platform, see the LLR Lamp Ready Strip, or browse the full selection of Commercial Linears & Wraps.
KEY FEATURES
Lamp-Ready, Double-Ended Design
Wires directly to line voltage and accepts double-ended (Type B) LED T8 tubes up to 22W, so contractors can choose the wattage and color temperature that fits the space — no ballast required.
Durable Steel Construction & Frosted Lens
A rugged steel housing with smooth, formed sides resists dents and handles safely on the jobsite, while the frosted PMMA lens with prismatic texture diffuses light evenly for a clean, glare-free look.
Rotate-and-Lock Tombstone Sockets
Flip-up G13 tombstone sockets rotate and lock securely into place, simplifying lamp installation and ensuring a solid, long-lasting electrical connection.
Quick, Single-Person Surface Mount
Pre-punched mounting keyholes let one installer hang, align, and secure the fixture directly to the ceiling without a second set of hands — cutting labor time on every job.
cULus Damp Location Listed, 5-Year Warranty
Rated cULus for damp locations and backed by NICOR’s 5-year limited system warranty, the WLR performs reliably in basements, garages, back-of-house, and other demanding spaces.
