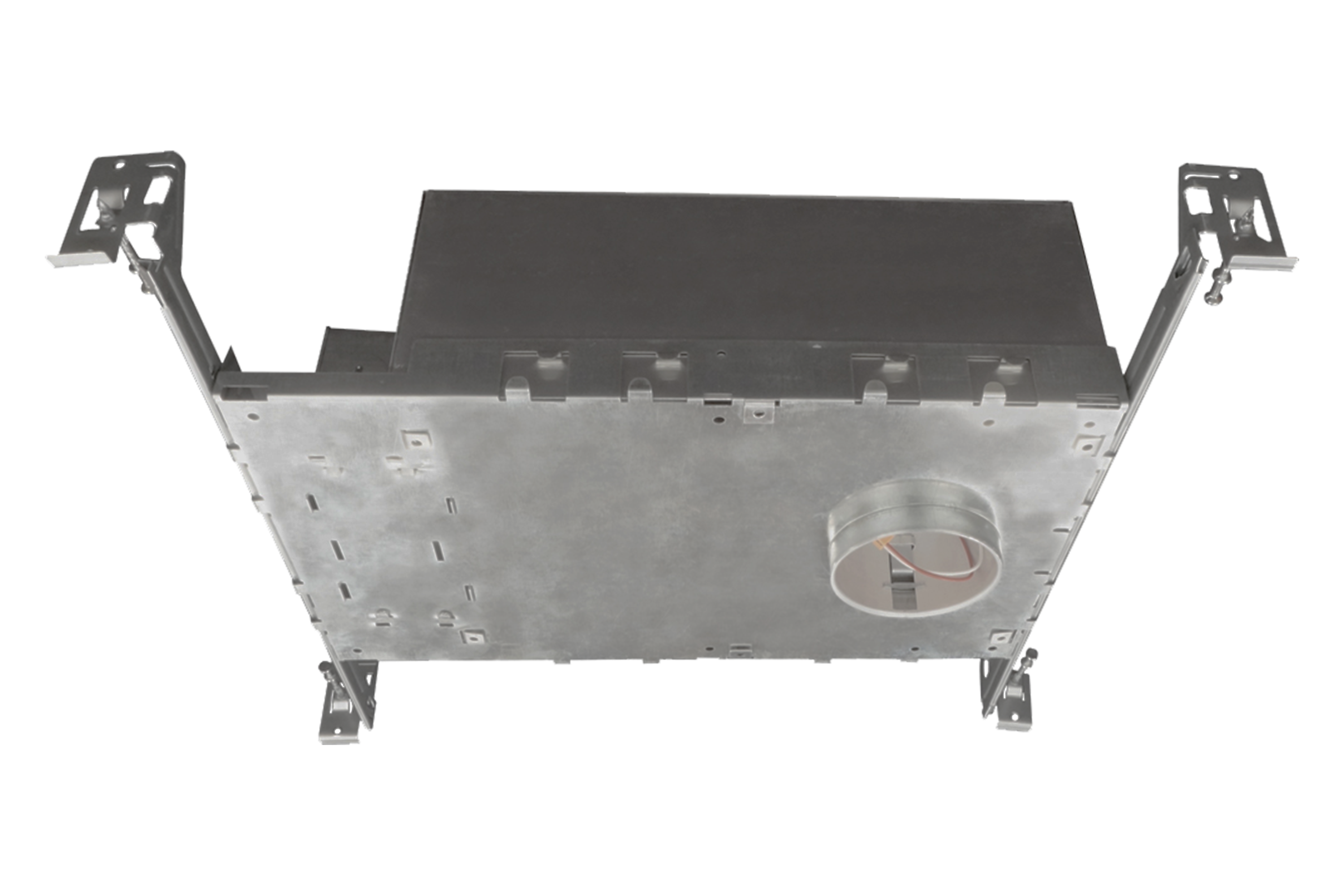

12300A-LED Series
2 in. IC-Rated Airtight New Construction LED Housing, 120-277V
Product description
The 12300A-LED features IDEAL connections that allows for quick, snap-in connection for NICOR 2” D-series LED downlights. Suitable for new construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.
- IC-rated housing approved for direct contact with insulation and designed for energy-efficient airtight performance

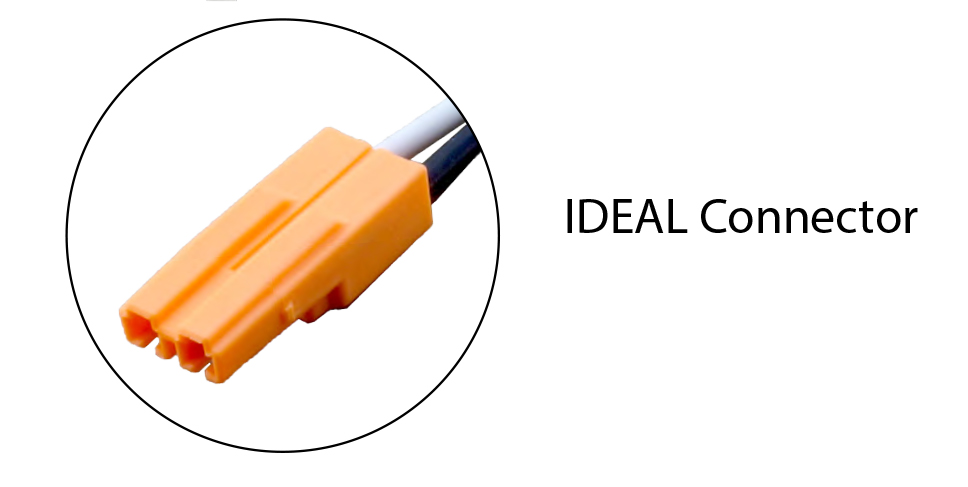

- IDEAL snap-in connections allow fast, secure installation of compatible NICOR 2-inch D-Series LED downlights
- 120-277V compatibility supports a wide range of residential and commercial new construction applications
- Four pry-outs with integral strain relief and included push-in wire connectors simplify electrical installation
- Heavy-duty captive hanger bar system with score lines and double-headed nails enables quick positioning and easy adjustment for 12-inch or 24-inch joist spans
Color Options:
Ordering information
Downloads
Specifications
-
Wattage9
Listings & certifications
Listings & Certifications
- cULus Listed
- Title 24
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Features
Construction
- Galvanized steel plaster frame with J-Box and captive hanger bars
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span
- Unique hanger bar lip design helps align can to joist
- One 3/8” knockout
- One 3/4” Knockout
- Three 1/2” Knockouts
Electrical
- 120-277VAC LED driver is mounted directly to housing
- 0-10V dimmable
Installations
- Only compatible with NICOR’s 2” LED downlights: Available in round smooth, round baffle, square smooth, square baffle, adjustable gimbal and adjustable square
- Four pryouts with integral strain relief simplify Romex installation
- Supplied with three push-in wire connectors
- Junction box not accessible from below ceiling after installation
- Four double-headed captive nails provide for ease of installation
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
Full Listings
- Suitable for direct contact with insulation
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Washington State Energy Code approved to meet restricted airflow requirements
- Damp-Location rated
- UL Listed
- CUL Listed
