6 in. Shallow Housing for New Construction Applications
This 6″ Non-IC rated Shallow housing is suitable for new construction in residential and commercial applications and requires 3” spacing from insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim…

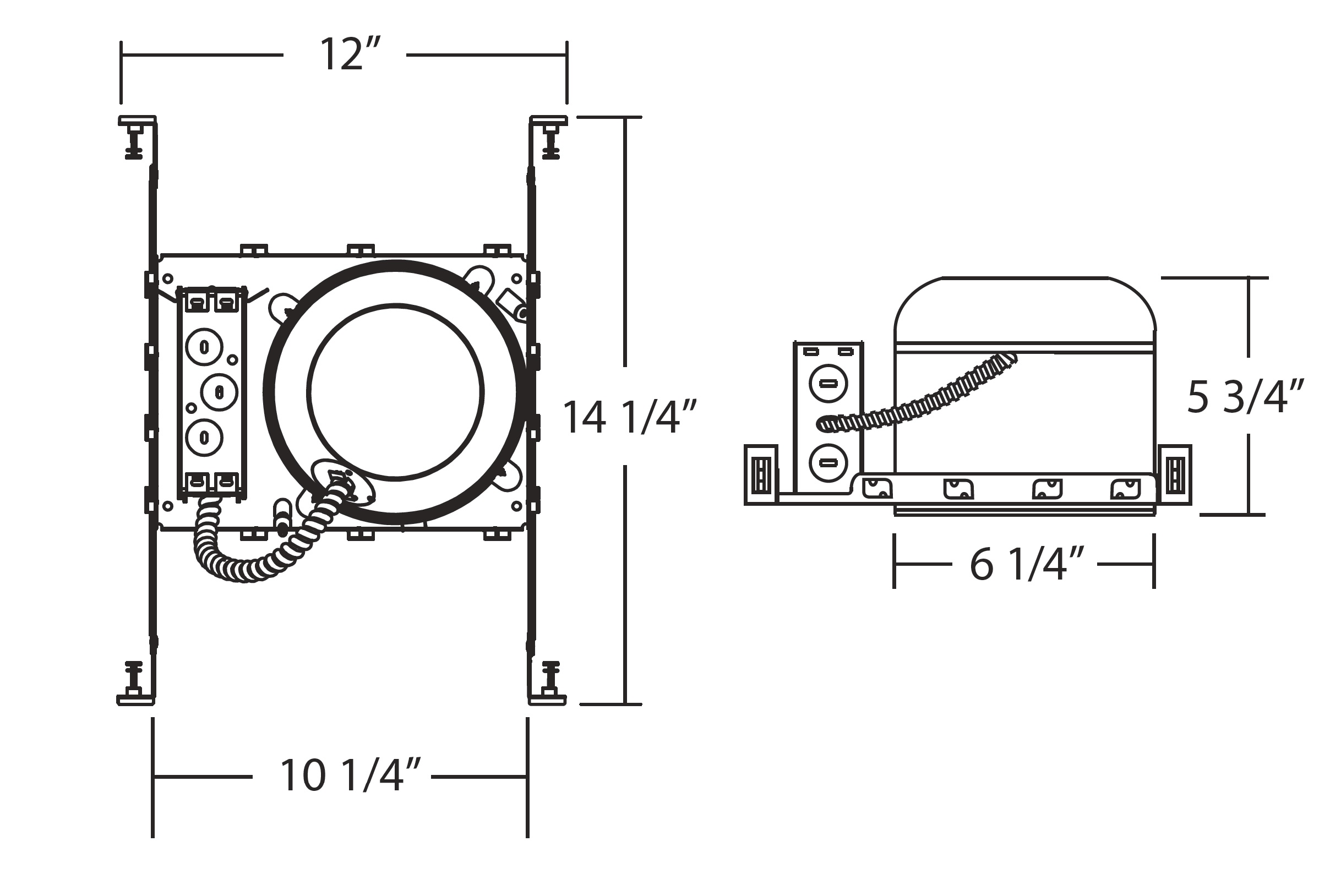

This 6″ Non-IC rated Shallow housing is suitable for new construction in residential and commercial applications and requires 3” spacing from insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. The housing adjusts from ½” to 1½” to accommodate ceiling thickness and its 5¾” height allows it to be used in 2” x 6” joist construction.
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Adjustable socket bracket assures proper and consistent lamp positioning
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Four knockouts with integral strain relief simplify Romex installation
- Unique hanger bar lip design helps align can to joist
Color Options:
Ordering information
Downloads
Specifications
-
Wattage150
Listings & certifications
- cULus Listed
- UL Feed-Through
- Damp-Location
- Listed for through branch circuit wiring
Features
Construction
- Adjustable socket bracket assures proper and consistent lamp positioning
- 5.75” height allows use in 2” x 6” joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 0.5” to 1.5” to accomodate ceiling thickness
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Supplied with three push-in wire connectors
Installations
- Four pry-outs with integral strain relief simplify Romex installation
- Unique hanger bar lip design helps align can to joist
- Four double-headed captive nails provide for ease of installation
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
- Bars can be repositioned 90° on plaster frame without tools
- Bars fit onto T-bar spine for quick alignment and can be permanetly secured
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
Full Listings
- Listed for through branch circuit wiring and includes several 0.75” knockouts
- UL Listed
- CUL Listed
Warranty
- 1 Year Limited Warranty
