17014AR Series
6 in. Shallow Housing for Remodel Applications, IC-Rated
Product description
Suitable for remodel construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.
- IC-rated airtight housing is approved for direct contact with insulation, helping improve energy efficiency and reduce air leakage

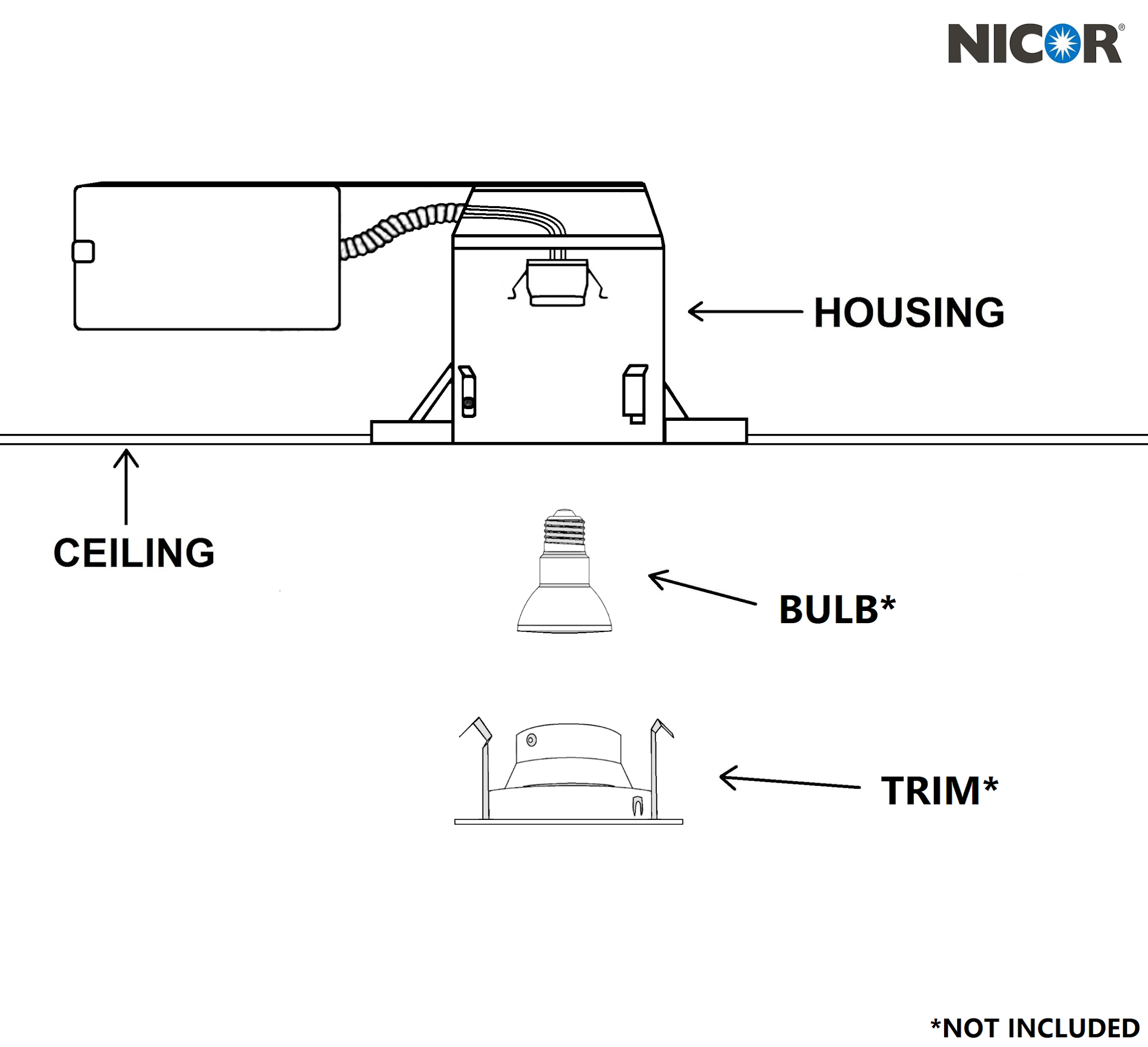

- Designed for remodel applications in residential and commercial settings, allowing installation in existing ceilings

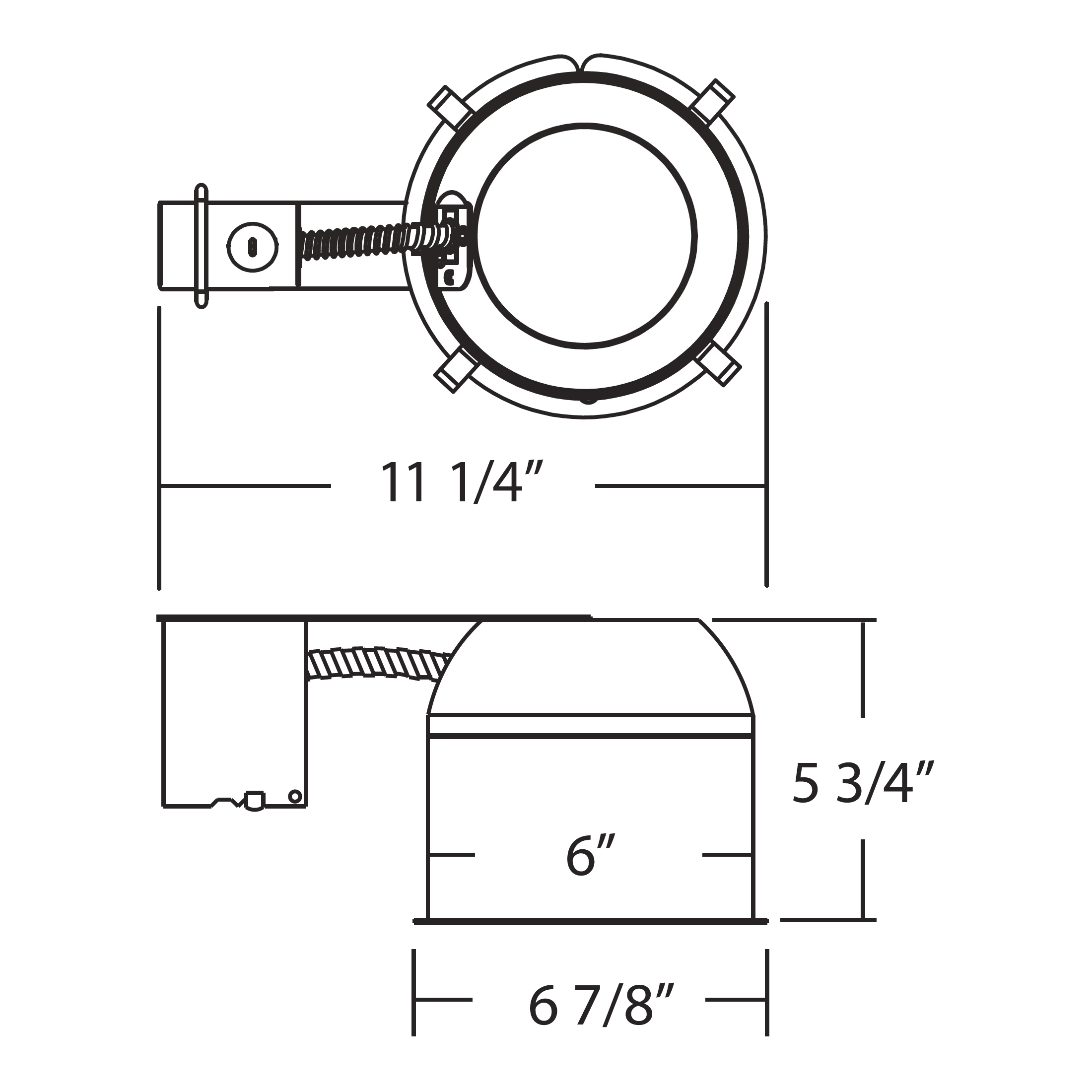

- Low-profile 5.75-inch housing height fits standard 2-inch x 6-inch joist construction, making it ideal for shallow ceiling spaces
- Durable aluminum construction provides enhanced heat dissipation, while the integrated thermal protector helps guard against overheating and improper insulation contact
- Adjustable socket bracket ensures consistent lamp positioning, and the housing accommodates up to 0.5-inch drywall thickness for installation flexibility
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
Listings & Certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Aluminum construction provides greater heat dissipation
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Adjustable socket bracket assures proper and consistent lamp positioning
- 5 3/4” height allows use in 2” x 6” joist construction
- Will adjust to accommodate up to 1/2” of sheet rock
Electrical
- Listed for through branch circuit wiring and includes several 3/4” knockouts
- Supplied with three push-in wire connectors
