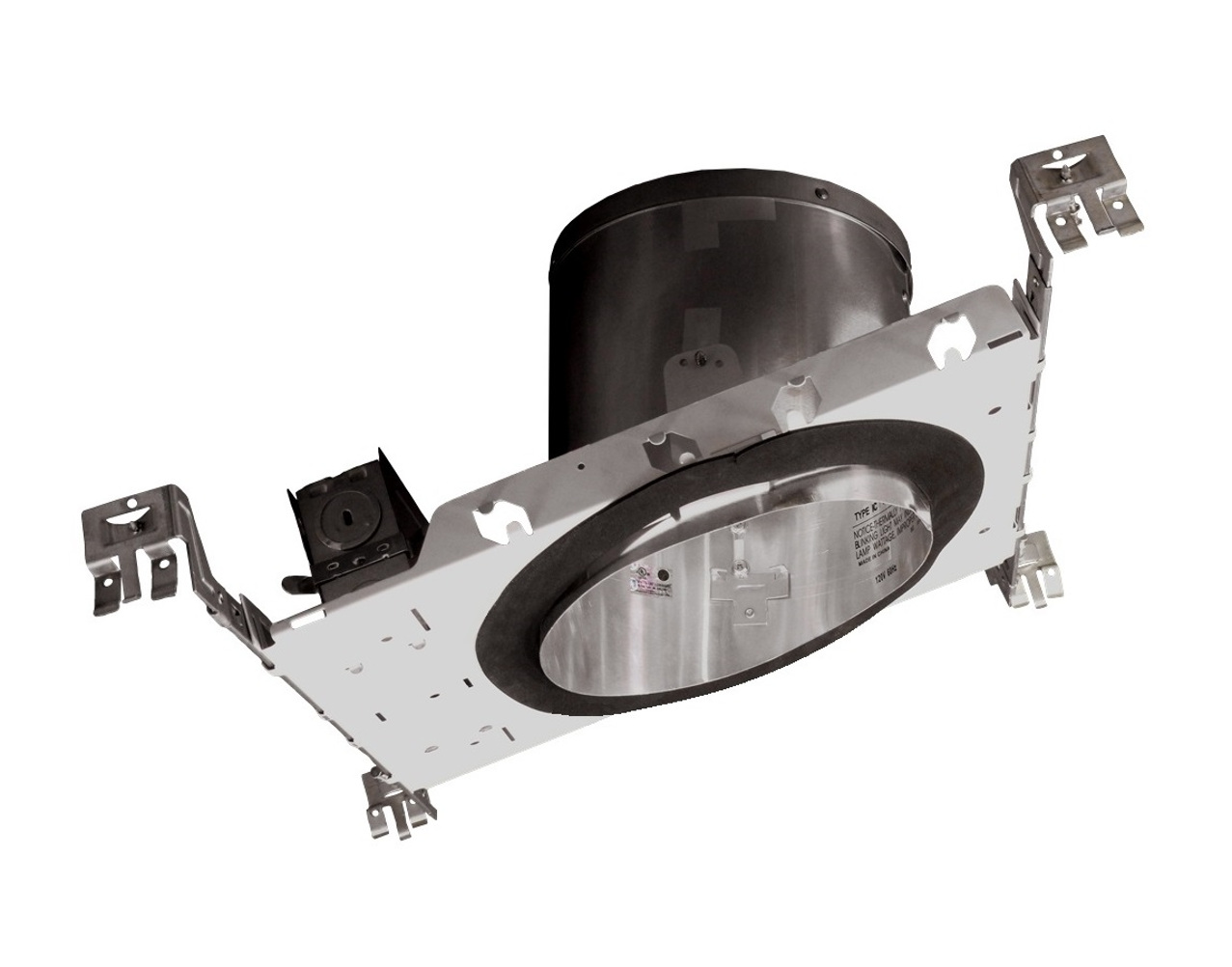

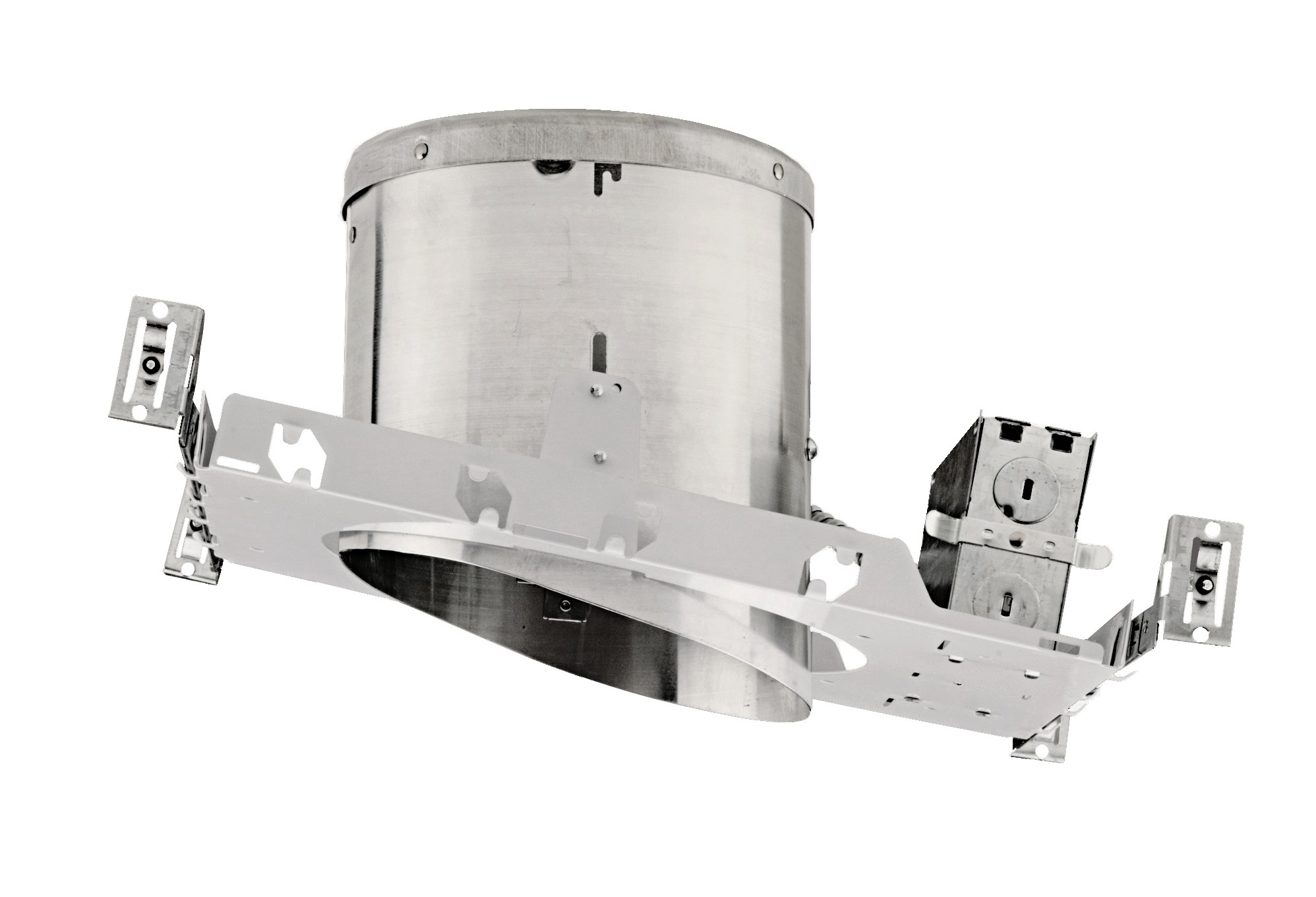

6 in. Sloped Recessed Housing for New Construction Applications, IC-Rated
This 6″ IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. D…
This 6″ IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 2/12 to 6/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 0.5” to 1.5” to accommodate ceiling thickness and its 7.5” height allows it to be used in 2” x 8” joist construction.
- Designed for sloped ceiling installations with compatibility for roof pitches from 2/12 to 6/12
- Pivoting socket allows the lamp to aim straight down regardless of ceiling angle, ensuring optimal light distribution
- IC-rated housing is approved for direct contact with insulation, making it ideal for energy-efficient new construction applications
- Airtight construction helps reduce air leakage between conditioned living spaces and ceiling plenums for improved energy performance
- Adjustable housing accommodates ceiling thicknesses from 0.5 inch to 1.5 inches and features a 7.5-inch height suitable for standard 2-inch x 8-inch joist construction
Color Options:
Ordering information
Downloads
Specifications
-
Wattage150
Listings & certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Features
Construction
- Aluminum construction provides greater heat dissipation
- Suitable for new construction in residential and commercial applications
- Designed for slope ceiling installation for ceilings with pitch between 2/12 and 6/12
- IC Rated. Suitable for direct contact with insulation
- Adjustable socket bracket assures downward lamp positioning regardless of pitch angle

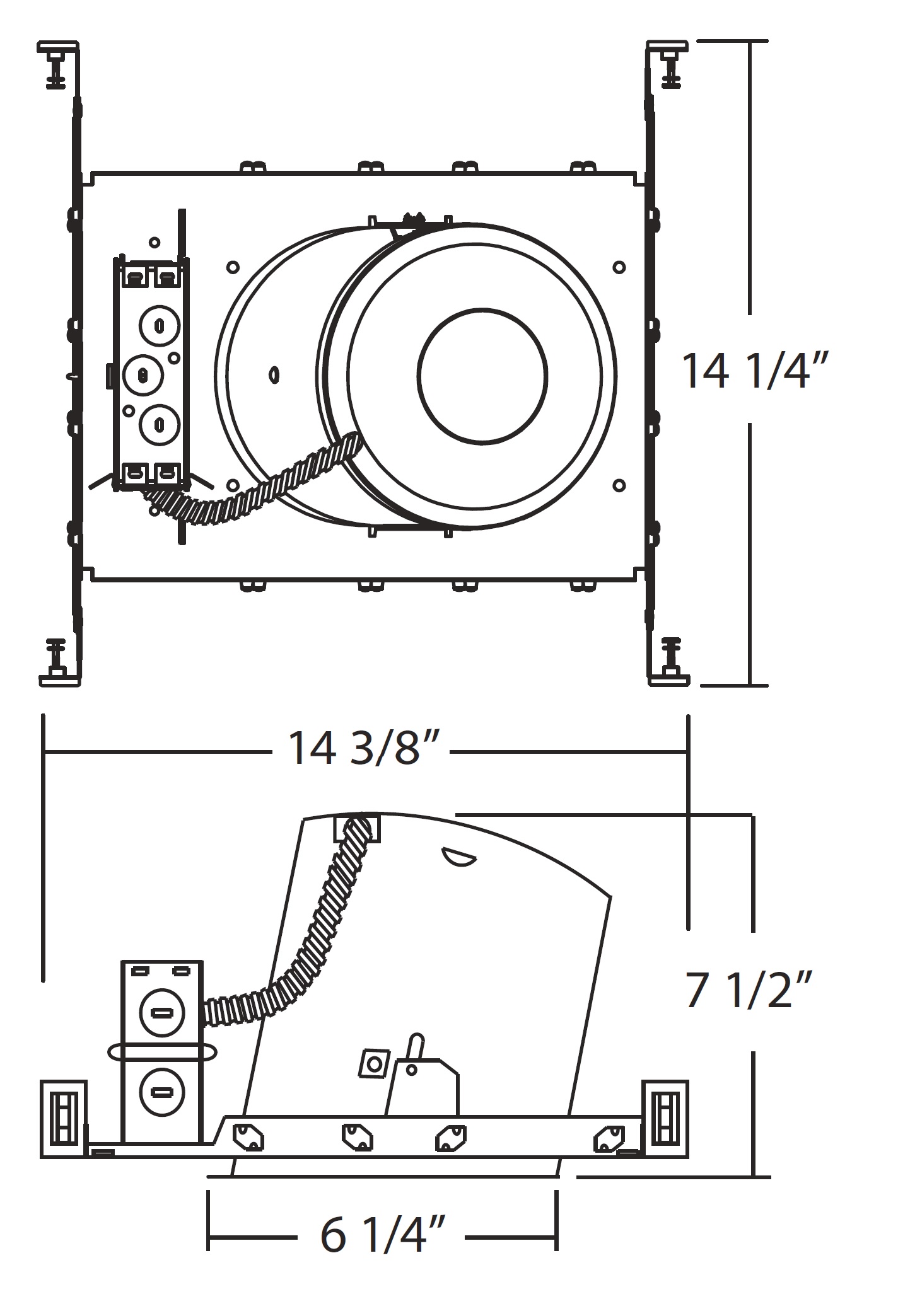

- 7.5” height allows use in 2” x 8” joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 0.5” to 1.5” to accomodate ceiling thickness
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Supplied with three push-in wire connectors
Installations
- Four pry-outs with integral strain relief simplify Romex installation
- Unique hanger bar lip design helps align can to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame without tools
- Bars fit onto T-bar spine for quick alignment and can be permanetly secured
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
Full Listings
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
- Listed for through branch circuit wiring and includes several 0.75” knockouts
- UL Listed
- UL Feed-Through
- CUL Listed
