19002A Series

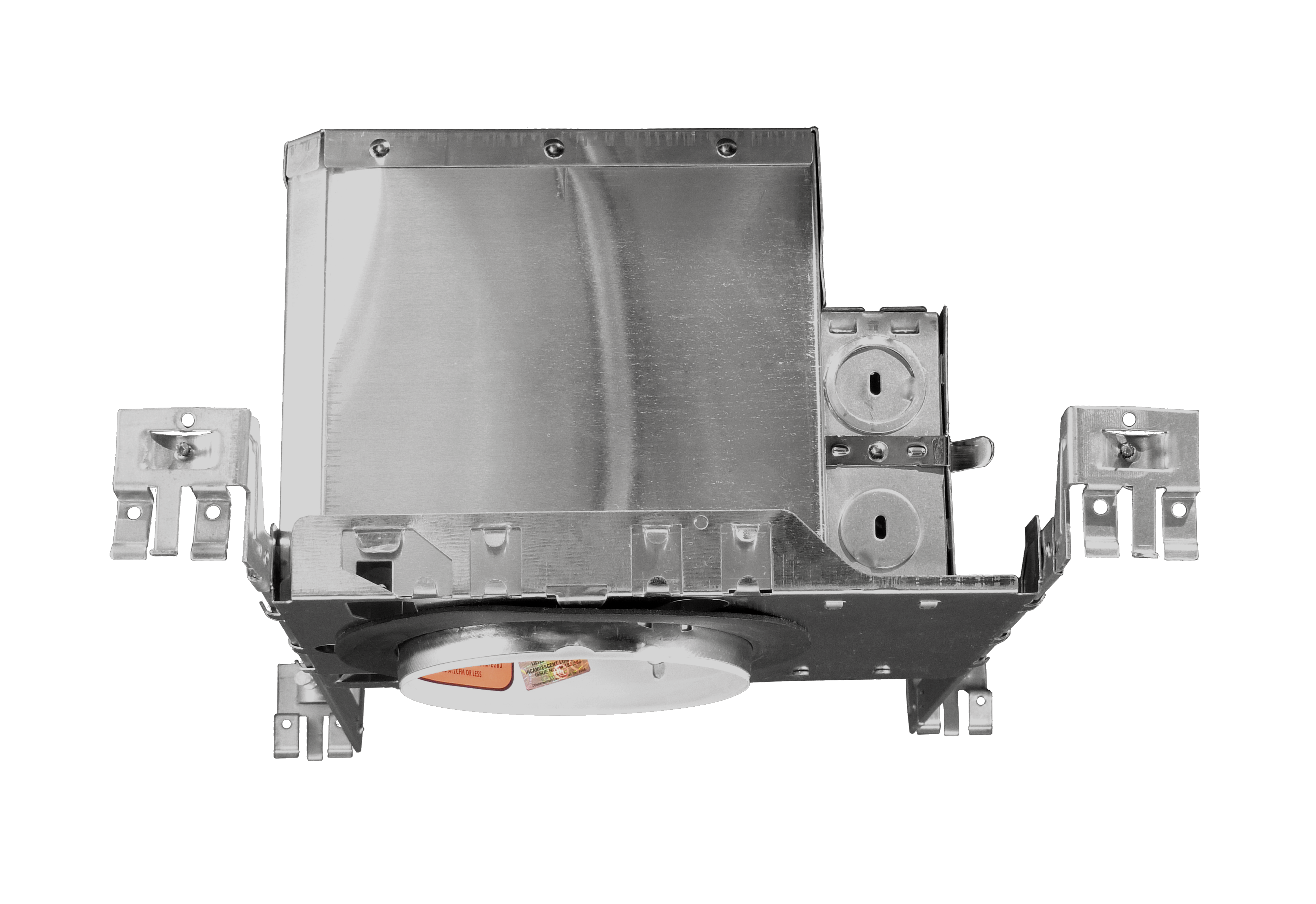

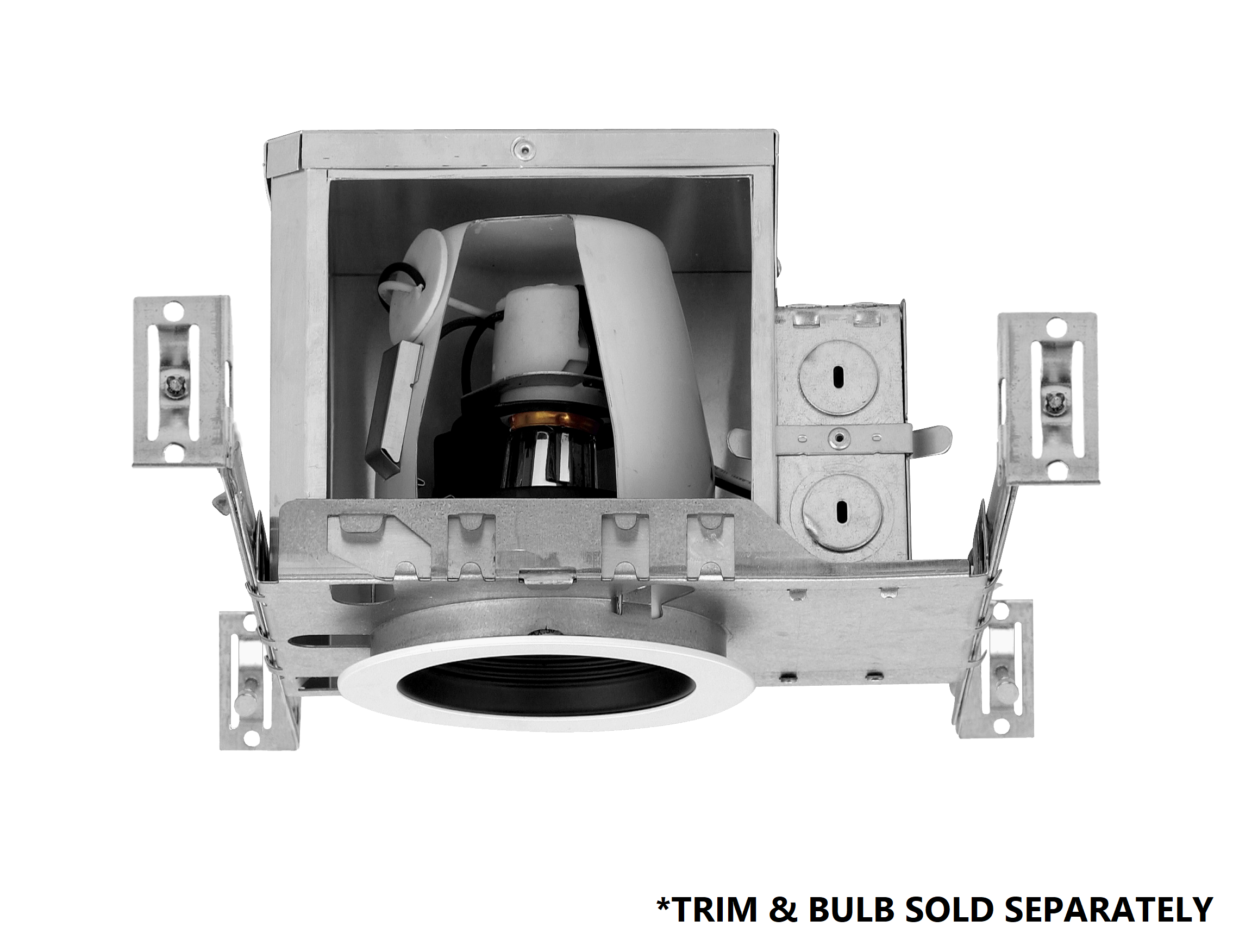

4 in. Housing for New Construction Applications, Airtight, IC Rated
Product description
The 19002A is suitable for new construction in residential and commercial applications. IC rated. Suitable for direct contact with insulation.
- IC-rated airtight housing is approved for direct contact with insulation and helps improve energy efficiency by reducing unwanted airflow
- Durable aluminum construction provides superior heat dissipation, while the integrated thermal protector helps guard against overheating and improper lamping
- Heavy-gauge captive hanger bars offer exceptional stability, tool-free adjustments, and flexible positioning within joist spans up to 24 inches
- Adjustable socket bracket ensures consistent lamp positioning, while the housing accommodates ceiling thicknesses from 0.5 inch to 1.5 inches for installation versatility
- Designed for new construction applications with a 6-inch housing height for 2-inch x 8-inch joist construction, plus IDEAL® push-in wire connectors, integral strain relief pry-outs, and multiple knockouts for simplified wiring and installation
Color Options:
Ordering information
Downloads
Specifications
-
Wattage50
Listings & certifications
Listings & Certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Aluminum construction provides greater heat dissipation
- Adjustable socket bracket assures proper and consistent lamp positioning

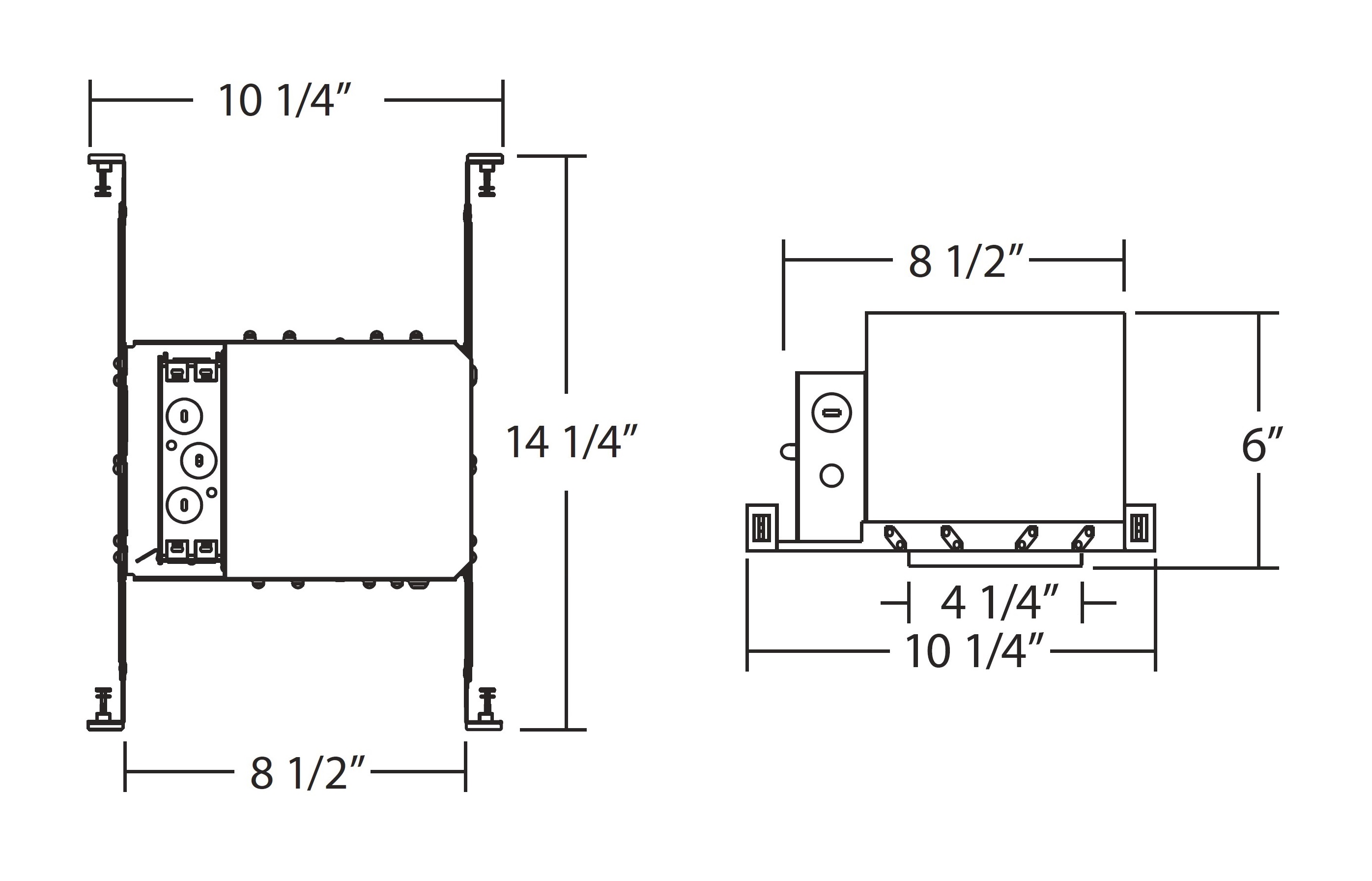

- 6” height allows use in 2” x 8” joist construction
- Housing is secured to plaster frame with screws and can be removed for access to junction box
- Housing adjusts from 0.5” to 1.5” to accommodate ceiling thickness
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Supplied with three IDEAL push-in wire connectors
Installations
- Four pry-outs with integral strain relief simplify Romex installation
- Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
- Unique hanger bar lip design helps align can to joist
- Four double-headed captive nails provide for ease of installation
- Bars can be repositioned 90° on plaster frame without tools
- Bars fit onto T-bar spine for quick alignment and can be permanently secured
- Score lines allow bars to be shortened without tools to accommodate a 12” joist span
Full Listings
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/ cooled areas
- Listed for through branch circuit wiring and includes several 3/4” knockouts
- Insulation Contact rated (IC-Rated)
- UL Listed
- CUL Listed
Warranty
- 1 year warranty
