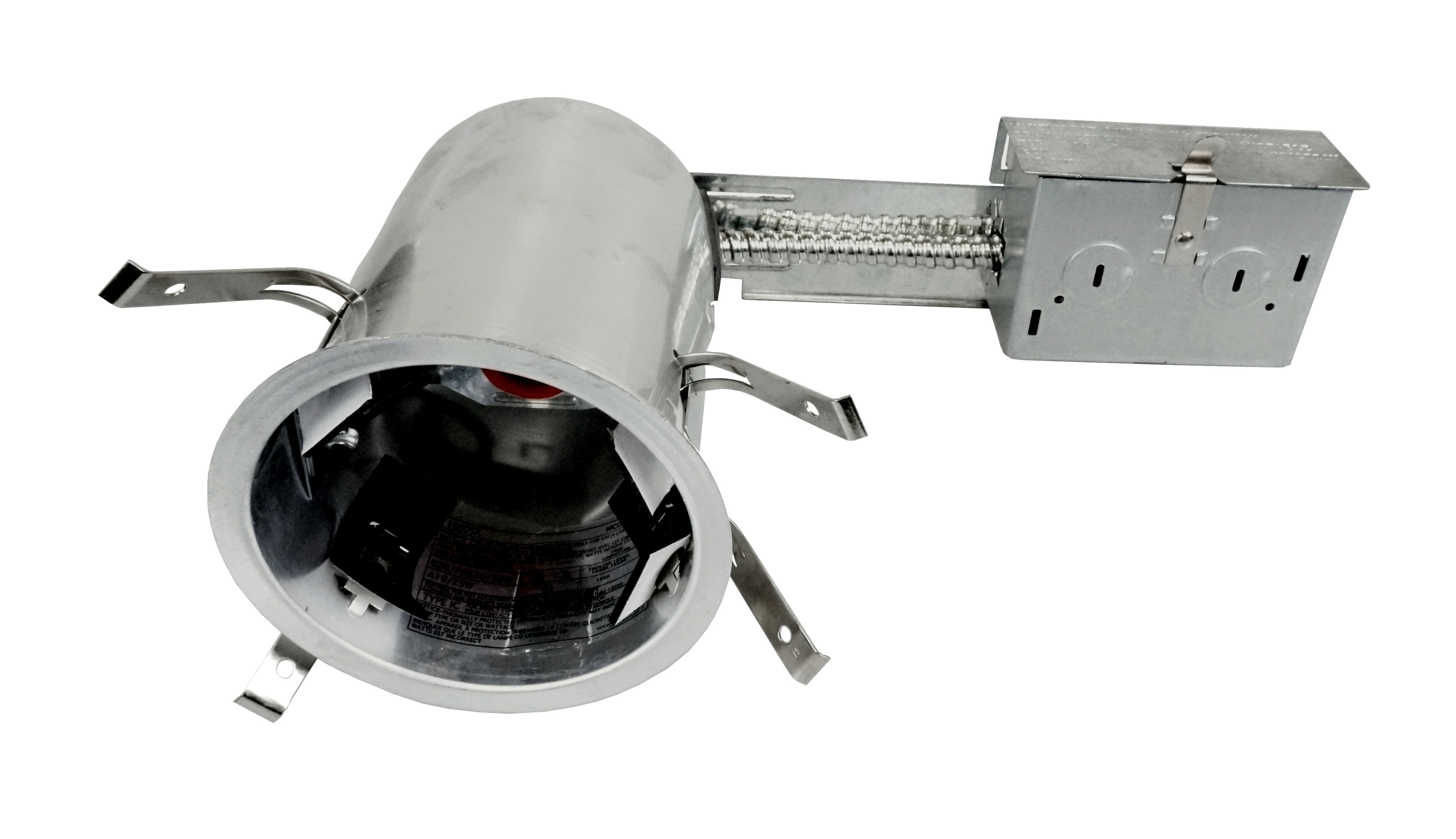

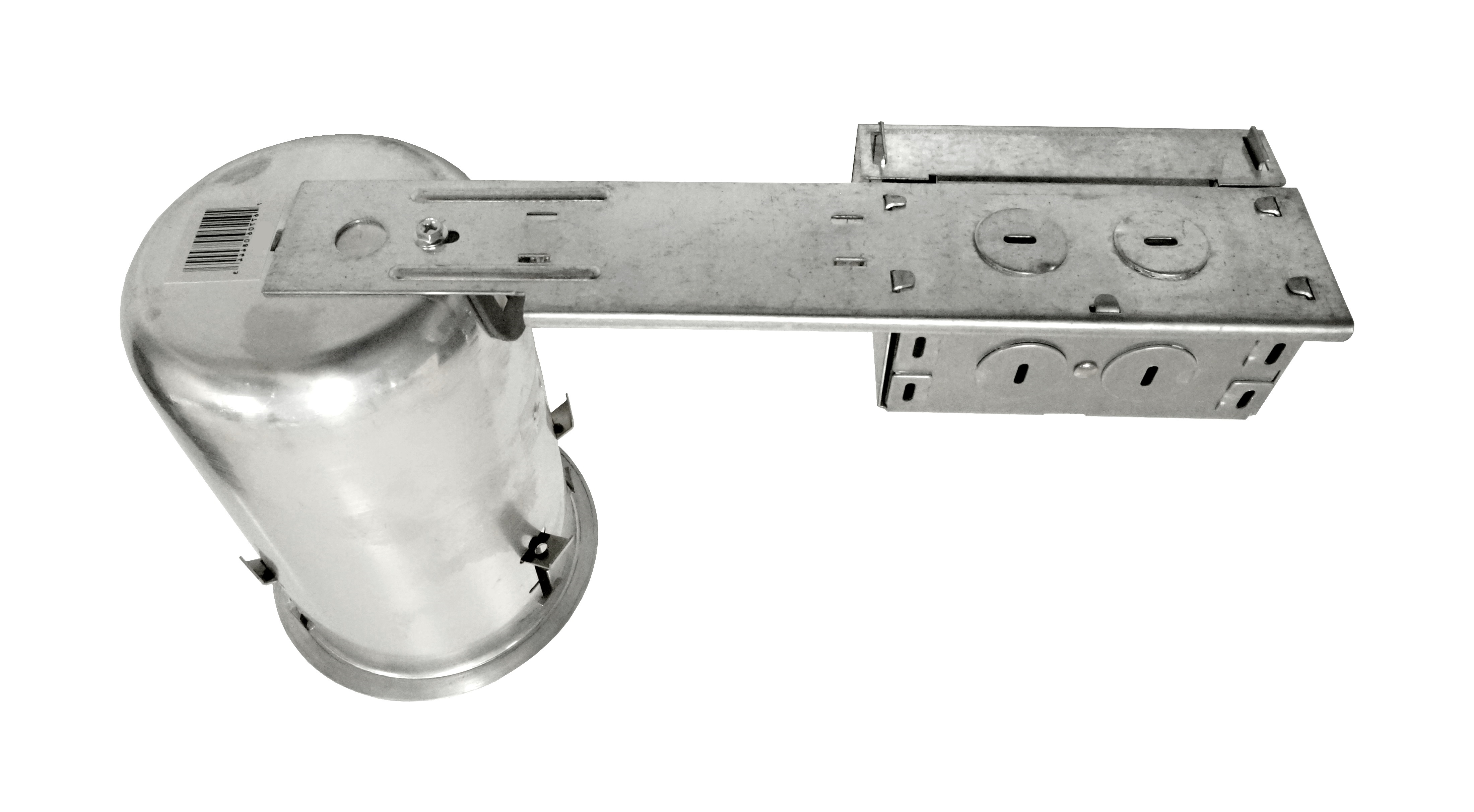

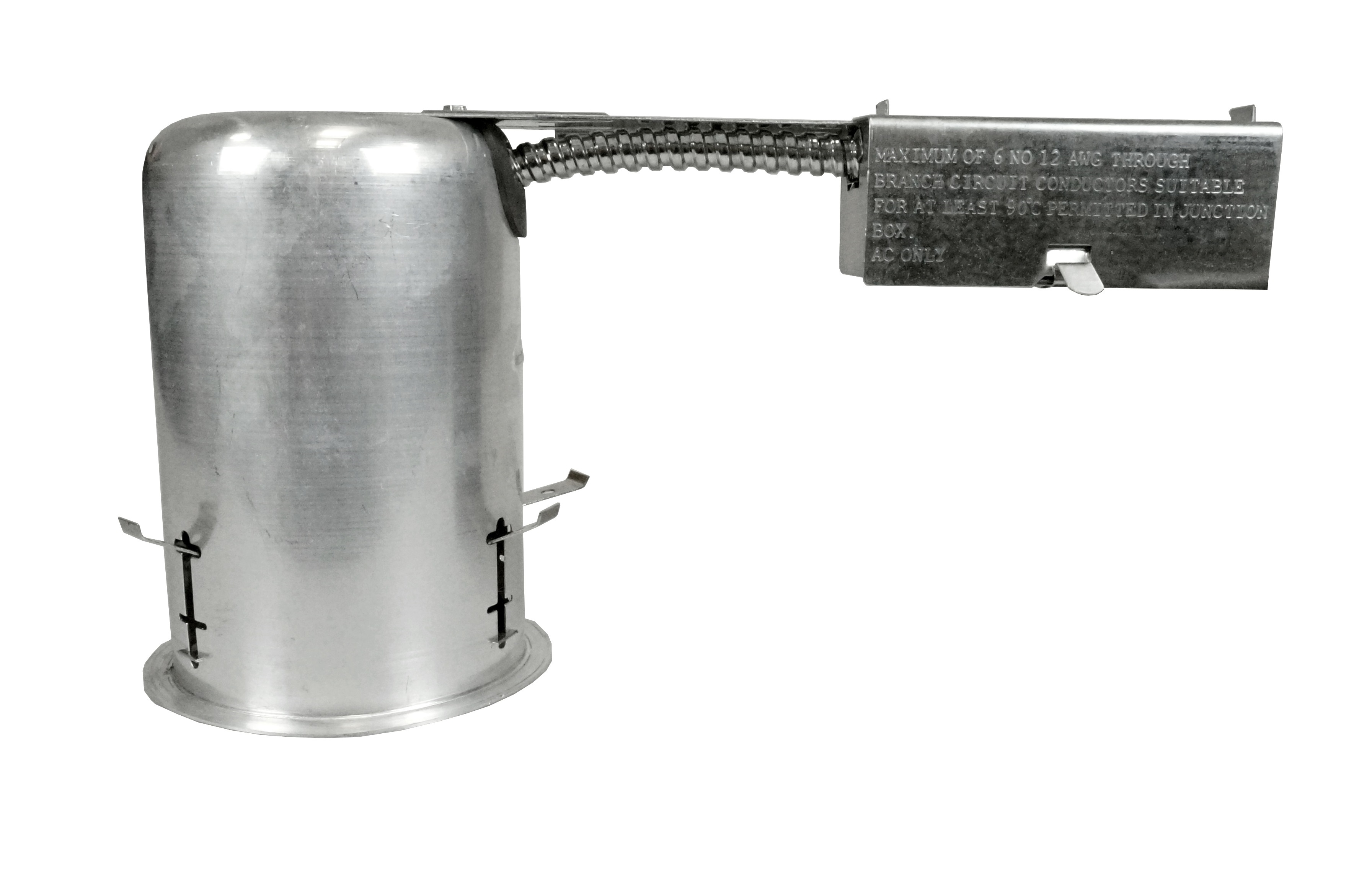

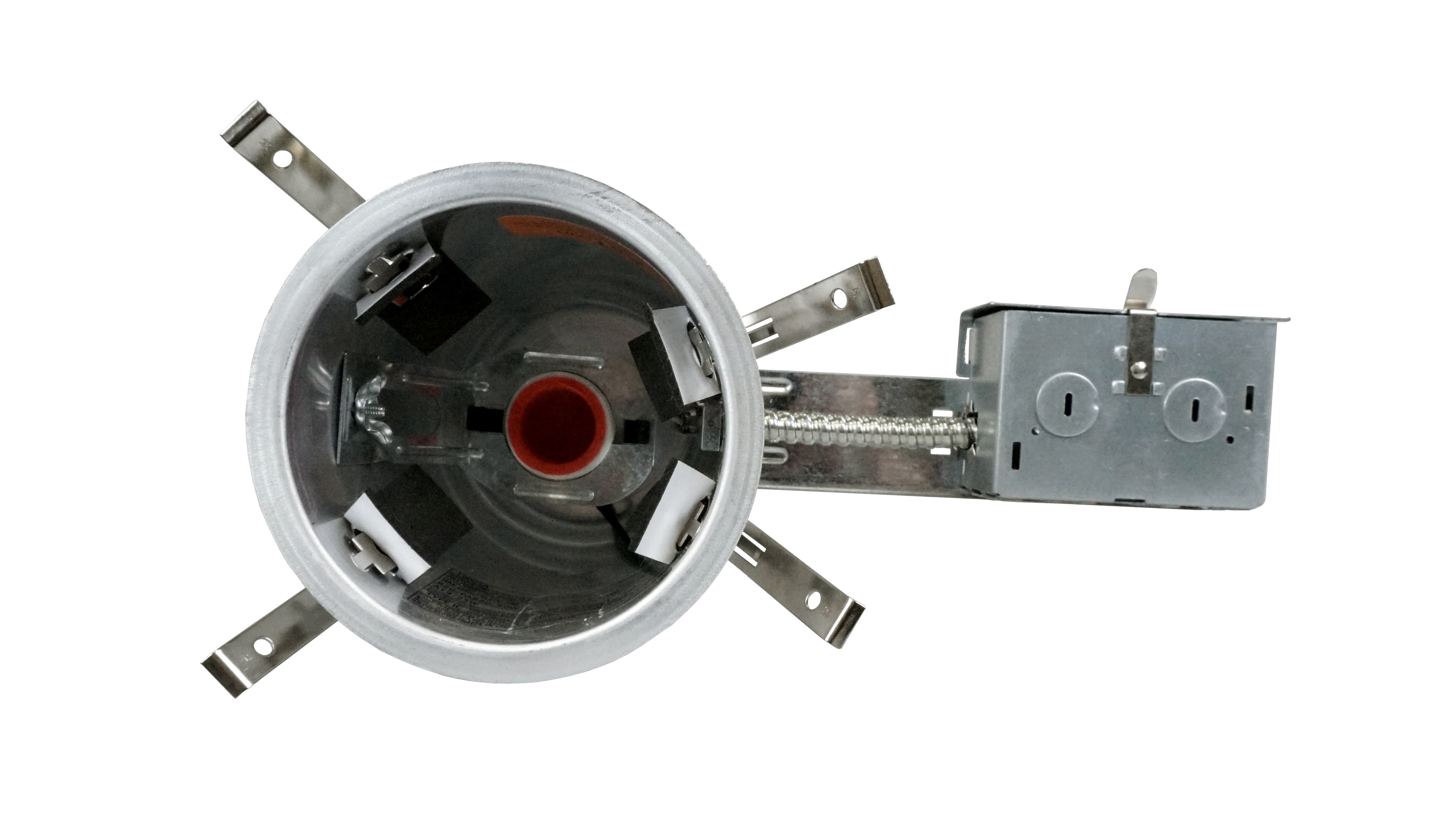

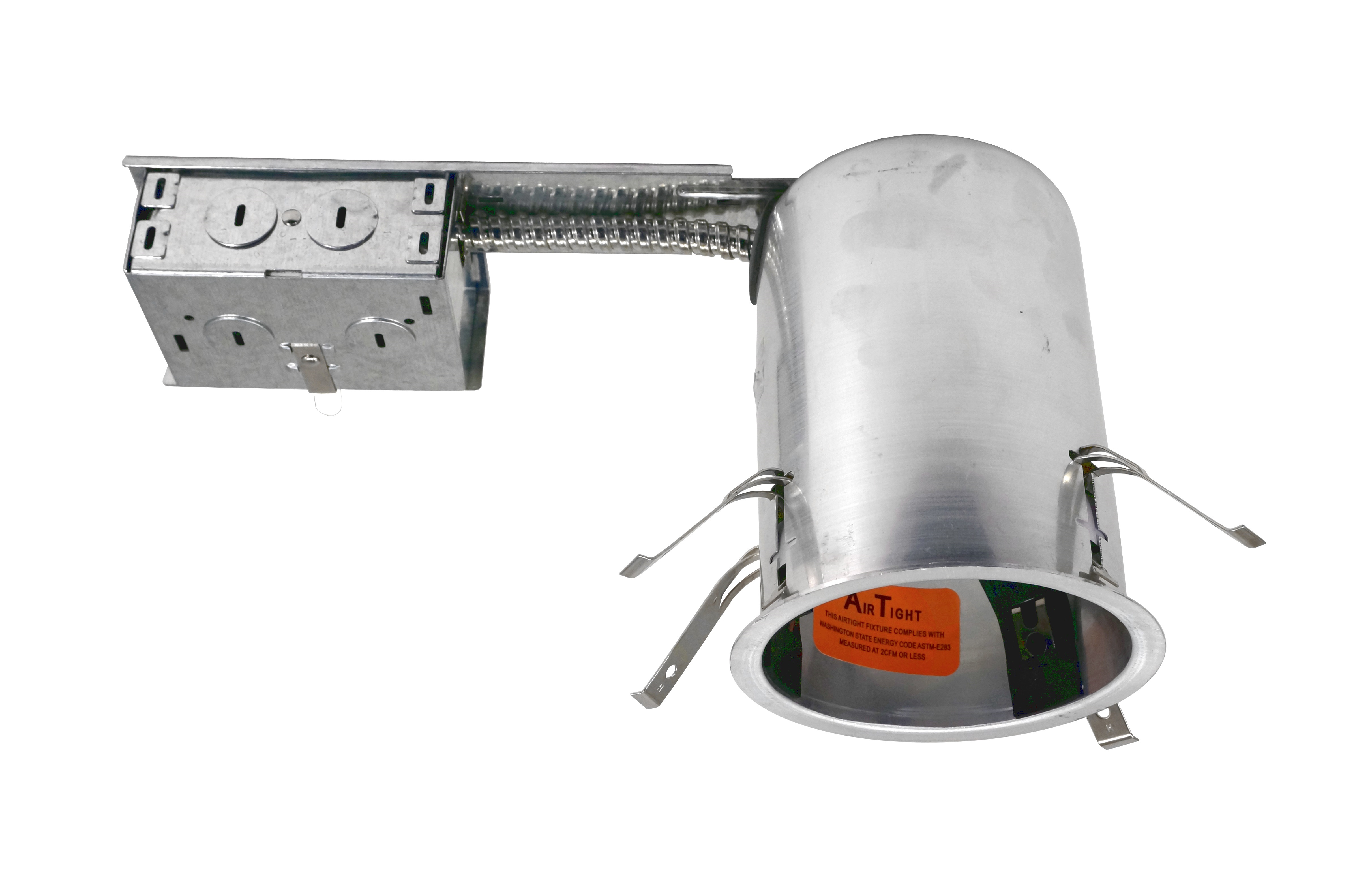

19005AR Series
4 in. IC-Rated and Airtight Remodel Housing
Product description
The 19005AR is suitable for remodel or new construction in residential and commercial applications. IC rated, suitable for direct contact with insulation.
- IC-rated and airtight housing is approved for direct contact with insulation and helps improve energy efficiency by reducing air leakage
- Designed for remodel and new construction applications in residential and commercial environments for maximum installation flexibility
- Durable aluminum construction provides enhanced heat dissipation for reliable, long-lasting performance
- Adjustable socket bracket ensures proper and consistent lamp positioning, while the integral thermal protector helps guard against overheating and improper lamping
- Quick-connect wiring system simplifies installation and meets Washington State Energy Code restricted airflow requirements for improved building performance
Color Options:
Ordering information
Downloads
Specifications
-
Wattage50
Listings & certifications
Listings & Certifications
- cULus Listed
- IC-Rated
- Airtight (ASTM E283)
- UL Feed-Through
- Damp-Location
Other Certifications
- Listed for through branch circuit wiring
Features
Construction
- Aluminum construction provides greater heat dissipation
- Adjustable socket bracket assures proper and consistent lamp positioning
Electrical
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Quick connect wiring for easy installation
Full Listings
- Washington State Energy Code approved to meet restricted airflow requirements
- Airtight housing limits the exchange of air between ceiling plenum and heated/ cooled areas
- Insulation Contact rated (IC-Rated)
- UL Listed
- CUL Listed
Warranty
- 1 year warranty
