LED WRAPAROUND

The NICOR LED Wraparound offers general ambient lighting for surface mount ceiling applications. The ACW-20 is the perfect energy-saving solution for both remodel and new construction in residential and light commercial applications such as kitchens, garages, utility rooms, schools, offices, and hospitals.

*

* Except 5000K

Specifications

  • Universal input 120 ‐277VAC
  • Driver delivers full-range dimming from 0 - 10VDC

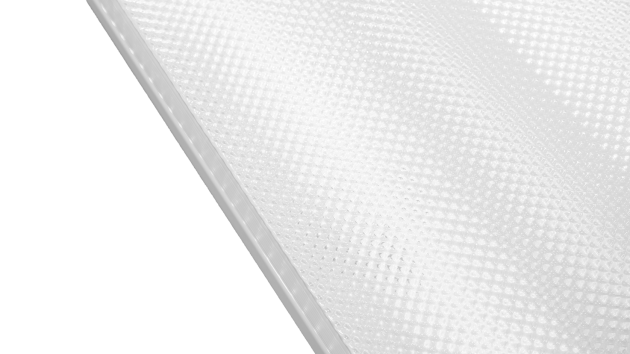

  • Full length U-Wrap diffuser for even light distribution
  • Operating temperature of 0° to 120°F (-18°C to 49°C)
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
  • Easy surface mount installation
  • White powder coat finish

Downloads

– Brochure
Spec Sheet
Installation Instructions



ACW-20-4S
3000K
Warm White
4000K
Neutral
5000K
Cool

3554
Lumens

3664
Lumens

3785
Lumens

39
Input Watts

39
Input Watts

39
Input Watts

91.1
lm/W

93.9
lm/W

97.1
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K:ACW-20-4S-UNV-30K
 4000K:ACW-20-4S-UNV-40K
 5000K:ACW-20-4S-UNV-50K
ACW-20-4H

3000K
Warm White
4000K
Neutral
5000K
Cool

5115
Lumens

5273
Lumens

5626
Lumens

49
Input Watts

49
Input Watts

49
Input Watts

104.4
lm/W

107.6
lm/W

114.8
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K:ACW-20-4H-UNV-30K
 4000K:ACW-20-4H-UNV-40K
 5000K:ACW-20-4H-UNV-50K
ACW-20-4S
3000K
Warm White
4000K
Neutral
5000K
Cool

3554
Lumens

3664
Lumens

3785
Lumens

39
Input Watts

39
Input Watts

39
Input Watts

91.1
lm/W

93.9
lm/W

97.1
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K:ACW-20-4S-UNV-30K
 4000K:ACW-20-4S-UNV-40K
 5000K:ACW-20-4S-UNV-50K

ACW-20-4H
3000K
Warm White
4000K
Neutral
5000K
Cool

5115
Lumens

5273
Lumens

5626
Lumens

49
Input Watts

49
Input Watts

49
Input Watts

104.4
lm/W

107.6
lm/W

114.8
lm/W

84
CRI

84
CRI

84
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K:ACW-20-4H-UNV-30K
 4000K:ACW-20-4H-UNV-40K
 5000K:ACW-20-4H-UNV-50K
