LED WALLPACK

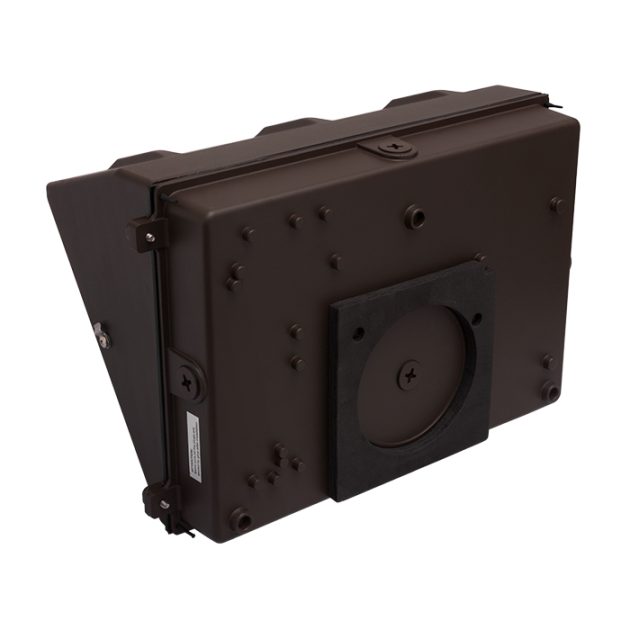

The Corvus LED Wallpack features the classic design of a traditional wallpack with enhanced performance and efficiency. With output up to 145 lumens per watt, the Corvus delivers uniform light distribution with minimized glare and is easy to install on walls or directly to a J-Box with its separable hinged backplate. The Corvus has three knockouts for through-wiring or sensor additions and is an ideal solution for security and perimeter lighting.

Specifications

  • Tempered clear prismatic glass maximizes lumen output
  • Utilizes advanced LED technology with CCT of 4000K and 5000K
  • Standard 80 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
  • Input voltage of 120-277VAC
  • Photocell option
  • Standard full-range dimming with compatible 0-10VDC dimmers on 80W and 120W models
  • Power Factor = >0.9
  • THD = <20%
OWG2 - 50 Watt
4000K
Neutral
5000K
Cool

6924
Lumens

7028
Lumens

48.4
Input Watts

48.4
Input Watts

143.1
lm/W

145.1
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:OWG2050MV40
 5000K:OWG2050MV50

OWG2 - 80 Watt
4000K
Neutral
5000K
Cool

10977
Lumens

11144
Lumens

77.5
Input Watts

77.5
Input Watts

141.6
lm/W

143.8
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:OWG2080MV40
 5000K:OWG2080MV50

OWG2 - 120 Watt
4000K
Neutral
5000K
Cool

15884
Lumens

16126
Lumens

116.4
Input Watts

116.4
Input Watts

136.5
lm/W

138.5
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:OWG2120MV50

OWG2 - 50 Watt
4000K
Neutral
5000K
Cool

6924
Lumens

7029
Lumens

48.4
Input Watts

48.4
Input Watts

143.1
lm/W

145.1
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:OWG2050MV40
 5000K:OWG2050MV50

OWG2 - 80 Watt
4000K
Neutral
5000K
Cool

10977
Lumens

11144
Lumens

77.5
Input Watts

77.5
Input Watts

141.6
lm/W

143.8
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:OWG2080MV40
 5000K:OWG2080MV50

OWG2 - 120 Watt

4000K
Neutral
5000K
Cool

15884
Lumens

16126
Lumens

116.4
Input Watts

116.4
Input Watts

136.5
lm/W

138.5
lm/W

82
CRI

82
CRI

IES Download

IES Download

Part Numbers:

 4000K:Discontinued
 5000K:OWG2120MV50
