COS360 Series
360° PIR Ceiling Occupancy Motion Sensor
Product description

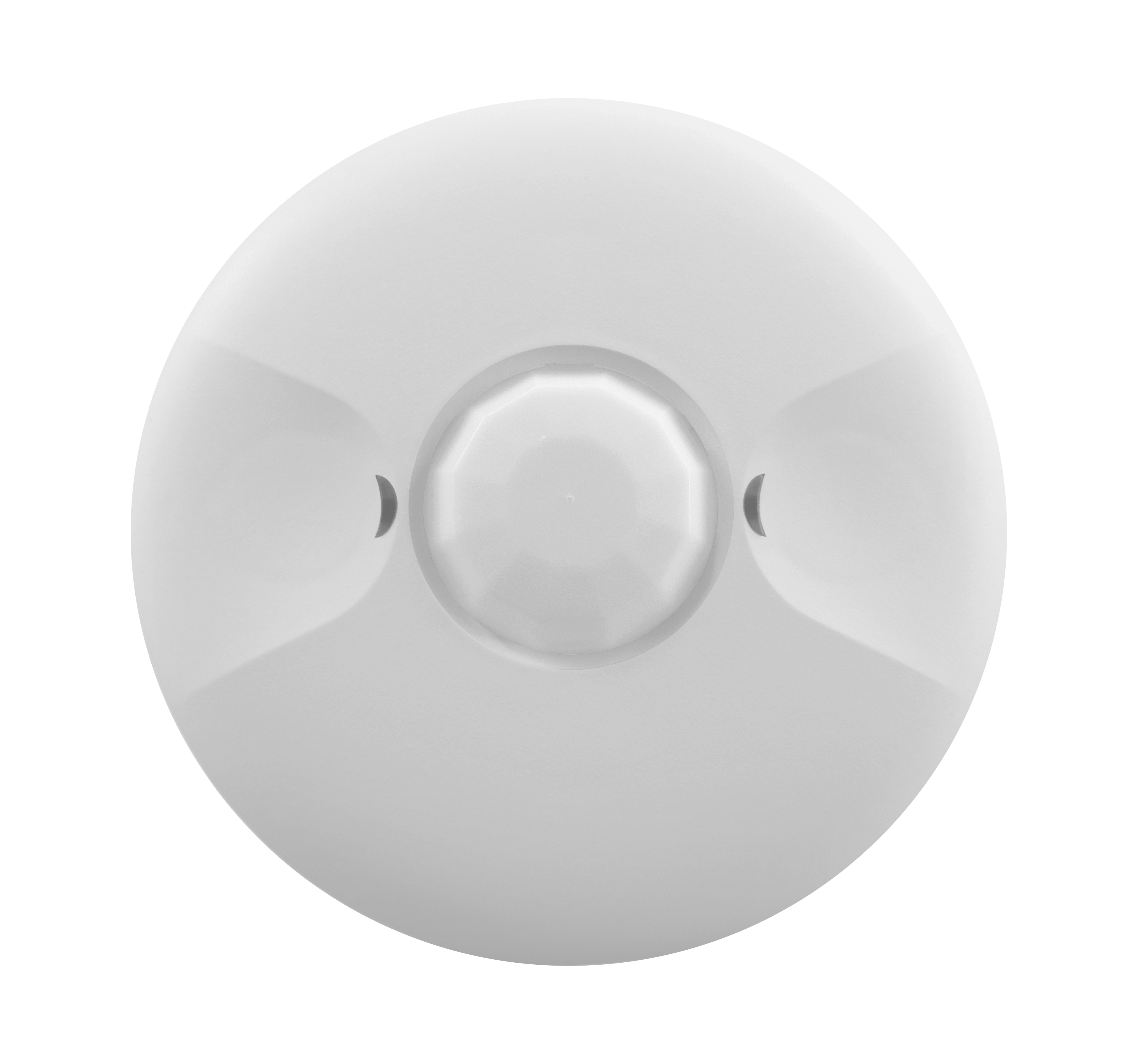

The COS360WH is a line voltage ceiling mount occupancy sensor that automatically operates lighting systems based on occupancy and ambient light levels. This sensor keeps lights from turning on if the ambient light level is sufficient. It’s effortless energy saving that is perfect for use in: storage…
The COS360WH is a line voltage ceiling mount occupancy sensor that automatically operates lighting systems based on occupancy and ambient light levels. This sensor keeps lights from turning on if the ambient light level is sufficient. It’s effortless energy saving that is perfect for use in: storage areas, small bathrooms, copy rooms, computer rooms, conference rooms, classrooms, warehouses, and more.
- Standard decorator trim plate included
- Multi-level, fresnel lens for superior occupancy detection

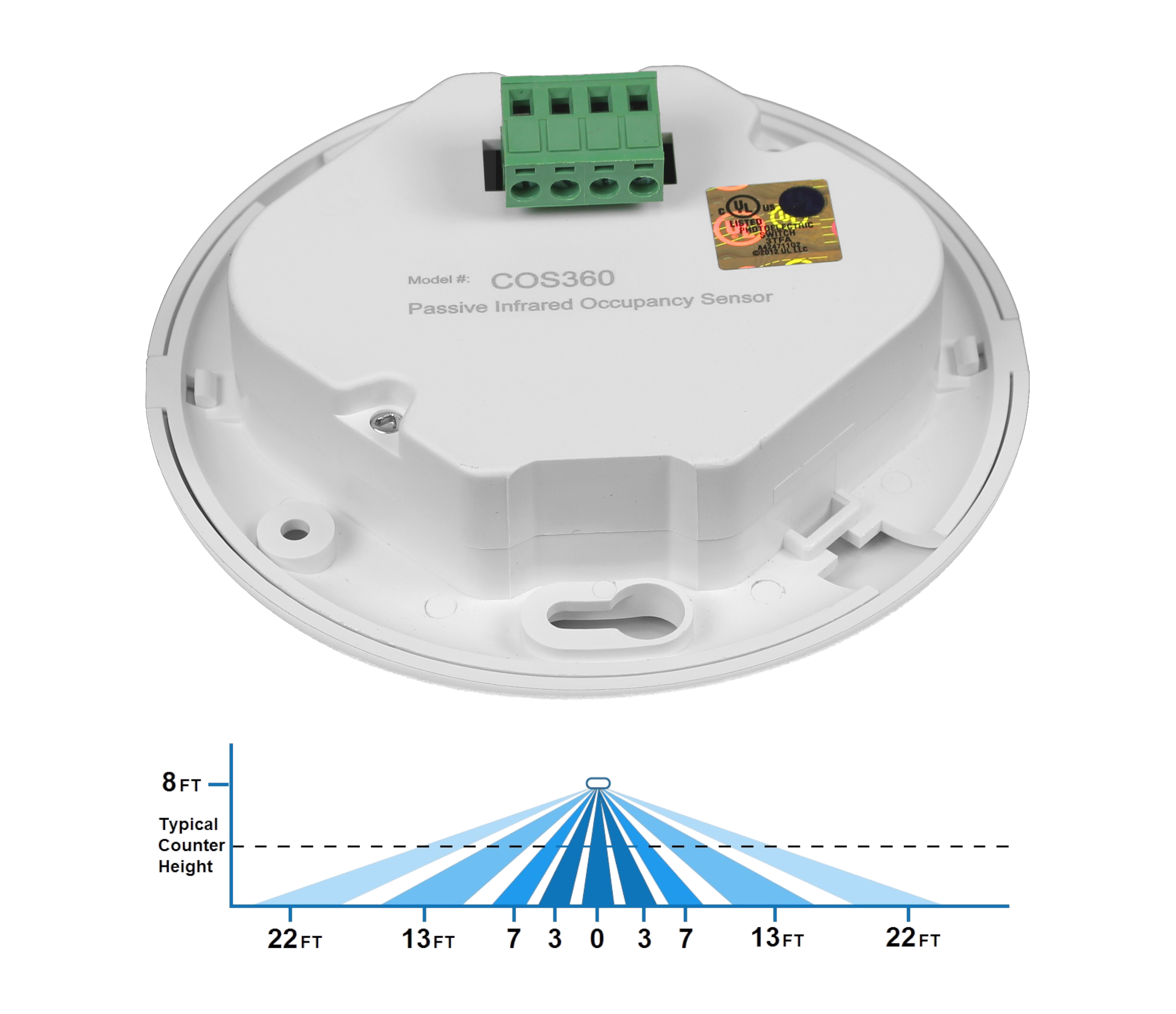

- 360˚ field of view, 1200 sq. ft. coverage area
- Adjustable time delay
- Adjustable sensitivity setting
Color Options:
Downloads
Specifications
-
Wattage800
Listings & certifications
Listings & Certifications
- cULus Listed
- Title 24
- FCC Class A
- Dry-Location
Features
Construction
- Standard decorator trim plate included
Optical System
- Multi-level, fresnel lens for superior occupancy detection
Electrical
- 360˚ field of view, 1200 sq. ft. coverage area
- Adjustable time delay
- Adjustable sensitivity setting
- Adjustable ambient light level setting
- Walk-through sensing mode
Installations
- Simple, easy installation
Warranty
- Two year warranty
