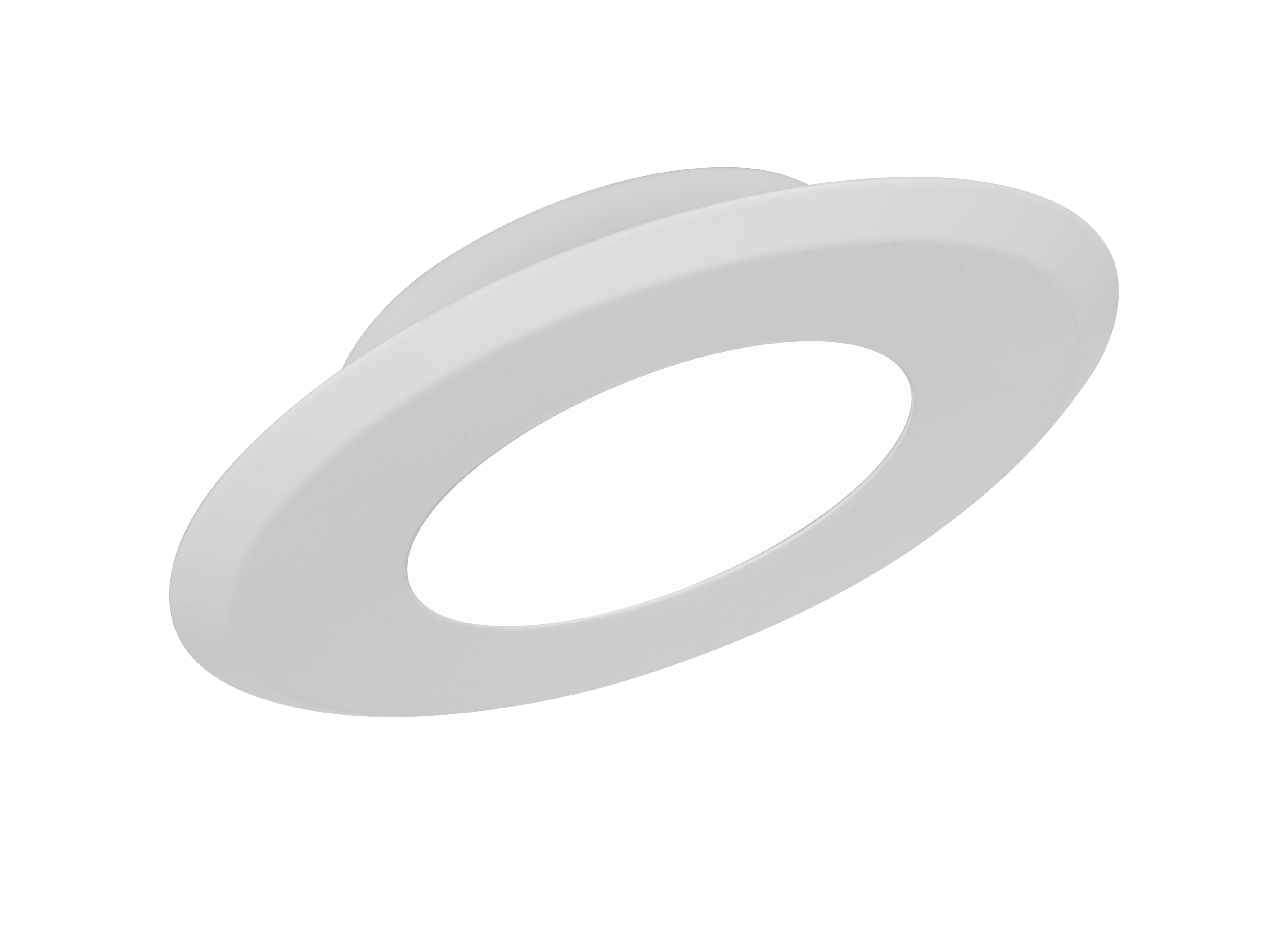

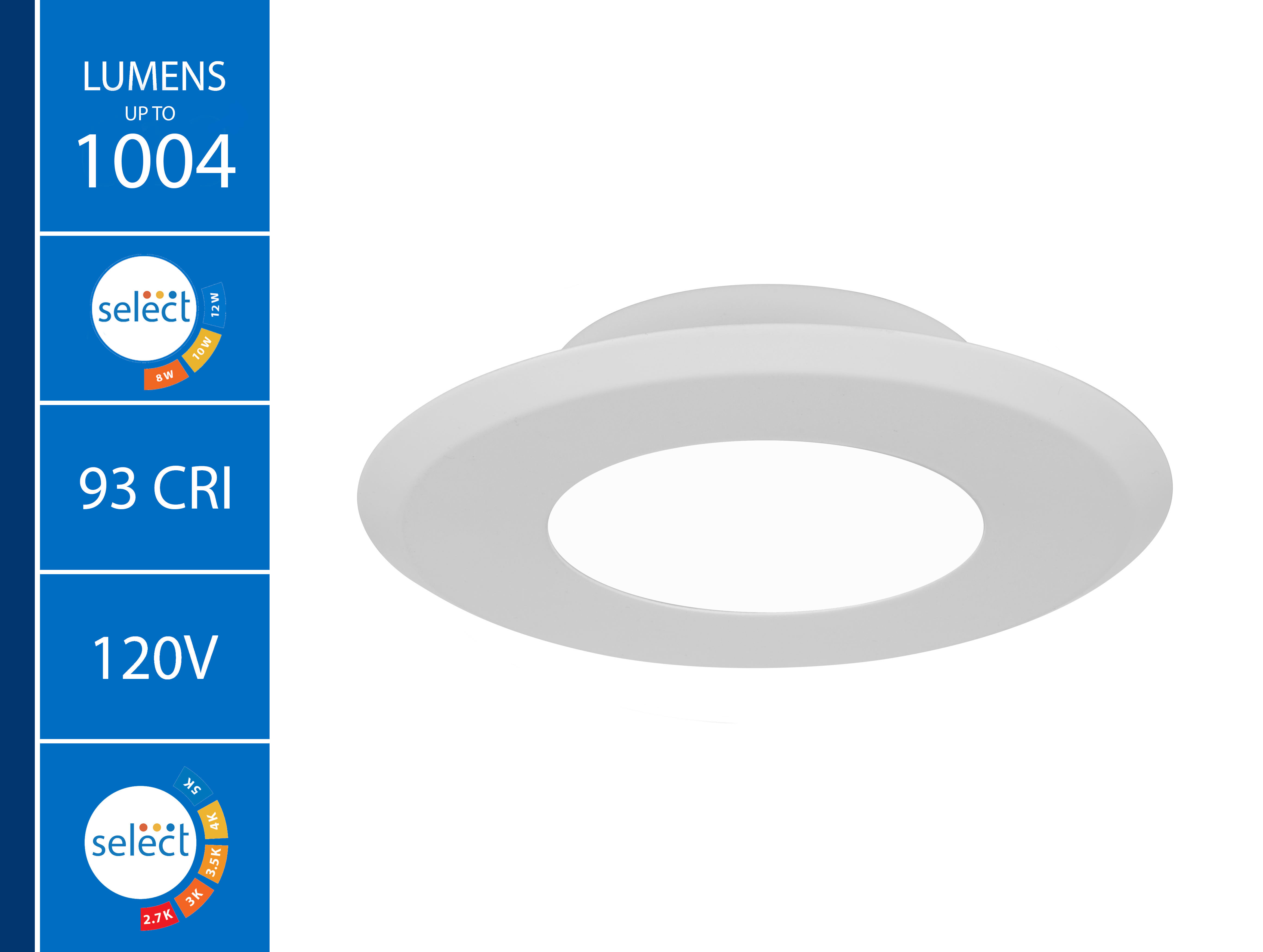

DLFv4 SureFit 5-inch Selectable LED Flush Mount Downlight with Round White Trim
The NICOR SureFit™ Ultra Slim Surface Mount LED Downlight brings selectable lumen output and selectable CCT with an improved design. The DLF will fit a variety of 4/O junction boxes (see compatibility list for more information). Mount the fixture directly to the J-Box using the keyhole mounting slot…

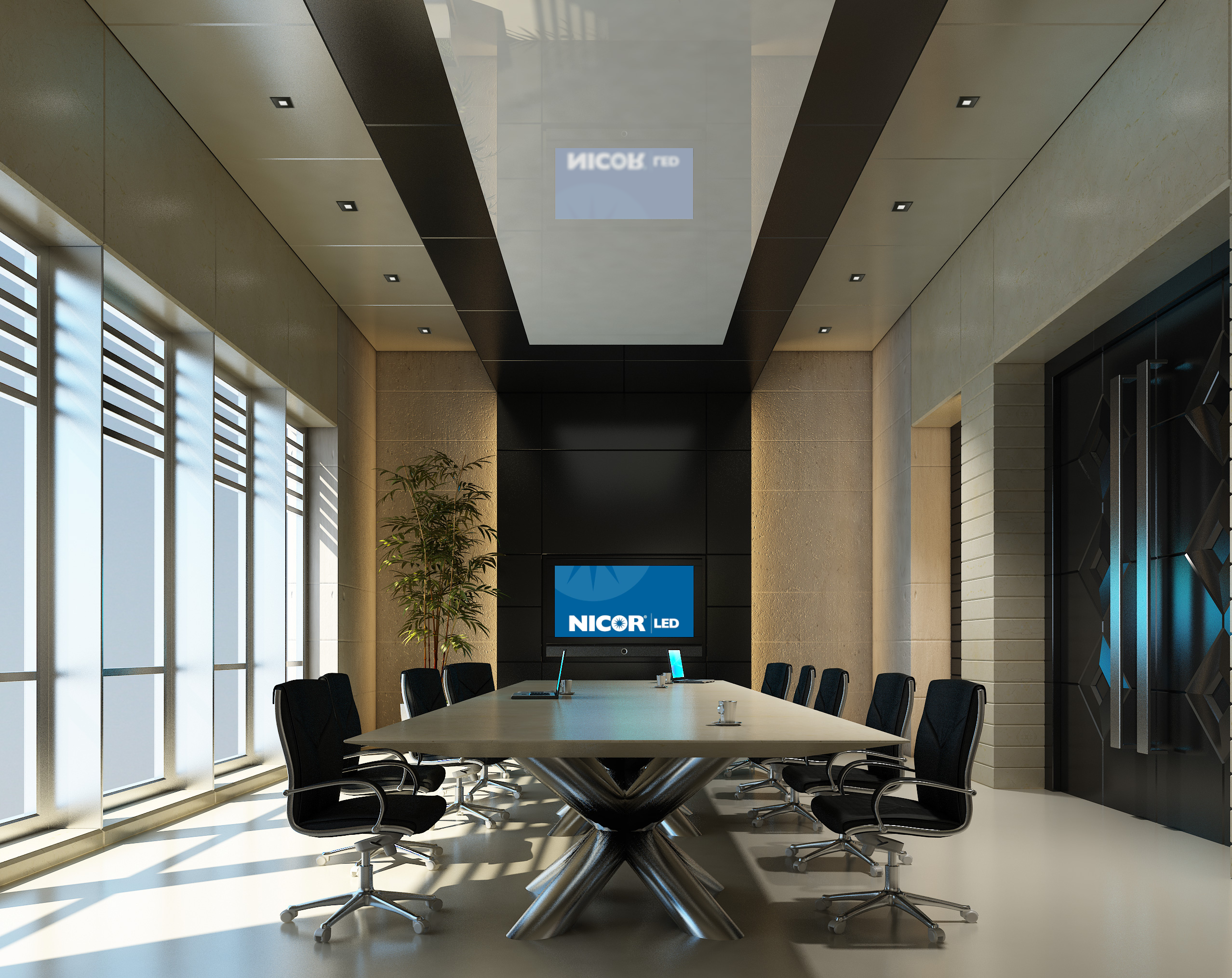

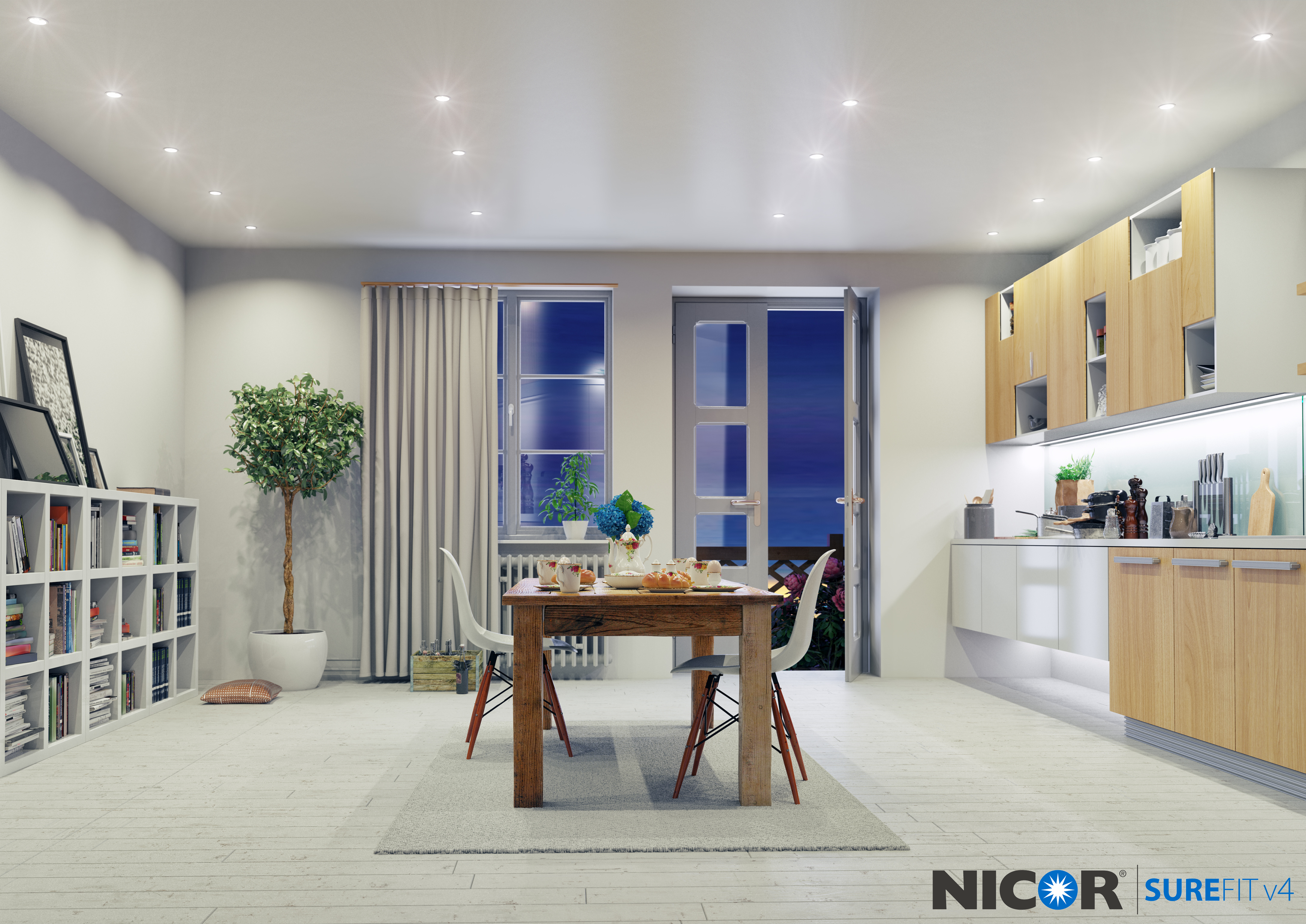

The NICOR SureFit™ Ultra Slim Surface Mount LED Downlight brings selectable lumen output and selectable CCT with an improved design. The DLF will fit a variety of 4/O junction boxes (see compatibility list for more information). Mount the fixture directly to the J-Box using the keyhole mounting slots and two screws. Magnetic round, square or wallwash trims, in a variety of colors, offer a seamless finish to enhance the visual aesthetic of any living space. The NICOR SureFit™ is the perfect solution for residential and light commercial spaces including living rooms, bedrooms, home theaters, corridors, office, retail and more.
- Ultra-slim design installs directly to 4/O junction boxes
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Three selectable wattage settings (Low/Med/High)
- Optional wall wash kit available in black, white, and oil-rubbed bronze
- Optional round and square trims available in black and oil-rubbed bronze
- Uniform illumination with smooth dimming to below 5%
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens902 - 1004 lm
-
Wattage8, 10, 12
Listings & certifications
- UL Certified
- Title 24
- JA8
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (UL 1598)
- Patent Pending
Features
Construction
- Stamped steel housing routes heat away from electrical components
- Custom designed, integrated driver recesses into junction box

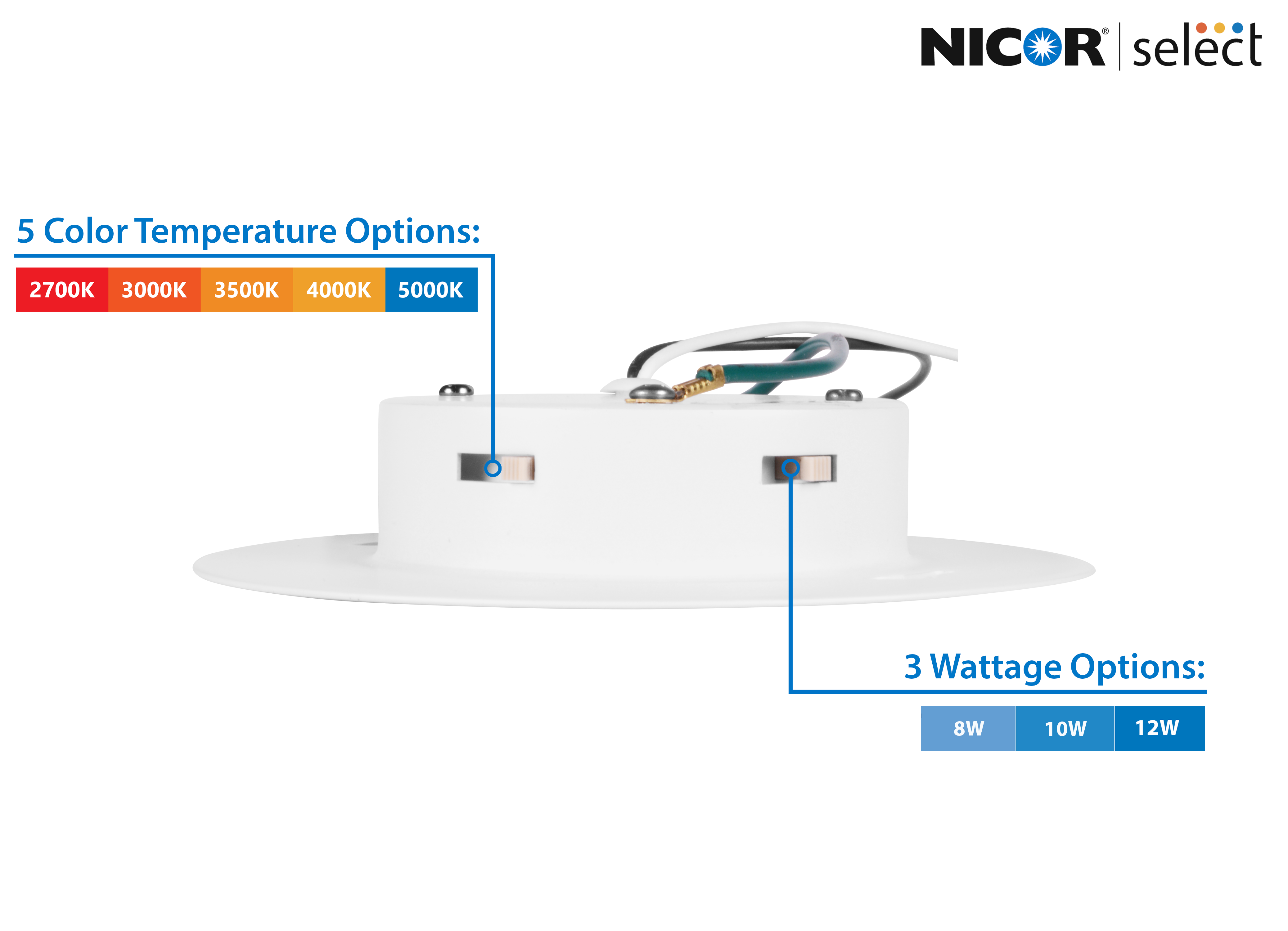

- CCT and Lumen selections switches on side of housing

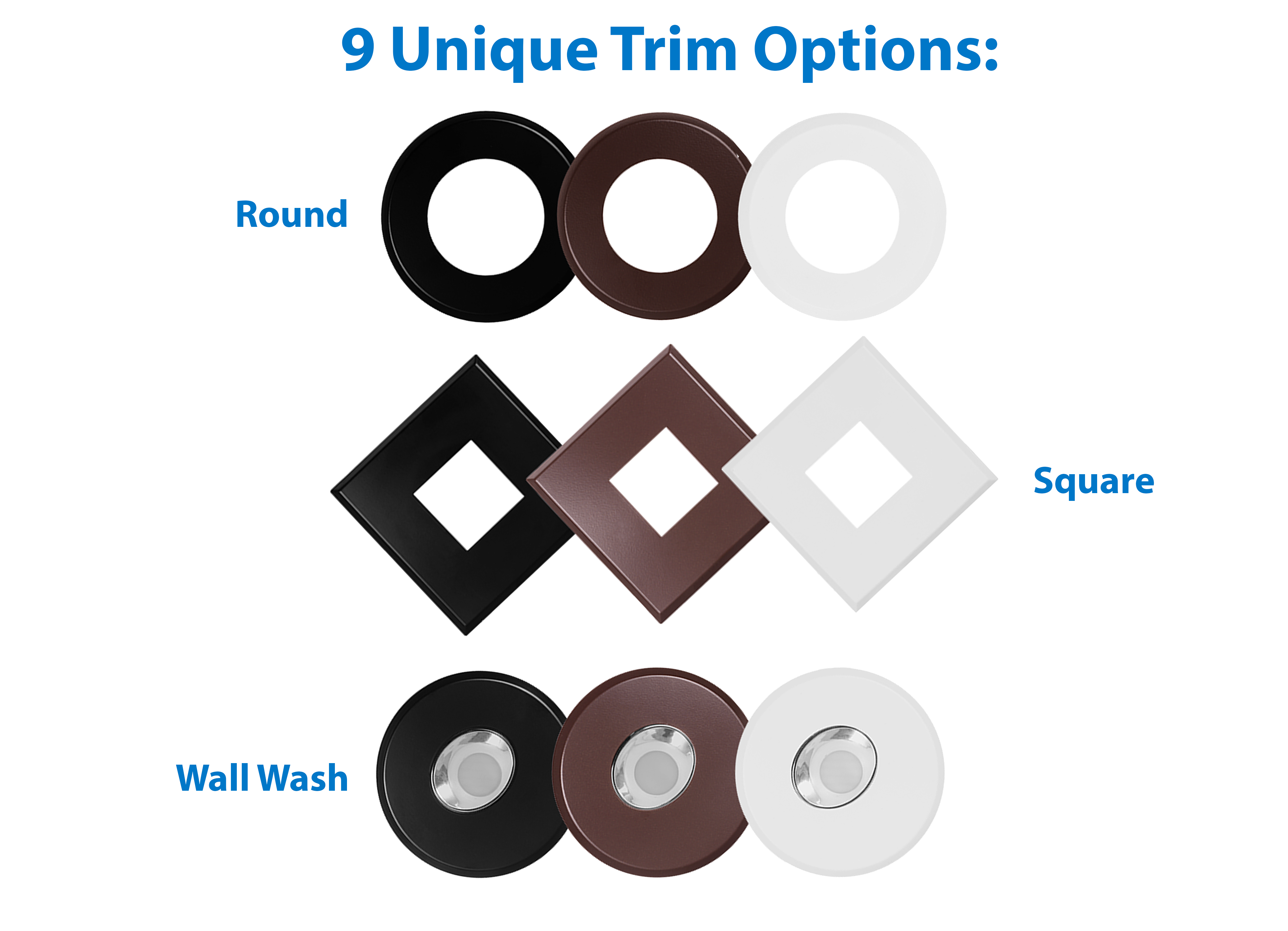

- Detachable round or square steel trims
- Optional field installable wallwash kit available
Optical System

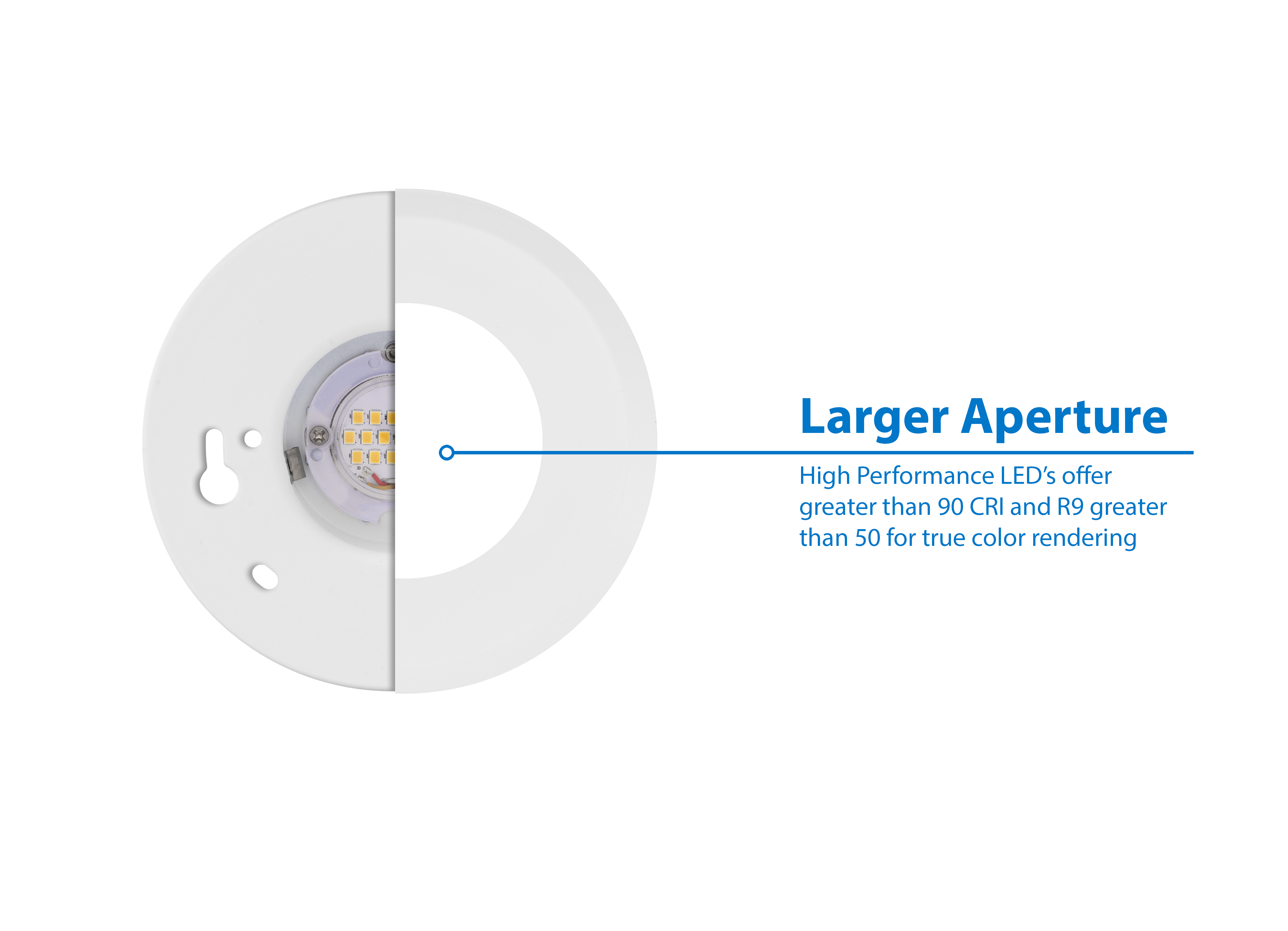

- Polystyrene diffuser creates uniform distribution without sacrificing lumen output
- Offered with 3 lumen selections of 600, 750 and 900lm for downlight distributions
- Offered with 5CCT selection of 2700K, 3000K, 3500K, 4000K, and 5000K
Electrical

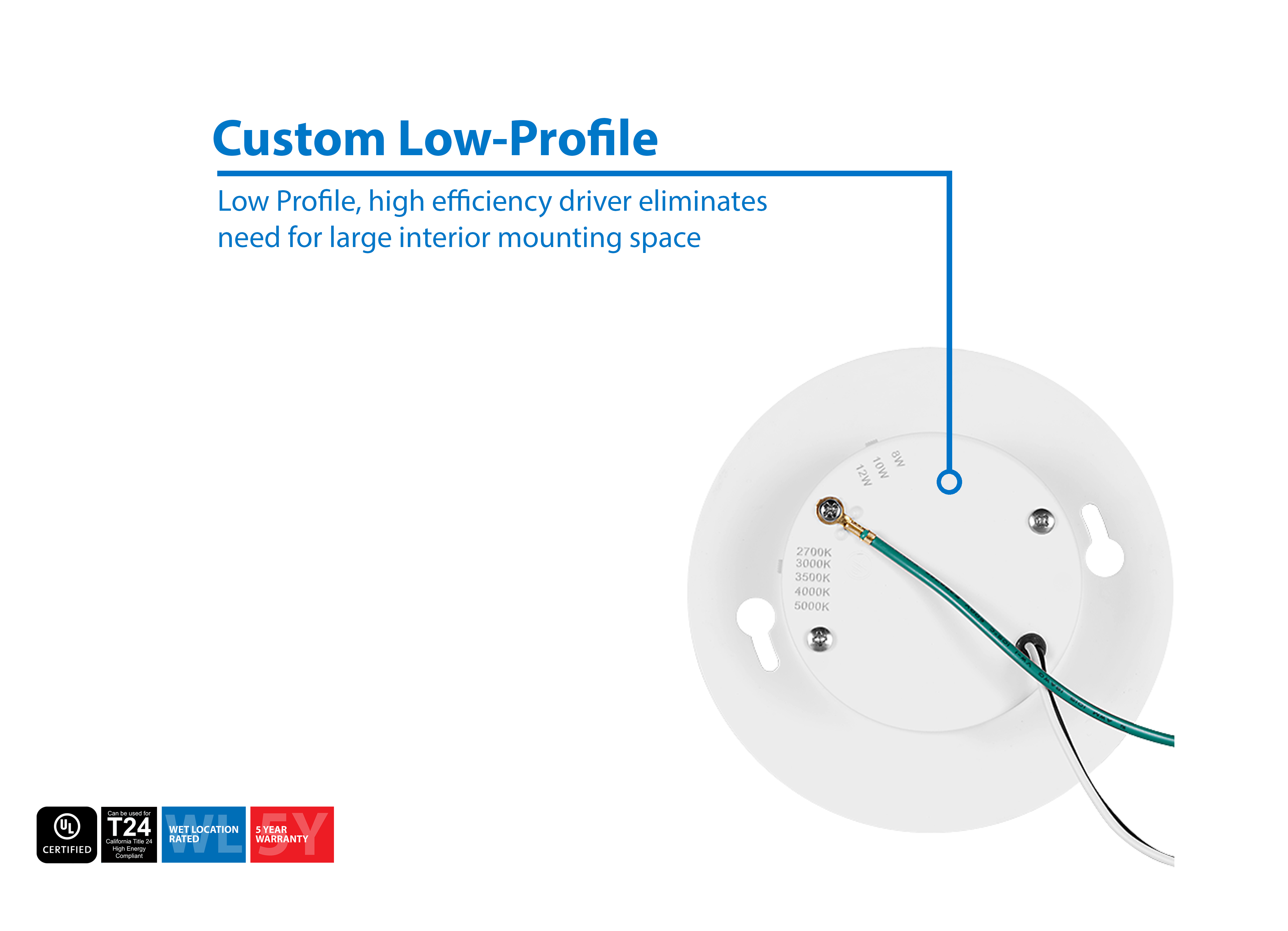

- Custom slim driver minimizes installation height
- Input voltage of 120VAC, 60Hz
- Dimmable to less than 5% with compatible leading edge (TRIAC) and trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations

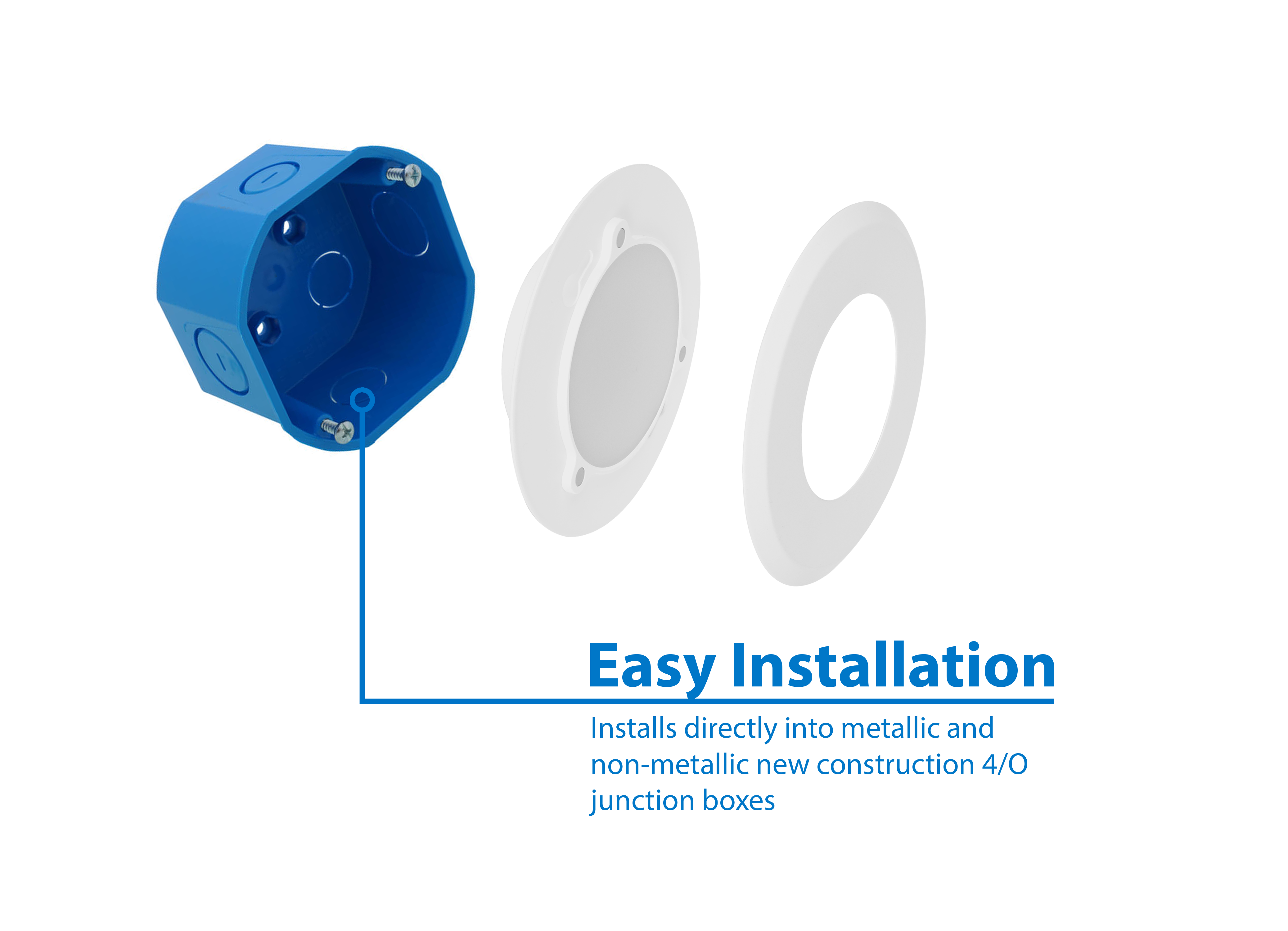

- Easy installation in metallic and non-metallic new construction 4/O junction boxes (see compatibility list for more information)
- Removable trim allows for easy mounting while providing a seamless trim finish
- Fixture mounts directly to J-Boxes with two screws
- Keyhole slots allow quick and easy installation
- Three three-port poke-in connectors included
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- CA Title 24/JA8 Compliant
- Suitable for use in closets : Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5)
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
