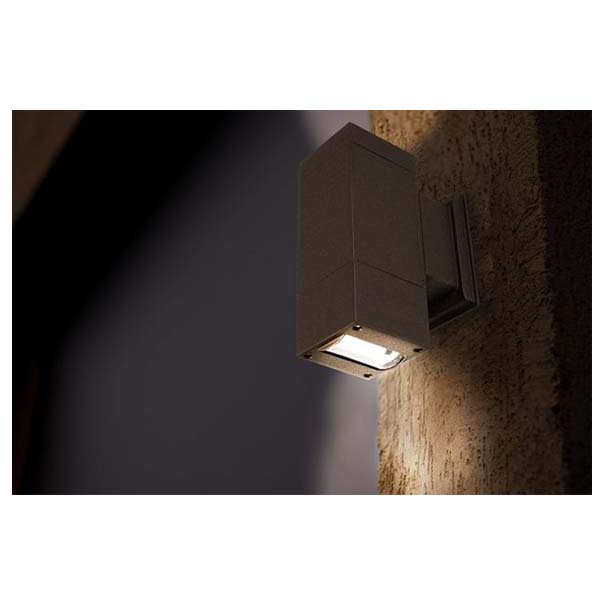

SQUARE LED WALL MOUNT CYLINDER WITH UP/DOWN FAN DISTRIBUTION

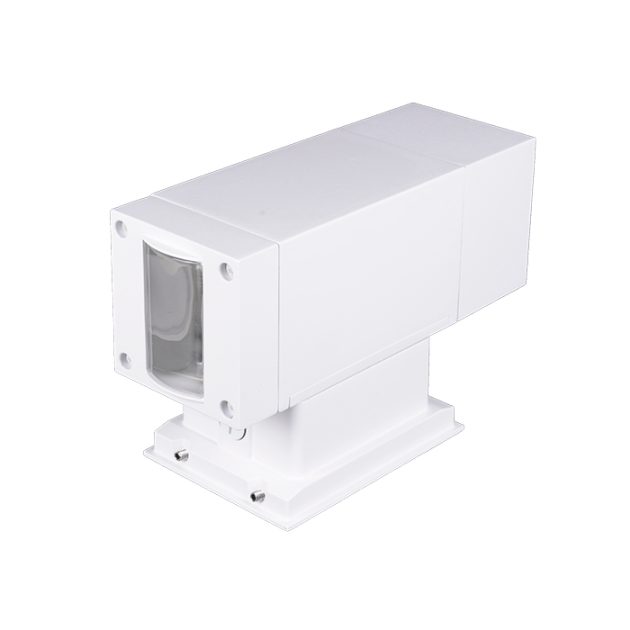

The Dorado Fan Square LED Wall Mount Cylinder features an attractive, contemporary design while maximizing lumen output. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is desired, the Dorado Fan uses convex lenses to create asymmetric up/down fan light distribution. The fixture features a detachable mounting plate for easy mounting to J-Boxes and has a knockout for through-wiring.

   width=

Category: Tags:

Specifications

  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -4° to 104°F (-20°C to 40°C)
  • Input voltage of 120-277VAC
  • Available in 36 watt
OWCF4N1036MV
3000K
Warm White
4000K
Neutral
5000K
Cool

1387
Lumens

1436
Lumens

1566
Lumens

34.4
Input Watts

34.4
Input Watts

34.4
Input Watts

40.3
lm/W

41.7
lm/W

45.5
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:



3000K:

4000K:

5000K:

OWCF4D1022MV30

OWCF4D1022MV40

OWCF4D1022MV50

OWCF4N1036MV
3000K
Warm White
4000K
Neutral
5000K
Cool

1387
Lumens

1436
Lumens

1566
Lumens

34.4
Input Watts

34.4
Input Watts

34.4
Input Watts

40.3
lm/W

41.7
lm/W

45.5
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K: OWCF4D1022MV30
 4000K: OWCF4D1022MV40
 5000K: OWCF4D1022MV50
