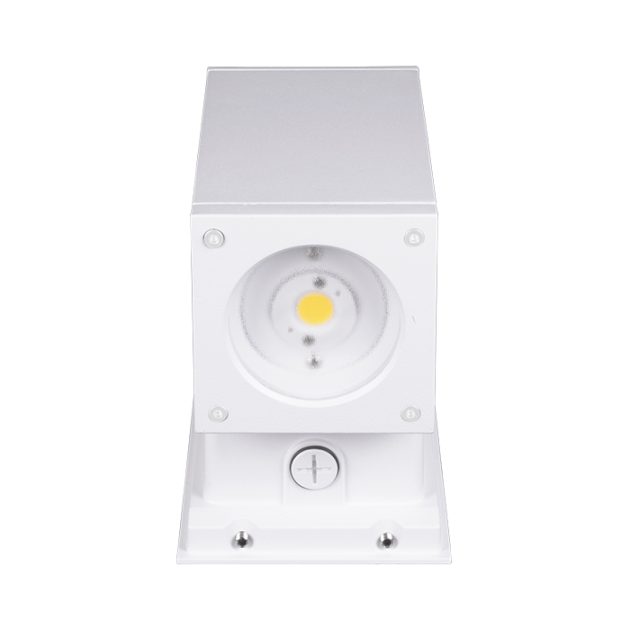

LED WALL MOUNT CYLINDER

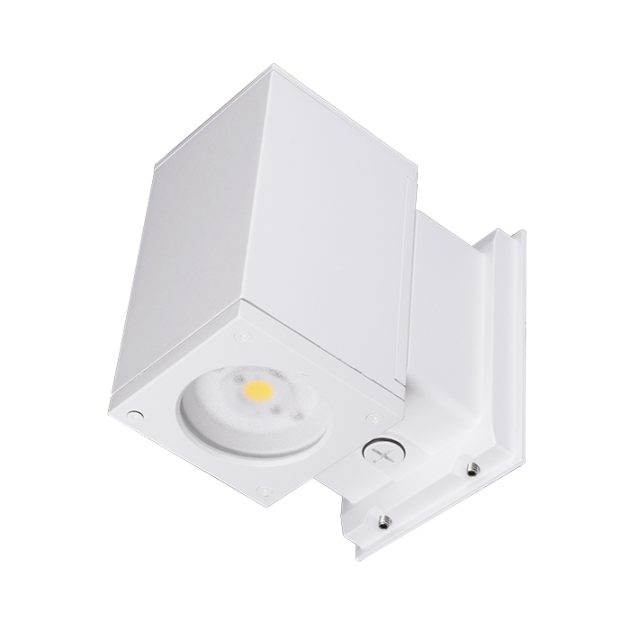

The Dorado Square 4” LED Wall Mount Cylinder delivers optimal performance up to 118 lumens per watt in an attractive, contemporary design. Ideal for porches, walls, columns, office spaces, restaurants, clubs, walkways and other residential or commercial applications where ambient illumination is desired, the Dorado Square uses tempered, clear prismatic glass to create uniform down or up/down light distribution free of hot spots or glare. The fixture features a detachable mounting plate for easy mounting to J-Boxes and has a knockout for through-wiring or sensor additions.

 width= *5yr only available on OWCQ4D

Category: Tags:

Specifications

  • Thermally-protected, high-efficiency driver
  • Operating temperature rating of -4° to 104°F (-20°C to 40°C)
  • Input voltage of 120-277VAC
  • Available in 22 and 33 watt
  • TM-21 Reported L70(10k) life >60,000 hours
  • TM-21 Projected L70(10k) life =108,000 hours
  • Fine-textured, bronze or white UV-stabilized powder coat finish
OWCQ4D1022MV (22W) – Down
3000K
Warm White
4000K
Neutral
5000K
Cool

2134
Lumens

2290
Lumens

2497
Lumens

22
Input Watts

22
Input Watts

22
Input Watts

101.2
lm/W

108.6
lm/W

118.4
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:



3000K:

4000K:

5000K:

OWCQ4D1022MV30

OWCQ4D1022MV40

OWCQ4D1022MV50

OWCQ4U1033MV (33W) – Up/Down
3000K
Warm White
4000K
Neutral
5000K
Cool

3091
Lumens

3200
Lumens

3489
Lumens

33
Input Watts

33
Input Watts

33
Input Watts

91.6
lm/W

94.9
lm/W

103.4
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:



3000K:

4000K:

5000K:

OWCQ4U1033MV30

OWCQ4U1033MV40

OWCQ4U1033MV50

OWCQ4D1022MV (22W) – Down
3000K
Warm White
4000K
Neutral
5000K
Cool

2134
Lumens

2290
Lumens

2497
Lumens

22
Input Watts

22
Input Watts

22
Input Watts

118.4
lm/W

108.6
lm/W

101.2
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K: OWCQ4D1022MV30
 4000K: OWCQ4D1022MV40
 5000K: OWCQ4D1022MV50


OWCQ4U1033MV (33W) – Up/Down
3000K
Warm White
4000K
Neutral
5000K
Cool

3091
Lumens

3200
Lumens

3489
Lumens

33
Input Watts

33
Input Watts

33
Input Watts

91.6
lm/W

94.9
lm/W

103.4
lm/W

83
CRI

83
CRI

83
CRI

IES Download

IES Download

IES Download

Part Numbers:

 3000K: OWCQ4U1033MV30
 4000K: OWCQ4U1033MV40
 5000K: OWCQ4U1033MV50
