2” RECESSED LED DOWNLIGHT

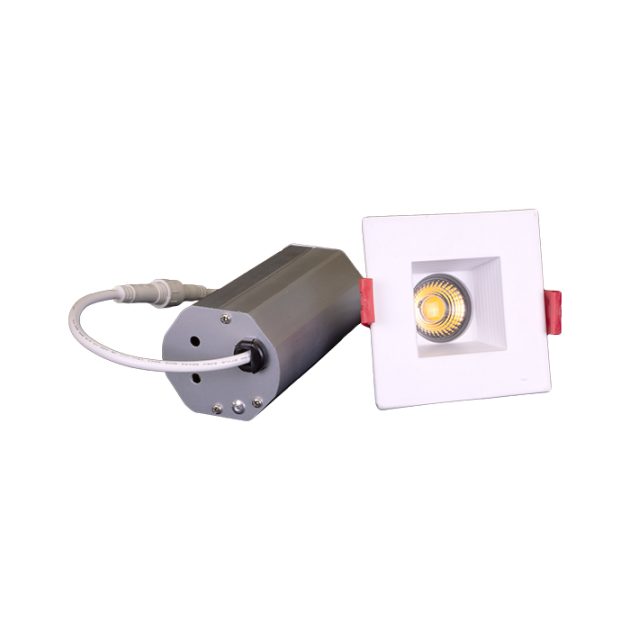

The DQD2 LED Downlight allows you to bring general ambient lighting into a space with a minimal aperture size. The high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The DQD fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding ambient or accent lighting in areas such as living rooms, hallways, art niches and display cases is now easier than ever.



Specifications

  • Off-board driver minimizes installation height and maximizes
    fixture life through improved heat management
  • 120V input to driver
  • Dimmable to less than 5% with compatible TRIAC dimmers
  • Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
  • Lifetime rated for greater than 60,000 hours
  • LM-79, LM-80 testing performed in accordance with IESNA standards
DQD2
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

575
Lumens

592
Lumens

607
Lumens

622
Lumens

8.3
Input Watts

8.3
Input Watts

8.3
Input Watts

8.3
Input Watts

69.6
lm/W

71.3
lm/W

73.1
lm/W

74.9
lm/W

98
CRI

98
CRI

98
CRI

98
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DQD211202K
 3000K:DQD211203K
 4000K:DQD211204K
 5000K:DQD211205K
