2” RECESSED LED DOWNLIGHT

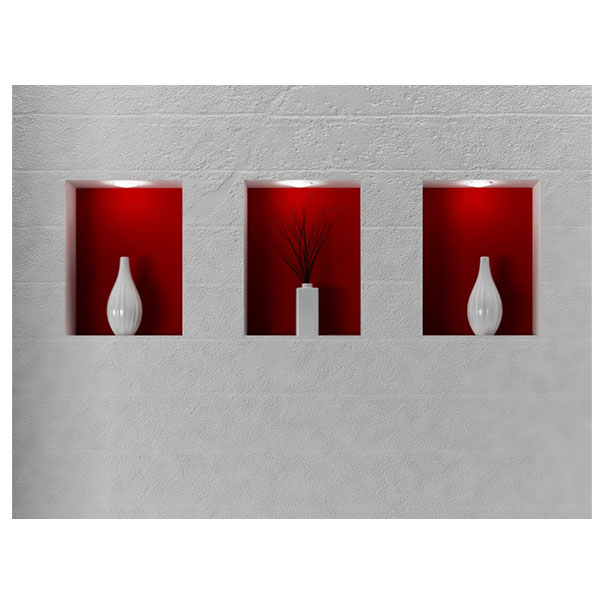

The DRD2 LED Downlight allows you to bring general ambient lighting into a space with a very small, architectural exposure. The high performing light engine with off-board driver allows for more flexible installations and increased lifetime with improved thermal management. The DRD fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding ambient or accent lighting in areas such as living rooms, hallways, art niches and display cases is now easier than ever.



Specifications

  • Off-board driver minimizes installation height and maximizes
    fixture life through improved heat management
  • 120V input to driver
  • Dimmable to less than 5% with compatible TRIAC dimmers
  • Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
  • Lifetime rated for greater than 60,000 hours
  • LM-79, LM-80 testing performed in accordance with IESNA standards
DRD2
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

626
Lumens

645
Lumens

662
Lumens

675
Lumens

8.1
Input Watts

8.1
Input Watts

8.1
Input Watts

8.1
Input Watts

77.3
lm/W

79.6
lm/W

81.7
lm/W

83.4
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DRD211202K
 3000K:DRD211203K
 4000K:DRD211204K
 5000K:DRD211205K
